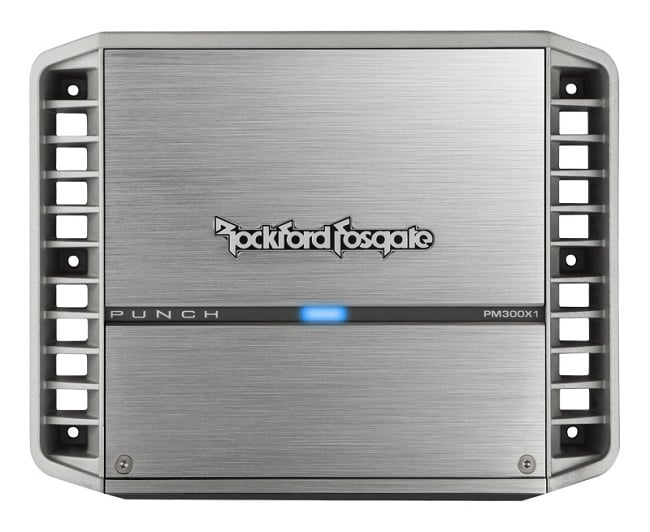

Rockford Fosgate Punch PM300X1

300W Full-Range Monoblock Punch Series Class AB Marine Amplifier

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• RMS: 200W x 1 @ 4 ohms, 300W x 1 @ 2 ohms
• CEA-2006 Compliant
• Features C.L.E.A.N. Set-up
• Protected against Dust, UV, & Corrosion
• Marine grade two part epoxy coating on circuit boards

Learn more about the pm300x1

We apologize

This item has been discontinued

Product Highlights


• RMS: 200W x 1 @ 4 ohms, 300W x 1 @ 2 ohms
• CEA-2006 Compliant
• Features C.L.E.A.N. Set-up
• Protected against Dust, UV, & Corrosion
• Marine grade two part epoxy coating on circuit boards

Description


Rockford Fosgate brand icon

Authorized dealer

Rockford Fosgate PM300X1

Rockford Fosgate PM300X1 - 300 Watt Full-Range Mono Amplifier

The PM300X1 is a 300 Watt mono amplifier with high dynamic power using Class-A/B technology and a conformal coated pc board designed for motorsport and marine applications. Don't let the small footprint fool you (2.38" x 7.76" x 9.86"), the PM300X1 is packed with industry leading technology. Rockford Fosgate does not simply paint an amplifier white and call it "Marine Grade"; with corrosion resistant stainless steel hardware and two-part epoxy coated circuit boards, these units are designed with the most extreme elements in mind. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want wherever you take it!


UV Inhibitor Materials

Beat the Elements

Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with ASTM D4326 testing and certification procedures. Rockford Fosgate moto-marine amplifiers not only have the capabilities you expect a Rockford amp to have, but they have been designed to stand up to the environmental conditions you are likely to subject them to.


CLEAN (Calibrated Level Eliminates Audible Noise)

C.L.E.A.N. Set-Up

Take the headache out of tuning your amplifier. Rockford Fosgate's integrated level setting technology called CLEAN (Calibrated Level Eliminates Audible Noise), utilize simple LED indicators to identify both signal clipping from the audio source and the output level clipping to the speakers. This precise level set-up eliminates speaker damaging distortion.





General Features:









  • Full-Range Monoblock Punch Series Class AB Marine Amplifier
  • RMS Power Rating:
    • 4 ohms: 200 watts x 1 chan.
    • 2 ohms: 300 watts x 1 chan.
  • Dynamic Power:
    • 4 ohms 0° Res : 260 watts x 1 chan.
    • 2 ohms 0° Res : 444 watts x 1 chan.
  • Includes a Rockford Fosgate Performance Verification Certificate
    w/ Inspection Data & Actual Power Rating, (aka "Birth Sheet")
  • CEA-2006 compliant amplifier
  • CE Compliant
  • LED power (blue) and protect (red) indicators
  • Features C.L.E.A.N. Set-up with 10-step set-up procedure
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware
  • Preamp RCA outputs to daisy chain multiple amps
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables
  • Protected against Dust, UV, & Corrosion
  • Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
  • Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen3)
  • High level input capable with Auto Turn-On circuit:
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • Input sensitivity: 150 mV - 12 V
  • Frequency Response: 20 - 20,000 Hz
  • Efficiency (average): 74% @ 4-Ohm
  • Total Harmonic Distortion (THD): <1.0%
  • Punch EQ Bass: 0 - +18dB boost @ 45Hz.
  • Punch EQ2 Treble: 0 - +12.5dB @ 12kHz
  • 12dB/octave Butterworth crossover (selectable)
  • Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Recommended Fuse Rating: 50A x 1 inline (not included)
  • Operating Voltage: 9 - 16 VDC
  • Max Current Draw: 45 A
  • Average Current Draw: 23 A
  • Power Wire Gauge: 4 AWG - 8 AWG
  • Speaker Wire Gauge: 8 AWG - 18 AWG
  • 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7.76"W x 9.86"L x 2.38"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
400 watts x 1 channel
Peak Power @ 2 ohms
600 watts x 1 channel
Amplifier Specifications
Series
Punch Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Amp Bluetooth Connectivity
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PM300X1

Weight:

9.50lbs

Internal SKU:

pm300x1

Internal Product ID:

94303
