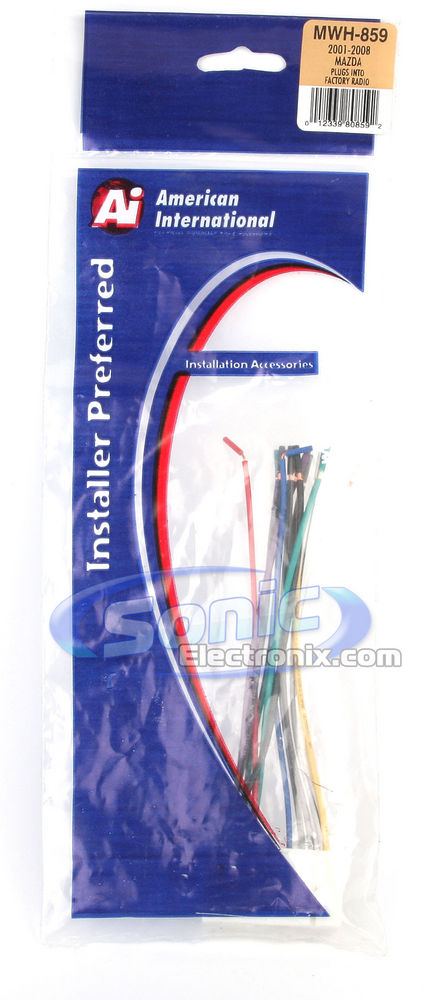

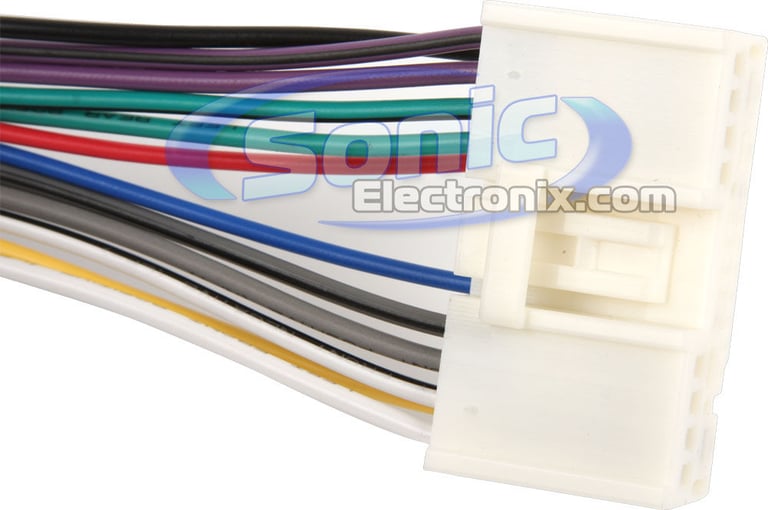

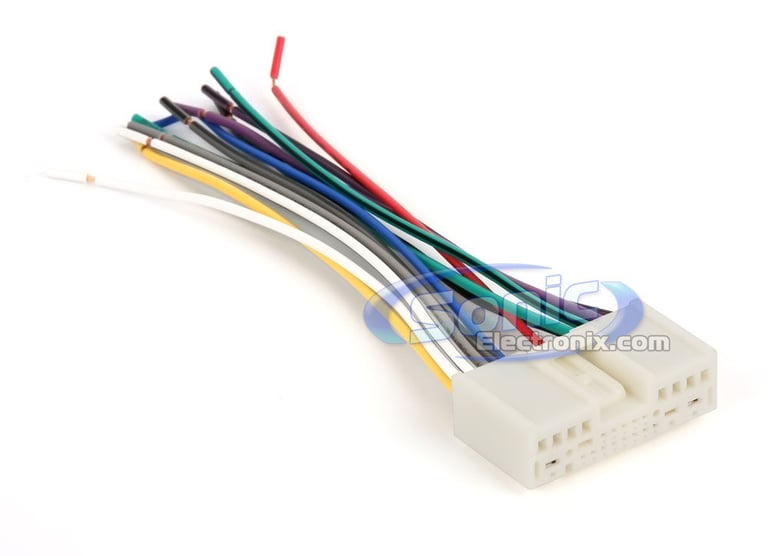

American International MWH-859

Male (Reverse) Harness for 2001-2008 Select Mazda Vehicles (AKA: MA03RB)

highlight-star-icon

In-dash car radio reverse harness that plugs into the factory OEM radio plug for select 2001-2008 Select Mazda Vehicles, keeping it in tact (instead of cutting it off), and converting colors to the aftermarket standard

Learn more about the mwh859

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

AP-M61SE main

Deaf Bonce Apocalypse AP-M61SE

520W Peak (260W RMS) 6.5” Apocalypse Series Midrange 4-ohm Speakers

8
VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

CS65C main

Crunch CS65C

600W Peak (120W RMS) 6.5" CS Series 2-Way 4-ohm Component Speaker System

28
-30.01%

$34.99

List price $49.99

MPK 165.3 main

Hertz MPK165.3

440W Peak (220W RMS) 6.5" Mille PRO Series 2-Way 4 Ohm Component Speaker System

2
-14.90%

$599.99

List price $705.00

PRO-X6.4BMSL main

DS18 PRO-X6.4BMSL (Sold Individually)

400W Peak (200W RMS) 6.5” PRO-X Series Pro Audio Mid-Range 4-ohm Bullet Loudspeaker

1

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Description


American International brand icon

Authorized dealer

When replacing your factory radio with an after-market car stereo, the MWH-859 wire harness is a must for a quick and clean installation. It eliminates cutting your OE radio plug. After connecting it, your install is simple as the wires will color-match and easily connect to the after-market stereo. Without the MWH-859, you would have to cut the OE radio plug and manually test each wire to connect to your after-market receiver.

In addition, because you do not have to cut your OE radio plug off, the MWH-859 allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver. We also recommend the Scosche BOBAZT for a quick connection that is sure to last.

Product Features:
  • Reverse harness is used when installing an aftermarket stereo
  • Connects the aftermarket stereo harness to the vehicles factory harness
  • Designed specifically to fit the compatible vehicles
  • Plugs into the factory harness without cutting any wires
  • Standard color coded wires provide a consistent and simplified installation
  • Made from OEM quality materials
  • Compatible with Select 2001-2008 Mazda Vehicles

Connections:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Blue with White Stripe - Amp Turn-on
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
