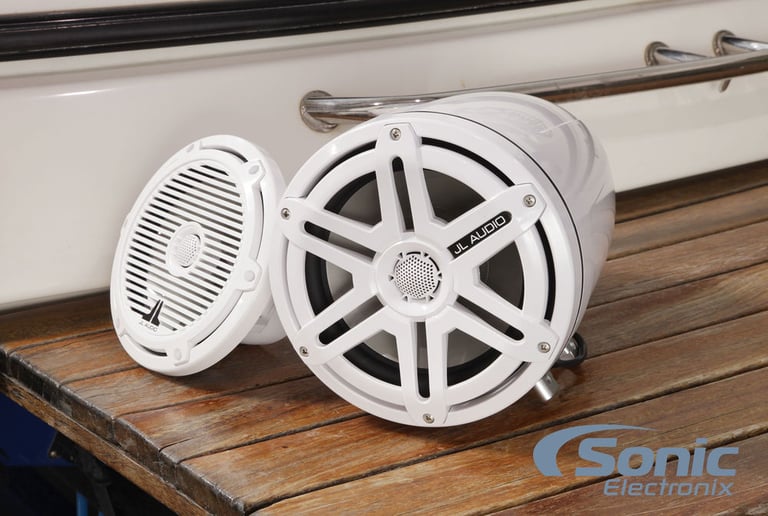

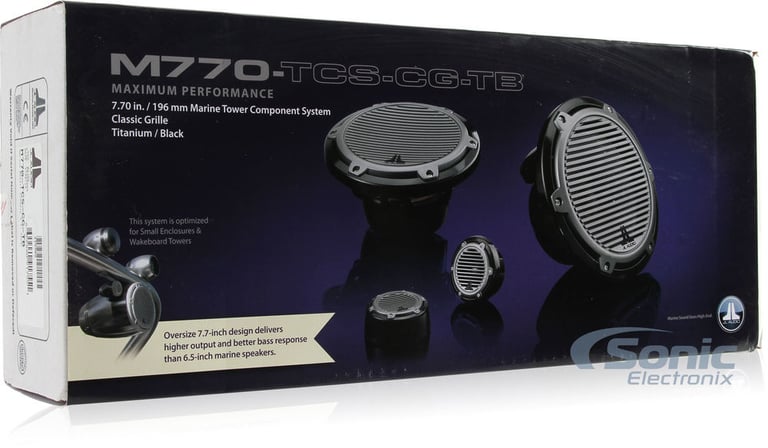

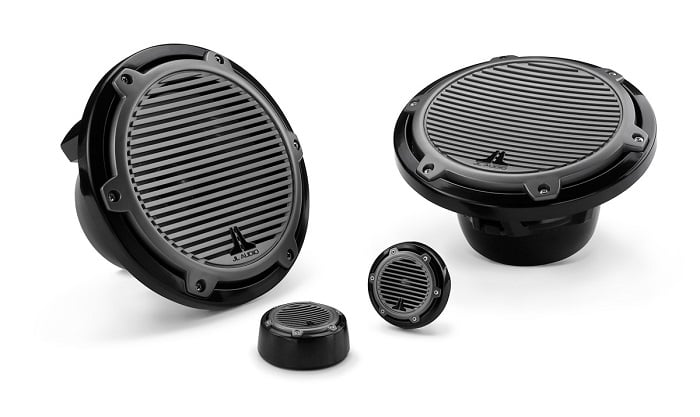

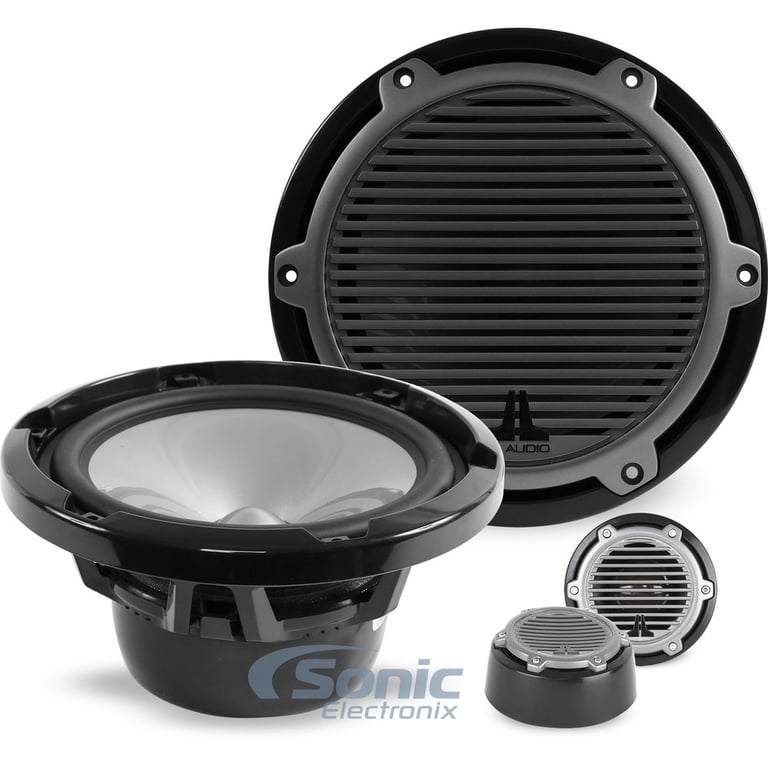

200W 7.7" (196 mm) 2-Way M-Series Marine Tower Component System
• 100 Watts RMS Each Side
• 1.00" pure silk dome tweeter
• Injection-molded, mica-filled polypropylene cone with UV inhibitors w/ Synthetic rubber surround
• 4 Ohm Impedance
• Sensitivity: 91.0 dB
• Mounting Depth: 3.15 "
7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)
$829.99
List price $930.00
10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)
$798.00
List price $999.99
Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)
$199.00
List price $250.00
Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)
$199.00
List price $240.00
Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready
$249.99
List price $280.00
Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa
$129.99
List price $150.00
10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto
$309.99
List price $349.99
Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)
$219.00
List price $270.00
• 100 Watts RMS Each Side
• 1.00" pure silk dome tweeter
• Injection-molded, mica-filled polypropylene cone with UV inhibitors w/ Synthetic rubber surround
• 4 Ohm Impedance
• Sensitivity: 91.0 dB
• Mounting Depth: 3.15 "

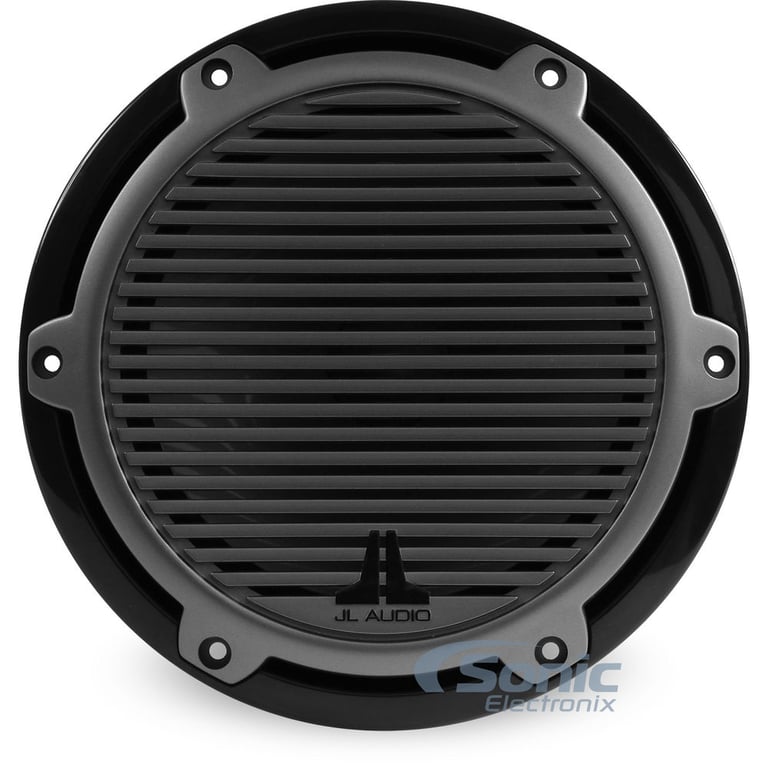

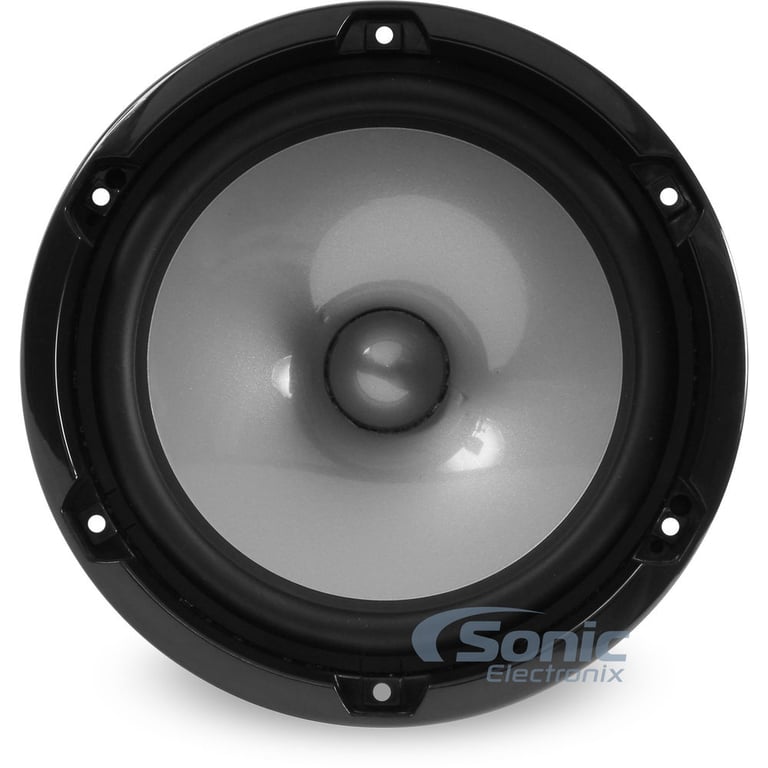

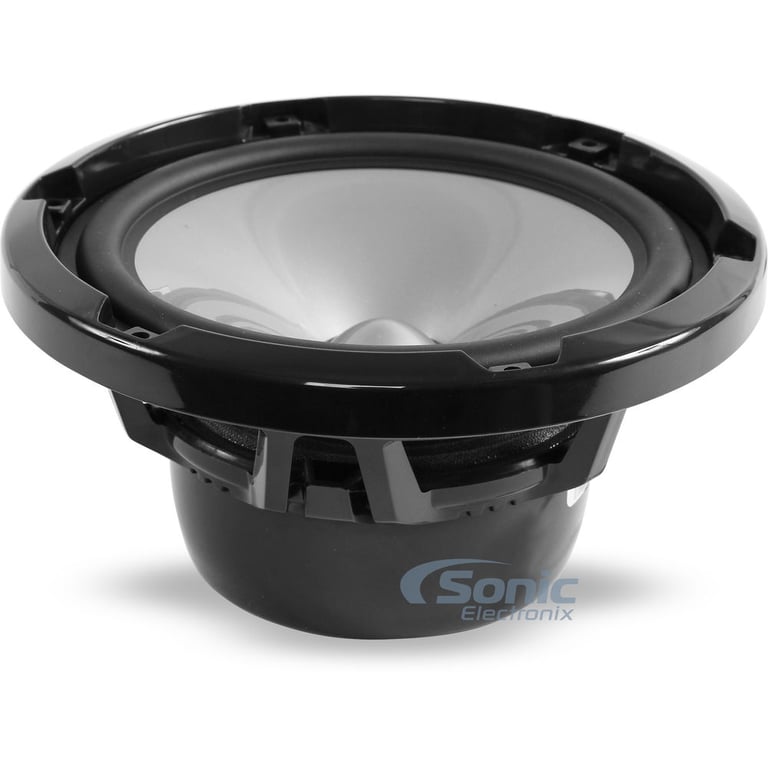

The unique 7.7" diameter of the component woofer provides 20% more surface area, than the typical 6.5", therefore providing an increase in efficiency as well as the ability to play louder and cleaner at high volumes. Although these woofers require a slightly larger mounting hole, they are well worth the small modification for the amount of sound they can produce.
TCS (aka Tower Component) models have component woofers specifically engineered for enclosed operation. What does this mean? This means that they are designed to operate within an enclosure. More specifically, the woofer design is optimized to operate with a small volume of air behind it (ideally less than 1.5ft³). The bass response of the speaker will suffer significantly if placed in a large enclosure or in an Infinite Baffle (aka "Free Air"), so make sure your system is planned accordingly. The M-Series is purpose-engineered and built for real marine duty and has been specifically designed to deliver maximum audio performance in any open-air boating environment. Although M770-TCS Component Systems can be used with as little as 40 Watts per channel, for best audio performance JL Audio recommends amplifiers capable of between 75 - 150 Watts of continuous power per channel, like the JL Audio M400/4 or JL Audio MHD600/4.

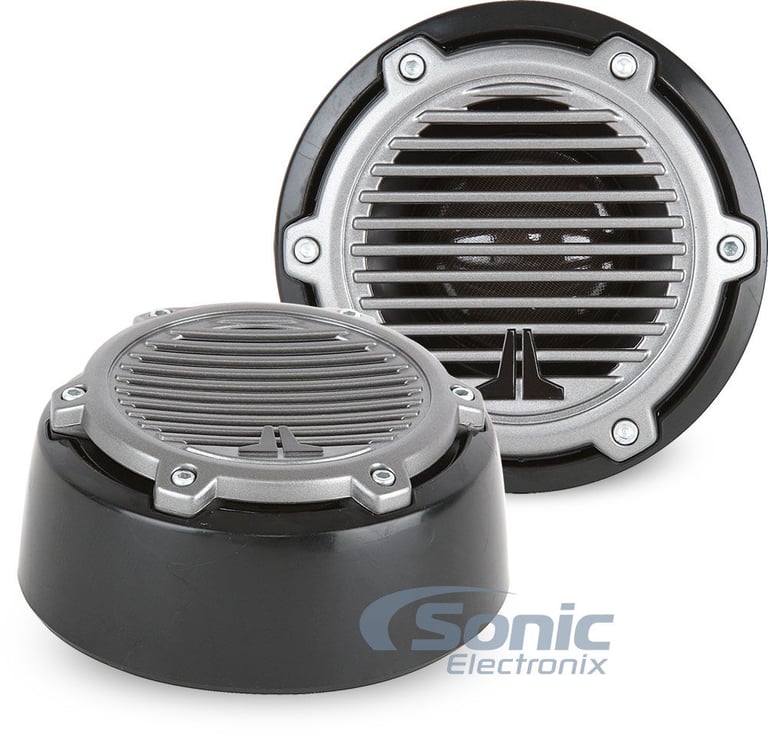

A 1-inch pure silk dome component tweeter handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics that ultimately result in extremely transparent crisp audio. You will appreciate the clean, articulate high-frequency response of the M-Series dome tweeter, especially at higher volume levels. The tweeter is specially treated to withstand the harsh marine environment, and is optimized to provide sound that will cut through even the most demanding of those marine environments.

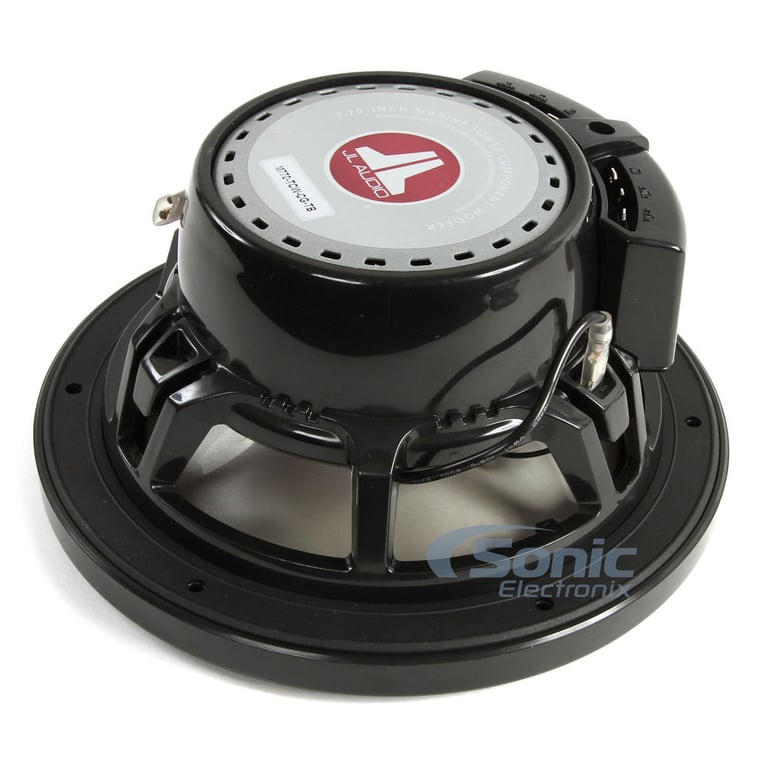

Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion. The system's true 2-way passive crossover network is sealed within the protective capsule and mounted to the woofer's frame so that it does not require additional mounting provisions and is protected from the harmful elements. JL Audio utilizes Ultraviolet testing chambers (to simulate years of sun exposure) and Salt Fog chambers (to simulate years of exposure to salt-water environments to ensure that the M-Series not only sound great in your boat, but will also sound great for many, many years.
 |
 |
 |
 |

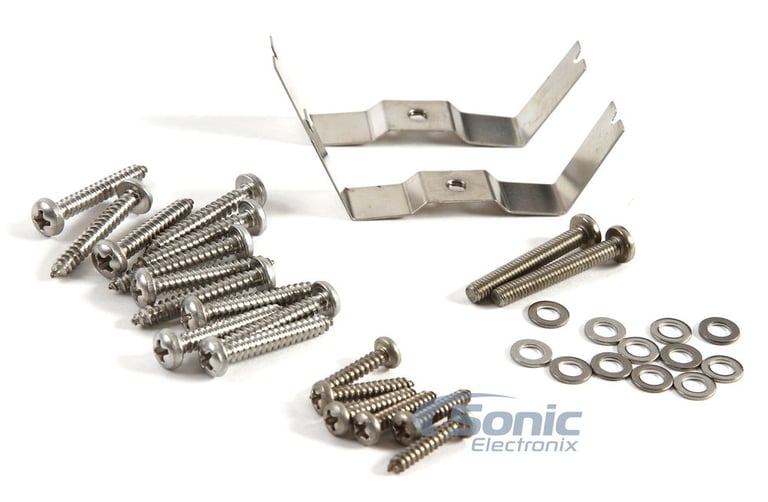

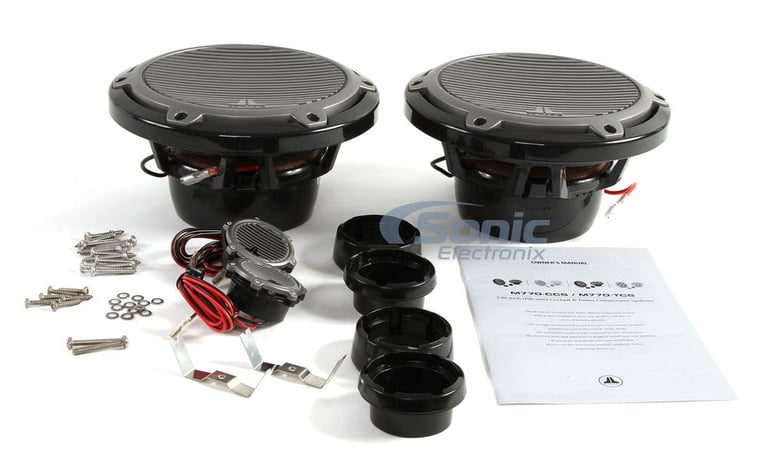

Priced Per Complete Component System: 2 midwoofers (w/ Built-In Crossover), and 2 tweeters

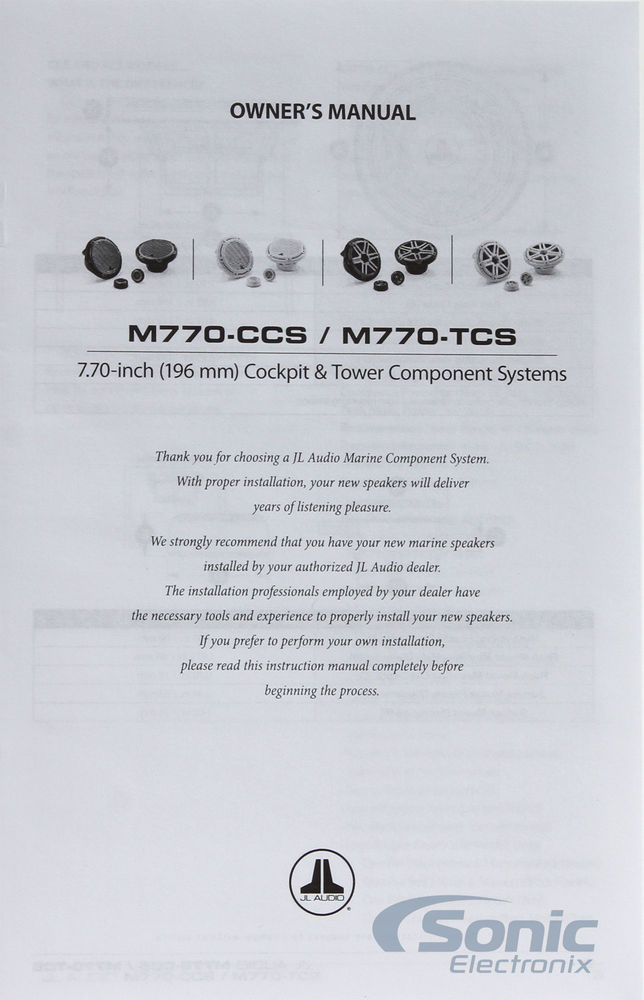

Check out the JL Audio M770-TCS Owner's Manual
This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.
