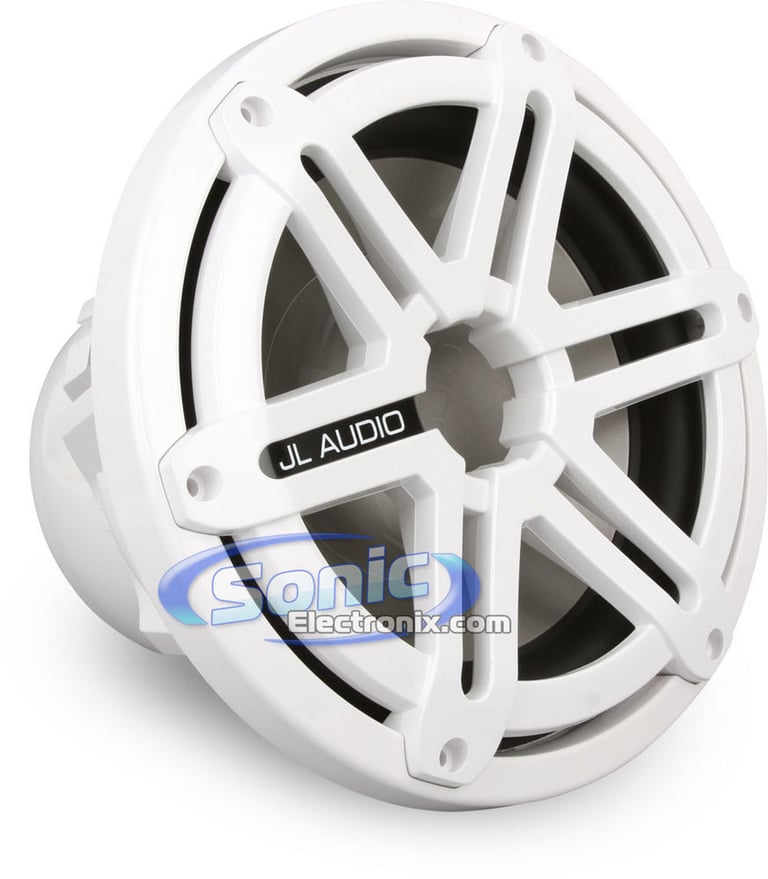

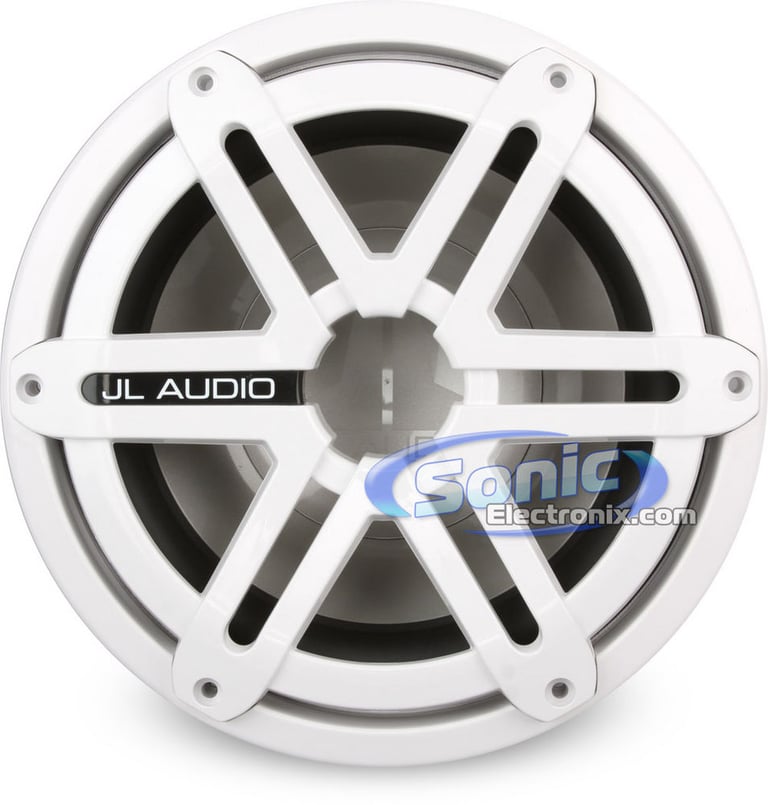

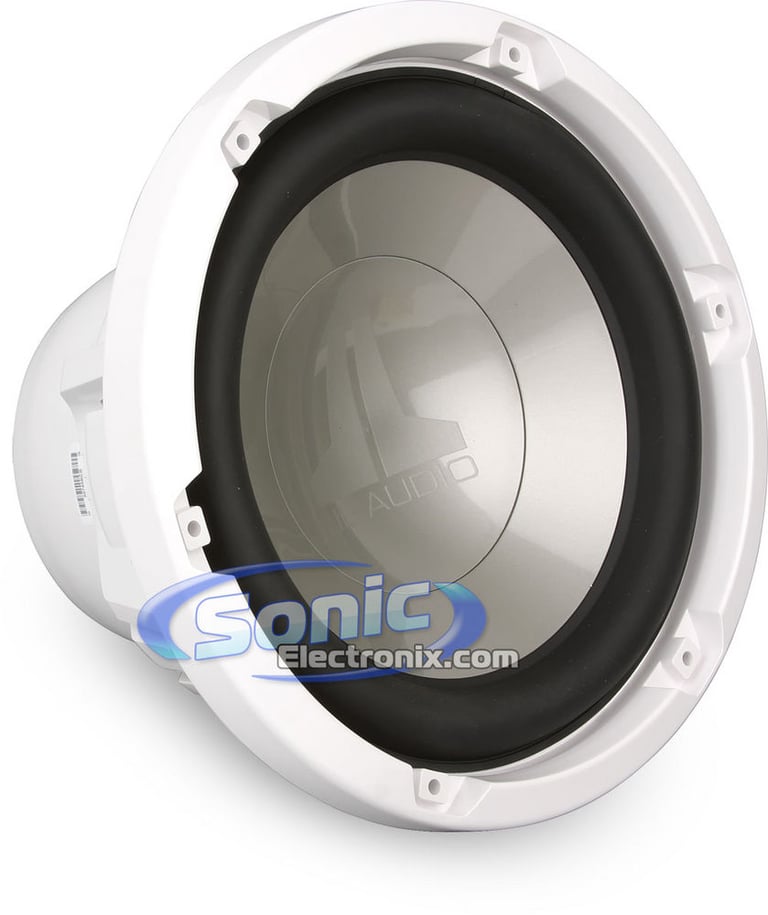

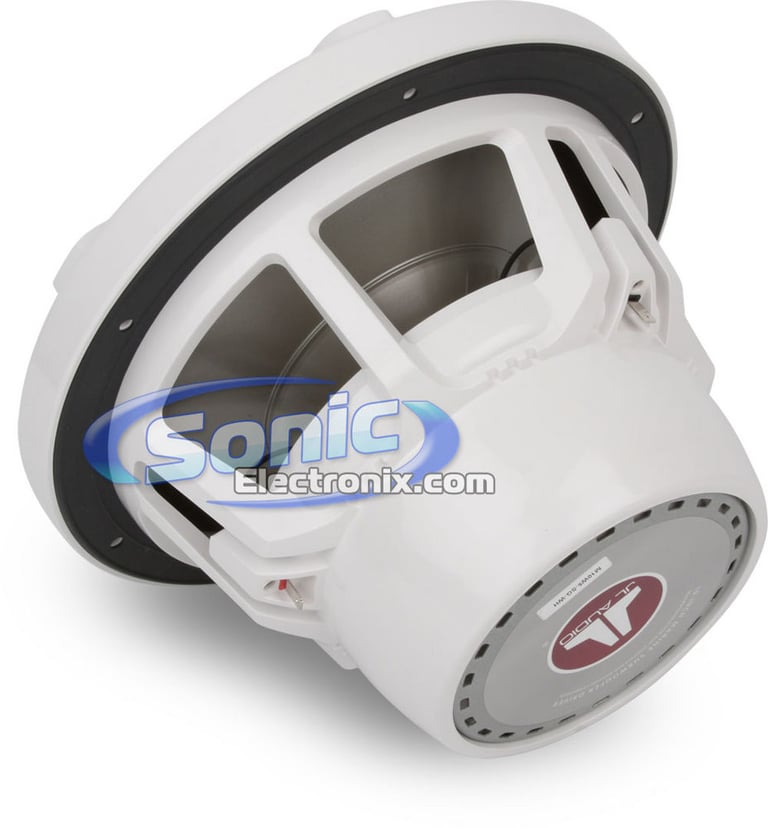

JL Audio M10W5-SG-WH - White Sport Grille

250W 10" M-Series Single 4-ohm Marine Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• 75 - 250W RMS
• Injection-Molded Mica-filled Polypropylene Cone
• Synthetic rubber surround specifically formulated with UV inhibitors
• Polymer Basket is Corrosion and UV-Resistant
• Marine-grade Stainless Steel Mounting Hardware
• Marine Grade Synthetic Spiders

Learn more about the m10w5sgwh

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Product Highlights


• 75 - 250W RMS
• Injection-Molded Mica-filled Polypropylene Cone
• Synthetic rubber surround specifically formulated with UV inhibitors
• Polymer Basket is Corrosion and UV-Resistant
• Marine-grade Stainless Steel Mounting Hardware
• Marine Grade Synthetic Spiders

Description


JL Audio brand icon

Authorized dealer

M-Series 10-inch Marine Subwoofer Driver for an Enclosure

JL Audio M10W5-CG-WH

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M-Series M10W5 woofers are designed to operate within a dedicated enclosure. The M10W5 is best used with amplifier power in the 75W - 250W range and are optimized to operate in a compact enclosure (0.5 to 1.0 cu.ft.). Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system. If you need a subwoofer driver that operates without a dedicated enclosure (i.e. Infinite Baffle), select the M10IB4, instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.


JL Audio M10IB5 Power Range


General Features:







  • 10" M-Series Marine Subwoofer for an Enclosure
  • Power Handling:
    • RMS: 250 watts
  • Impedance: 4 ohm
  • Recommended power range: 75 - 250 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
  • Stainless steel mounting hardware included
  • Efficiency: 86.7 dB
  • Xmax: 13.2 mm
  • Mounting Depth: 5.93"
  • Cutout Diameter: 8.875"
  • Recommended Sealed Enclosure: 0.875ft³
  • Recommended Ported Enclosure: 1.25ft³
  • Infinite Baffle Use: No
  • Color: White
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
Check out the JL Audio M10W5 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio M10W5-SG-WH - White Sport Grille Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio M10W5-SG-WH - White Sport Grille Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio M10W5-SG-WH - White Sport Grille Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio M10W5-SG-WH - White Sport Grille Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

M6-10IB-S-GwGw-4 small

JL Audio M6-10IB-S-GwGw-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5.9"
• Sensitivity: 86.1 dB

(3)

$479.99

List price $479.99

JBLMARSUBSD102GAM small

JBL Stadium Marine 102 (JBLSUBMASD10AM)

• Peak Power: 900 watts
• RMS Power: 300 watts
• Impedance: 2 or 4 ohm
• Multi-color RGB LED lights
• Plus One Polypropylene Cone
• Rubber Surround
• Mount depth: 4-7/8"
• Sensitivity: 89 dB

$149.95

List price $449.95

M6-8IB-S-GwGw-4 small

JL Audio M6-8IB-S-GwGw-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5.07"
• Sensitivity: 86.8 dB

$349.99

List price $349.99

STADIUMMW1000AM small

JBL Stadium Marine MW1000 (MW1000AM)

• RMS: 300 Watts / Peak: 900 Watts
• Plus One cones provide more overall speaker-cone area than other cones in its class
• Unique and eye-catching RGB illumination
• Features SSI (Switch-Selectable Impedance), which allows you to choose either 2 or 4 ohm load impedance
• Durable One-piece Polymer basket

$149.95

List price $449.95

XM1041WL small

Kenwood eXcelon XM1041WL

• Peak Power: 1300 watts
• RMS Power: 300 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 5-1/2"
• Sensitivity: 84 dB

$199.00

List price $580.00

PSW10.4D small

DS18 PSW10.4D

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Water Resistance Paper Cone
• Rubber Surround
• Mount depth: 3"
• Sensitivity: 84 dB

(1)

$179.95

List price $179.95

DB 1242 DVC small

Polk Audio DB 1242 DVC (DB1242DVC)

• Peak Power: 1110 watts
• RMS Power: 375 watts
• Impedance: Dual 4 ohm
• Polypropylene cone
• Santoprene Rubber surround
• Mount depth: 4.34"
• Sensitivity: 86 dB

(4)

$130.00

List price $149.99

M6-8IB-S-GmTi-i-4 small

JL Audio M6-8IB-S-GmTi-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.7 dB

$429.99

List price $429.99

M6-8IB-S-GwGw-i-4 small

JL Audio M6-8IB-S-GwGw-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.8 dB

(1)

$399.99

List price $399.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86.7 dB
Xmax (millimeters)
13.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Synthetic Rubber
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
5.93"
Cutout Diameter
8.875"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M10W5-SG-WH

Weight:

15.00lbs

Internal SKU:

m10w5sgwh

Internal Product ID:

17443
