Infinity Primus PR5010cs

330W Max (110W RMS) 5.25" Primus 2-Way Component Car Speakers

Infinity
Shop all Infinity
highlight-star-icon

• 165W Max Each, 55W RMS Each
• .75" Edge-Driven Textile Dome Tweeter
• Plus One Polypropylene Cone
• 2.7 Ohms Impedance
• Sensitivity: 88dB
• Mounting Depth: 1-15/16"

Learn more about the pr5010csam

We apologize

This item has been discontinued

Description


Infinity brand icon

Authorized dealer

Product Details:

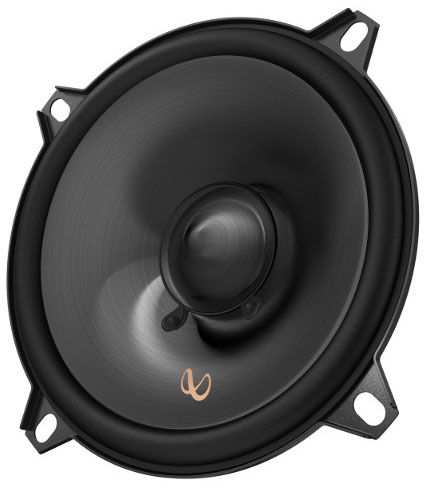

  • 5.25" Primus 2-Way Component Car Speakers
  • Power Handling:
    • Peak: 330 watts per set / 165 watts each side
    • RMS: 110 watts per set / 55 watts each side
  • Plus One Polypropylene Cone
  • High-roll rubber surround

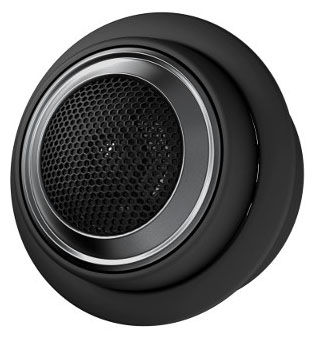

  • 3/4" edge-driven textile dome tweeter
  • Rubber magnet boot cover
  • 1" Voice coil
  • Top-mount Depth: 1-15/16"
  • Cutout Dimensions: 4-1/2"
  • 2.7 ohms impedance
  • Frequency Response: 67 - 20,000 Hz
  • Sensitivity: 88dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

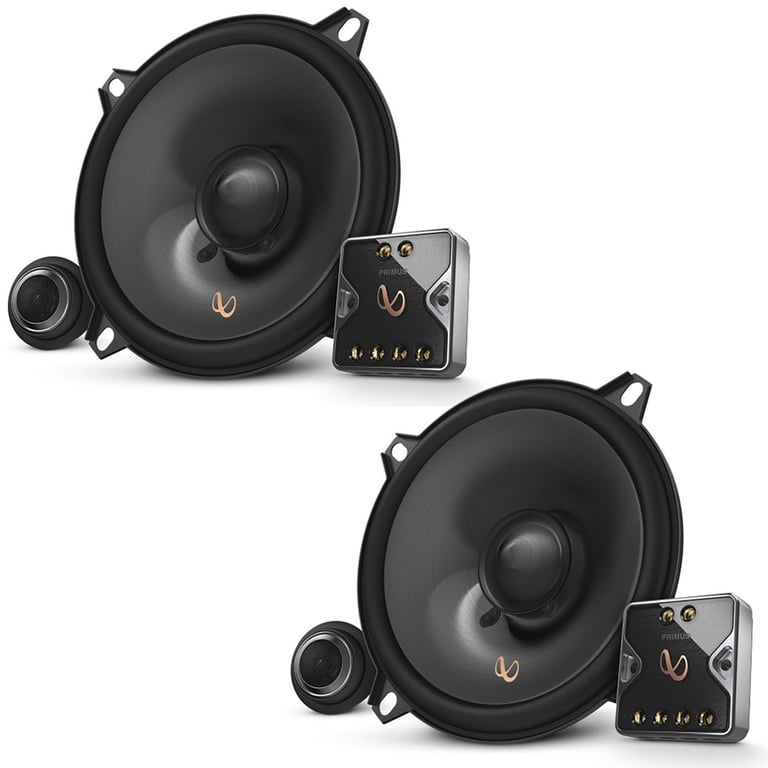

  • Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Infinity Infinity Primus PR5010CS owner’s manual



PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov



Specifications & Details


Speaker Specifications
Series
Primus Series
Priced Per
Pair
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
3/4"
Tweeter Composition
Textile
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Peak Power Handling
165 watts
RMS Power Handling
55 watts
Total PEAK Per Pair/Set
330 watts
Total RMS Per Pair/Set
110 watts
Sensitivity
88 dB
Frequency Response
67 - 20,000 Hz
Impedance (Per Voice Coil)
2.7
Voice Coil Diameter
2.7
Shallow Mount Installation
No
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
1-15/16"
Cutout Dimensions
4-1/2"
Number of Speakers
2 Woofers + 2 Tweeters
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
No
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
User manual
Brand sticker/decal
WITB: Speakers
Speakers (2)
Tweeters (2)
Tweeter angle mounts (2)
Tweeter flush mounts (2)
Tweeter surface mounts (2)

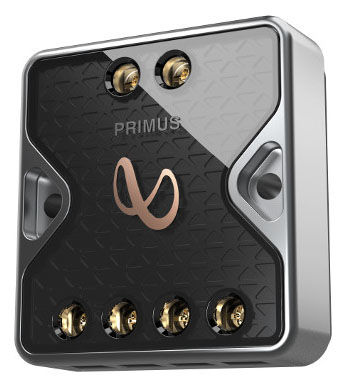

Crossover networks (2)
Mounting clips (8)
Other Accessory #1
16 mounting screws
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Infinity Primus PR5010CS

Weight:

6.00lbs

Internal SKU:

pr5010csam

Internal Product ID:

175077
