Name: Power Acoustik OVN2-2200 R/B (OVN2-2200)
Brand: Power Acoustik
SKU: ls-ovn22200-rb
Price: 69.99 USD
Availability: Discontinued
Rating: 5.0000 (3 reviews)

Shop all Power Acoustik

by Power Acoustik

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

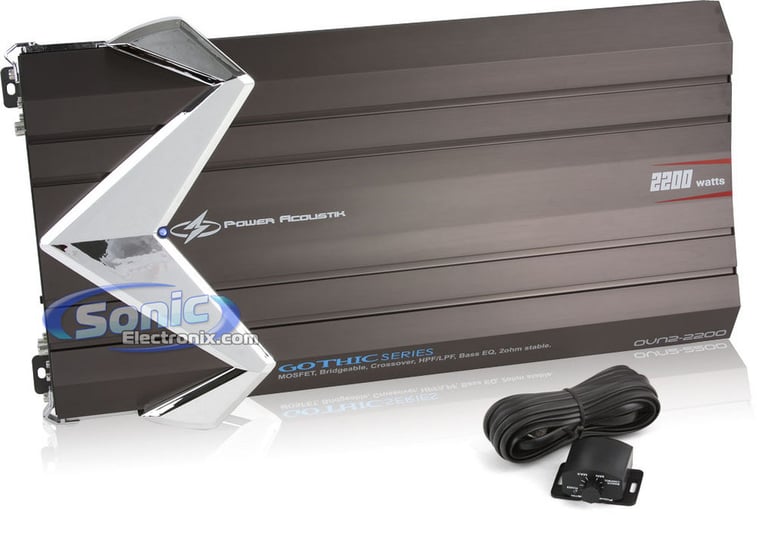

Power Acoustik OVN2-2200 R/B (OVN2-2200) Image 1 — Power Acoustik OVN2-2200 R/B (OVN2-2200)

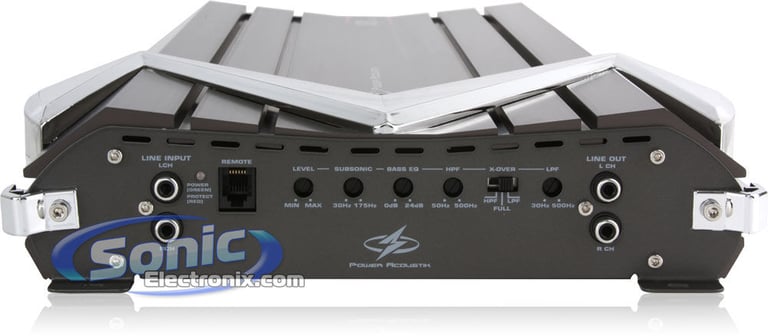

Power Acoustik OVN2-2200 R/B (OVN2-2200) Image 2 — Power Acoustik OVN2-2200 R/B (OVN2-2200)

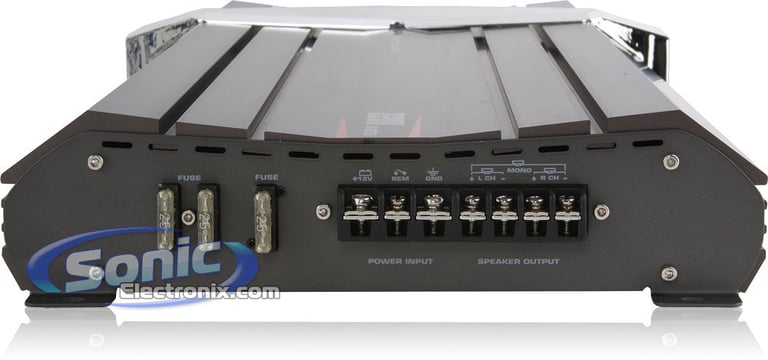

Power Acoustik OVN2-2200 R/B (OVN2-2200) Image 3 — Power Acoustik OVN2-2200 R/B (OVN2-2200)

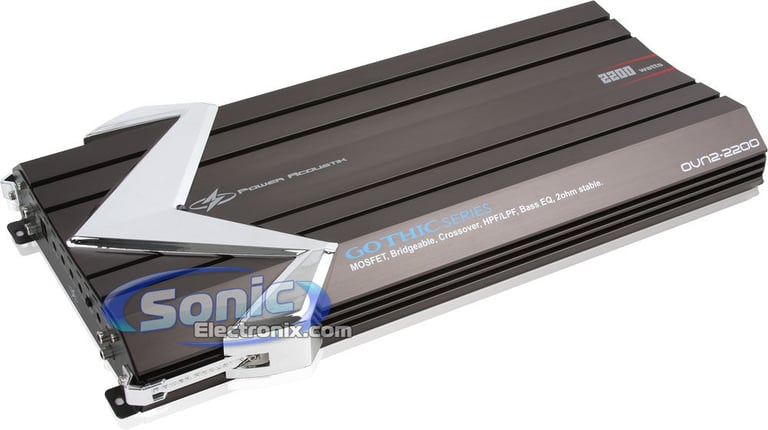

Power Acoustik OVN2-2200 R/B (OVN2-2200) Image 4 — Power Acoustik OVN2-2200 R/B (OVN2-2200)

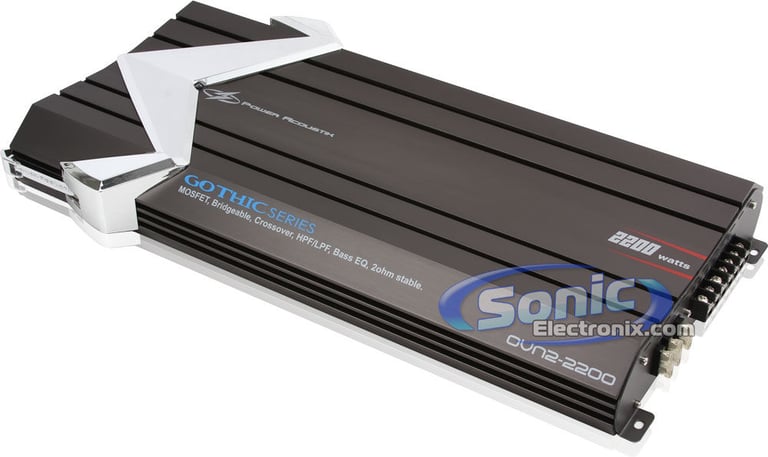

Power Acoustik OVN2-2200 R/B (OVN2-2200) Image 5 — Power Acoustik OVN2-2200 R/B (OVN2-2200)

Power Acoustik OVN2-2200 R/B (OVN2-2200) Image 6 — Power Acoustik OVN2-2200 R/B (OVN2-2200)

Power Acoustik OVN2-2200 R/B (OVN2-2200) Image 7 — Power Acoustik OVN2-2200 R/B (OVN2-2200)

Power Acoustik OVN2-2200 R/B (OVN2-2200) Image 8 — Power Acoustik OVN2-2200 R/B (OVN2-2200)

Power Acoustik OVN2-2200 R/B (OVN2-2200)-video

Product videos

Product highlights

• Gothic Series 2-Channel Car Amplifier
• 370W x 2 Chan. @ 4 Ohm
• 450W x 2 Chan. @ 2 Ohm
• Bridged 900W x 1 Chan. @ 4 Ohm
• Pulse Width Modulation Circuitry
• Tri-Mode Capable
• LED Power Indicators
• Level Inputs

Learn more about the ls-ovn22200-rb

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Gothic Series 2-Channel Car Amplifier
RMS Power Rating:

4 ohm: 370 watts x 2 chan.
2 ohm: 450 watts x 2 chan.
Bridged, 4 ohm: 900 watts x 1 chan.

Max power output: 2200 watts
MOSFET power supply
Pulse width modulation circuitry

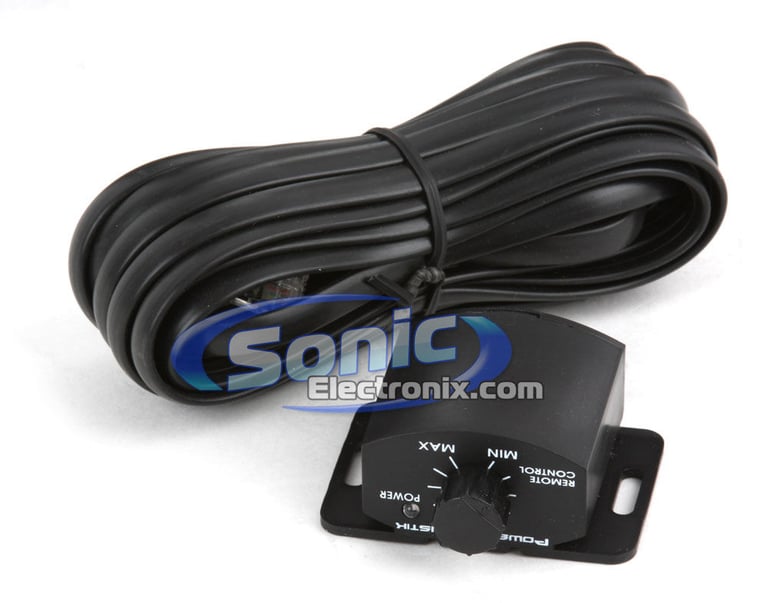

Remote bass level input (remote level control included)
LED power indicators
Bass Boost (0-24 dB bass boost at 45 Hz)
Tri-Mode capable
2/1 channel operation
2 Ohm stereo, 4 ohm mono stable
Preamp RCA outputs
3-Way system protection circuitry (short, thermal and overload)
Gunmetal gray anodized finish with chrome accents
Heavy duty aluminum alloy heatsink
RCA level inputs
Screw terminals
Low level inputs (200mV-8V)
Variable high-pass filter (50-500 Hz, 12 dB/octave)
Variable low-pass filter (30-500 Hz, 12 dB/octave)
Subsonic Filter (12 dB at 30-175 Hz)
Frequency response: 10-30,000 Hz
Dimensions: 20-3/8"L x 10-5/8"W x 3"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
Item Condition: Factory Refurbished
90-Day Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

370 watts x 2 channel

RMS Power @ 2 ohms

450 watts x 2 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

900 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

2200 watts

Total RMS Power Output

900 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.02%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

30 - 500 Hz

Subsonic Filter

30 - 175 Hz

Signal-to-Noise Ratio

98 dB

Bass Boost

0 - 24 dB

Remote bass/level controller

Yes

Fuse Rating

25A x 3

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Power Acoustik OVN2-2200 R/B (OVN2-2200) thumbnail image

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.7
Value		5
Features		4.4
Design		4.7
Usability		5

Customer Reviews

Sort by:

Awsome amp

Bought on closeout deal best investment I every made. I have it pushing two 8inch Baymas in my rear deck. Voice is crazy. It is a huge and bulky amp. Didn't have it screwed down for a while and still no distortion. I highly under estimated this amp. Looking to buy another power acoustik mono block for my subs.

By Jay on June 25, 2013

4 found this helpful

Report abuse

OVN 2200/2 power house

I like the look of this amp. It plays loud and clear without getting hot. I am using it to power 6 8 ohm mid bass speakers. 3 per side for a 2.66 ohm load per channel. Love it, don't hesitate BUY IT!

Pro's: Looks, Power, Price, Sound!!
Con's: Size, it's almost 22" long.

By Adrian on July 1, 2013

3 found this helpful

Report abuse

OVN2-2200

Very good amp for the price. Not only does it look nice but if you feed it 14.4+ volts, you will get about rated power from it. The amp easily powers two fifteens all day long. I would recommend this to anyone.

By Nathan on May 15, 2013

2 found this helpful

Report abuse
