Name: Hifonics ZXi 6010 R/B
Brand: Hifonics
SKU: LS-zxi6010-RB
Price: 109.99 USD
Availability: Discontinued

by Hifonics

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

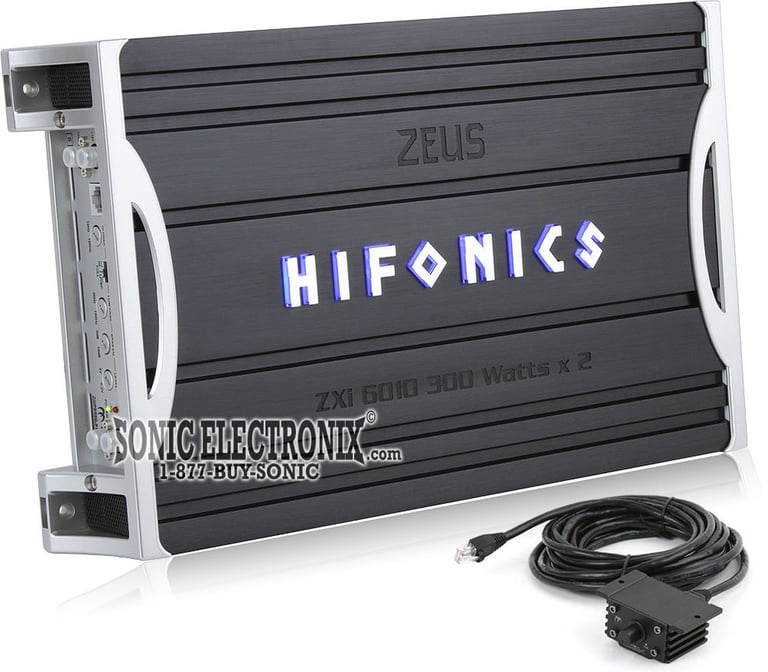

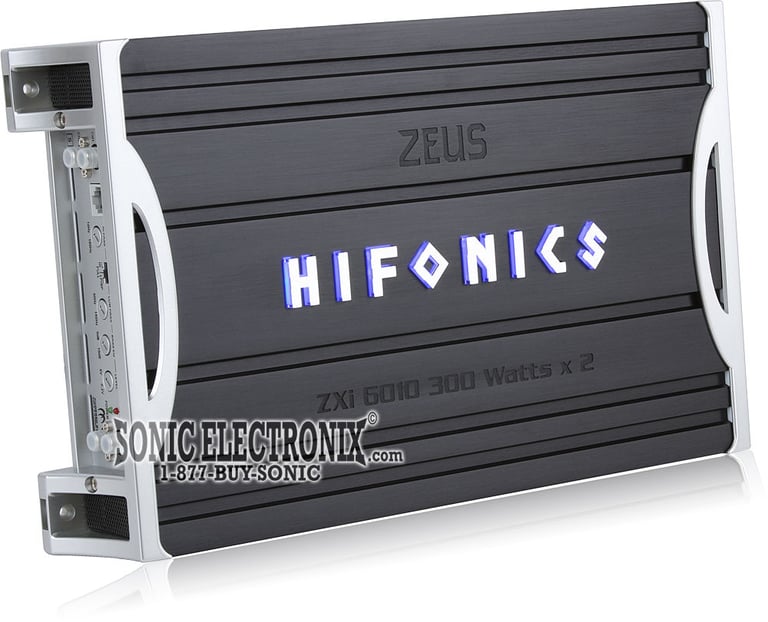

Hifonics ZXi 6010 R/B Image 1 — Hifonics ZXi 6010 R/B

Hifonics ZXi 6010 R/B Image 2 — Hifonics ZXi 6010 R/B

Hifonics ZXi 6010 R/B Image 3 — Hifonics ZXi 6010 R/B

Hifonics ZXi 6010 R/B Image 4 — Hifonics ZXi 6010 R/B

Hifonics ZXi 6010 R/B Image 5 — Hifonics ZXi 6010 R/B

Hifonics ZXi 6010 R/B Image 6 — Hifonics ZXi 6010 R/B

Hifonics ZXi 6010 R/B Image 7 — Hifonics ZXi 6010 R/B

Product videos

Product highlights

Zeus ZXI AB Car Amplifier • 2-Channel Operation• 150W x2 Chan. @ 4 Ohm • 300W x2 Chan. @ 2 Ohm • Ultra-Fi MOSFET Power Supply • Built-In System Diagnostics • Crossover Selector • Aluminum Alloy Vented Heatsink •

Learn more about the LS-zxi6010-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Zeus ZXI 2-Channel AB Car Amplifier
RMS Power Rating:

4 ohm: 150 watts x 2 chan.
2 ohm: 300 watts x 2 chan.
Bridged, 4 ohm: 600 watts x 1 chan.

Max power output: 600 watts
Ultra-Fi MOSFET power supply decreases distortion and produces high fidelity

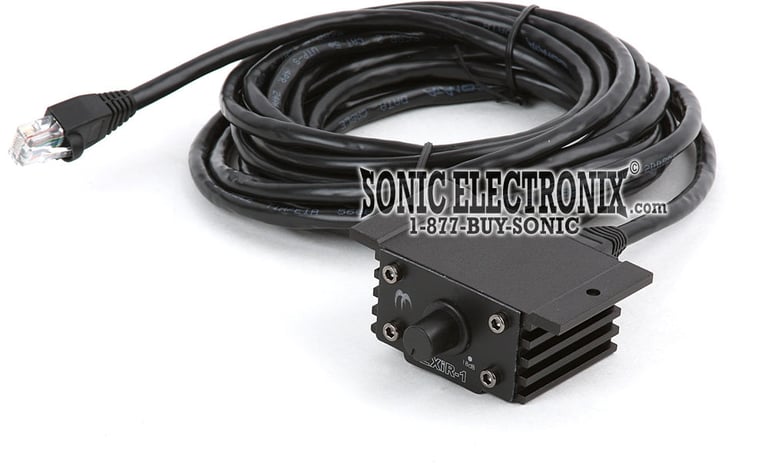

Wired remote bass level control included.
LED power/protect indicators
Bass Boost: (0-10 dB bass boost at 45 Hz)
Soft start sound
2/1 Channel operation

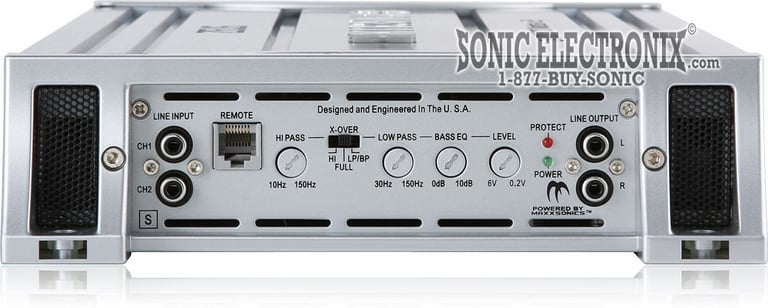

Preamp RCA outputs
RCA level inputs

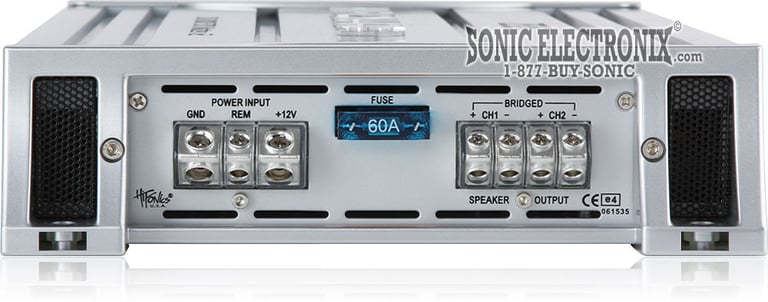

Screw terminals
Heavy duty aluminum alloy heatsink and vents for uncontested heat dissipation
Built-in system diagnostics protects from short circuits, over load, thermal over-heat and DC offset
Crossover selector for high pass, full range or low pass operation
Damping Factor: 200
Variable high-pass filter (10-150 Hz, 24 dB/octave)
Variable low-pass filter (30-150 Hz, 24 dB/octave)
Subsonic filter and level control
Frequency Response: 10-30,000 Hz
Dimensions: 13-3/4L x 9-1/2W x 2-5/8H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 2 channel

RMS Power @ 2 ohms

300 watts x 2 channel

Bridged RMS Power

600 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

10 - 150 Hz

Low-Pass Crossover Frequency

30 - 150 Hz

Signal-to-Noise Ratio

95 dB

Channel Separation

70 dB

Bass Boost

0 - 10 dB

Remote bass/level controller

Yes

Fuse Rating

60A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
