Description


American International brand icon

Authorized dealer

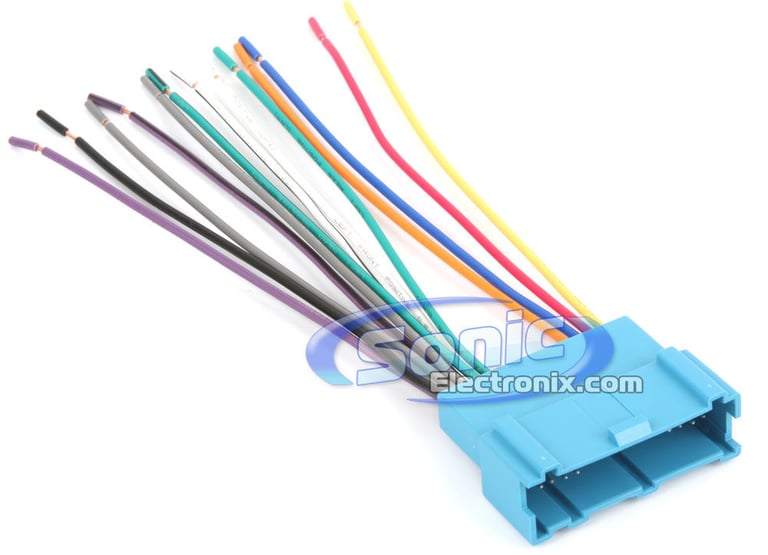

When replacing your factory radio with an after-market car stereo, the GWH-346 wire harness is a must for a quick and clean installation. It eliminates cutting your OE radio plug. After connecting it, your install is simple as the wires will color-match and easily connect to the after-market stereo. Without the GWH-346, you would have to cut the OE radio plug and manually test each wire to connect to your after-market receiver.

In addition, because you do not have to cut your OE radio plug off, the GWH-346 allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver. We also recommend the Scosche BOBAZT for a quick connection that is sure to last.

Product Features:
  • Car Harness for Select 1994-2004 GM/Chevrolet Vehicles

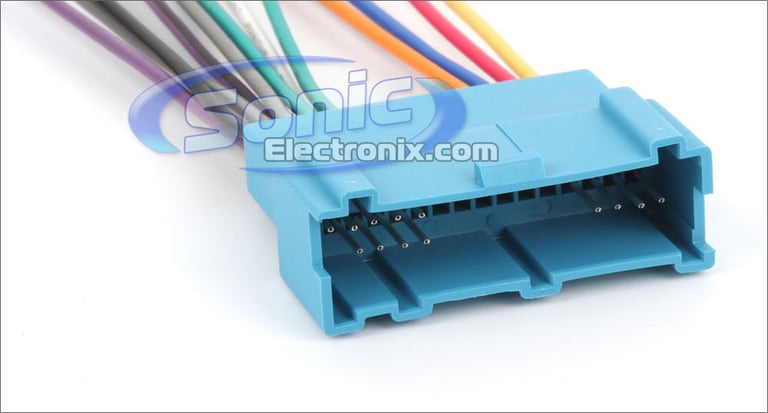

  • 32-pin plug
  • Plugs into car harness
  • High quality factory plug GXL Wire provides flexibility and handles more power
  • High impact ABS OEM Quality plastic molded connectors
  • OEM Quality terminals
  • Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
  • No cutting of factory wiring needed
  • Metra Equivalent: Metra 70-2001 and Scosche Equivalent: Scosche GM03B
  • 1-year Manufacturer's warranty
Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
Compatible with the following vehicles:
  • Buick:
    • 1997 - 2003 Century
    • 1995 - 1999 Le Sabre
    • 1995 - 2005 Park Avenue
    • 1995 - 2005 Regal
    • 1996 - 1999 Riviera
    • 1995 - 1996 Roadmaster
    • 1996 - 1998 Skylark
  • Cadillac:
    • 1997 - 1999 Catera
    • 1992 - 1999 Seville
  • Oldsmobile:
    • 1994 - 1999 88
    • 1994 - 1996 98
    • 1996 - 1998 Achieva
    • 1999 - 2000 Alero
    • 1995 - 2000 Aurora
    • 1998 - 2001 Bravada
    • 1997 - 1999 Cutlass
    • 1995 - 1997 Cutlass Supreme
    • 1998 - 2002 Intrigue

    Equivalent to: Metra 70-2001, Scosche GM03B
