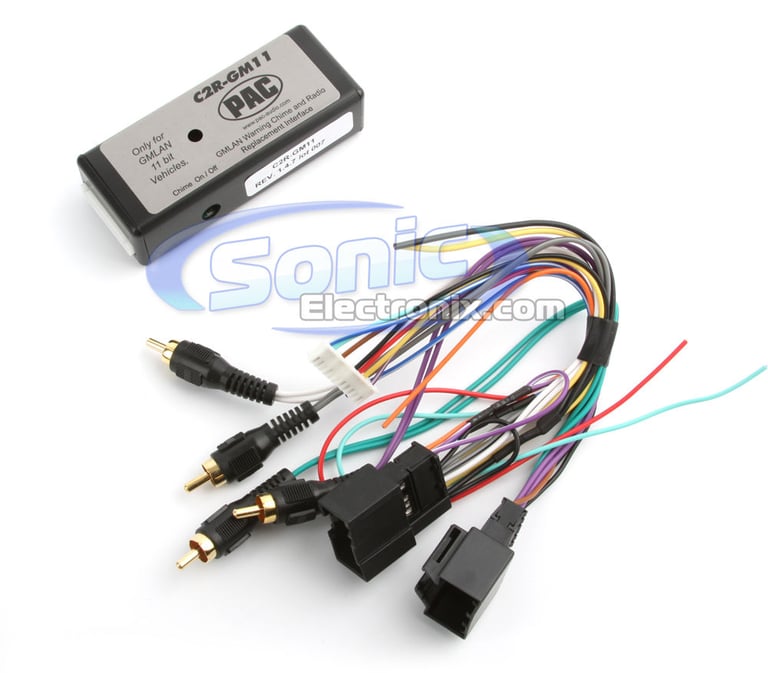

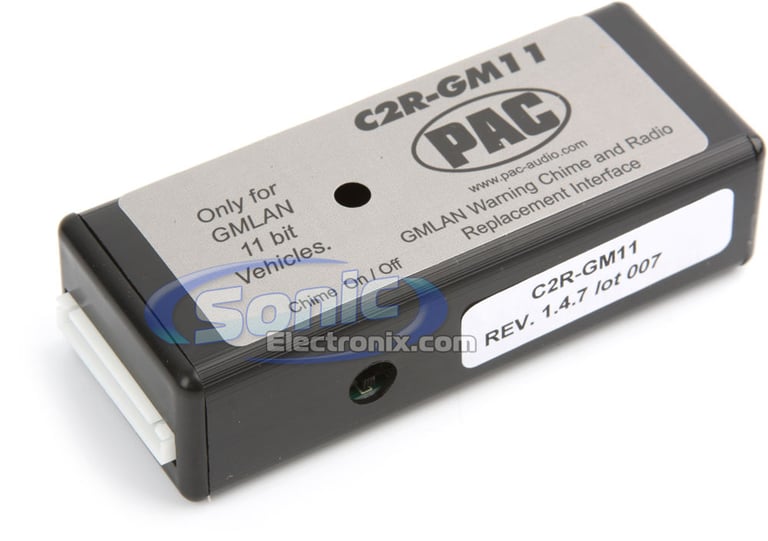

PAC C2R-GM11

Radio Replacement Interface for Select 2006-2012 GM LAN Vehicles

PAC
Shop all PAC
highlight-star-icon

• Radio Replacement Interface For Select 2006-2012 GM LAN Vehicles
• Provides Accessory Output, Chime, And Turn Signal Blinker Sound
• Steering Wheel Control Output To Connect To Any Of PAC's Steering Wheel Interfaces

See compatible vehicles Learn more about the c2rgm11

We apologize

This item has been discontinued


Loading...
AP-M67AN main

Deaf Bonce Apocalypse AP-M67AN

1200W Peak (600W RMS) 6.5" Apocalypse Series Midrange 4-ohm Car Speakers

2

NVX XSP65KIT

600W Peak (200W RMS) 6.5" X-Series 2 Way Component Car Speakers

12
-11.46%

$169.99

List price $191.99

Description


PAC brand icon

Authorized dealer

The C2R-GM11 from PAC allows you to install an aftermarket radio without needing to relocate the factory radio in particular GMLAN 11bit vehicles. It will work with or without the factory amplified audio systems and will retain all the safety chimes and warning chimes.

General Features:

  • Radio Replacement Interface for Select 2006-2012 GM 11Bit LAN Data Bus Vehicles
  • Provides Retained Accessory Power (R.A.P.) +12v output
  • Provides accessory output, chime, and turn signal blinker sound
  • Compatible with or without factory amplified audio system
  • Does not retain Onstar
  • Steering wheel control output wire for easy connection to any of PAC's steering wheel interface modules
  • 1-year Manufacturer's warranty

Compatibility List:

  • Chevrolet
    • 2008 - 2012 Malibu
    • 2007 - 2010 Cobalt
    • 2006 - 2011 HHR
  • Pontiac
    • 2007 - 2009 G5
    • 2006 - 2009 Solstice
  • Saturn
    • 2007 - 2009 Aura
    • 2007 - 2010 Sky
    • 2007 - 2007 Ion

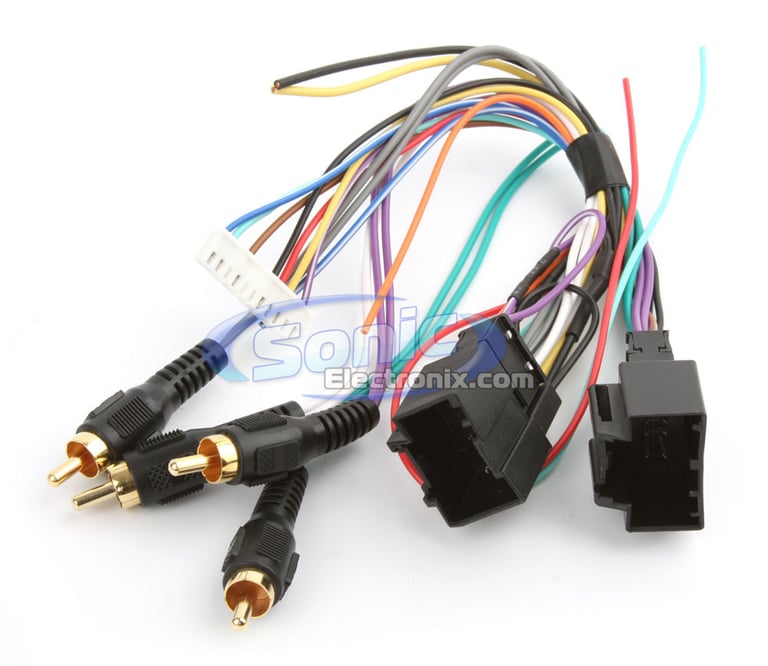

Connections:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)

Note: The current version of this interface is Rev. 1.4a.7. As updates and revisions are released by PAC, Sonic Electronix will constantly stock and ship the latest version.

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2006 Audi S4 is not compatible. Change vehicle or See list of compatible similar products


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

AXDI-A12 small

Axxess AXDI-A12 Wiring Interface

• Wiring interface to install aftermarket stereo in select 2002-2013 vehicles from Audi
• Designed for non-amplified and amplified systems
• Provides accessory power and NAV outputs
• Retains R.A.P, balance and fade, and chimes
• Pre-wired AXSWC harness (AXSWC sold separately)

$163.99

List price $182.99

LAI10 small

Scosche LAI10 Wiring Interface

• Provides 12-Volt accessory power (RAP)
• Retains steering wheel control
• Micro-B USB Updatable

$89.99

List price $87.00

HRN-HRR-AU1 small

iDataLink HRN-HRR-AU1

• Fits select 2002-2015 vehicles from Audi
• Designed for use with iDataLink ADS-MRR or iDataLink ADS-MRR2 module (Sold separately)
• Retains select factory features
• Provides navigation and illumination outputs

$79.99

List price $99.99

SWRAD-55 small

Crux SWRAD-55 Wiring Interface

• Provides 12-Volt accessory power (RAP)
• Designed for non-amplified and amplified models
• Micro-B USB Updatable
• Pre-programmed to retain factory Steering Wheel Controls
• Color coded wires for easy installation
• No cutting or splicing required

$126.90

List price $197.40

HRN-SR-VW1 small

iDataLink Maestro HRN-SR-VW1 Wiring Harness

• Fits select 2002-2016 vehicles from Volkswagen, Audi
• Designed for use with iDataLink ADS-MSR module (Sold separately)
• Retains accessory power, factory amplifier and steering wheel controls
• Provides navigation and illumination outputs

$24.99

List price $37.99

HRN-SR-AU1 small

iDataLink Maestro HRN-SR-AU1 Wiring Harness

• Fits select 2002-2007 vehicles from Audi
• Designed for use with iDataLink ADS-MSR module (Sold separately)
• Retains factory amplifier and steering wheel controls
• Provides accessory power, navigation and illumination outputs

$34.99

List price $43.99

DKGM-49 small

Crux DKGM-49 Stereo Replacement Interface

• Stereo Replacement Interface with Dash Kit
• Fits select 2006-2020 vehicles from GMC, Chevrolet, Buick Vehicles
• Accommodates ISO Double DIN Mount
• Retain steering wheel controls and chime functions

(41)

$129.60

List price $201.60

70-1761 small

Metra 70-1761 Wiring Harness

• Direct connection to the factory radio harness
• Color coded wires for easy installation
• No cutting or splicing required

(97)

$5.99

List price $6.99

70-1771 small

Metra 70-1771

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(51)

$12.99

List price $6.99

Specifications & Details


Harness Features
Main Harness Function
Connect/Install an Aftermarket Car Stereo
Additional Harness Features
Chime Retention
Retained Accessory Power (RAP) Retention
Premium Harness Features
Chime Retention
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

PAC

Model Number:

C2R-GM11

Weight:

0.50lbs

Internal SKU:

c2rgm11

Internal Product ID:

18695

Customer Ratings & Reviews


PAC C2R-GM11 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome device works as intended

Worked perfectly for 2007 Pontiac G5 Base model. No onstar, no factory amp, just stock radio.

Keeps key chimes and turn signal noise. Works perfectly as intended. Awesome price as always from SonicElectronix.

By Rob on June 16, 2014
