Peripheral CHYAH08

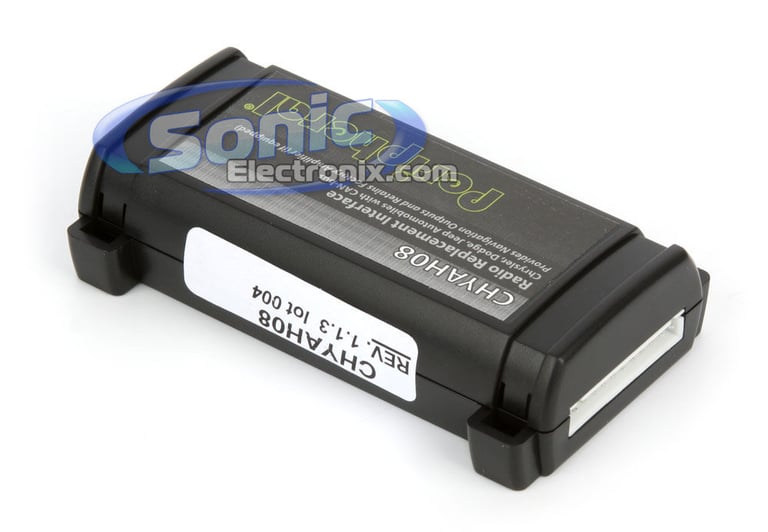

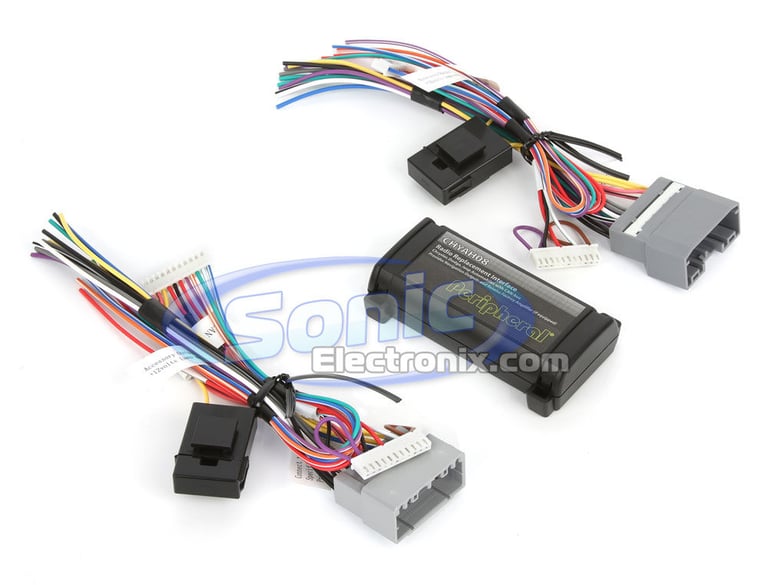

The Peripheral CHYAH08 allows for the installation of an aftermarket radio in 2005-2009 Chrysler, Jeep, and Dodge vehicles utilizing the CAN Bus data system. The CHYAH08 is packaged with both Chrysler harnesses for an all-in-one radio replacement solution. The interface provides a data controlled accessory output wire and all the necessary output wires for a navigation radio install. When retaining the use of the factory steering wheel controls, the C2R-CHY4 provides a SWC Output connector for direct plug and play connectivity to all PESWI-modules (PESWIX, PESWIAKJC, PESWIPS, PESWIECL2).

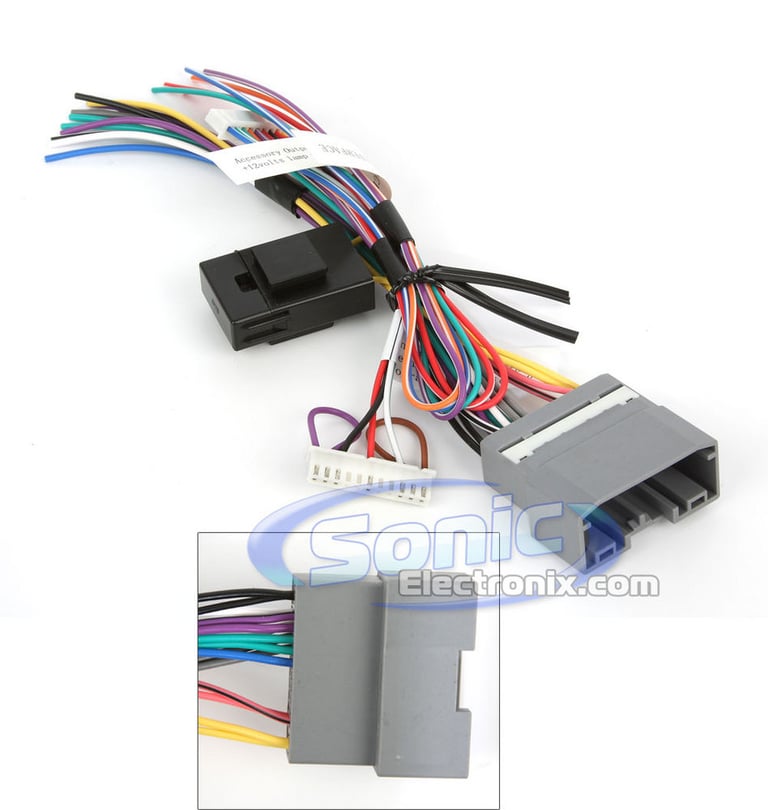

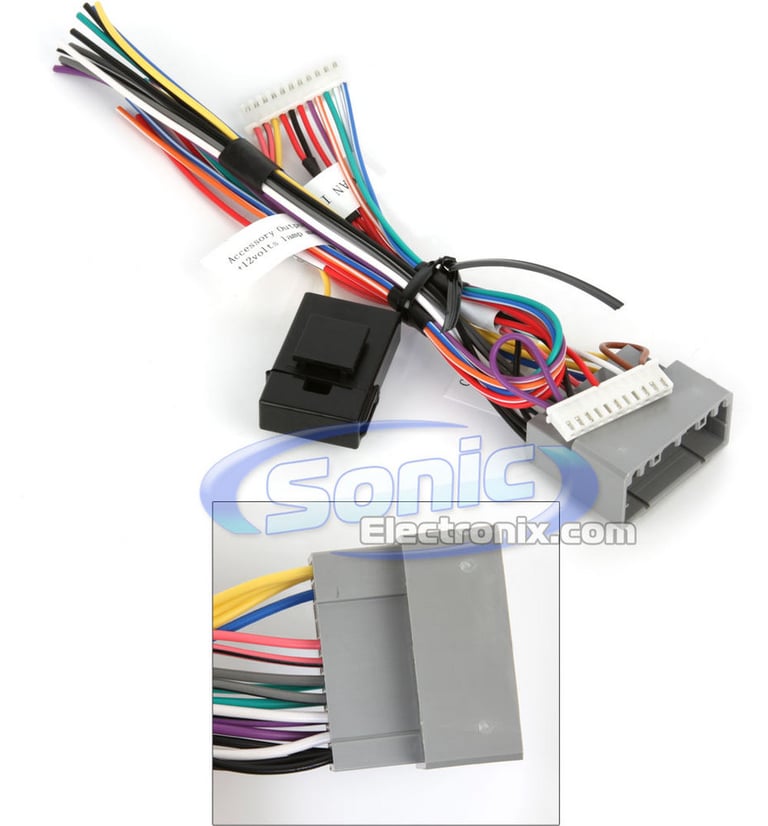

• Replacement interface harness for select Chrysler vehicles with CAN Bus
• Compatible with amplified or non-amplified systems
• No longer requires the use SWI-CAN Module to retain steering wheel controls
• Retain Accessory Power (RAP) 12V Output
• VSS, illumination, parking brake and reverse trigger output
• Digital amp turn-on
• 1-year Manufacturer's warranty
• Check the General Installation Manual to see basic instructions for the PAC C2R-CHY4

• Dodge:
• 2007 - 2008 Avenger
• 2004 - 2008 Durango
• 2005 - 2008 Magnum
• 2005 - 2008 Dakota
• 2005 - 2008 Charger
• 2005 - 2008 Grand Cherokee
• 2005 - 2008 Commander
• 2006 - 2009 Ram Pickup
• 2006 - 2008 Caliber
• 2008 - 2009 Challenger
• 2009 Journey
• Chrysler:
• 2007 - 2008 Aspen
• 2007 - 2008 PT Cruiser
• 2008 Caravan
• 2007 - 2008 Sebring
• Jeep:
• 2007 - 2008 Compass
• 2007 - 2008 Patriot
• 2007 - 2009 DTS

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
