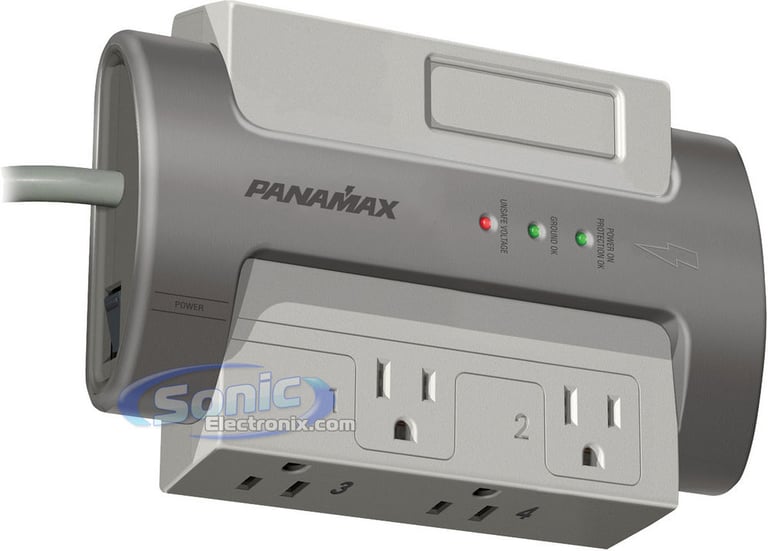

Panamax M4-EX

4-Outlet Max with Surge Protection and RFI/EMI Noise Filtration

Panamax
Shop all Panamax
highlight-star-icon

4-Outlet Max with Surge Protection • Protect or Disconnect™ Circuitry • EMI/RFI filtration • SurgeGate Plus™ Circuitry • Automatic Voltage Monitoring™ • Catastrophic Surge Circuit • Thermal Fuse Protection

Learn more about the pmxm4ex

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Description


General Features:
  • 4-Outlet Max with Surge Protection
  • Typically used with power only type equipment such as appliances, office equipment, stereos and radios, etc.
  • Four AC outlets with transformer spacing
  • Accepts add-on signal line modules to accommodate system expansion
  • Protect or Disconnect™ Circuitry safeguards equipment against all surges
  • EMI/RFI filtration reduces unwanted interference and noise
  • Features Protection OK, Ground OK, and Line Fault diagnostic lights
  • Plugs directly into the wall using a right-angle offset plug that has an 8ft cord
  • SurgeGate Plus™ circuitry protects against prolonged brownouts as well as over-voltage
  • Automatic Voltage Monitoring™
  • Catastrophic surge circuit opens automatically to prevent damage if the surge exceeds protection capability
  • Thermal fuse shuts off power in case of a period of over voltage occurs
  • Wall mountable (brackets and screws included)
  • Dimensions: 8"L x 5"W x 1-3/4"H
  • 1-year SonicElectronix.com warranty
Specifications:
  • UL 1449 Suppression Rating: 330V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 1650 Joules
  • Response Time: less than 1 nanosecond
  • Protection Modes: L-N, L-G, N-G
  • Protect or Disconnect™ Circuitry: Yes
  • Peak Impulse Current: 52,000 Amps
  • Patented Power Management Circuit: Yes
  • Maximum Current Rating: 15 A (1800W)
  • Line Voltage: 120VAC, 50/60Hz
  • Initial Clamping Level: 200V Peak, 141V RMS
  • EMI/RFI Noise Filtration: 50 dB (100 KHz - 1MHz)
  • Auto-resetting Under-voltage shutoff: 90V ± 6V
  • Auto-resetting Over-voltage shutoff: 144V ± 8V

Specifications & Details


Connections
Number of Power Outlets
4
Surge Energy Rating (Joules)
1650 joules
RJ45 Phone & Network Ports
No
Coaxial Surge Protection
No
General Features
Width
5"
Height
1-3/4"
Depth
8"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M4-EX

Weight:

2.40lbs

Internal SKU:

pmxm4ex

Internal Product ID:

19677
