See all parts that fit your 2002 Sonata

Infinity Reference 123W (INFSUBRF123W) (Like New (Open Box))

1200W Peak (400W RMS) 12" Reference Series Single 2-or 4-ohm Car Subwoofer

Infinity
Shop all Infinity
highlight-star-icon

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Polypropylene cone
• Rubber surround
• Mount depth: 5-1/2"
• Sensitivity: 86 dB

Learn more about the ls-reference123w-u9

We apologize

This item has been discontinued

Description


Infinity brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

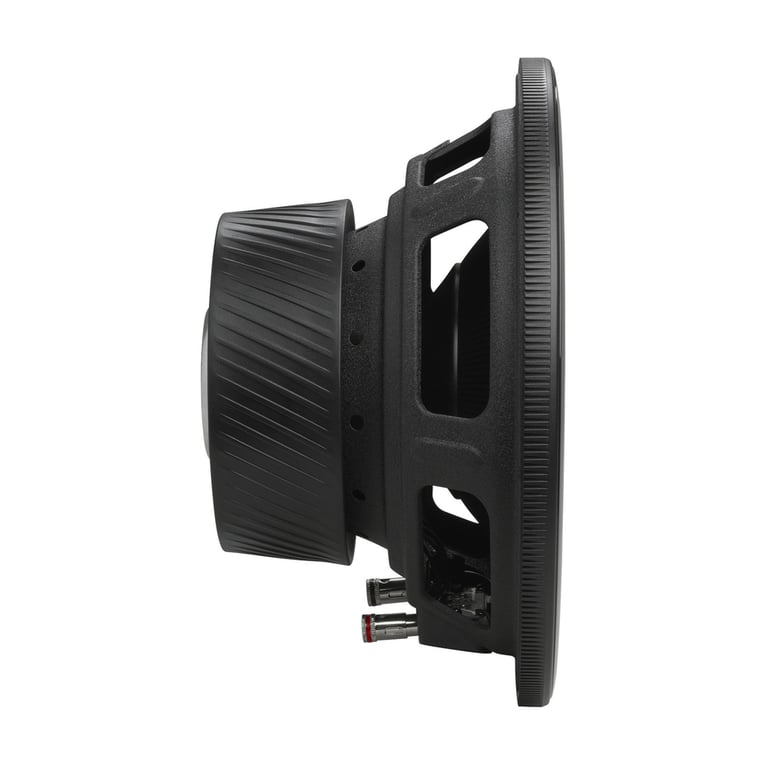

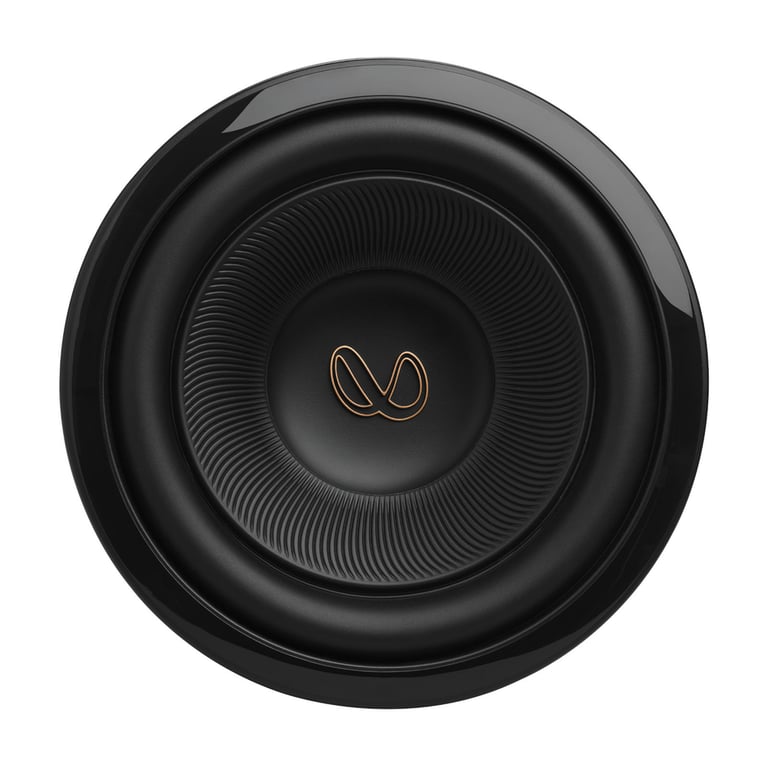

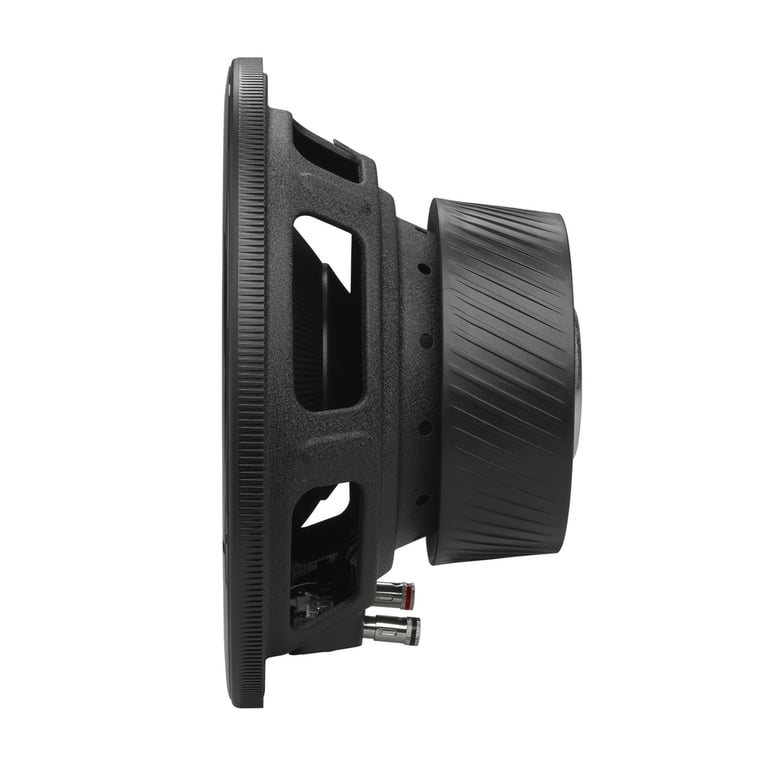

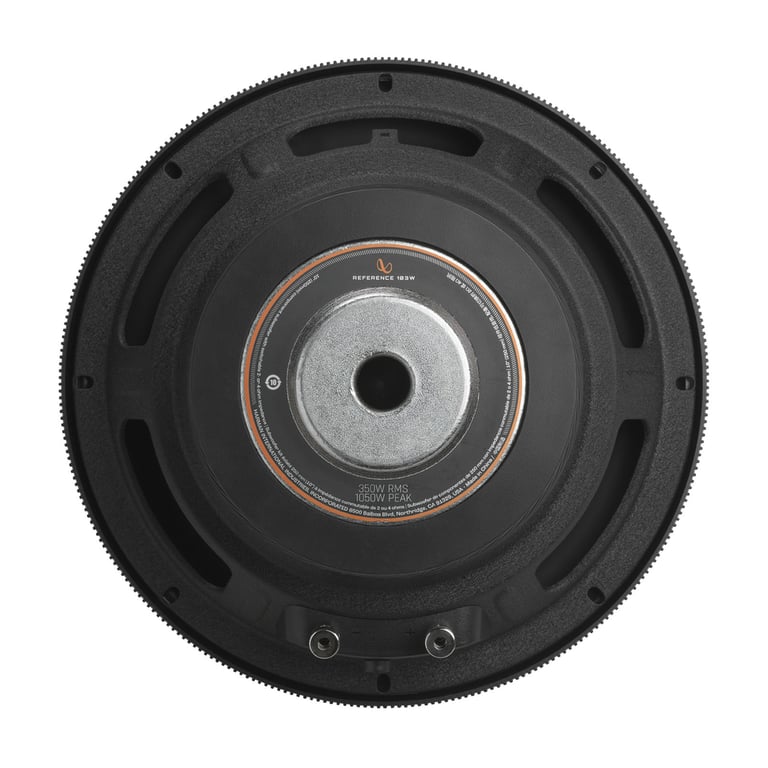

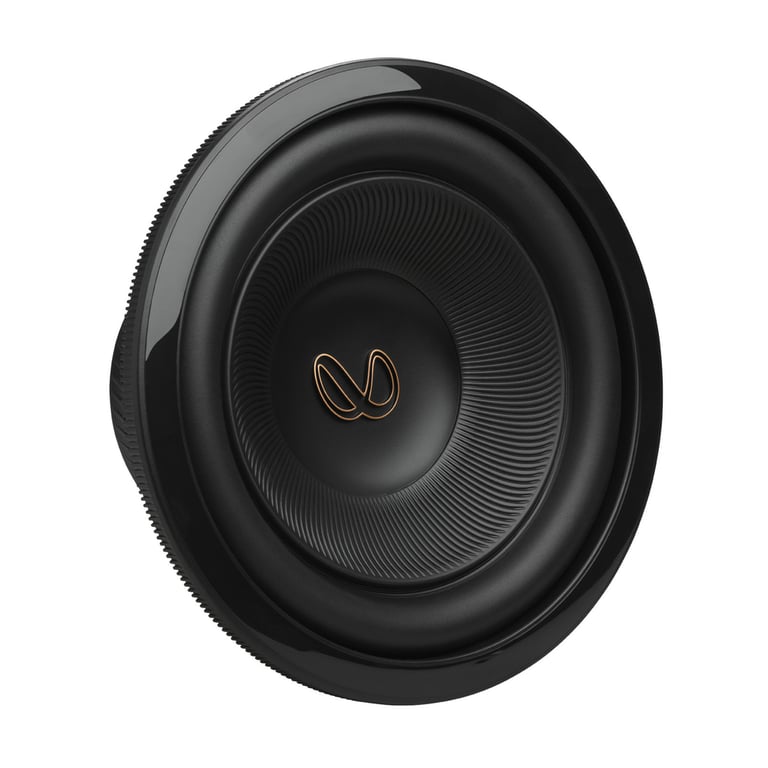

Infinity Reference 123W (INFSUBRF123W)

Infinity Reference subwoofers deliver deep powerful bass that will take your system to the next level. Using our proprietary cone design and high roll surrounds, they are extremely efficient and require less power to deliver the goods. The Infinity REFERENCE subwoofers are also happy in both sealed and bandpass box configurations, delivering powerful, punchy and accurate bass in all. They also feature SSI (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance, 2 or 4 ohms for your chosen amplifier and overall system layout.


Product Details:

  • 12" Single 2 or 4 ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 400 watts
  • Polypropylene cone
  • Rubber surround
  • Selectable Smart Impedance (SSI) switch between 2-ohms and 4-ohms
  • Vented basket design for system cooling
  • Infinity-logo inspired radial texture
  • Copper-printed Infinity Mobius on the dust cap
  • High gloss black trim ring
  • HARMAN reliability testing
  • 2" high-temperature voice coil
  • Xmax
  • Double Stacked magnet motor structure
  • Frequency Response: 30 - 500 Hz
  • Resonance Frequency (Fs): 37.9 Hz
  • Sensitivity: 86 dB
  • Recommended sealed box volume: 1.59 cubic feet
  • Recommended ported box volume: 1.59 cubic feet
  • Top-mount depth: 5-1/2"
  • Cutout diameter: 11-1/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Reference 123W (INFSUBRF123W) (Like New (Open Box)) Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity Reference 123W (INFSUBRF123W) (Like New (Open Box)) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Reference 123W (INFSUBRF123W) (Like New (Open Box)) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Reference 123W (INFSUBRF123W) (Like New (Open Box)) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
30 - 500 Hz
Sensitivity
86 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.59 cubic feet
Optimum Ported Box Volume
1.59 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
37.9 Hz
Equivalent Compliance (Vas)
1.6935 liters
Total Speaker Q Value (Qts)
0.847
Electrical Q Value (Qes)
0.949
Electrical Resistance of Voice Coil (Re)
2.11 ohm
Mechanical Q Value (Qms)
7.847
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Other Accessory #1
Plastic Trim Ring
Other Accessory #2
Adhesive Backed Foam Tape and Gasket
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REFERENCE123W-2

Weight:

10.43lbs

Internal SKU:

ls-reference123w-u9

Internal Product ID:

222872
