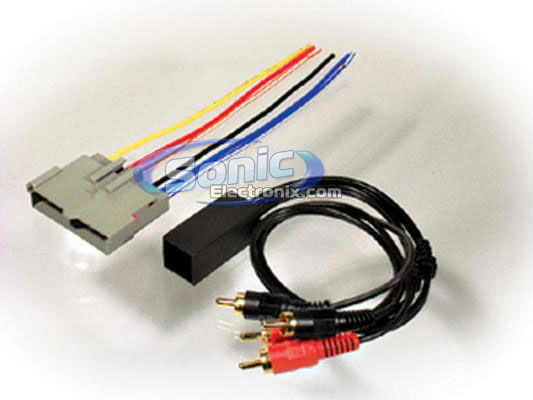

Scosche FDK1B

Low-Level Wiring Harness for with Factory Amplifier

Scosche
Shop all Scosche
highlight-star-icon

• Harness Used When Installing An Aftermarket Stereo
• Contains The FD03B And The FD08B
• Compatible With Select 1989-94 Ford Vehicles With Premium Sound
• Utilizes The Line Level RCA Outputs

Learn more about the fdk1b

We apologize

This item has been discontinued


Loading...
MVH-S522BS main

Pioneer MVH-S522BS

Single DIN Digital Media Bluetooth Receiver with Bluetooth and SiriusXM Ready

4
-10.53%

$169.99

List price $190.00

Limited time!
Kappa 693M main

Infinity Kappa 693M (INFSPKKA693MAM)

720W Peak (240W RMS) 6x9” Kappa Series 3 Way Coaxial 3-ohm Speakers

6
-31.43%

$239.95

List price $349.95

REF-5032CFXAM main

Infinity Reference 5032cfx (REF-5032CFXAM)

270W Peak (90W RMS) 5.25" Reference Series 2 Way Coaxial 3-ohm Speakers

-42.32%

$74.99

List price $130.00

Description


Scosche brand icon

Authorized dealer

When replacing your factory radio with an after-market car stereo, the Scosche FDK1B wire harness is a must for a quick and clean installation. It eliminates cutting your OE radio plug. After connecting it, your install is simple as the wires will color-match and easily connect to the after-market stereo. Without the Scosche FDK1B, you would have to cut the OE radio plug and manually test each wire to connect to your after-market receiver.

In addition, because you do not have to cut your OE radio plug off, the FDK1B allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver. We also recommend the Scosche BOBAZT for a quick connection that is sure to last.

Product Features:

  • Harness is used when installing an aftermarket stereo
  • Contains the Scosche FD03B and the Scosche FD08B
  • Connects the aftermarket stereo harness to the vehicles amplified factory harness
  • Utilizes the line level RCA outputs of the factory stereo
  • Designed specifically to fit the compatible vehicles
  • Plugs into the factory harness without cutting any wires
  • Standard color coded wires provide a consistent and simplified installation
  • Made from OEM quality materials
  • Not compatible in vehicles with Premium/JBL Sound systems

Connections:

  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Blue - Power Antenna
  • Orange - Dash Light Dimmer/Illumination
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe - Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
