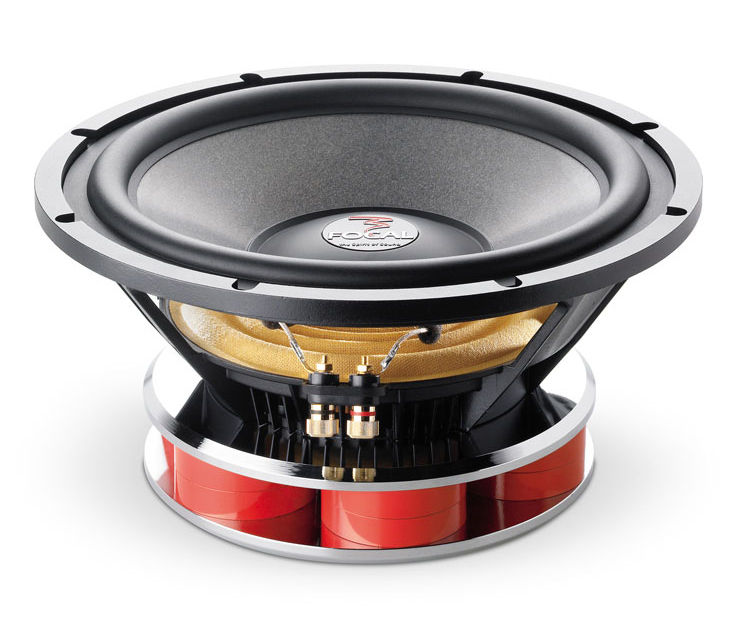

Focal 33 WX2

13" Single 4 Ohm Utopia Be Series Subwoofer

Focal
Shop all Focal
Product videos
highlight-star-icon

SIZE Series Subwoofer • (Single/Dual) __ ohm Voice Coil • __W Max • __W RMS • CONE • SURROUND • FEATURE • FEATURE

Learn more about the 33wx2

We apologize

This item has been discontinued


Loading...
SWRVL-54 main

Crux SLWRV54 Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 1999-2012 vehicles from Volvo

4
-35.71%

$160.65

List price $249.90

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

Lowest price in 30 days
NSP525 main

NVX NSP525

240W Peak (160W RMS) 5.25" N-Series 2 Way Coaxial Car Speakers

27
-16.67%

$54.99

List price $65.99

Product Highlights


SIZE Series Subwoofer • (Single/Dual) __ ohm Voice Coil • __W Max • __W RMS • CONE • SURROUND • FEATURE • FEATURE

Description


Focal brand icon

Authorized dealer

General Features:

  • 13" Single 4 Ohm Utopia Be Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 4 ohm
  • W cone structure
  • Rubber Woofer surround type
  • Multiferite magnet motor structure
  • Frequency response: 20-200 Hz
  • Sensitivity: 92 dB
  • 1-year SonicElectronix.com Warranty

Specifications

  • DC resistance 3.5 Ohm
  • VC diameter: 3.08 in
  • VC height: 1.12 in
  • Former: Aluminum
  • Layers: 2
  • Wire: Copper
  • Inductance: 2.05 mH
  • Xmax: 0.36 in
  • Magnet(12 units): 0.60 x 2.88 in
  • Magnet weight: 22.98 lbs
  • Flux density: 0.8 T
  • Gap height: 10 mm

Electromechanical Parameters

  • Fs 32.52 Hz
  • Vas 73.06 l
  • Qts 0.349
  • Qes 0.360
  • Qms 11.75
  • Re 3.32 ohm
  • Sd 551.55 cm²
  • Cas 5.20E-07 m
  • Mas 46.04 Kg/m4
  • Ras 800.71 ohm.ac
  • Cms 1.71E-04 m/N
  • Mms 140.07 g
  • Rms 2.436 kg/s
  • Ces 530.68 mF
  • Les 45.13 mH
  • Res 108.36 ohm
  • BI 16.25 N/A
  • SPL 90.28 dB/W/

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Focal 33 WX2 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Focal 33 WX2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Focal 33 WX2 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Focal 33 WX2 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

13TW5V2-2 small

JL Audio 13TW5v2-2

• Mounting depth: 2.625 "
• Requires Only 0.8 Cubic Feet of Airspace
• Excellent linear excursion capability (xmax)
• Patented "floating cone attach method" technology
• Patented "concentric tube" architecture

(1)

$929.99

List price $929.99

Specifications & Details


Subwoofer Specifications
Series
Utopia Be Series
Subwoofer Size
13"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Frequency Response
20 - 200 Hz
Sensitivity
92 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Top-Mount Depth (Mounting Depth)
6"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.52 Hz
Equivalent Compliance (Vas)
73.06 liters
Total Speaker Q Value (Qts)
.349
Electrical Q Value (Qes)
.360
Electrical Resistance of Voice Coil (Re)
3.32 ohm
Mechanical Q Value (Qms)
11.75
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

33 WX2

Weight:

20.00lbs

Internal SKU:

33wx2

Internal Product ID:

21556
