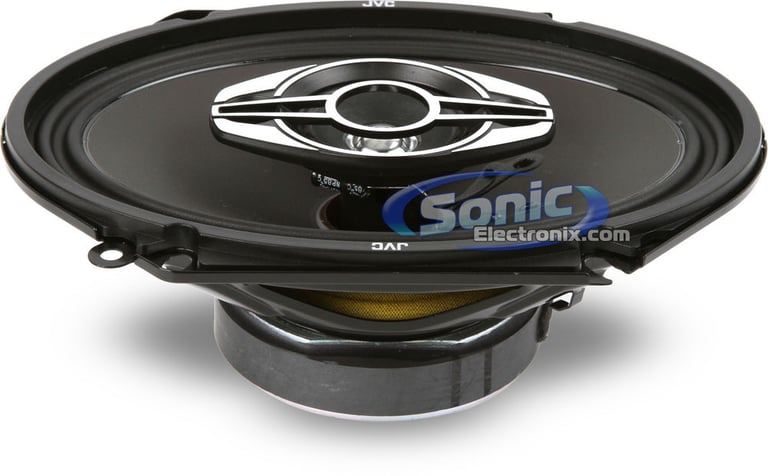

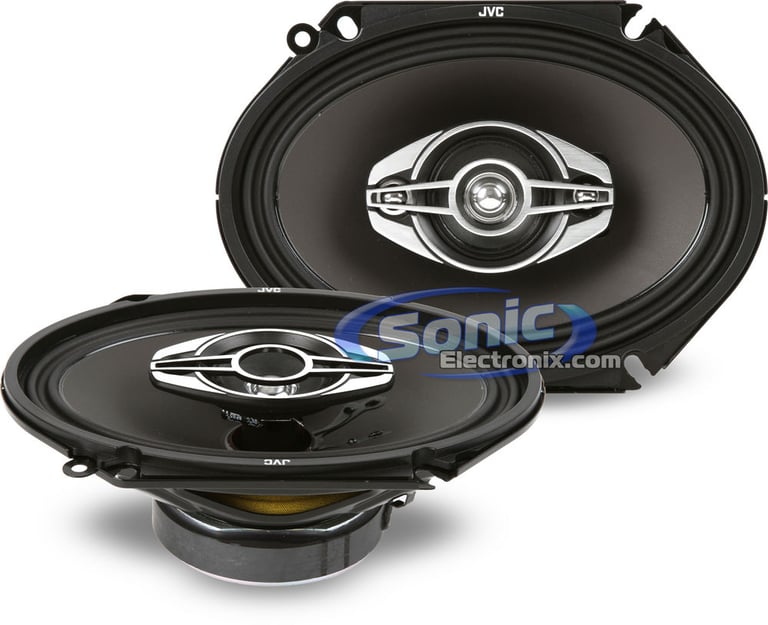

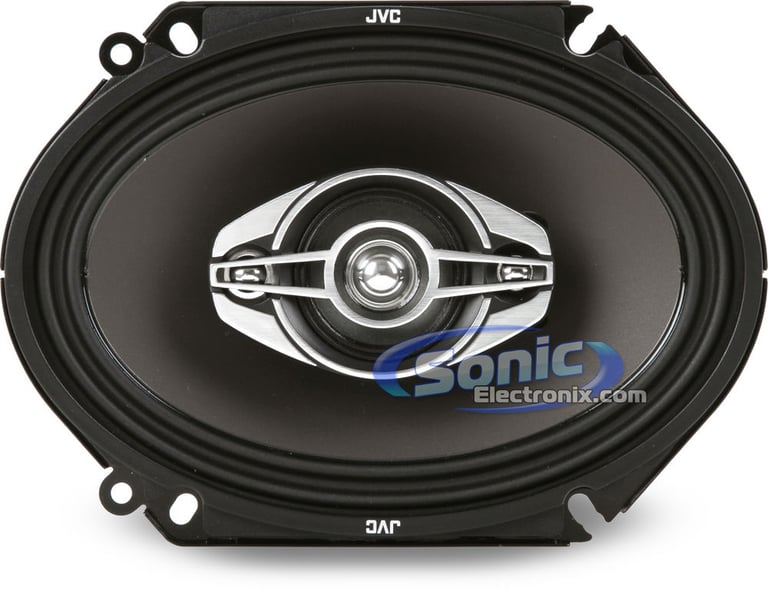

JVC CS-HX6848

6" x 8" 4-Way HX Series Coaxial Speakers

JVC
Shop all JVC
Product videos
highlight-star-icon

6" x 8" 4-Way Coaxial Speakers • 310 Watts Max • 50 Watts RMS • Mica Aramid Fiber Cone Woofer • Twin Roll Rubber Surround • 4 ohm • 85 dB Sensitivity • Heat-Resistant Voice Coil

Learn more about the cshx6848

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

Product Highlights


6" x 8" 4-Way Coaxial Speakers • 310 Watts Max • 50 Watts RMS • Mica Aramid Fiber Cone Woofer • Twin Roll Rubber Surround • 4 ohm • 85 dB Sensitivity • Heat-Resistant Voice Coil

Description


JVC brand icon

Authorized dealer

  • 6" x 8" 4-Way HX Series Coaxial Speakers
  • Power Handling:
    • Peak: 620 watts per pair / 310 watts each
    • RMS: 100 watts per pair / 50 watts each
  • Mica aramid fiber with carbon fiber composite olefin cone woofer
  • Twin roll rubber surround
  • 1-31/32" (5 cm) midrange tweeter with HHC cone and neodymium magnet
  • 19/32" (1.5 cm) Metal coated poly-ether imide tweeter
  • 1/2" (1.2 cm) Metal coated poly-ether imide supertweeter
  • Large magnets handle greater power for lower frequency response
  • Twin rubber edge enhances sound quality and response with smooth and linear movement
  • Mica reinforced cone provides strength and stability for deeper bass response
  • 4 ohm impedance
  • Frequency response: 30-25,000 Hz
  • Sensitivity: 85 dB
  • Crossover frequency: 4, 8, 12 kHz
  • Heat-resistant voice coil

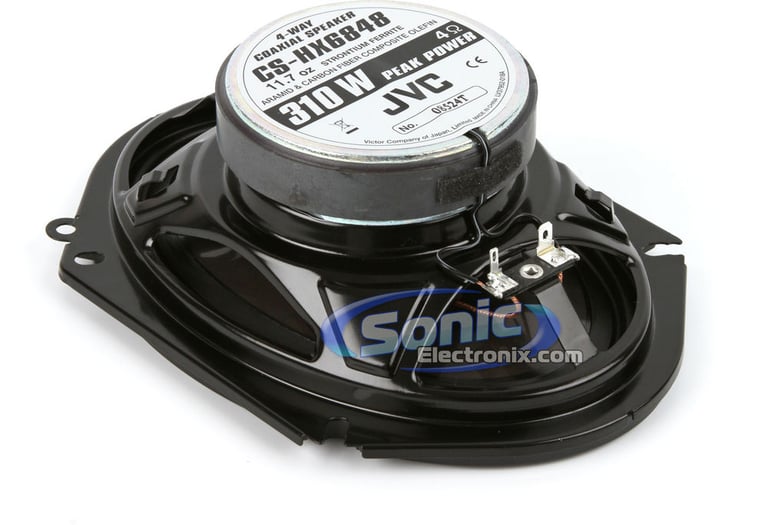

  • 11.7 oz strontium magnet

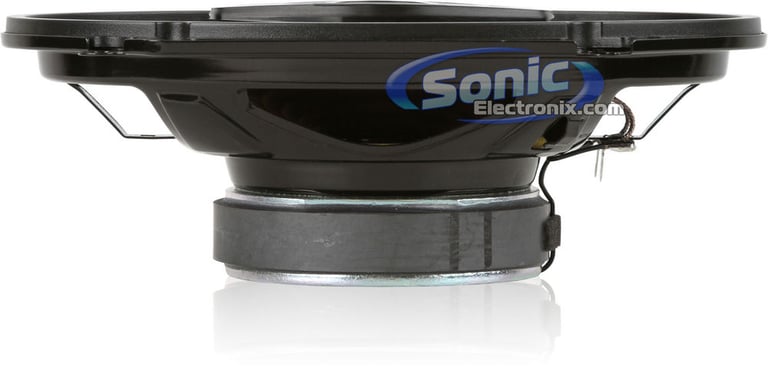

  • Top-mount depth: 2-13/32" (61 mm)
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Priced Per Pair

Product history:

JVC CS-HX6848 thumbnail
(newest, current model)
JVC CS-HX6846 thumbnail
(previous model, replaced by JVC CS-HX6848)

Best selling similar products

C1-570x small

JL Audio C1-570x

• 50 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$129.99

List price $129.99

REF687F small

Infinity REF687F (INFSPKRF687FUS)

• 180 watts Peak Each, 60 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(1)

$129.95

List price $159.95

JS68K small

Jensen JS68K

• 250 watts Peak Each, 60 watts RMS Each
• 1-3/16" PEI (Polyetherimide) Dome tweeters
• 2-1/4" PEI (Polyetherimide) Dome midranges
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$139.99

List price $139.99

P1683 small

Rockford Fosgate Punch P1 P1683

• 130 watts Peak Each, 65 watts RMS Each
• 3/4" tweeter and 1/2" super tweeter PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(85)

$109.99

List price $109.99

VTEK-57Xi small

Earthquake Sound VTEK-57Xi

• 400 watts RMS Each
• 3/4" Silk Dome swiveling tweeters
• Glass Fiber cone material
• Impedance: 2 ohm
• Sensitivity: 90 dB

$129.99

List price $169.00

PK1-168 small

MB Quart PK1-168

• 110 watts Peak Each, 55 watts RMS Each
• 1" Magnesium Dome tweeters
• Tunable waveguide tweeter housing
• Pop Paper-Mica Blend cone material
• Curvilinear cone design geometry
• Impedance: 4 ohm
• Sensitivity: 88.5 dB

$129.99

List price $189.99

NSP68 small

NVX NSP68

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.63"

(59)

$79.99

List price $95.99

VSP68 small

NVX VSP68

• 300 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.59"

(46)

$89.99

List price $107.99

46CSC684 small

Kicker CSC68 (46CSC684)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material with EVC™ (Extended Voice Coil) technology
• Impedance: 4 ohm
• Sensitivity: 90 dB

(11)

$79.96

List price $119.99

H7683 small

Cerwin Vega H7683

• 360 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(50)

$79.99

List price $95.99

Specifications & Details


Speaker Specifications
Speaker Size
6" x 8"
Design
4-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Aramid-Carbon Fiber Olefine
Woofer Surround
Rubber
Peak Power Handling
310 watts
RMS Power Handling
50 watts
Sensitivity
85 dB
Frequency Response
30 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-13/32"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

CS-HX6848

Weight:

8.00lbs

Internal SKU:

cshx6848

Internal Product ID:

22013

Product and How-to Videos


Customer Ratings & Reviews


JVC CS-HX6848 thumbnail image

5 star
60%
4 star
40%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.8
Features
4.8
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Very happy

I purchased these about a week ago to replace two sets of pioneer 3-ways. Vocals come through clearer, and these hit harder. Well worth the money. I don't think I will replacing my door speakers in my Ranger Ext. cab for quite a while.

By TyDy on March 14, 2011

3 found this helpful


good speaker

I got 4 of these to replace the ones in my truck. I was a bit worried that maybe it was a bad choice because I have never heard the jvc speakers. but once I got them I hooked them to the head unit. there awesome and cheap. so clear at high volumes.

By ur daddy on April 5, 2011

2 found this helpful


CLEAN AND CRISP

Well got these to replace my factory ones. They have alright bass but I just wanted them for vocals and treble since I have subs. Well they do very well and don't distort at high volumes. Ps just running them of my headunit for now.

By your daddy on January 9, 2011

1 found this helpful


Crystal clear quality, and surprisingly loud too.

I put these in the front of my 98' Mustang and they sound beautiful. I have them hooked up to a Boss Diablo series 350.4 (I have the gains turned down a bit so I don't blow them) and they are amazing. I couldn't have asked for better sound. Next paycheck I'm planning to order another pair for the back as well.

By Shelby on November 14, 2010

1 found this helpful


Great Value

Great front end speaker. Has no midrange sound at all.

By Tony on May 30, 2011
