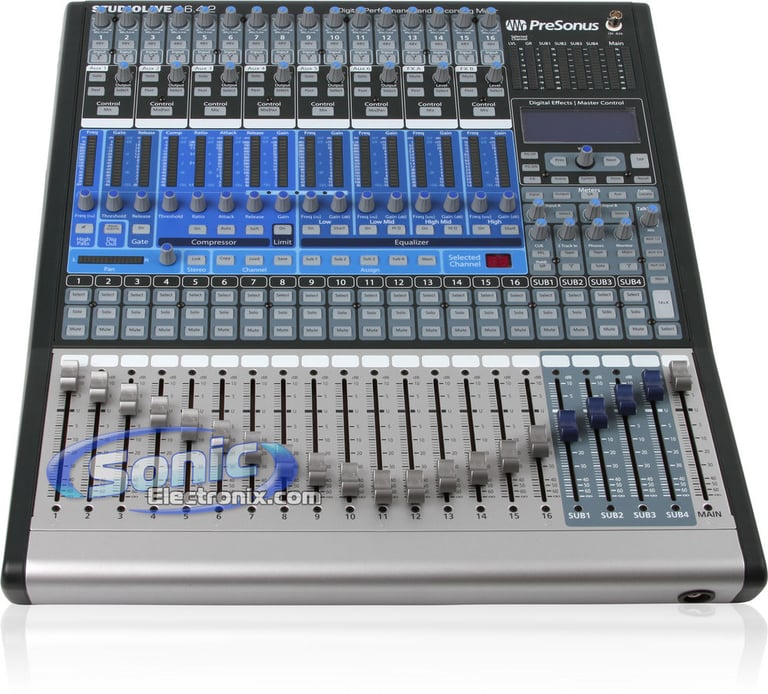

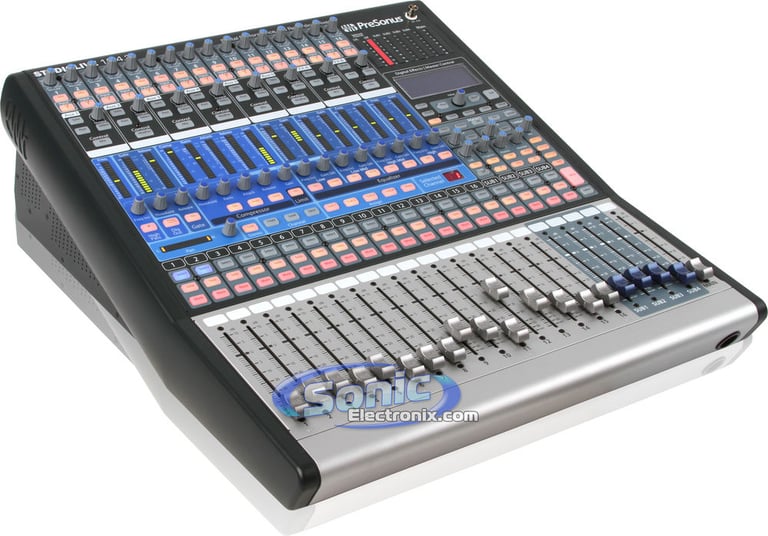

PreSonus StudioLive 16.4.2

16-Channel High Performance Professional Digital Recording Mixer

PreSonus
Shop all PreSonus
highlight-star-icon

High Performance Professional Digital Recording Mixer • 16 Mic/Line Inputs • Capture 1.1 Recording • 2 Master DSP Effects • 100mm Precision Faders • Fat Channel Functions • Compact 19" Rack Mountable Rugged Steel Chassis

Learn more about the studiolive1642

We apologize

This item has been discontinued


Loading...
AXABH-BM1 main

Axxess AXABH-BM1

Amplifier Bypass Harness for select 2006-2025 vehicles from BMW, MINI

-12.50%

$27.99

List price $31.99

R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
DK2-110 main

MB Quart DK2-110

160W Peak (80W RMS) 4" Discus Series 2-way 4-ohm Coaxial Car Speakers

-14.29%

$59.99

List price $69.99

XED42 main

Cerwin-Vega XED42

300W Peak (40W RMS) 4" XED Series 2-Way Coaxial 4-ohm Speakers

4
-16.67%

$39.99

List price $47.99

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

Description


PreSonus brand icon

Authorized dealer

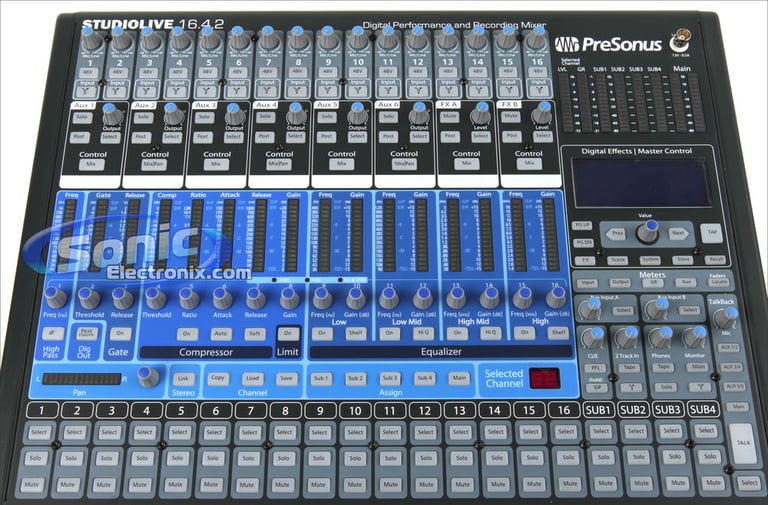

StudioLive 16.4.2 Features

  • PreSonus 16-Channel High Performance Professional Digital Recording Mixer
  • 16 mic/line inputs with high-headroom Class A XMAX mic preamplifiers
  • 32-in/18-out FireWire digital recording ­interface (24-bit/44,100 Hz and 48,000 Hz)
  • Studio One Artist Digital Audio Workstation software for Mac and PC
  • Capture 1.1 recording software for Mac and PC
  • Direct recording interface compatible with Logic, Nuendo, Cubase, Sonar, Digital Performer, Ableton Live, and more
  • 16 channel strips
  • Trim control with -20 to +20 dBV line/-15 to +65 dBu mic gain range (80dB)
  • Compact 19" rack mountable rugged steel chassis
  • 2 Master DSP effects (reverbs and delays with load/save)
  • Scene automation with load/save/recall of all settings with LED positioning matching
  • +48V phantom power switch for condenser microphones

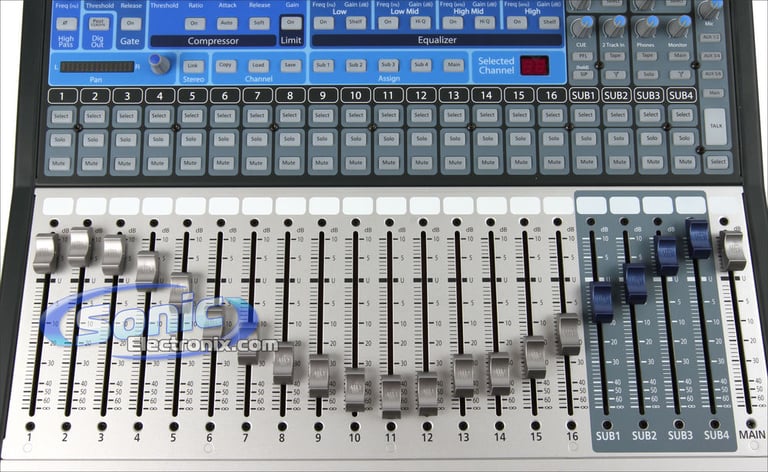

  • 100mm precision faders
  • Illuminated solo and mute buttons
  • Full access to Fat Channel functions
  • 15-LED ladder metering with clip LED
  • Dimensions: 22-3/8"L x 17-1/4"W x 6-15/16"H
  • 1-year Manufacturer's warranty
  • 6 aux sends, each with:
    • Solo
    • Pre/post-fader send
    • Output level control
    • Access to Fat Channel functions (no phrase verse)
    • Mix and Mix/pan Fat Channel meeting
    • Available Sources: 16 input channels, Aux A and B, tape input, and talkback
  • 4 Subgroup buses, each with:
    • Solo
    • Mute
    • Access to Fat Channel functions (no high-pass or phrase verse)
  • Master Section:
    • Aux input A and B
    • Level Control and select switch
    • Access to all Fat Channel functions
    • Talkback system: Mic level control, output select, talk button, XLR mic input
StudioLive 16.4.2 Specifications
  • Microphone Preamp 1-16 (XLR Balanced):
    • Type: Balanced XLR female
    • Frequency Response (Direct output): 20-40,000 Hz
    • Frequency Response (Main output): 20-20,000 Hz
    • THD (Total Harmonic Distortion): <0.005%
    • Signal-to-noise (Direct output): -97dB
    • Signal-to-noise (Main output): -94dB
    • Common mode rejection ratio: +65dB
    • Phantom power: +48VDC
  • Line Inputs:
    • Type: 1/4" Balanced mono TRS female
    • Frequency Response (Direct output): 10-40,000 Hz
    • Frequency Response (Main output): 20-20,000 Hz
    • THD (Total Harmonic Distortion): <0.005%
    • Signal-to-noise (Direct output): -105dB
    • Signal-to-noise (Main output): -94dB
    • Gain control range: -20dB - +20dB

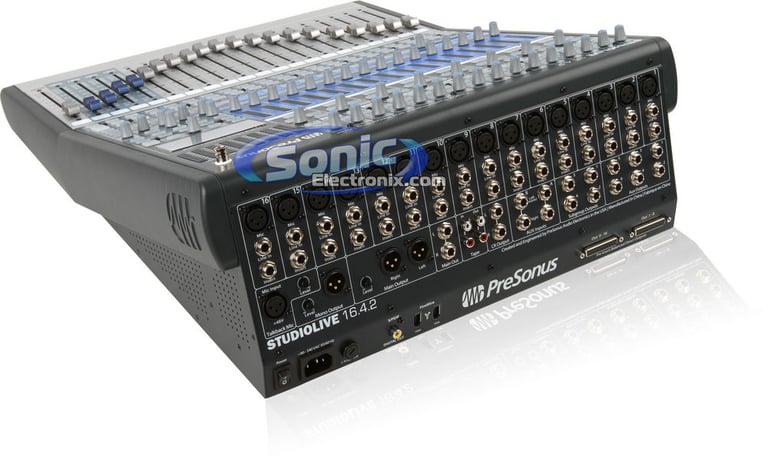

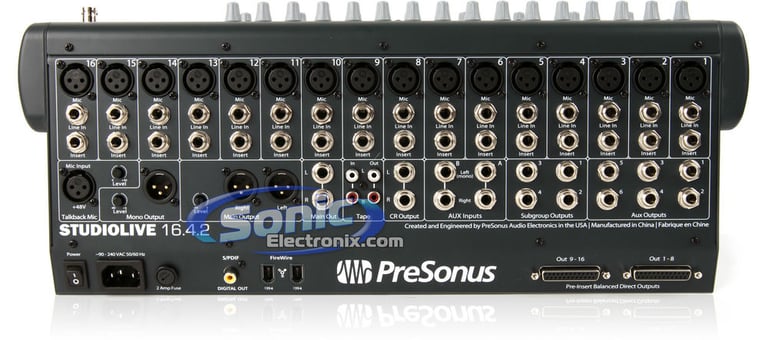

StudioLive 16.4.2 Input/Outputs
  • 16 main inputs, each with XLR mic, 1/4" line, and 1/4" inserts
  • 2 1/4" stereo (L/R) aux inputs
  • 1 XLR talkback-mic input with phantom power and level control
  • Unbalanced RCA stereo (L/R) tape inputs and outputs
  • XLR stereo (L/R) main outputs with level control
  • 1/4" stereo (L/R) main outputs
  • XLR mono output with level control
  • 1/4" stereo (L/R) control-room outputs
  • 1/4" Headphone output
  • 4 1/4" subgroup outputs
  • 6 1/4" aux outputs
  • 16 pre-insert, balanced direct outputs, Ch. 1-8, 9-16, 17-24 (DB25 sockets)
  • S/PDIF digital out
  • 2 FireWire 400 ports
Computer System Requirements
  • Windows:
    • Windows XP SP2 (32- or 64-bit) or later or Vista (32- or 64-bit; 64-bit requires driver version 3.4.1 or later)
    • Intel Pentium 4 1.6 GHz processor or AMD Athlon 64 (Turion) (2.5 GHz or faster recommended)
    • 1 GB RAM (2 GB or more recommended)
  • Macintosh:
    • Mac OS X 10.4.11 or Mac OS X 10.5.2 or later (10.6 supported in driver version 3.4.2)
    • PowerPC G4 1.25 GHz or Intel Core Solo 1.5 GHz processor (2 GHz or faster recommended)
    • 1 GB RAM (2 GB or more recommended)
Package Includes
  • StudioLive Mixer

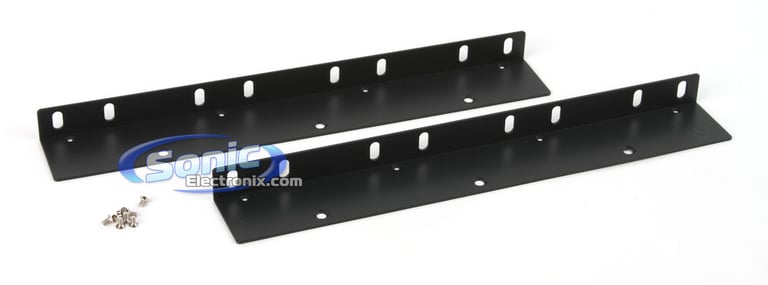

  • Rack mount brackets

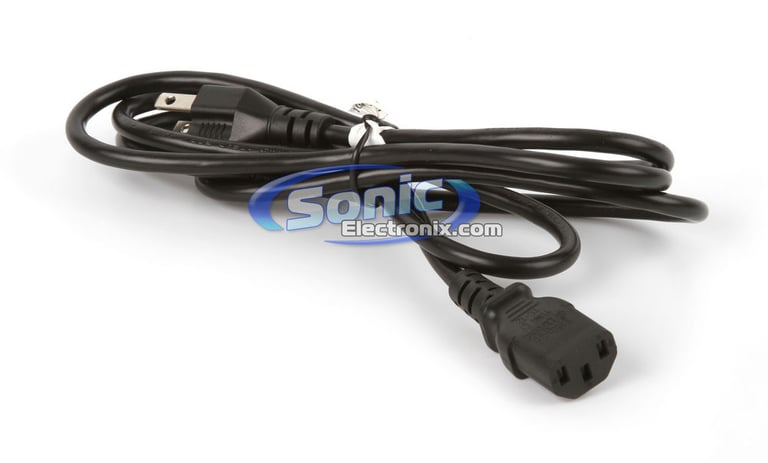

  • IEC power cable

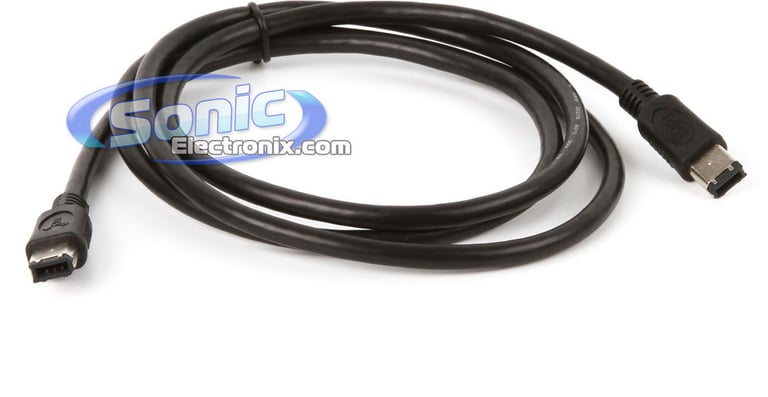

  • 6 pin to 6 pin FireWire cable

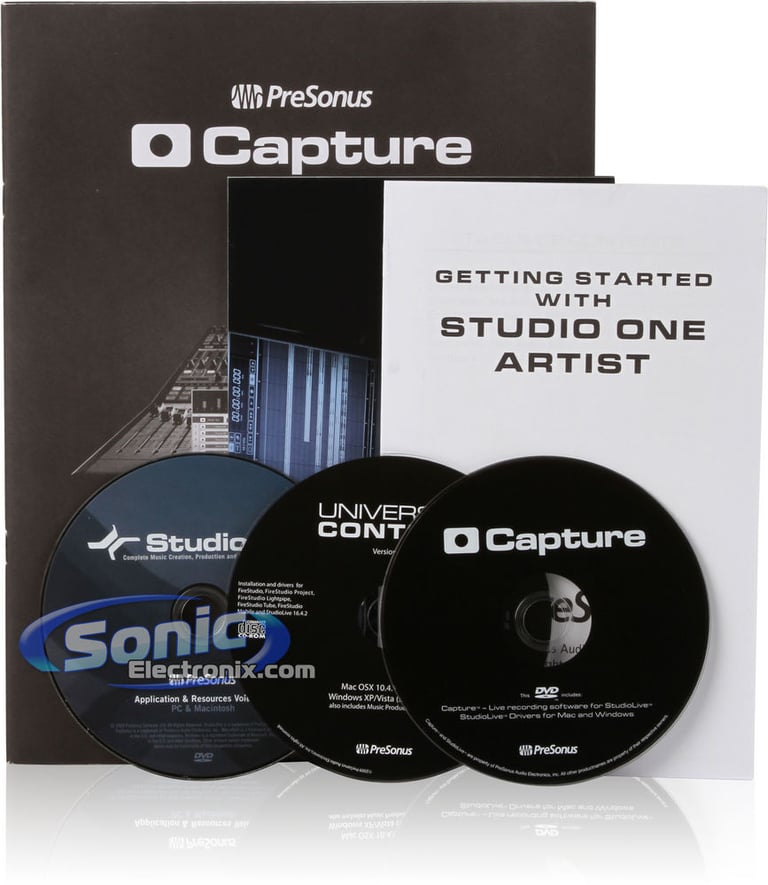

  • Capture Software
  • StudioLive drivers DVD-R
  • Owners manual

Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Limited time!
DMX4710S main

Kenwood DMX4710S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM & iDatalink Maestro Ready)

2
-37.71%

$299.00

List price $480.00

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
Limited time!
DCPA723W main

Dual DCPA723W

7” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto

4
-23.61%

$219.99

List price $287.99

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

Specifications & Details


Mixer Features
Frequency Response
20 - 40,000 Hz
THD (Total Harmonic Distortion)
.005%
Channels
16 Channels
Rachmountable
Yes
Phantom Power
Yes
Width
17-1/4"
Height
6-15/16"
Depth
22-3/8"
Connections
Main Outs
Ballanced XLR
CRTL Room/ALT Outs
Balanced 1/4" TRS
Direct Outs
16
Headphone Outs
1
Aux Sends
8
Inserts
20
Bus/Subgroup Outs
4
Mic-Pre Inputs
16
Line Inputs
16
Digital Features
Digital Recording Interface
Firewire 400/800
Digital Signal Processing
Yes
Digital Outs
0
Digital Inputs
0
Digital Audio Resolution
24/48
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

STUDIOLIVE16.4.2

Weight:

23.00lbs

Internal SKU:

studiolive1642

Internal Product ID:

24118
