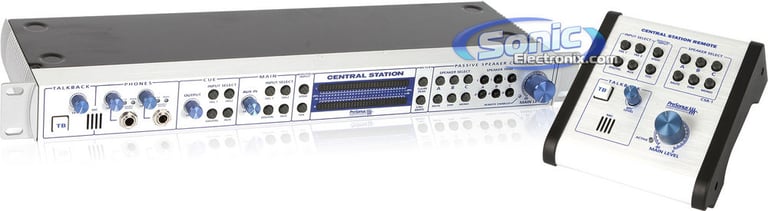

PreSonus Central Station Plus

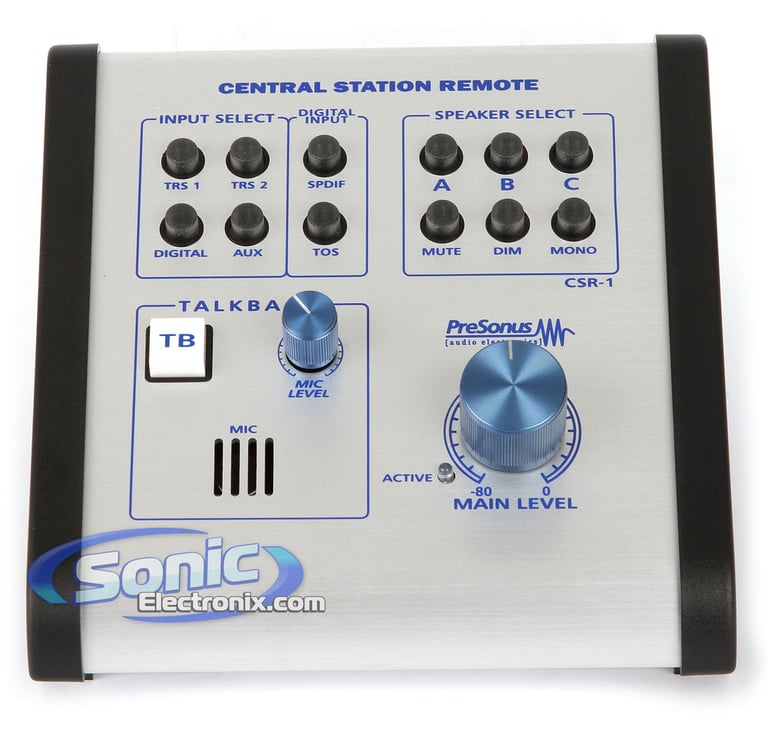

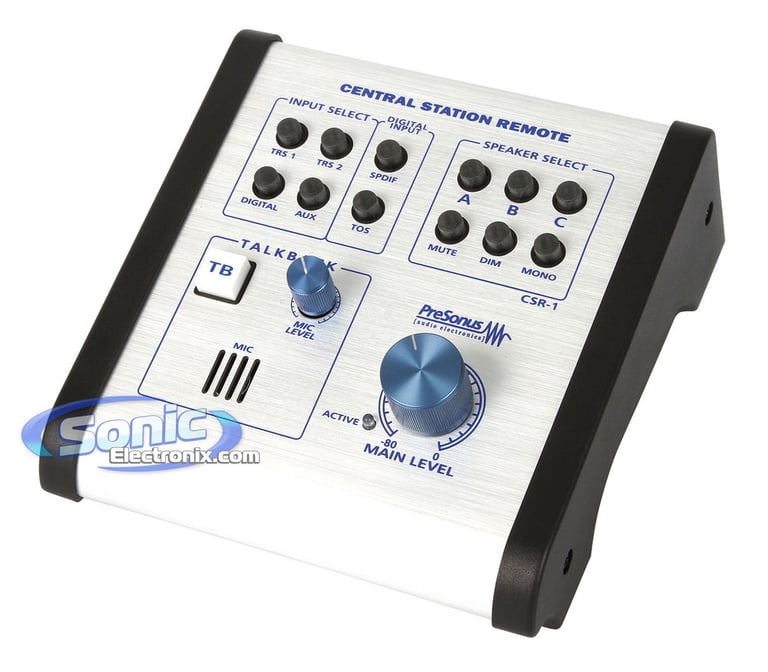

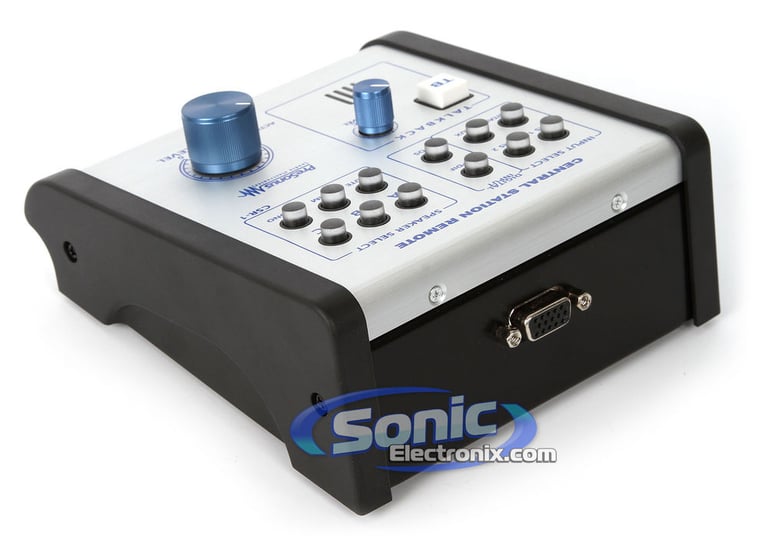

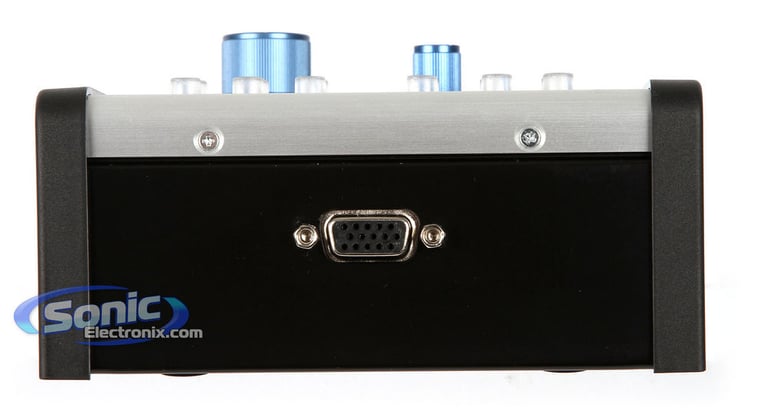

Studio Control Bundle with Remote Three Sets of Stereo Analog Inputs

PreSonus
Shop all PreSonus
highlight-star-icon

Central Station Studio Control Center • CUE Outputs • Talkback Microphone • Passive Signal Path • Microphone XLR Input • Three Sets of Stereo Analog Inputs • 30-Segment Peak/Hold LED's • Three Sets of Monitor Outputs

Learn more about the centralstationplus

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
70-1817 main

Metra 70-1817 Wiring Harness

Install a new car stereo in select 1984-2006 vehicles from Dodge, Chrysler, Plymouth

29
-14.31%

$5.99

List price $6.99

Add to cart

Description

PreSonus brand icon

Authorized dealer

Product Features:

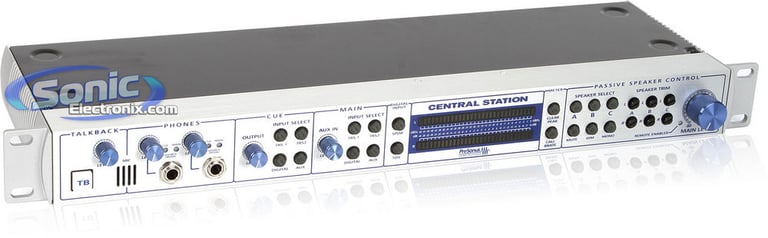

  • PreSonus Central Station Studio Control Center
  • Three sets of stereo analog inputs to switch between input sources such as, DAW, mixer, CD/DAT/Tape player, or keyboards/samplers
  • 24-Bit Digital to analog converter offers the highest possible audio quality

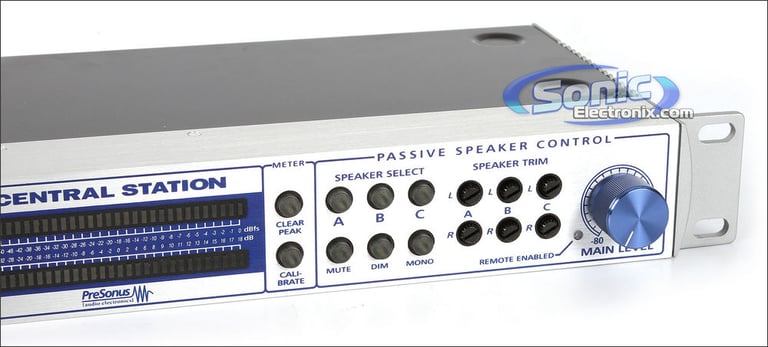

  • Three sets of monitor outputs, each with their own set of passive trim controls
  • MUTE, DIM and MONO switches
  • Includes a set of CUE outputs that can feed headphone amplifiers and a separate stereo MAIN line level output
  • Passive Signal Path for ultimate sonic performance
  • Dual fast-acting 30-segment peak/hold LED's for accurate metering

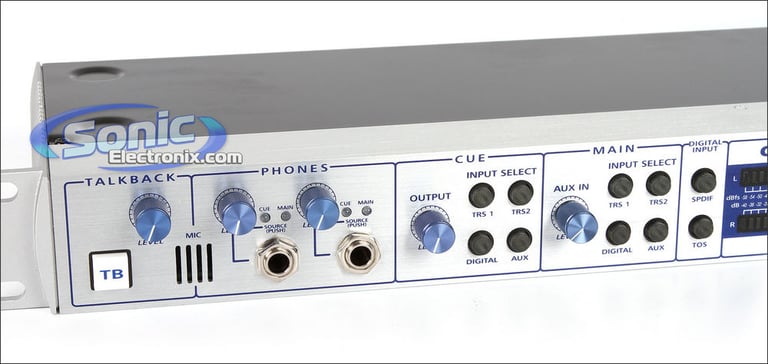

  • Talkback microphone is routed through the CUE outputs for communication between artist and engineer

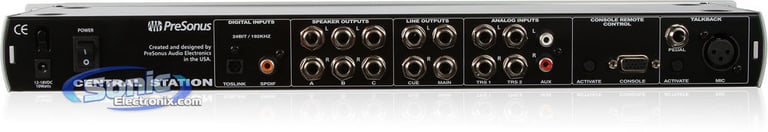

  • Microphone XLR input on the rear panel for use with an external microphone
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Product Specifications:
  • Dimensions: 5-1/2"D x 19"W x 1-3/4"H
  • Weight: 5 lbs
  • Audio Inputs:
    • TRS 1&2:
    • Type: 1/4" TRS Passive-balanced
    • Input Impedance: 2000-5000 ohm (Speaker load and Trim level dependent)
    • Signal-to-Noise Ratio: >140dB
    • THD (Total Harmonic Distortion) Noise: <.0005%
    • Aux:
    • Type: RCA active-unbalanced
    • Input Impedance: 8000 ohm
    • Signal-to-Noise Ratio: >115dB
    • THD (Total Harmonic Distortion) Noise: <.002%
    • Frequency Response: 10-50,000 Hz
    • Gain Range: -90dB - +20dB
  • Audio Outputs:
    • Speakers:
    • Type: 1/4" TRS Passive-unbalanced
    • Type-Mono Activated: 1/4" TRS Active-Impedance Balanced
    • Trim Range: -90dB - 0dB
    • Main Level Range: -90dB - 0dB
    • Dim Attenuation: -30dB
    • Main:
    • Type: 1/4" TRS Active-Balanced
    • Output Impedance: 51 ohm
    • THD (Total Harmonic Distortion) Noise: <0.0025%
    • Frequency Response: 10-50,000 Hz
    • Cue:
    • Type: 1/4" TRS Active-Impedance Balanced
    • Output Impedance: 51 ohm
    • THD (Total Harmonic Distortion) Noise: <.003%
    • Frequency Response: 10-50,000 Hz
    • Gain Range: -90dB - 0dB
    • Dim Attenuation: -30dB (Talkback activated)
    • Headphones:
    • Type: 1/4" TRS Active stereo
    • Maximum Output: 150mW/channel @ 60 ohm load
    • THD (Total Harmonic Distortion) Noise: 0.015%
    • Frequency Response: 10-50,000 Hz
