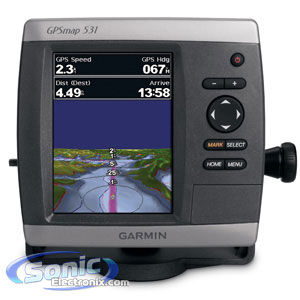

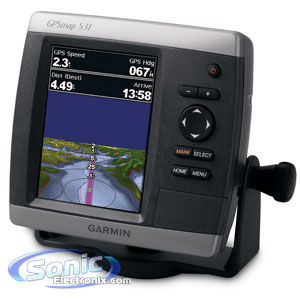

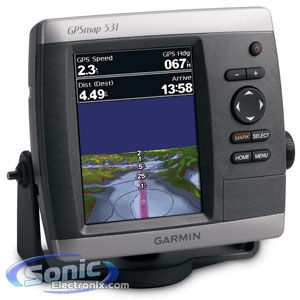

Garmin GPSMAP 531s

5" QVGA Display Marine GPS Navigation Receiver with Dual-beam Transducer (010-00761-01)

Garmin
Shop all Garmin
highlight-star-icon

5" Display Marine GPS Navigation Receiver • Ultra-Bright Diagonal QVGA Display • Supports BlueChart g2 Vision Cards • NMEA 2000®-certified • Powerful Dual-Frequency Transducer (Sonar) • Split Zoom Display

Learn more about the gpsmap531s

We apologize

This item has been discontinued


Loading...
70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

99-5700 main

Metra 99-5700 Dash Kit

Install a new Single-DIN car stereo in select 1975-2000 vehicles from Ford, Mercury, Mazda

5
-12.50%

$27.99

List price $31.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

Description


Product Features:
  • 5" Display Marine GPS Navigation Receiver

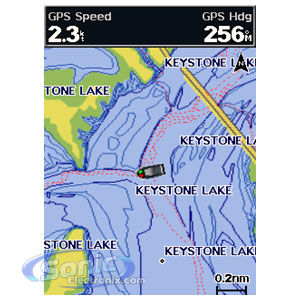

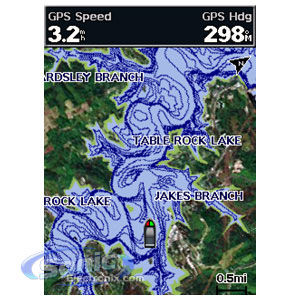

  • Basemap contains worldwide satellite images in place of traditional maps

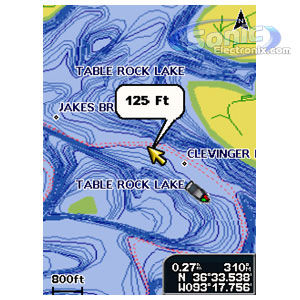

  • Preloaded with charts for over 14,000 U.S. lakes and navigable rivers (US Inland Lake Map Data)
  • Two NMEA 0183 I/O ports
  • High-sensitivity GPS receiver for superior satellite tracking and quicker acquisition times
  • Receives U.S. graphical weather data via optional GXM 51 satellite receiver/antenna

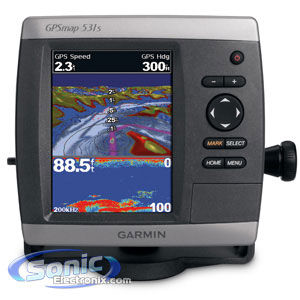

  • Powerful dual-frequency transducer illustrates depth contours, fish targets and structures via sonar
  • NMEA 2000®-certified for easy connectivity with sensors, instruments and future Garmin devices
  • Single SD memory card slot for BlueChart g2 Vision cards
  • Supports AIS to track target ship positions
  • Compatible with GXM 51 for XM Satellite Radio and XM WX Satellite Weather
  • High-speed processor for fast screen redraws and smooth panning
  • Streamlined user interface makes it simple to select modes and features
  • Backlit keypad for easy operation in low light conditions
  • Supports DSC to display position data from DSC capable VHF radios
  • UltraScroll high rep rate sonar provides lightning-fast screen updates
  • AutoGain technology enhances target visibility
  • See-Thru technology shows weak and strong returns simultaneously
  • Water temperature log graphically records water temp data
  • Adjustable depth line helps gauge desired fishing levels and bottom clearance
  • Split zoom display offers a closer look at fish targets and bottom structure
  • Alarms for fish size, shallow water, deep water, and low battery
  • Garmin Part Number: 010-00761-01, 0100076101
  • 1-year Sonic Electronix warranty
Product Specifications:
  • Display: Ultra-bright 5" diagonal QVGA
  • Resolution: 234 x 320 pixels
  • Brightness: >800 nits
  • Power output: 400 watts (RMS) 3200 watts (peak to peak), dual frequency
  • Depth: 900 feet/300 meters (dual beam)
  • Waypoints/favorites/locations: 3,000
  • Routes: 100
  • Track log: 10,000 points; 50 saved tracks
  • Bottomlock Zoom: 2X and 4X
  • Adjustable keel offset
  • Dimensions: 2-15/16"D x 6-7/16"W x 5-15/16"H
Package Includes:
  1. GPSMAP 531s
  2. Tilt/swivel mount
  3. Protective front cover
  4. Power/data cable
  5. Documentation
  6. Dual beam transducer

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Specifications & Details


Portable GPS Features
Screen Size
5"
Touchscreen
No
Resolution (pixels)
234 x 320
Waterproof
Yes
Built-In Antenna
Yes
Built-In Compass
Yes
Built-In Altimeter
Yes
MP3 Playback
No
WMA Playback
No
3.5mm Stereo Jack
No
A/V Input
No
USB Port
No
Bluetooth Connectivity
No
Traffic Tuner
No
Languages
English
Navigation Features
Portable Navigation Use
Water
Map Database
Garmin (NAVTEQ)
Map Source
Built-In Flash Memory
Map Dimensional Display
2D
Basemap Includes
Rivers, Lakes, and Coastline Data
Traffic Lane Guidance
No
Customizable POI
No
Speed Display
Yes
Text-to-Speech
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

010-00761-01

Weight:

5.20lbs

Internal SKU:

gpsmap531s

Internal Product ID:

26954

Customer Ratings & Reviews


Garmin GPSMAP 531s thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Boater

This product is great if you buy the $99 chip. I wish Garmin or the store would have told me that this 531s had to have the chip to wake up all the features of this unit, that are in the instruction book, it would have saved me hours of frustration.

By Terry on September 9, 2010
