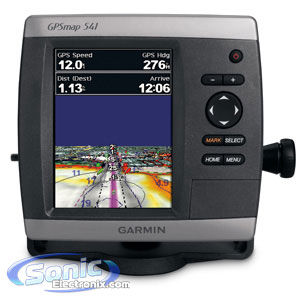

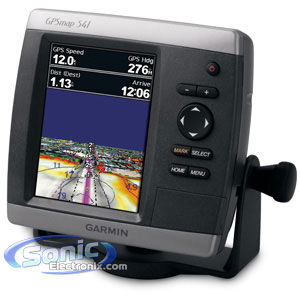

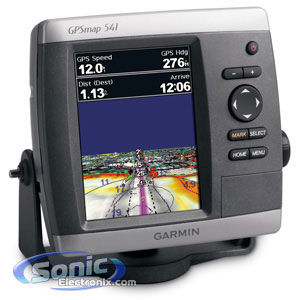

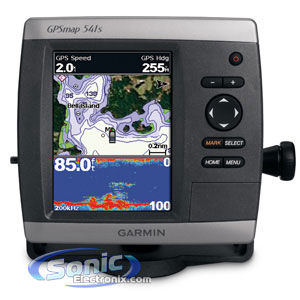

Garmin GPSMAP 541s

5" QVGA DIsplay Marine GPS Navigation Receiver with Dual-Frequency Transducer (010-00762-01)

Garmin
Shop all Garmin
highlight-star-icon

5" Display Marine GPS Navigation Receiver • Ultra-Bright Diagonal QVGA Display • Supports BlueChart g2 Vision Cards • NMEA 2000®-certified • Powerful Dual-Frequency Transducer (Sonar) • Split Zoom Display

Learn more about the gpsmap541s

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Add to cart
Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

$69.99

Add to cart
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Add to cart
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Add to cart
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Add to cart
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Add to cart

Description

Garmin brand icon
Product Features:
  • 5" Display Marine GPS Navigation Receiver with Sonar

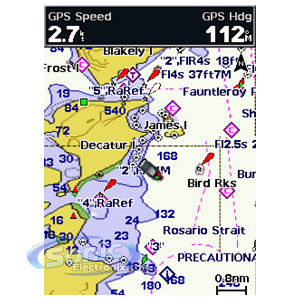

  • Basemap contains worldwide satellite images in place of traditional maps
  • Preloaded U.S. coastal area map data and worldwide basemap
  • Patented transom/trolling mount transducer
  • High-sensitivity GPS receiver for superior satellite tracking and quicker acquisition times

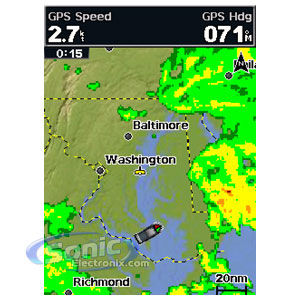

  • Receives U.S. graphical weather data via optional GXM 51 satellite receiver/antenna
  • Powerful dual-frequency transducer illustrates depth contours, fish targets and structures via sonar
  • NMEA 2000®-certified for easy connectivity with sensors, instruments and future Garmin devices
  • Single SD memory card slot for BlueChart g2 Vision cards
  • Supports AIS to track target ship positions
  • Compatible with GXM 51 for XM Satellite Radio and XM WX Satellite Weather
  • High-speed processor for fast screen redraws and smooth panning
  • Streamlined user interface makes it simple to select modes and features
  • Backlit keypad for easy operation in low light conditions
  • Supports DSC to display position data from DSC capable VHF radios
  • UltraScroll high rep rate sonar provides lightning-fast screen updates
  • AutoGain technology enhances target visibility
  • See-Thru technology shows weak and strong returns simultaneously
  • Water temperature log graphically records water temp data
  • Adjustable depth line helps gauge desired fishing levels and bottom clearance
  • Split zoom display offers a closer look at fish targets and bottom structure
  • Alarms for fish size, shallow water, deep water, and low battery
  • Garmin Part Number: 010-00762-01, 0100076201
  • 1-year Sonic Electronix warranty
Product Specifications:
  • Display: Ultra-bright 5" diagonal QVGA
  • Resolution: 234 x 320 pixels
  • Brightness: >800 nits
  • Power output: 500 watts (RMS) 4000 watts (peak to peak), dual frequency
  • Depth: 1500 feet/500 meters (dual beam)
  • Waypoints/favorites/locations: 3,000
  • Routes: 100
  • Track log: 10,000 points; 50 saved tracks
  • Bottomlock Zoom: 2X and 4X
  • Adjustable keel offset
  • Dimensions: 2-15/16"D x 6-7/16"W x 5-15/16"H
Package Includes:
  1. GPSMAP 541s
  2. Tilt/swivel mount
  3. Protective front cover
  4. Power/data cable
  5. Documentation
  6. Dual beam transducer

Specifications & Details

Portable GPS Features
Screen Size
5"
Touchscreen
No
Resolution (pixels)
234 x 320
Waterproof
Yes
Built-In Antenna
Yes
Built-In Compass
Yes
Built-In Altimeter
Yes
MP3 Playback
No
WMA Playback
No
3.5mm Stereo Jack
No
A/V Input
No
USB Port
No
Bluetooth Connectivity
No
Traffic Tuner
No
Languages
English
Navigation Features
Portable Navigation Use
Water
Map Database
Garmin (NAVTEQ)
Map Source
Built-In Flash Memory
Map Dimensional Display
2D
Basemap Includes
Rivers, Lakes, and Coastline Data
Traffic Lane Guidance
No
Customizable POI
No
Speed Display
Yes
Text-to-Speech
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Garmin

Model Number:

010-00762-01

Weight:

5.50lbs

Internal SKU:

gpsmap541s

Internal Product ID:

26981

Customer Ratings & Reviews

Garmin GPSMAP 541s thumbnail image
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:
Loading...
Sorry, no reviews found
