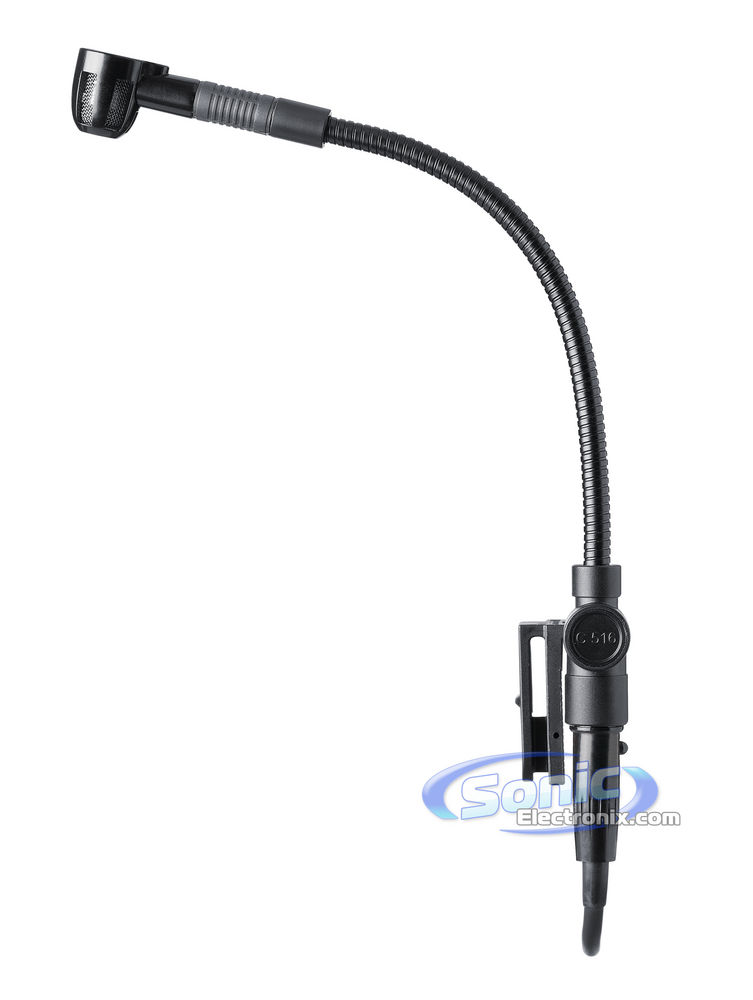

AKG C 516 ML

Cardioid Instrument Microphone with Miniature Mounting Bracket

AKG
Shop all AKG
Product videos
highlight-star-icon

Cardioid instrument microphone with miniature mounting bracket • High mechanical-noise attenuation • Including wireless direct adapter • Detachable microphone cable

Learn more about the c516ml

We apologize

This item has been discontinued


Loading...
82-9601 main

Metra 82-9601

6.5" to 6.75" Speaker Mounting Adapters for

11
-10.00%

$26.99

List price $29.99

Limited time!
46CSC674 main

Kicker CSC67 (46CSC674)

600W Peak (200W RMS) 6.75” CS Series 2 Way Coaxial 4-ohm Speakers

9
-33.36%

$79.96

List price $119.99

KD-X560BT main

JVC KD-X560BT

Single DIN Marine Digital Audio Receiver with Bluetooth

4
-7.65%

$239.00

List price $258.80

Product Highlights


Cardioid instrument microphone with miniature mounting bracket • High mechanical-noise attenuation • Including wireless direct adapter • Detachable microphone cable

Description


Easy, Convenient

Lightweight cardioid miniature microphone for use on accordions, guitar speakers, piano and keyboard/organ cabinets. The included screws and double-sided, solvent-free adhesive pads make it easy to install the microphone on your instrument or amp exactly where you need it.

Using two C 516 MLs (one on the bass and one on the treble side) and an optional B 29 L battery power supply is an ideal way to mic up an accordion.

The C 516 ML is the only version available and can be used with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering. The unique adapter plate A 400 allows easy attachment of the AKG pocket transmitters.

General Features:
  • Cardioid instrument microphone with miniature mounting bracket
  • High mechanical-noise attenuation
  • Including wireless direct adapter for easy use with AKG pocket transmitters
  • Detachable microphone cable
  • Ideal for miking up accordions and guitar, piano, keyboard, or organ amplifiers
  • Also found as: 3063 Z 00020, 3063Z00020, AKC516ML, C 516 ML, C 516ML, C516ML
  • 1-year Manufacturer's warranty
Specifications:
  • Polar pattern: cardiod
  • Frequency range: 60 Hz to 20 kHz
  • Sensitivity: 5 mV/Pa (-46 dBV)
  • Max. SPL: 130/132 dB SPL (bei k = 1 %/3 %)
  • Equivalent noise level: 31 dB(A)
  • Signal/noise ratio (A-weighted): 63 dB
  • Impedance: <= 200 ohm
  • Recommended load impedance: >= 2000 ohm
  • Powering: <= 2 mA
  • Power requirement B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack transmitters
  • Connector: 3-pin mini XLR
  • Cable: 1.5 m (5 ft.)
  • Finish: matte black
  • Dimensions: length: 235 mm (9.3 in.) (microphone only); max. width: 47 mm (1.9 in.)
  • Net weight: 46 g (1.6 oz.) (microphone and cable)
