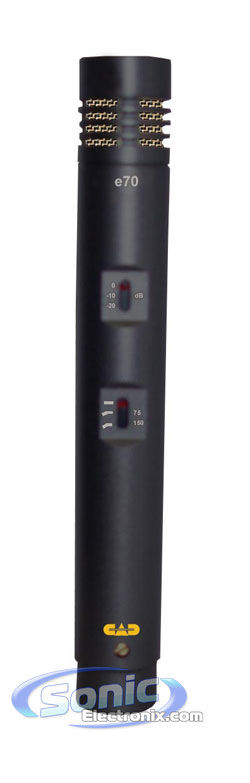

CAD E70

Modular Dual-Capsule Condenser Microphone

CAD
Shop all CAD
Product videos
highlight-star-icon

Dual-capsule Pencil Condenser Microphone • Schoeps-type amplifier circuit • FET Input Circuit • Low Mass 1/2 Gold-Sputtered Diaphragm • Transformerless Design

Learn more about the e70

We apologize

This item has been discontinued


Loading...
PNW-35 main

AudioControl PNW-35

100W Peak (50W RMS) 3.5″ PNW Series 2 Way Coaxial 2-ohm Speakers

2
-11.83%

$149.00

List price $169.00

Product Highlights


Dual-capsule Pencil Condenser Microphone • Schoeps-type amplifier circuit • FET Input Circuit • Low Mass 1/2 Gold-Sputtered Diaphragm • Transformerless Design

Description


A Unique Ambiance

Why decide when you can have both? Omnidirectional capsule for flat near field and ambiance. Cardioid capsule for proximity boost and off-axis rejection. Capture your instrumentation with exacting detail. Features include field-effect detection, transformerless drive, dual-frequency hi-pass filter and two-position attenuator. Elastic shock mount, stand clamp and windscreen are included. P48 (48V) phantom power is required.

General Features:
  • Dual-capsule Pencil Condenser Microphone
  • Schoeps-type amplifier circuit
  • FET input circuit
  • Small rugged metal housing
  • Low mass 1/2 gold-sputtered diaphragm
  • Applications: Choir, Orchestra, Acoustic Instrument, Guitar Cabinets, Strings, Piano, Cymbals/Overheads, Hi-Hat
  • Transformerless design for accurate reproduction
  • Dual hi-pass filter and dual pad
  • 1-year Manufacturer's warranty
Specifications:
  • Operating Principle: Condenser
  • Polar Pattern: Cardioid and omnidirectional
  • Frequency Response: 20Hz to 20KHz
  • Sensitivity: -39dBV (11mV) @ 1 Pa
  • Impedance: 85 ohm
  • Max SPL: 145dB, 1% THD, attenuator engaged
  • Self Noise: 23dBA
  • Hi-pass Filter: 75Hz and 150Hz, 6dB/oct
  • Attenuator: 10dB and 20dB
  • Power Requirements: P48, 2mA
