Audio Technica ATW-702

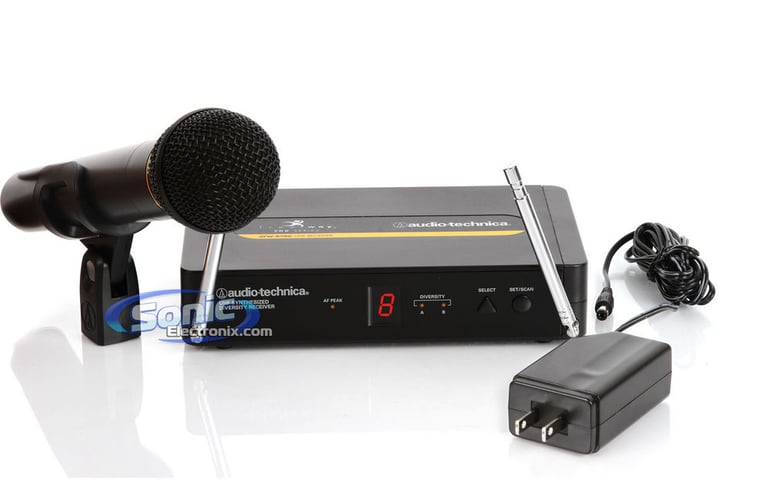

700 Series Frequency Diversity UHF Wireless System w/ ATW-R700 & ATWT702 w/ AT8456a Stand Clamp

Audio Technica
Shop all Audio Technica
highlight-star-icon

700 Series Frequency Diversity UHF Wireless System • 8 Selectable Frequency-Coordinated UHF Channels • Automatic Frequency Scanning • LED Channel Display • Balanced XLR and Unbalanced 1/4" Output Connectors

Learn more about the atw702

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Description


Audio Technica brand icon

Authorized dealer

Wireless Professionalism

Audio-Technica’s 700 Series Freeway wireless delivers professional features and sound quality unheard of in its class. These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning, Tone Lock™ squelch and more. 700 Series Freeway systems come equipped with your choice of handheld, headworn, or lavalier microphones; or choose a system designed for guitar hookup. For multiple-mic applications, as many as eight systems may be used together.

General Features:
  • 700 Series Frequency Diversity UHF Wireless System
  • 8 selectable frequency-coordinated UHF channels
  • Use up to 8 simultaneous systems—all channels compatible
  • Automatic frequency scanning
  • Diversity operation for increased range/reliability
  • LED Channel display plus Antenna, AF Peak indicators
  • Balanced XLR and unbalanced 1/4" output connectors
  • Tone Lock squelch system eliminates interference when transmitter is off
  • Handheld transmitter features: variable trim control, internal channel selector, multi-color battery/power indicator, AA operation
  • Freeway body-pack systems are compatible with all Audio-Technica Wireless Essentials® microphones and cables
  • 1-year Manufacturer's warranty
Overall System Specifications:
  • Operating Frequencies: UHF band, 542.125 MHz to 561.250 MHz
  • Number of Channels: 8
  • Frequency Stability: ±0.005%, Phase Lock Loop frequency control
  • Modulation Mode: FM
  • Maximum Deviation: ±25 kHz
  • Operating Range: 200' typical
  • Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
  • Frequency Response: 100 Hz to 12 kHz

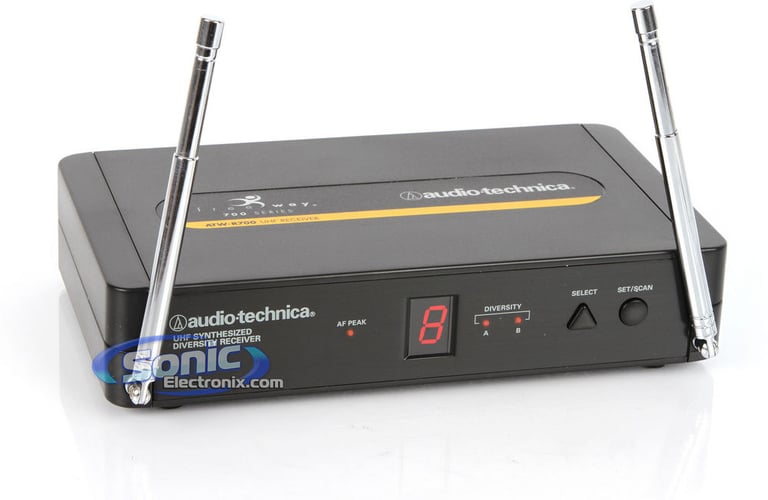

Receiver Specifications:
  • Receiving System: Antenna-switching diversity
  • Image Rejection: 55 dB minimum
  • Signal-to-noise Ratio: >80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz
  • Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
  • Sensitivity: 25 dBµV (S/N 60 dB at 10 kHz deviation, IEC-weighted)
  • Audio Output: Unbalanced: 211 mV (-13.5 dBV) (1 kHz modulation, 10 kHz deviation)
  • Balanced: 150 mV (-16.5 dBV) (1 kHz modulation, 10 kHz deviation)

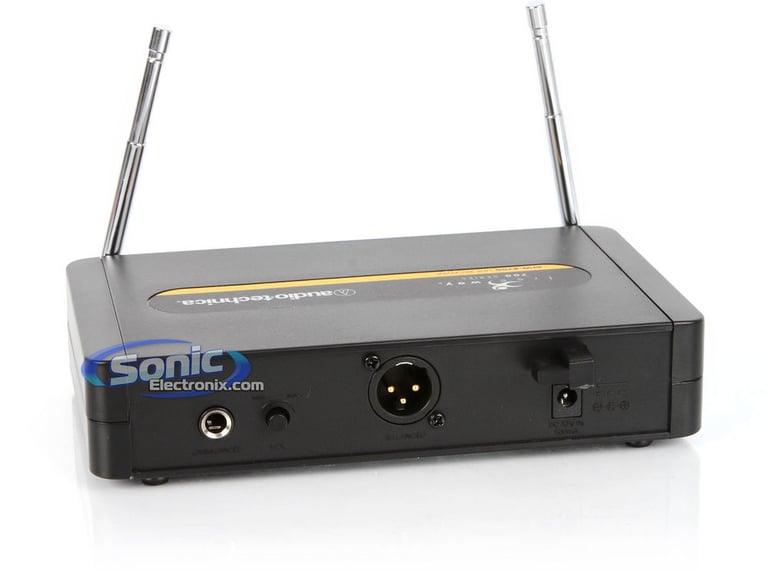

  • Output Connectors: Unbalanced: 1/4" TS ("mono") phone jack
  • Balanced: XLRM-type

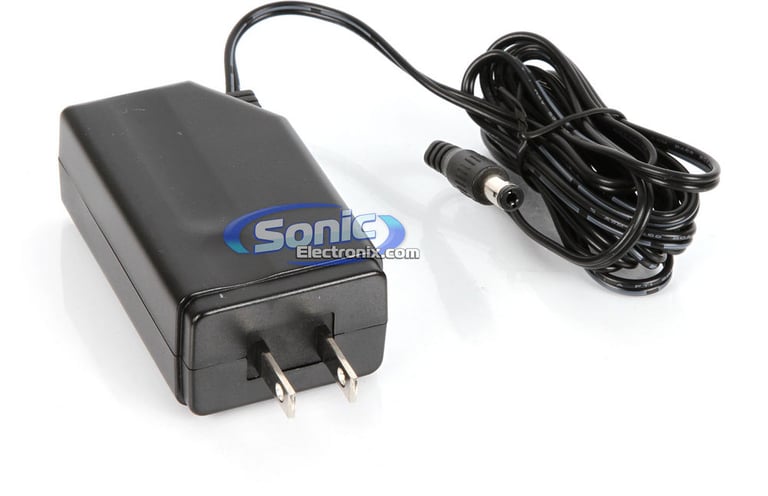

  • Power Supply: 100-240V AC (50/60 Hz) to 12 DC 1 A (center positive) switched mode, external power supply
  • Dimensions: 7.48" (190.0 mm) W x 1.65" (42.0 mm) H x 5.12" (130.0 mm) D
  • Weight: 12.9 oz (365 g)
  • Accessory Included: Power supply

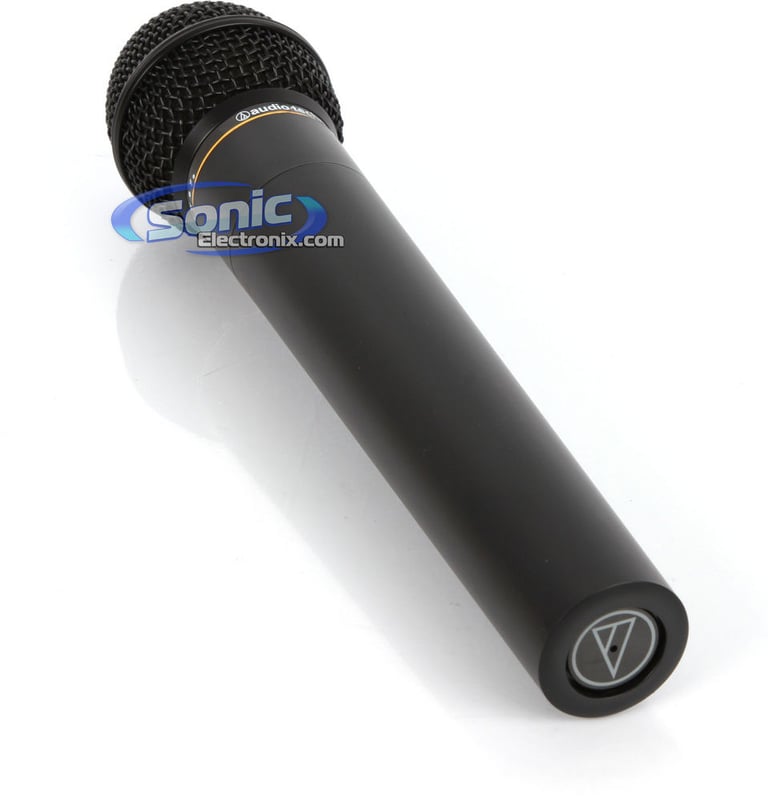

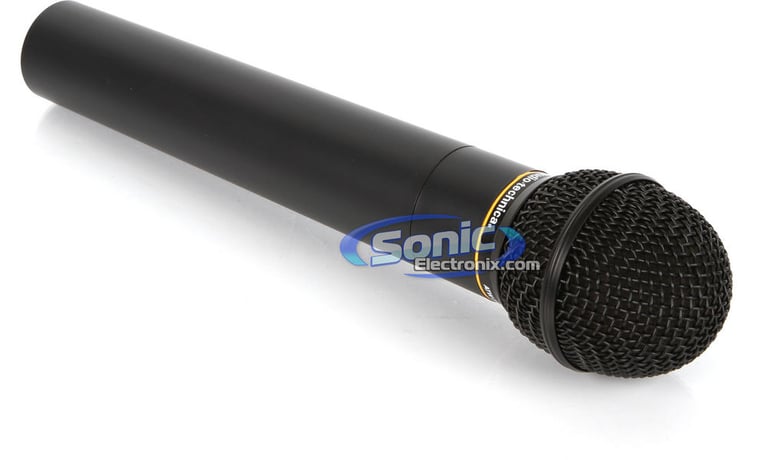

Handheld Microphone Specifications:
  • RF Power Output: 10 mW
  • Spurious Emissions: Under federal regulations
  • Dynamic Range: >100 dB, A-weighted
  • Microphone Element: Dynamic, unidirectional
  • Batteries: Two 1.5V AA alkaline (not included)
  • Current Consumption: 120 mA, typical
  • Battery Life: Approximately 12 hours, depending on battery type and use pattern
  • Dimensions: 9.65" (245.0 mm) long, 2.11" (53.5 mm) diameter
  • Net Weight: 9.1 oz (257 g) (without batteries)

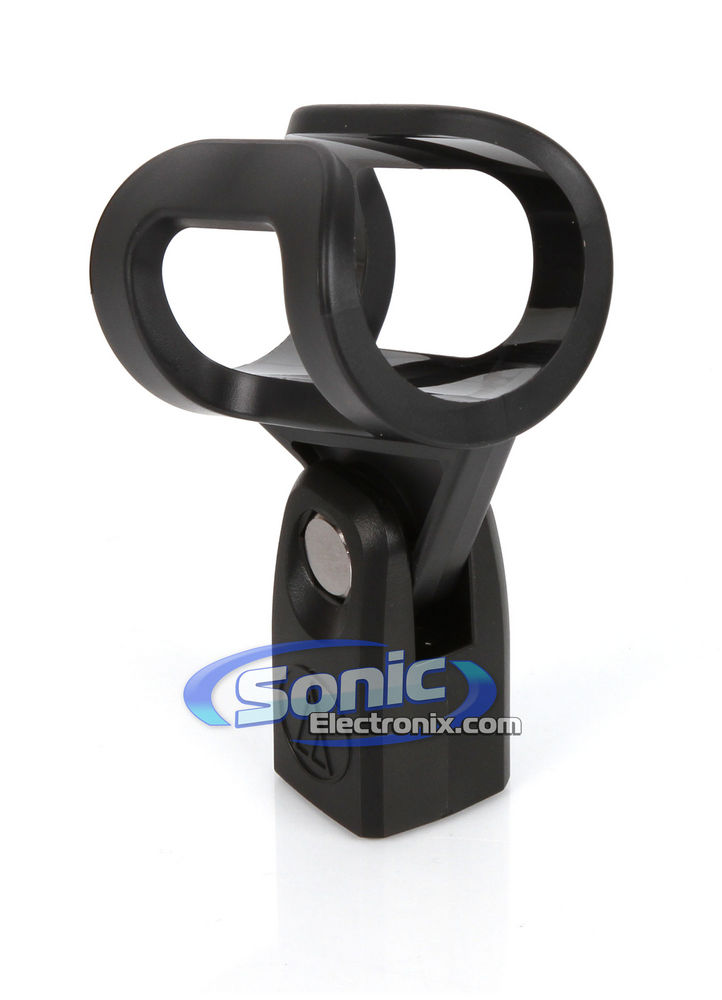

  • Accessory Included: AT8456a Quiet-Flex™ stand clamp
Audio Technica Authorized Reseller

Best selling similar products

JBLPBWIRELESSMICAM small

JBL PartyBox Two-Person Wireless Mic (JBLPBWIRELESSMICAM)

• Includes two wireless microphones and one dongle
• Compatible with all PartyBox speakers
• Rechargeable UHF dual channel wireless receiver
• High vocal quality and JBL Original Pro Sound
• Microphones come with replaceable AA batteries

$169.95

List price $204.00

Specifications & Details


Microphone Specifications
Microphone Type
Wireless
Number of Microphones
1
Polar Patterns
Uni-directional
Transducer Type
Dynamic
Sensitivity
60 dB
Connection Type
XLR
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATW-702

Weight:

2.70lbs

Internal SKU:

atw702

Internal Product ID:

30917
