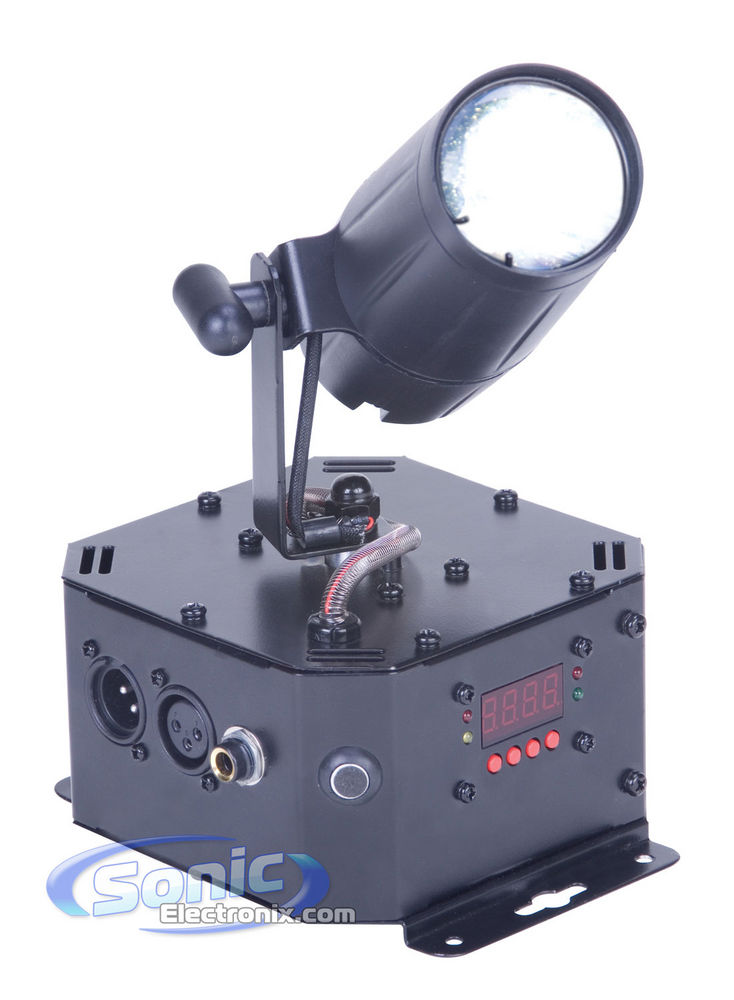

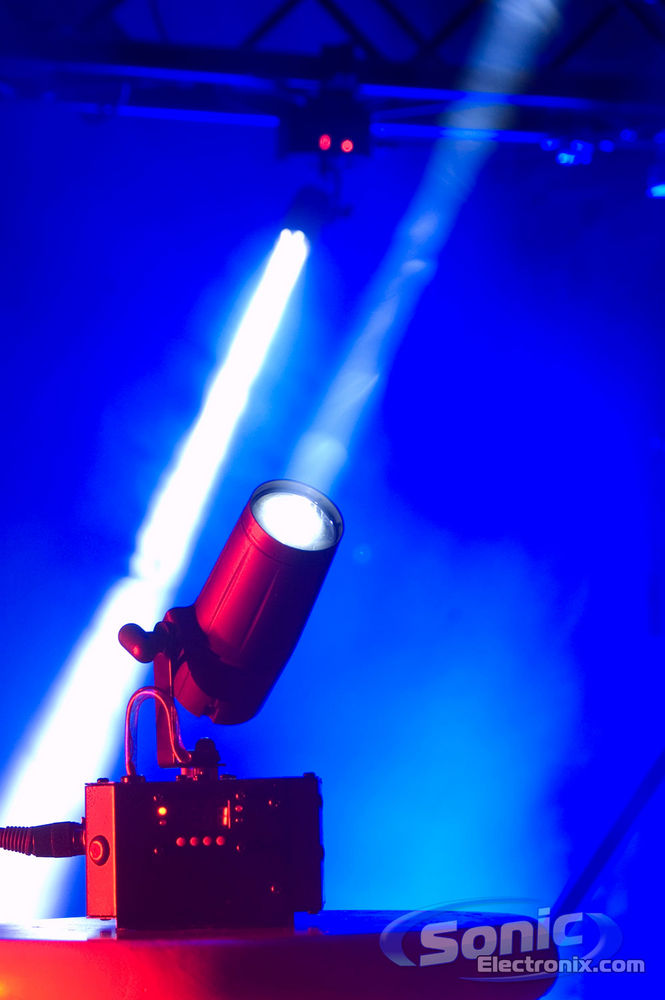

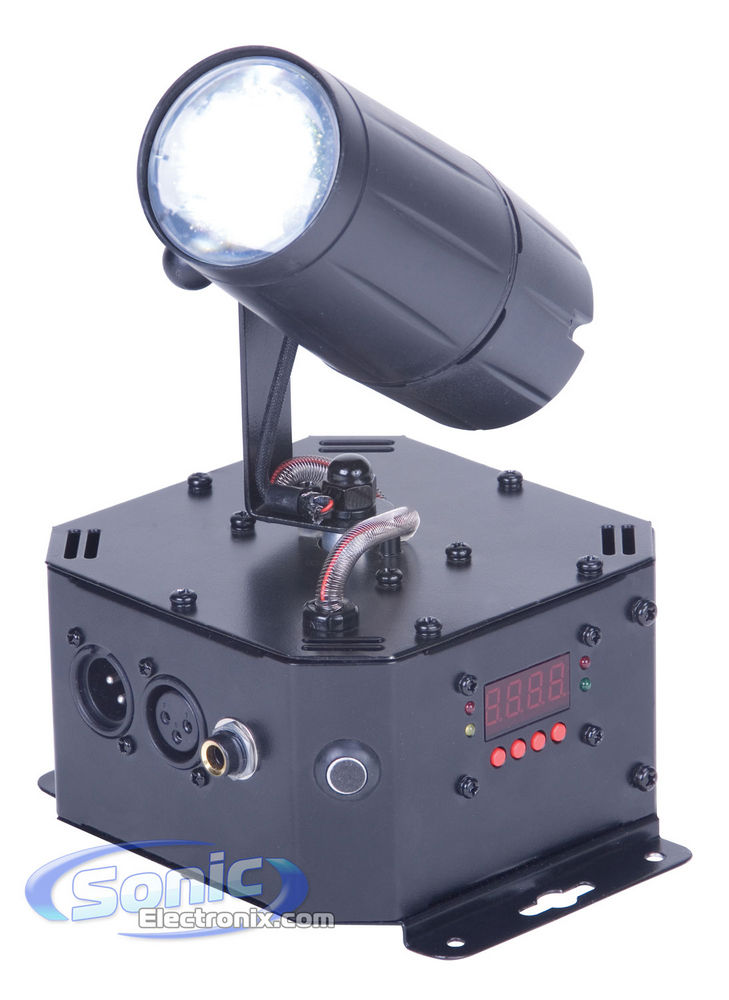

American DJ LED BEAM SCAN

Bright 3W White Beam DMX LED Pinspot Effect with Panning Head & 12-Degree Beam Angle

American DJ
Shop all American DJ
highlight-star-icon

Bright 3W White Beam DMX LED Pinspot Effect • Built-In Panning Head • 3 or 5 Channel DMX Modes • DMX-512 Protocol • 4-Button DMX LED Menu • Sound Active • Strobe Effect • Electronic Dimming • Long-Life LED

Learn more about the ledbeamscan

We apologize

This item has been discontinued


Loading...
70-7301 main

Metra 70-7301 Wiring Harness

Install a new car stereo in select 1999-2008 vehicles from Hyundai, Kia

16
99-7318 main

Metra 99-7318 Dash Kit

Install a new Single-DIN car stereo in select 2005-2006 Spectra and Spectra5

1
-48.29%

$14.99

List price $28.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17
GX628 main

JBL GX628 (GX628AM)

360W Peak (120W RMS) 6.5" GX Series 2 Way Coaxial 2.3-ohm Speakers

1
-12.50%

$69.99

List price $79.99

Stage1621 main

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

Description


American DJ brand icon

Authorized dealer

Product Features

  • Bright 3W White Beam DMX LED Pinspot Effect
  • Built-In panning head
  • 12° Beam angle
  • 3 or 5 channel DMX Modes
  • DMX-512 protocol with 4-button DMX LED menu
  • Operational modes: Sound active, DMX & Master/Slave
  • Strobe effect
  • Electronic Dimming: 0-100%
  • Pan: Up to 270°
  • Long-life LED: 50,000 hour LED life
  • Very low heat output and power consumption
  • Includes removable hanging bracket for mounting on truss, or remove bracket so the unit may be set upright on a table or floor
  • 6° beam angle lens also included
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • In/Out IEC power connections to daisy-chain power
  • Power consumption: 15W per unit
  • Dimensions: 6-3/4"L x 6-1/4"W x 7-1/4"H
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Specifications & Details


DJ Lighting Features
DJ Lighting Type
LED
Light Coverage
270 °
Number of Lights
1
Number of Colors
1
DJ Light Colors
White
Sound Activated
Yes
Strobe Light
Yes
Height
7-1/4"
Width
6-1/4"
Depth
6-3/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LED BEAM SCAN

Weight:

3.00lbs

Internal SKU:

ledbeamscan

Internal Product ID:

31693
