Allen & Heath XONE: S2

Four-Channel Professional DJ Mixer for Installation and Mobile Application

Allen & Heath
Shop all Allen & Heath
highlight-star-icon

• Analogue Filter Section
• Mic Auto Ducking Control
• Assignable Crossfader
• 5 Outputs
• Remote Level Control
• USB Audio Interface
• CD Fader Starts
• Recessed Level Trims
• Adjustable Output Level Limiter
• Alarm Input

Learn more about the xones2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Description

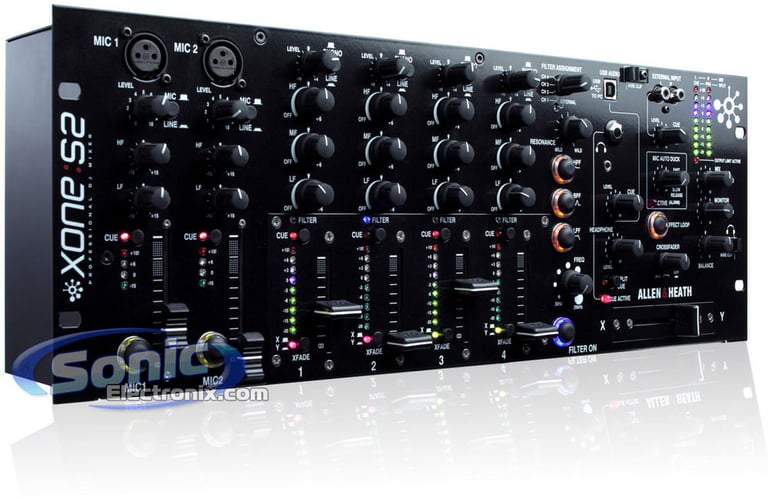

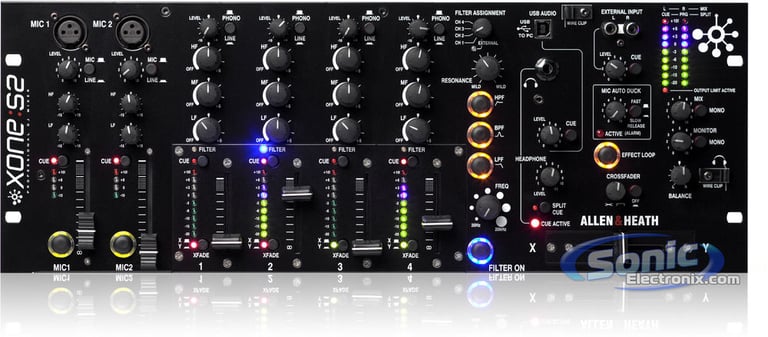

Allen & Heath XONE: S2

Xone:S2 is a new analogue installation DJ mixer for use in clubs and bars, and by professional mobile DJ’s. It’s a 19 inch rack-mount 4U mixer featuring 4 stereo dual-input channels, 2 mono mic/stereo line channels, with a choice of linear or rotary VCA channel faders, along with the legendary Xone analogue filter and a host of other functions. Uniquely, a USB audio interface is provided, enabling easy integration of digital media. The USB interface can be used for playback and recording to or from the Xone:S2 anda computer, or used with software to act like a hardware effects unit.

The Xone:S2 represents the ideal package for club installers, with many features designed to integrate it into a typical PA system, including an output limiter system that enables the installer to preset the maximum output level of the mixer. A dedicated alarm input mutes all music channels, and an alarm message audio input connection is provided. An additional stereo input (RCA) is accessible on the front panel - enabling guest DJs to patch in additional music sources

Product Features

  • 4 stereo dual input channels with 3 band equalizer
  • Analogue filter section with filter type, frequency, and resonance controls
  • 2 Mono Mic/Stereo Line channels with 2 band EQ. XLR sockets at front for easy Mic connection
  • Extensive channel and output metering
  • Mic auto ducking control, with adjustable depth and release
  • Assignable crossfader with scratch/mix curve control
  • Soft switched global effects loop
  • External line input with level and cue
  • 5 Outputs: Main Mix (balanced XLR), Monitor/Booth (RCA), Remote Zone (balanced TRS jack), Mono/sub (XLR), and record (RCA), Lighting controller audio feed
  • Remote level control for Zone output (0–10V)
  • USB audio interface for computer-based file replay / Recording Software / FX
  • CD fader starts on each music channel
  • Recessed level trims on back for music channels
  • Adjustable output level limiter
  • Alarm input override ducks all music channels
  • Dedicated alarm message audio input Universal power supply Universal input voltage internal power supply Rotary channel fader model available Rotary channel fader model also available
  • Also found as: XONE:S2-FADER, Xone:S2 Fader, xoneS2fader
  • Dimensions: 4.8"L x 19"W x 7"H
  • 1-year Manufacturer's warranty

Specifications & Details


Specifications
Total number of channels
4
Frequency Response
10 - 20,000 Hz
Signal-to-Noise Ratio
90 dB
Number of Microphone Inputs
2
Built-In Equalizer
Two Band EQ
Inputs and Outputs
Composite (RCA) Stereo Inputs
10
Composite (RCA) Stereo Outputs
3
Number of XLR Inputs
2
Number of XLR Outputs
2
Number of Stereo 1/4" Phone Inputs
0
Number of Stereo 1/4" Phone Outputs
4
Number of Video Inputs
0
Number of Video Outputs
0
Number of USB Connections
1
General
Primary Color
Black
Rack Mountable
Yes
Width
19"
Height
7"
Depth
4.8"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XONE:S2

Weight:

10.50lbs

Internal SKU:

xones2

Internal Product ID:

32049
