American Audio Q-2422 PRO

19" 3-Channel Professional DJ Mixer with Stream Flow LED Indicators & 5-Band EQ

American Audio
Shop all American Audio
highlight-star-icon

• 19" 3-Channel Professional DJ Mixer
• 2 Phono, 4 Line, 2 Aux, & 2 Mic Inputs
• Stream Flow LED Indicators
• Easy Access Auxiliary Input
• High Quality Feather Fader
• Balanced XLR Outputs
• 3-Band EQ
• Independent Pan & Gain

Learn more about the q2422pro

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


American Audio brand icon

Authorized dealer

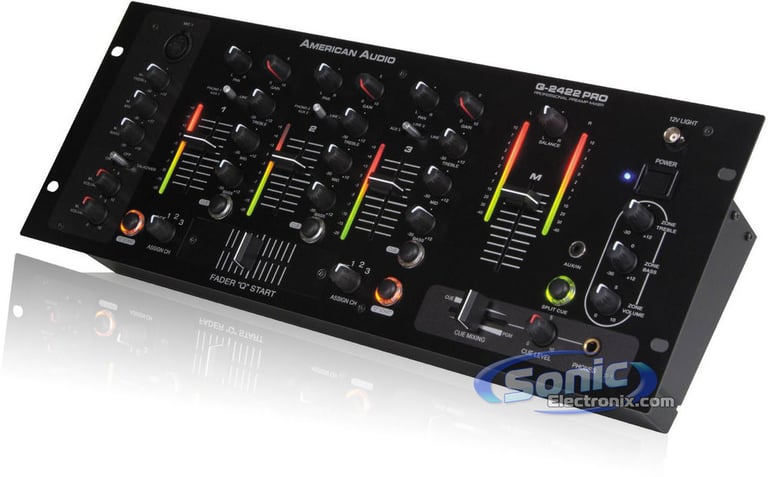

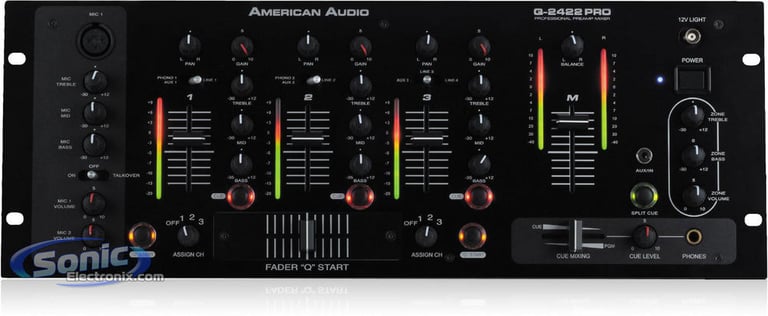

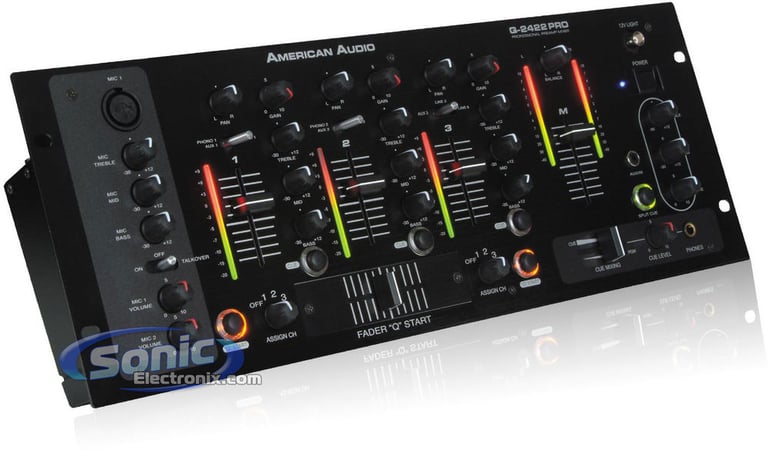

American Audio Q-2422 PRO Mixer

The American Audio Q-2422 Pro 3-Channel DJ Mixer fits into a 19" rack space or DJ console, and features 3 channels with 2 phono/line switchable inputs, 4 dedicated line inputs and 2 microphone inputs. This flexible and cost effective DJ mixer delivers flexible routing for mobile and nightclub DJs, and is a simple solution for general line mixing applications. The Q-2422 also features balanced and unbalanced outputs, Q-start control connections and a 3-band graphic EQ section on each channel.

Product Features
  • 19" 3-Channel Professional DJ Mixer
  • New improved sound quality
  • 2 Phono, 4 Line, 2 Aux, & 2 Mic Inputs
  • Stream Flow LED indicators on each Channel
  • Easy access auxiliary input on front of the mixer to plug in MP3 players, or satellite radio receivers . Bass, Mid & Tremble Control and separate volume for Mics
  • Q-Start
  • High quality Feather Fader for Smooth, Clean Crossfades (Replaceable)
  • Balanced XLR outputs
  • Recessed back panel
  • 2 Zone Outputs
  • Volume, bass, & treble control for second zone
  • 3-band EQ per channel (Bass, Mid & Treble)
  • Independent Pan & Gain on each channel
  • Trim output adjustment on rear
  • Improved mic circuitry and longer lasting line faders
  • Dimensions: 7"L x 19"W x 4"H
  • 1-year Manufacturer's warranty

Specifications & Details


Specifications
Total number of channels
3
Frequency Response
20 - 20,000 Hz
Signal-to-Noise Ratio
-90 dB
Number of Microphone Inputs
2
Digital Key Control
No
Inputs and Outputs
Composite (RCA) Stereo Inputs
6
Composite (RCA) Stereo Outputs
3
Number of XLR Inputs
0
Number of XLR Outputs
1
Number of Stereo 1/4" Phone Inputs
2
Number of Stereo 1/4" Phone Outputs
0
Number of Video Inputs
0
Number of Video Outputs
0
Number of USB Connections
0
General
Primary Color
Black
Rack Mountable
Yes
Width
19"
Height
4"
Depth
7"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Q-2422 PRO

Weight:

8.00lbs

Internal SKU:

q2422pro

Internal Product ID:

32265
