800W Peak, 2-Channel Class AB Power Amplifier w/ Protea DSP
Product highlights
PE-Series 800W Peak, 2-Channel Class AB Power Amplifier • 400W Per Channel @ 4 Ohm • Protea DSP Enabled • Adjustable Clip Limiter • DC Voltage Control • Stepped Input Attenuators • Variable Speed Fan
Learn more about the pe800
10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)
$798.00
List price $999.99
Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)
$199.00
List price $250.00
Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)
$199.00
List price $240.00
Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready
$249.99
List price $280.00
460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers
$90.00
List price $110.00
Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa
$129.99
List price $150.00
270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers
$90.00
List price $99.99
10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto
$309.99
List price $349.99

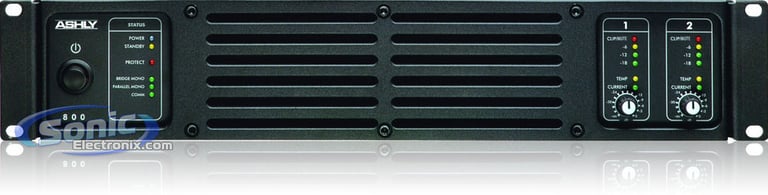

PE-Series (Protea Enabled) amplifiers are far more than just another series of amplifier. The six 2-channel models boast a remarkable range of power all the way from 400 to 1900 watts per channel (@ 4 ohms), and their Ethernet functionalities certainly increase their already high value in professional audio applications. All PE-Series amplifiers are 2RU high, weigh less than 24lbs and will power 2, 4 or 8 ohm loads. Each amplifier also includes LED indicators for power, standby, protect, bridge mono, parallel mono and network communications, and are located on the left side of the front panel. On the right side, each channel has temperature and current indicators as well as a four-step signal meter.

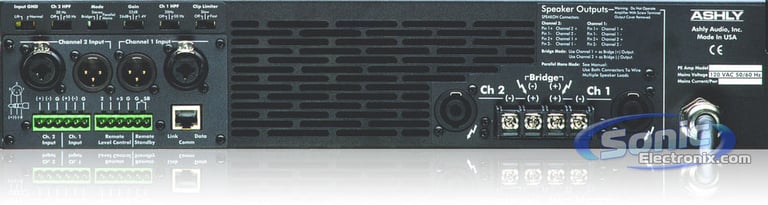

PE-Series amplifiers incorporate state of the art control and power technologies. Each amplifier in the series can be monitored and controlled through the Ethernet port on the rear panel using standard, affordable Ethernet hardware and Protea NE Software™. This software gives you access to many diverse features, including real time control of input attenuation, channel mute, channel polarity, and even enables you to remotely power the unit on or off. Protea NE also allows you to monitor I/O level, protect, temperature, output current and clipping.
Ashly Audio has maintained that one of the secrets to superb sound and dependability is well-thought-out design and meticulous execution. Ashly's PE-Series takes that philosophy and multiplies it ten-fold. When your next project requires high performance amplifiers with superb sound, reliability, remote control and more, Ashly’s PE-Series power amplifiers have been designed to meet and even exceed the needs of both portable and long-term installation applications.
Key Features And Comparison Chart
| Model | Ashly PE800 | Ashly PE1200 | Ashly PE1800 | Ashly PE2400 | Ashly PE3000 | Ashly PE3800 |
| Wattage | 420W | 540W | 611W | 790W | 1010W | 1220W |
| Idle | 2.4A | 2.8A | 2.4A | 2.4A | 2.6A | 2.8A |
| Idle (Typ) | 6.6A | 8.6A | 8.4A | 10.4A | 12.4A | 14.6A |
| Idle (Max) | 13.6A | 20.2A | 26.2A | 33A | 42A | 50A |
| Idle (Typ) | 9.4A | 13.6A | 13.0A | 15.8A | 19.6A | 22.6A |
| Idle (Max) | 21.8A | 33.8A | 42.0A | 54.0A | 68.0A | 80.0A |
| Signal to Noise (20-20,000Hz) |
>98dB | >105dB | >108dB | >110dB | >111dB | >112dB |
| Output Circuitry | Class-AB | Class-AB | Class-H | Class-H | Class-H | Class-H |
| Power Cable | 15A Edison | 20A Edison | 20A Edison | 20A Edison | 30A Twist | 30A Twist |
| Net Weight | 22.0 lbs. | 22.0 lbs. | 23.0 lbs. | 23.0 lbs. | 24.0 lbs. | 24.0 lbs. |
| Shipping Weight | 27 lbs. | 27 lbs. | 28.0 lbs | 28.0 lbs | 29.0 lbs | 29.0 lbs |
