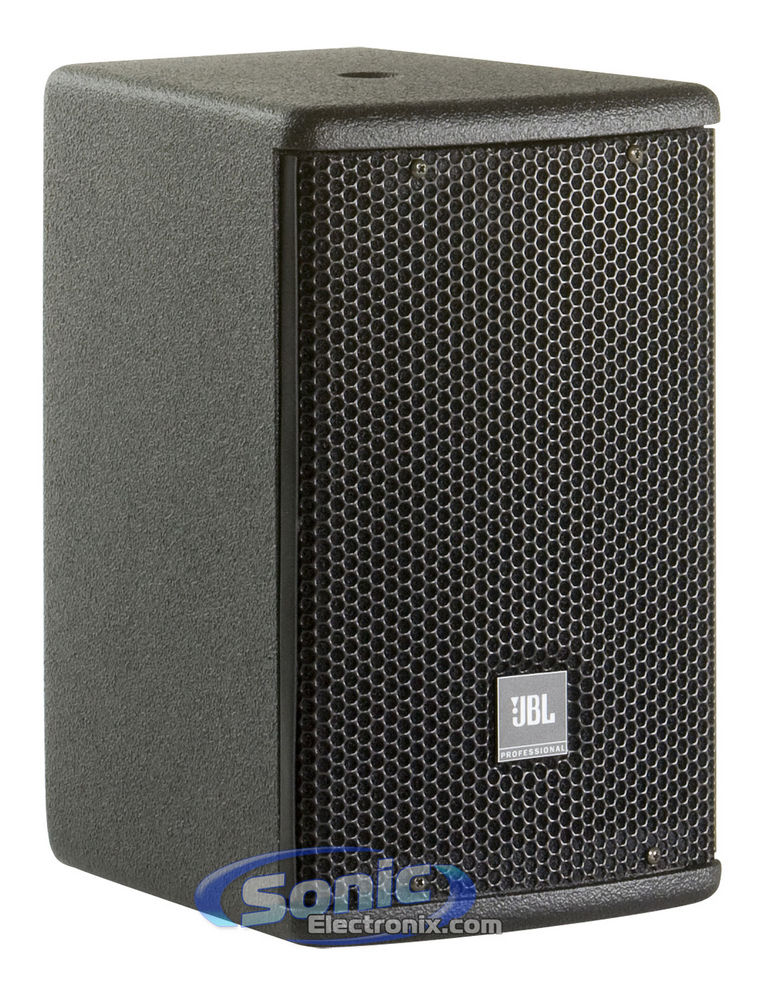

JBL AC15

600W Ultra Compact 2-Way Loudspeaker with 1” Dome Tweeter & Dual Neutrik NL4 Connectors

JBL
Shop all JBL
Product videos
highlight-star-icon

600W Ultra Compact 2-Way Loudspeaker • 1” Dome Tweeter • Ultra Compact Enclosure • Dual Neutrik NL4 Connectors • 300W Program Power • Attachment Points For Optional U-Bracket

Learn more about the jblac15

We apologize

This item has been discontinued


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Product Highlights


600W Ultra Compact 2-Way Loudspeaker • 1” Dome Tweeter • Ultra Compact Enclosure • Dual Neutrik NL4 Connectors • 300W Program Power • Attachment Points For Optional U-Bracket

Description


JBL brand icon

Authorized dealer

Bringing It To Maximum

The AC15 is an ultra-compact fullrange loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" dome tweeter integrated into a newly designed 90° x 90° waveguide providing even coverage throughout the intended usage area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC15 utilizes a 5.25" Symmetrical Field Geometry (SFG™) LF Transducer with a copperclad aluminum edge wound 1.5" voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion.

The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket.

The rugged plywood enclosure features JBL’s textured DuraFlex™ finish and is equipped with a heavy duty powder coated steel, foam-backed grille.

General Features:
  • 1” Dome Tweeter with 90° x 90° Coverage
  • 135 mm (5.25 in) LF transducer
  • Ultra compact enclosure
  • 300W Program Power
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for optional U-bracket
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
System Specifications:
  • Frequency Range (-10 dB): 80 Hz - 20 kHz
  • Frequency Response (+/-3 dB): 90 Hz - 18 kHz
  • Horizontal Coverage: 90°
  • Vertical Coverage: 90°
  • Directivity Factor (Q): 7 (avg. 500 Hz - 16 kHz)
  • Directivity Index (DI): 8 dB (avg. 500 Hz - 16 kHz)
  • System Sensitivity1: 86 dB SPL/1W/1m
  • Rated Maximum SPL (1m): 108 dB
  • System Nominal Impedance: 16 Ohm
  • Long-Term System Power Rating (Continuous/Program/Peak): 150 W / 300 W / 600 W
  • AES Standard Power Rating4: 225 W
  • Crossover Frequency: 3.3 kHz
Transducer Specifications:
  • Low Frequency Driver: 1 x JBL 225J, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
  • High Frequency Driver: 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter
  • High-Frequency Waveguide: Constant Coverage 90° x 90°
Physical Specifications:
  • Enclosure: 12 mm exterior grade multi-ply hardwood plywood
  • Suspension Attachments: 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5
  • Finish: Black DuraFlex™ finish. White (-WH) available upon request
  • Optional Weather Resistant Versions: WRC & WRX not available for this model
  • Grille: Powder coated 18 gauge perforated steel, acoustically transparent foam backing (grille cloth backing on white units)
  • Input Connectors: Neutrik Speakon® NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop through)
  • Environmental Specifications: Mil-Std 810; IPx3 per IEC529
  • Dimensions: 7"D x 5-15/16"W x 9-1/2"H
  • Weight: 4.7 kg (10.5 lb)
  • Optional Accessories: MTU-15 U-Bracket
