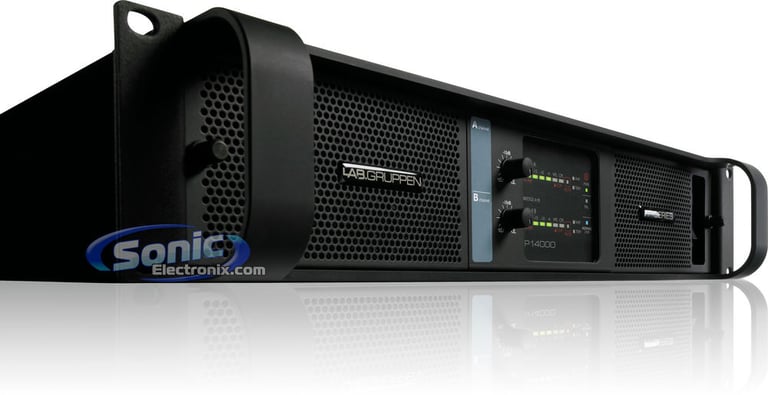

Name: Lab Gruppen FP14000
Brand: Lab Gruppen
SKU: fp14000
Price: 6099.00 USD
Availability: Discontinued

by Lab Gruppen

About
Similar Products
Specs & Details
Reviews
Recently Viewed
Related Searches

Product highlights

2-Channel Touring Amplifier • High Power Density • Transparent Mid and High Frequency Performance • NomadLink Network Ready • Patented Class TD Amplifier Topology

Learn more about the fp14000

Other products for your Dodge D50

Limited time!

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

-45.00%

$99.00

List price $180.00

Add to cart

Cerwin-Vega H410

420W Peak (140W RMS) 4x10" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$99.99

List price $119.99

Add to cart

Limited time!

Kicker CSC410 (50CSC4104)

450W Peak (150W RMS) 4x10" CS Series 2 Way Coaxial 4-ohm Speakers

-33.36%

$79.96

List price $119.99

Add to cart

Kicker KSC410 (51KSC41004)

300W Peak (150W RMS) 4x10" KS Series 2 Way Coaxial 4-ohm Speakers

-13.33%

$129.99

List price $149.99

Add to cart

Cerwin Vega H7410

640W Peak (100W RMS) 4x10" HED Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$69.99

List price $83.99

Add to cart

Cerwin-Vega V410

540W Peak (180W RMS) 4x10" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

$149.99

Add to cart

Diamond Audio DMDX410

270W Peak (90W RMS) 4x10" DMDX Series 2-Way Coaxial 4-ohm Car Speakers

$159.99

Add to cart

Cerwin-Vega H7410 with Speaker Installation Kit

Includes: (Pair) 4" x10" Coaxial Speakers, Sound Damping , Roller and Panel Removal Kit

153

-28.22%

$98.13

List price $136.71

Add to cart

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

Add to cart

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

$179.95

Add to cart

Description

Refined, Optimized, Effortless

The flagship of Lab.gruppen’s touring amplifier line, the FP 14000 produces a staggering total output power of 14000 W – an unprecedented achievement in a 2U frame weighing only 12 kg. The forceful high-current output stage is built around patented Class TD® technology, a breakthrough topology that approaches the efficiency of Class D while retaining the favored sound quality of proven Class B designs. At the same time, Lab.gruppen’s Regulated Switch Mode Power Supply (R.SMPS) has been updated to provide more sustained high power during extended bursts of low frequency content.

The FP 14000 is shipped with a NomadLink® network interface as standard. In conjunction with DeviceControl software, NomadLink allows monitoring of all key amplifier parameters and remote control of power on/off, channel mutes, and channel solo functions. (NomadLink requires the separate NLB 60E NomadLink Bridge & Network Controller)

General Features:

2 Channel Touring Amplifier with Binding Posts
High power density – The FP 14000 delivers a total of 14000 W (2 x 7000 W @ 2 ohm) in only 2U
Lab.gruppen sound quality – The FP 14000 is optimized for sustained performance into extreme low-frequency loads, yet it also maintains Lab.gruppen’s reputation for exceptionally smooth and transparent mid- and high-frequency response.
NomadLink® network ready – Monitoring and control of key functions accessible via the intuitive DeviceControl software and the robust, daisy-chained NomadLink® network, as well as by the leading third party control platforms
Patented Class TD® amplifier topology – Road-proven output stage delivers Class B audio quality with Class D efficiency
Regulated Switch Mode Power Supply (R.SMPS™) – Output power remains constant even with significant drops in the mains voltage
Efficient cooling system – Unique, lightweight Intercooler® copper cooling system dissipates more heat to allow extended peak output
Adjustable parameters – Selectable Gain, scalable Voltage Peak Limiter (VPL™), and bridge-mode operation allow custom configuration for any system or application
XLR input and link connectors
Heavy-duty binding posts
Comprehensive protection and warning – Excessive output current, DC, high temperature, very high frequency (VHF), short circuit, open load, mains fuse protection, and soft start
1-year Manufacturer's warranty

Power Output:

Number of channels: 2
Peak total output both channels driven: 14000 W
Peak output voltage per channel: 195 V
Max. output current per channel: 83 A peak
MAX Power Rating:
- 16 ohm: 1200 watts x 2 chan.
- 8 ohm: 2350 watts x 2 chan.
- 4 ohm: 4400 watts x 2 chan.
- 2 ohm: 7000 watts x 2 chan.
MAX Power Rating Bridged:
- Bridged, 16 ohm: 4700 watts x 1 chan.
- Bridged, 8 ohm: 8800 watts x 1 chan.
- Bridged, 4 ohm: 14000 watts x 1 chan.

Performance with Gain: 35 dB and VPL: 190 V

THD 20 Hz - 20 kHz for 1 W: <0.1%
THD at 1 kHz and 1 dB below clipping: <0.05%
Signal To Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 kHz: >70 dB
Frequency response (1 W into 8 ohm) +0/-3 dB: 2 Hz - 34.2 kHz
Input impedance: 20 kOhm
Input Common Mode Rejection, CMR: 54 dB
Output impedance @ 100 Hz: 56 mOhm

Voltage Peak Limiter (VPL), max. peak output

VPL, selectable per ch: 195, 170, 140, 116, 100, 80, 66, 54V
VPL, selectable when bridged: 390, 340, 280, 232, 200, 160, 132, 108V
Voltage Peak Limiter mode (per ch.): Hard / Soft

Gain and Level:

Amplifier gain selectable (all channels) rear-panel switches: 23, 26, 29, 32, 35, 38, 41, 44 dB
Default gain: 38 dB
Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB

Connectors and Switches:

Input connectors (per ch.): 3-pin XLR, electronically balanced
Output connectors (per ch.): Binding Posts (2-pole)
Output bridge mode: A+B - Ch. A is signal input source
NomadLink® network: On board, 2 x RJ45 EtherCon connectors, IN and OUT
Intelligent fans (on/off): Yes, depending on presence of output signal
Power on/off and Remote enable on/off: Individual switches on front-panel
Cooling: Two fans, front-to-rear airflow, temperature controlled speed

Front-panel indicators:

Common: NomadLink Network; Power Average Limiter (PAL) 2); Power on
Per channel: Signal present / High-impedance; -20 dB, -15 dB, -10 dB and -4 dB output signal; Voltage Peak Limiter (VPL); Current Peak Limiter (CPL); Very High Frequency (VHF); High temperature; Fault; Mute

Power:

Operating voltage (230V / 115V nominal): 130-265V / 65-135V
Minimum power-up voltage 230V / 115V: 171V / 85V
Power Average Limiter (PAL): Yes
Soft start / Inrush Current Draw Yes / max. 5 A
Mains connector: 230V CE: 16 A, CEE7; 115 V ETL: 30 A Twist lock

Specifications:

Dimensions(W/H/D): W: 483 mm (19”), H: 88 mm (2 U), Overall D: 396 mm (15.6”), Mounting D: 358 mm (14.1”)
Weight: 12 kg (26.4 lbs.)
Finish: Black painted steel chassis with gray painted steel front
Approvals: CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC
