Gemini CDMP-2700

Product Features

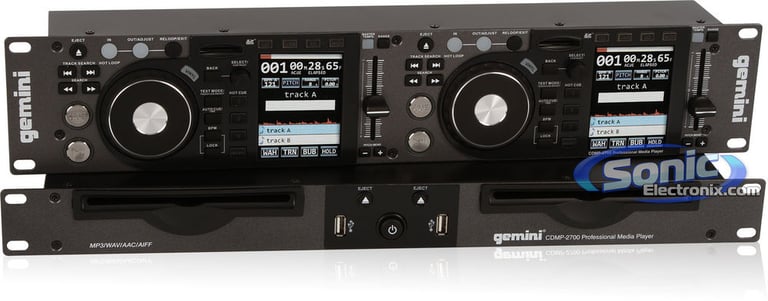

• 2U Professional Dual CD/MP3/USB/SD Media Player
• Multi-Format playback of MP3, AAC, WAV and AIFF audio files on CD, SD card, and USB memory devices
• Fast-loading slot-in CD-ROMs compatible with Audio CDs, CD-Rs and MP3 CDs
• One-per-side USB inputs and SD card slots (SDHC compatible up to 32GB)
• PC/Mac Audio I/O interface (up to 24-bit/192kHz)

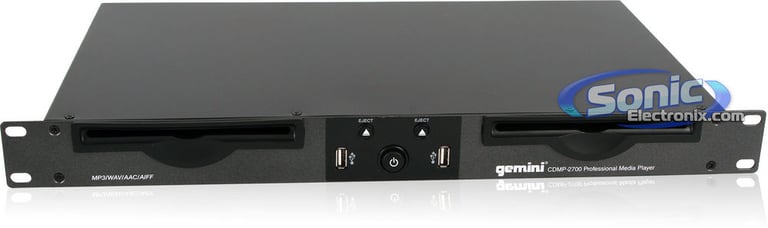

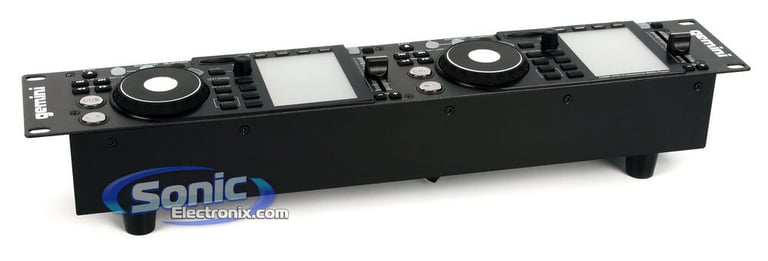

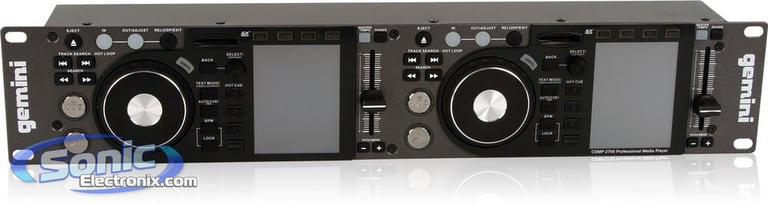

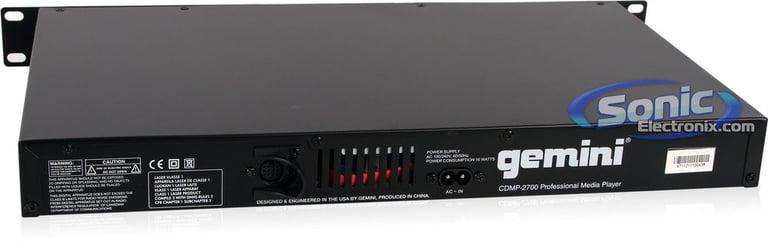

• 19" rackmount 2U controller unit and 1U loading unit

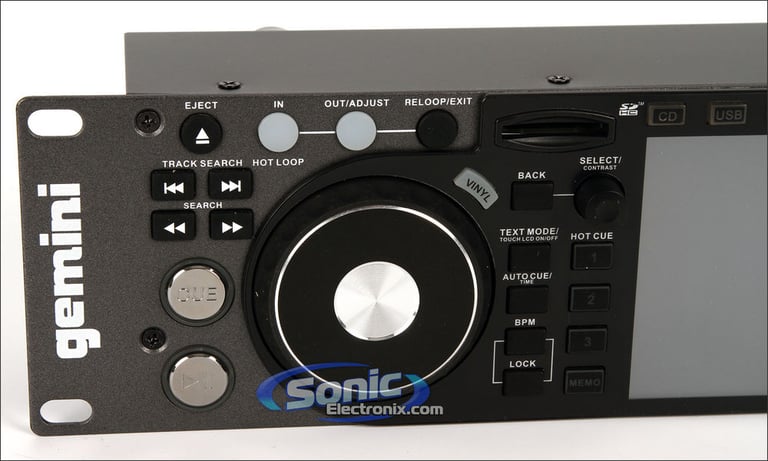

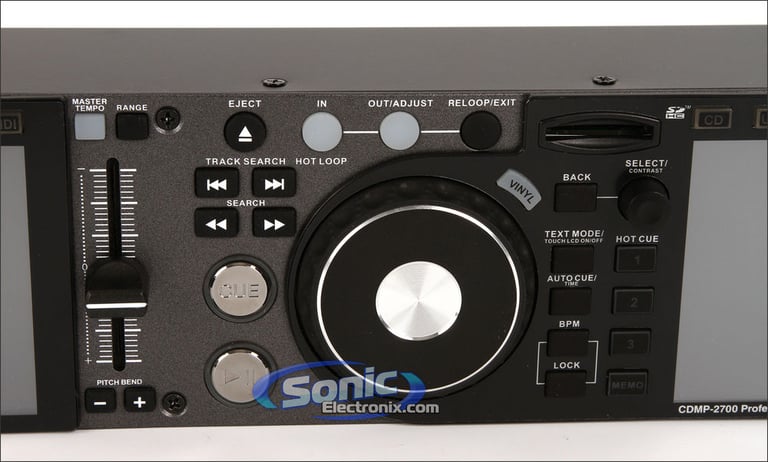

• High-quality 2" touch-sensitive jog wheels with three selectable modes: Search / Pitch Bend / Scratch Effect with Reverse
• Full-color 3.5" TFT touchscreen displays

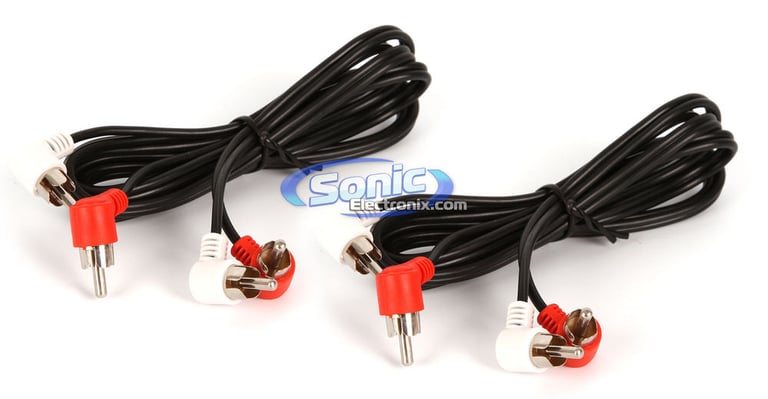

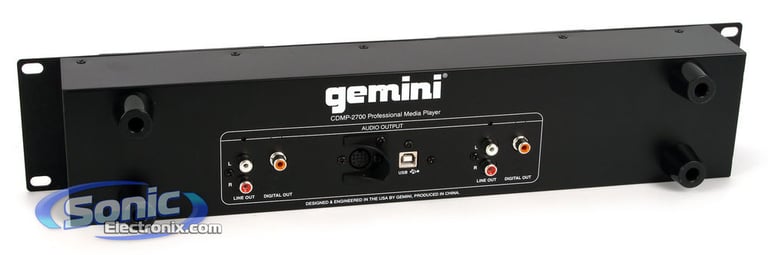

• Stereo RCA outputs and S/PDIF digital audio outputs
• MIDI capability for use as a software controller
• Six DSP-powered effects: Filter, Flanger, Echo, Wah, Trance & Bubble
• Three programmable Hot Cue points for instant track playback points
• Seamless Loop, with Reloop and Loop Adjust
• BPM functions including auto (sync), manual (tap) and BPM lock
• Frame accurate search with buttons or jog wheels
• Anti-shock using RAM buffer memory

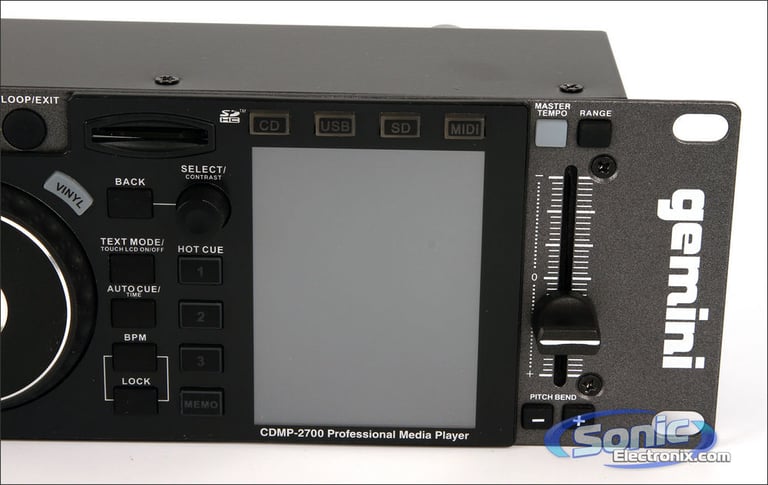

• Variable pitch control with six settings: +/- 4%, 8%, 16%, 24%, 50%, 100% and Master Tempo control
• 1-year Manufacturer's warranty

Specifications:

• GENERAL:
• Type: CD/USB/SD Media Player w/ MIDI & HID
• USB Output Type: Type B
• Disc Type: Standard Compact discs (12 cm & 8 cm)

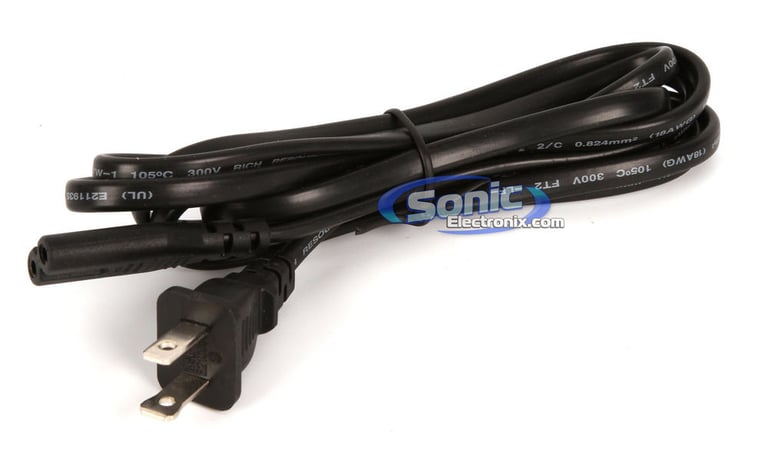

• Power Supply: AC 100/240V, 60/50 Hz
• Power Consumption: 16W
• Installation: 19" each
• Dimensions:
• Control Unit: 19" x 3.5" x 3.7" (482 x 89 x 96.5 mm)
• Disc Tray: 19" x 10.6" x 1.9" (482 x 270 x 48.5 mm)
• Weight: 11 lbs. (5 kg)
• AUDIO SECTION:
• Quantization: 1 Bit Linear/Channel, 3 Beam Laser
• Oversampling Rate: 8 Times
• Frequency Response: 20 Hz to 20 kHz
• Total Harmonic Distortion: Less Than 0.05%
• Signal to Noise Ratio: <100 dB
• Dynamic Range: >100 dB
• Output Level: 1.0 +/- 0.2V R.M.S.
• DIGITAL AUDIO:
• Output Type: Coaxial Digital (S/PDIF)
• Sampling Rate: 44.1kHz, 16-bit
• USB AUDIO:
• Bit Depth: 24-bit, 16-bit
• Sampling Rate: 192kHz, 96kHz, 48kHz, 44.1 kHz
