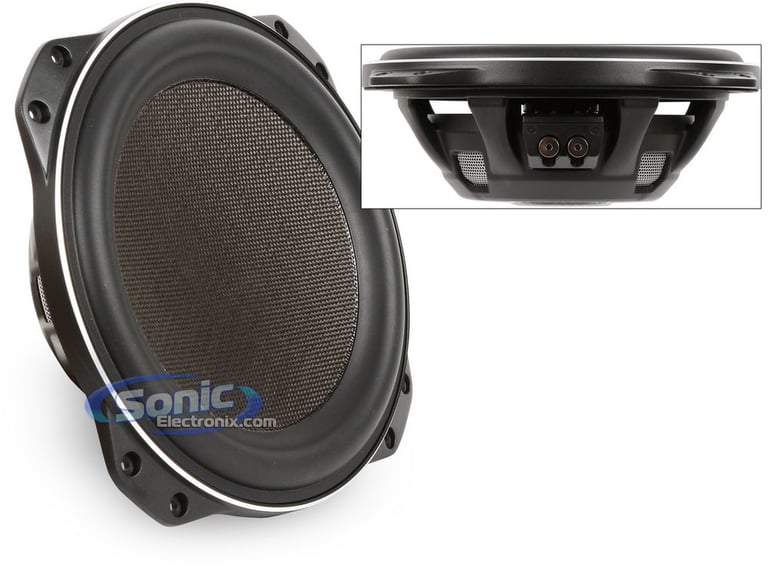

Kenwood eXcelon XR-W10F

350W 10" Oversized eXcelon Series Single 4 ohm Subwoofer

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• 1200W Peak • 350W RMS • Butyl Rubber Surround • Carbon-Glass Fiber Composite Honeycomb Cone • Frequency Response: 41 Hz - 200 Hz • 83.5dB Sensitivity

Learn more about the xrw10f

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


• 1200W Peak • 350W RMS • Butyl Rubber Surround • Carbon-Glass Fiber Composite Honeycomb Cone • Frequency Response: 41 Hz - 200 Hz • 83.5dB Sensitivity

Description


Kenwood brand icon

Authorized dealer

General Features:

  • 10" Single 4 Ohm eXcelon Series Shallow Mount Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 350 watts
  • Recommended power range: 150 - 350 watts RMS
  • Impedance: Single 4 Ohm

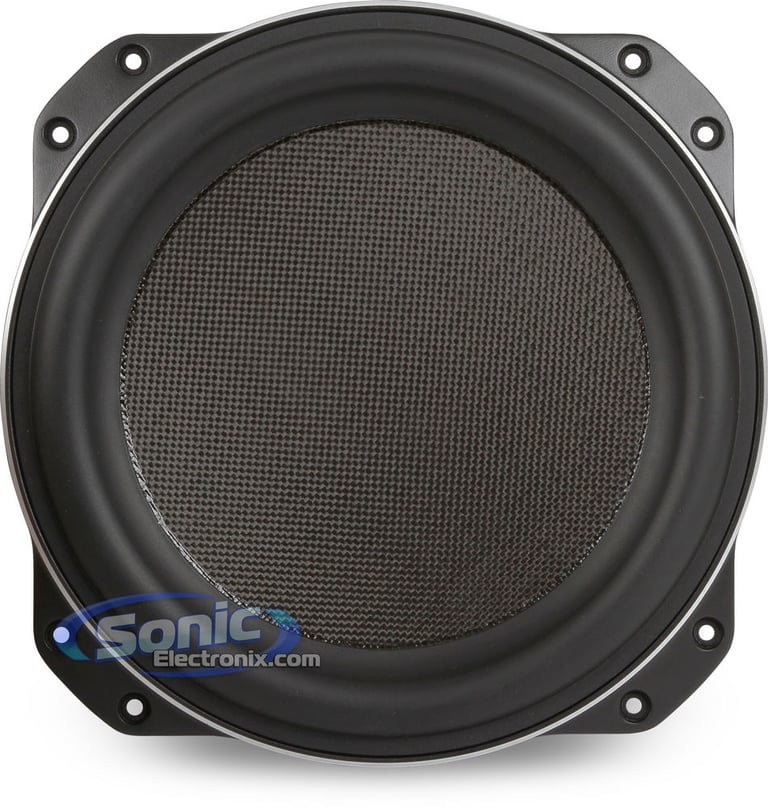

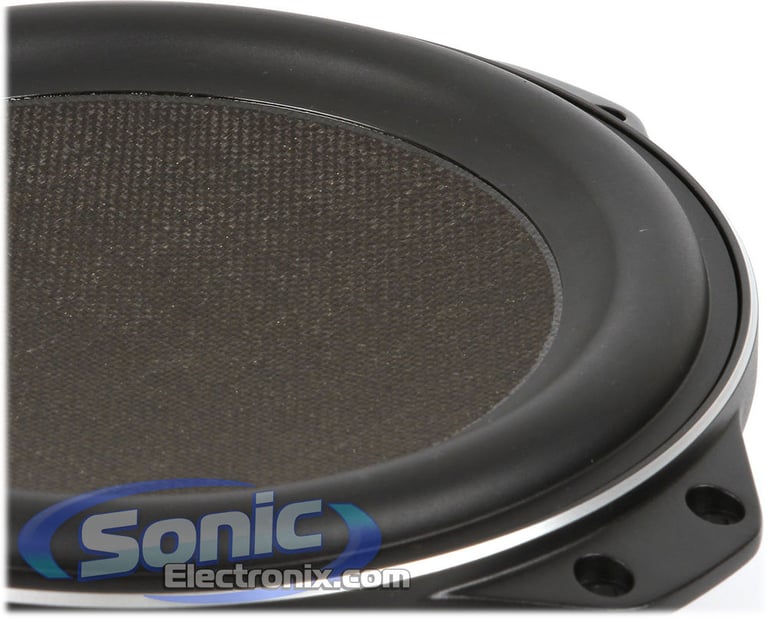

  • Carbon-glass fiber composite honeycomb cone
  • Butyl Rubber Surround
  • Cast aluminum basket
  • Frequency response: 41-200 Hz
  • Sensitivity: 83.5 dB
  • Mounting depth: 3-1/8"
  • Cutout dimensions: 9-1/4"
  • 2-year Sonic Electronix warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kenwood eXcelon XR-W10F Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kenwood eXcelon XR-W10F Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kenwood eXcelon XR-W10F Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Kenwood eXcelon XR-W10F Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

Specifications & Details


Subwoofer Specifications
Series
eXcelon Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
41 - 200 Hz
Sensitivity
83.5 dB
Xmax (millimeters)
7.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Glass Carbon Fiber
Woofer Surround
Butyl Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.60 cubic feet
Maximum Sealed Box Volume
0.60 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/8"
Cutout Diameter
9-1/8"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36 Hz
Equivalent Compliance (Vas)
32.9 liters
Total Speaker Q Value (Qts)
0.783
Electrical Q Value (Qes)
0.907
Mechanical Q Value (Qms)
5.747
What is in the box?
Paperwork

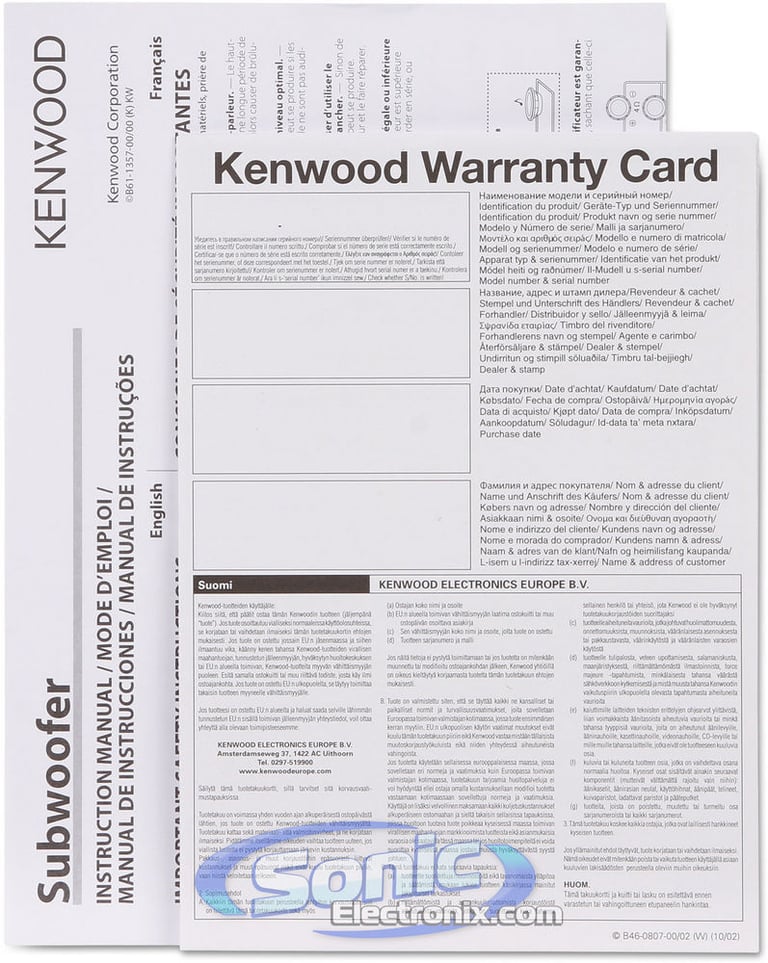

User manual
WITB: Subwoofers
Subwoofer

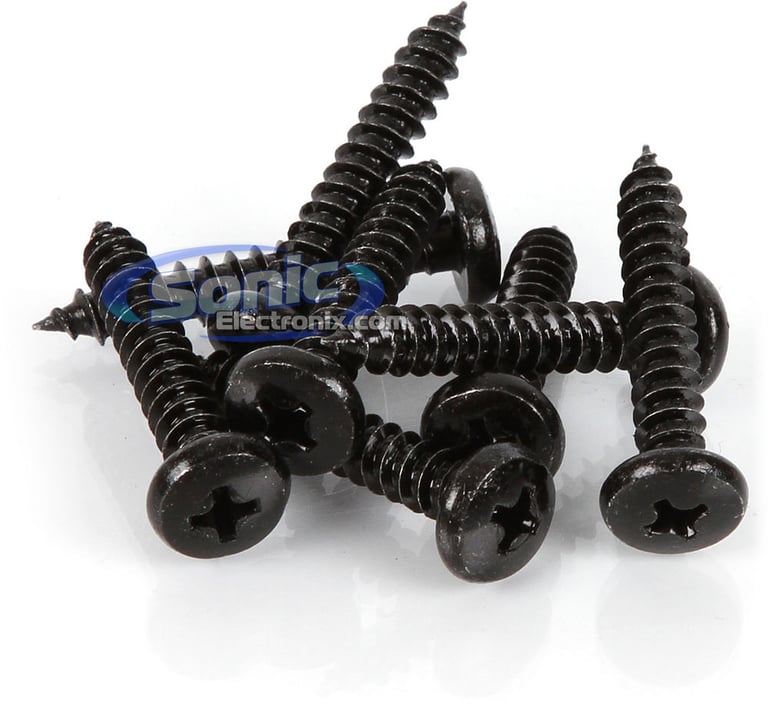

Mounting screws (4)
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XR-W10F

Weight:

11.50lbs

Internal SKU:

xrw10f

Internal Product ID:

33494

Product and How-to Videos


Customer Ratings & Reviews


Kenwood eXcelon XR-W10F thumbnail image

5 star
33%
4 star
67%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4
Features
3.7
Design
4.4
Usability
4.7

Customer Reviews

Sort by:

Loading...

Sounds great and hits hard

I got 1 of these hooked up in my 94 single cab f150 with a re audio xt800.2 amp and it hits hard and sounds really good for 1 10. Plan on buying another soon.

By Jeffrey on April 24, 2012

23 found this helpful


Good buy

If you're looking to get good bass and don't want to sacrifice a lot of space I recommend these.

By Bigbssj5 on January 18, 2012

18 found this helpful


Great woofer for the price!

I just installed this woofer into a Lambo. I have to say I was pretty impressed with the outcome. Nice low end and pretty accurate for a shallow mount woofer. Customer was very happy with the results and the finished look.

By BB on September 27, 2011

19 found this helpful
