2800W Complete Pioneer + RE Audio Bass Package

Pair of Pioneer TS-W309D4 12" Subwoofers + RE Audio DTS-1000.1 Amplifier + 4 Gauge Amplifier Kit

Pioneer
Shop all Pioneer
EXCLUSIVE
Product videos
highlight-star-icon

Pair of 12" Dual 4 Ohm Champion Series Subwoofers • 800W RMS • RE Audio DTS Series Monoblock Class D Car Amplifier • Pulse Width Modulated MOSFET power supply • Wired remote bass level control included • Variable Bass Boost

Learn more about the tsw309d4_dts10001

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


Pair of 12" Dual 4 Ohm Champion Series Subwoofers • 800W RMS • RE Audio DTS Series Monoblock Class D Car Amplifier • Pulse Width Modulated MOSFET power supply • Wired remote bass level control included • Variable Bass Boost

Description


Pioneer brand icon

Authorized dealer

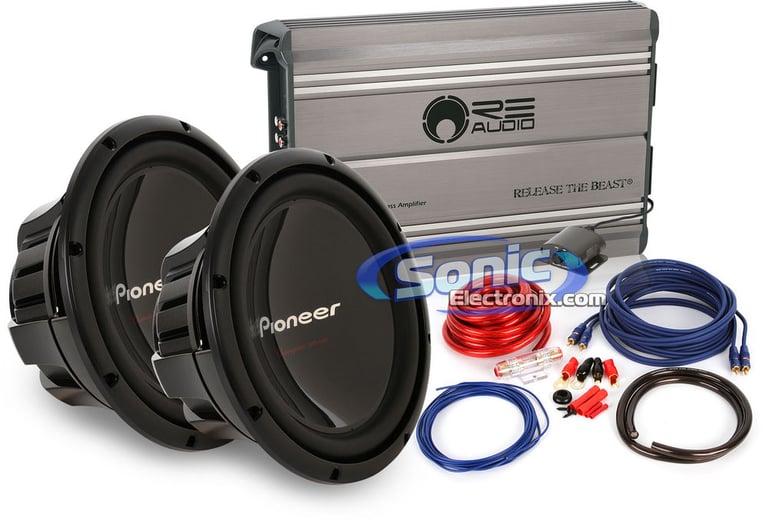

Pioneer and RE Audio Complete Bass Package

This Sonic Electronix Exclusive Bass package showcases a RE Audio DTS-1000.1 Amplifier along with a pair of 12" Champion Series Subwoofers. This excellent bass package pushes 800 watts of clean, continuous RMS power. The Pioneer Subwoofers each have Dual 4 Ohm Voice Coils; meant to be wired together in parallel/parallel, that is to say wire the voice coils in parallel and then the subwoofers in parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Pioneer TS-W309D4 Champion Series subwoofers require 800 watts of RMS power. The included RE Audio DTS-1000.1 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier.

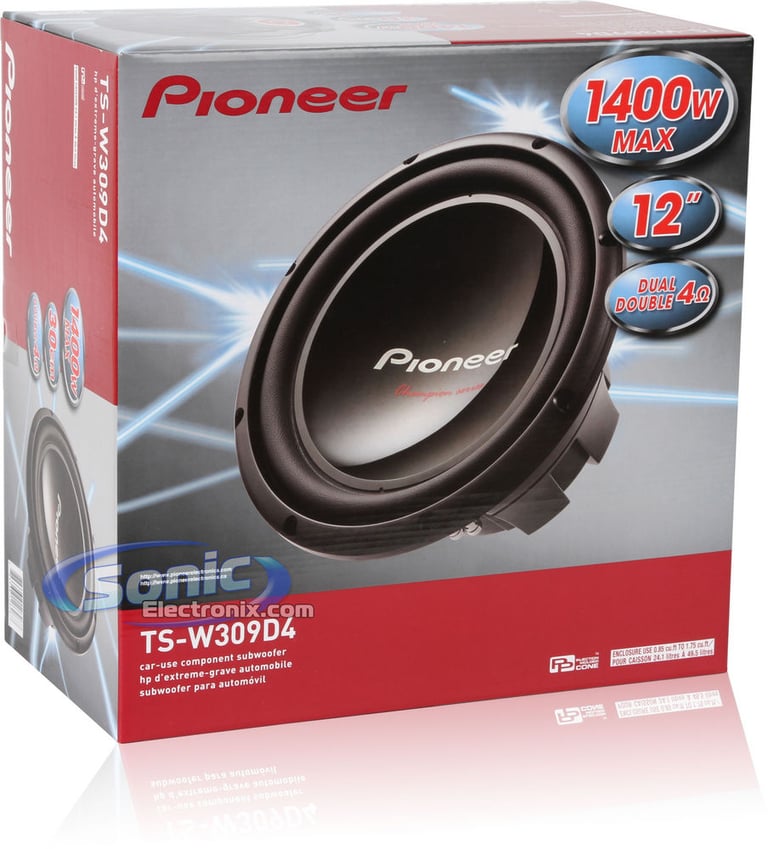

Pioneer TS-W309D4 Features:

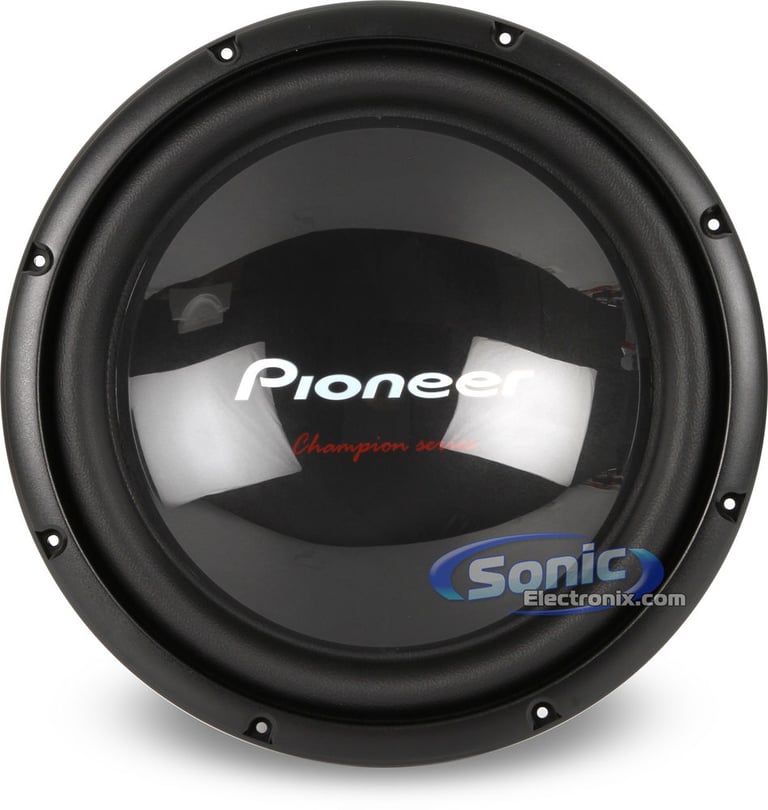

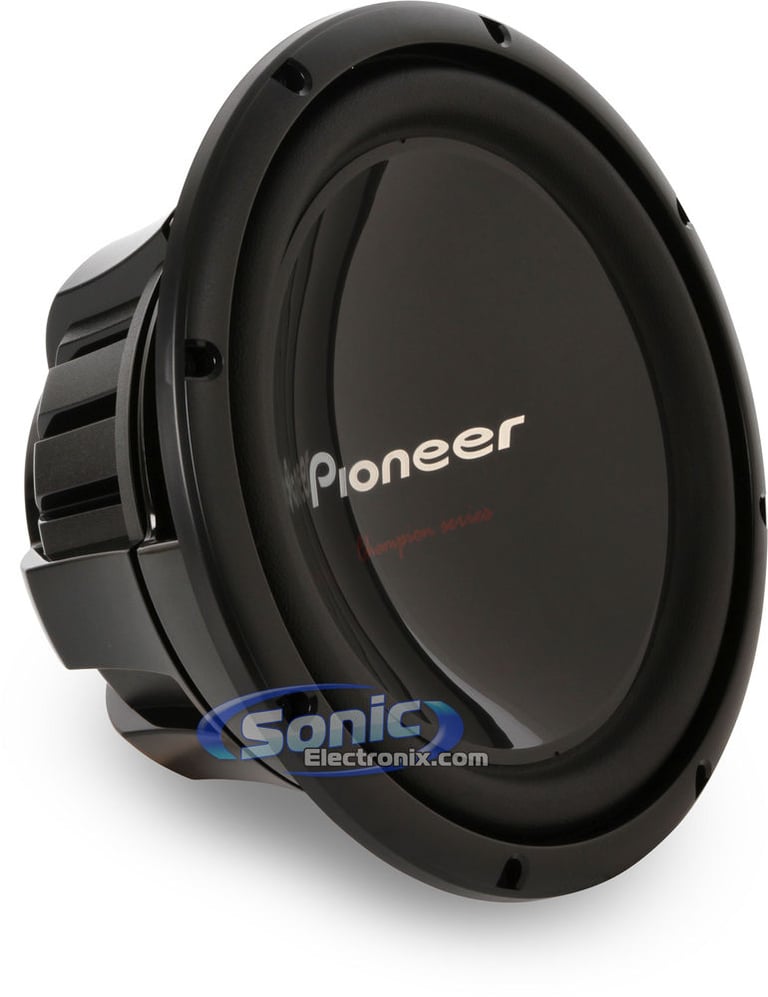

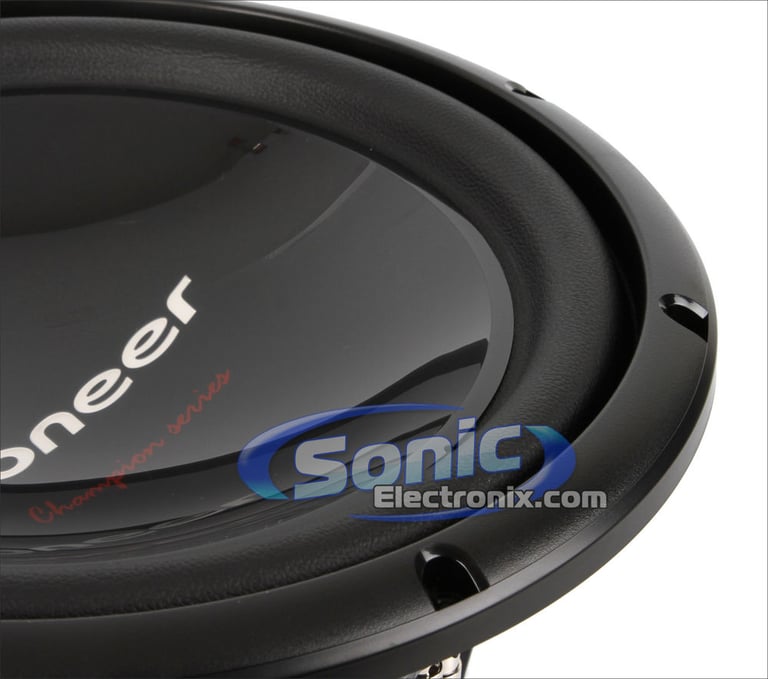

  • Pair of 12" Dual 4 ohm Champion Series Subwoofers
  • Power Handling:
    • Peak: 2,800 watts total / 1,400 watts each
    • RMS: 800 watts total / 400 watts each
  • Impedance: Dual 4 ohm
  • Seamless Injection Molded Polypropylene (IMPP) composite cone
  • Dual layer, fiber reinforced elastic polymer surround

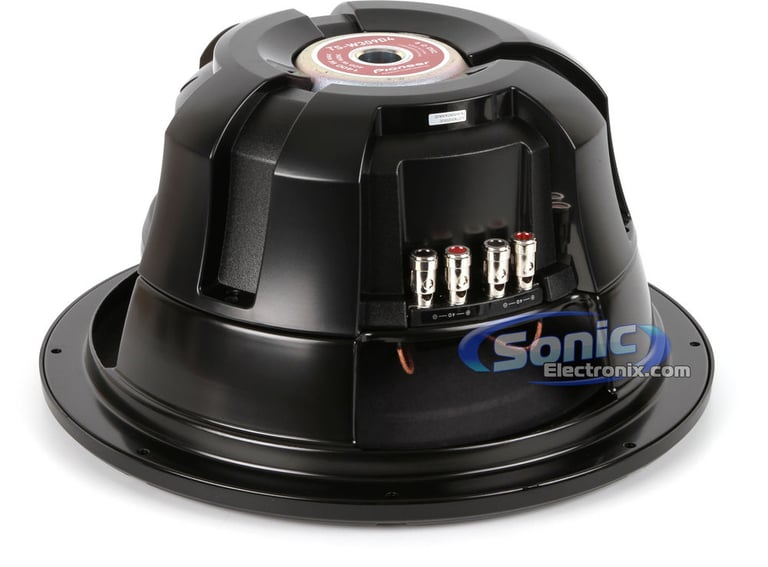

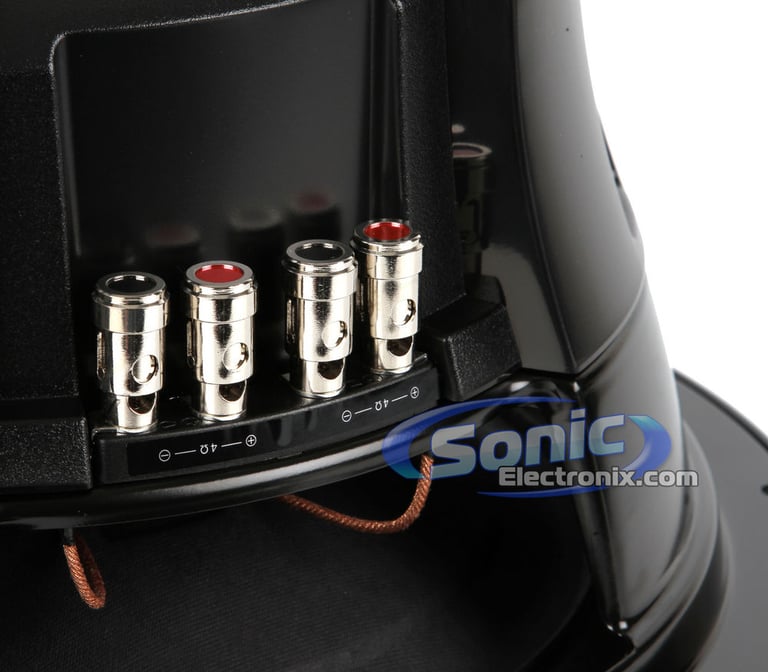

  • Large spring loaded, push style binding posts
  • High temperature voice coil
  • Large double stacked high energy magnets
  • Designed for sealed, ported, or bandpass enclosures
  • Recommended enclosure volume:
    • Sealed: 1.25 cu. ft
    • Ported: 1.5 cu. ft
    • Bandpass: 0.9 cu. ft in front / 0.9 cu. ft in rear
  • Frequency response: 20-220 Hz
  • Sensitivity: 94 dB
  • 1-year SonicElectronix.com warranty

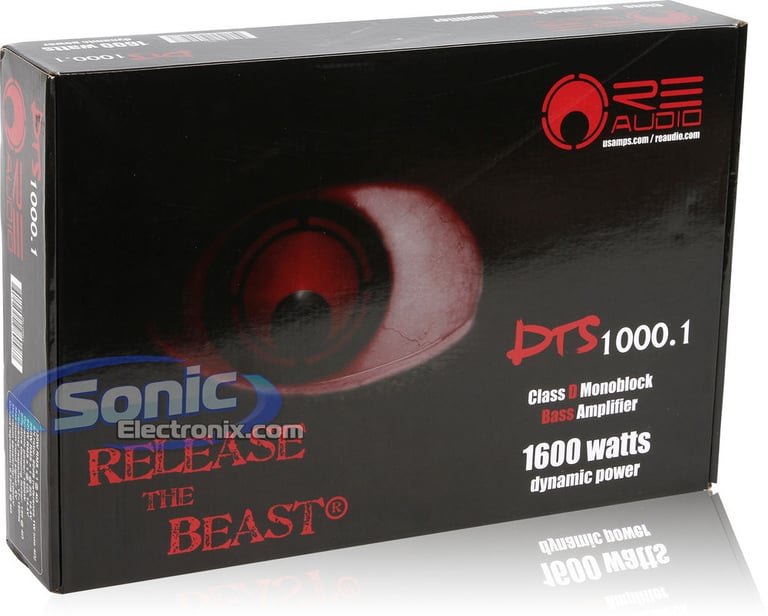

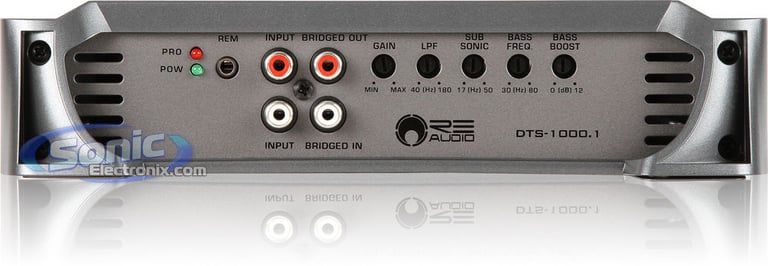

RE Audio DTS-1000.1 Features:

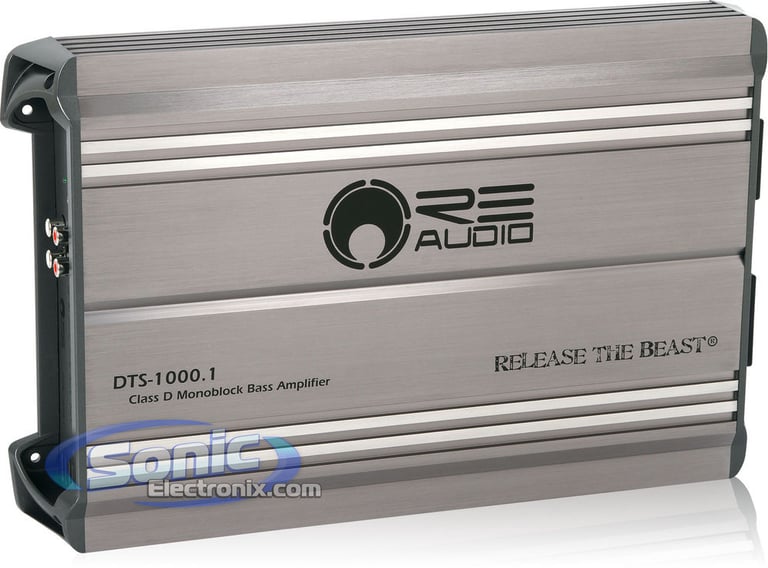

  • DTS Series Monoblock Class D Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 330 watts x 1 chan.
    • 2 ohm: 560 watts x 1 chan.
    • 1 ohm: 800 watts x 1 chan.
  • Dynamic power output: 1600 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

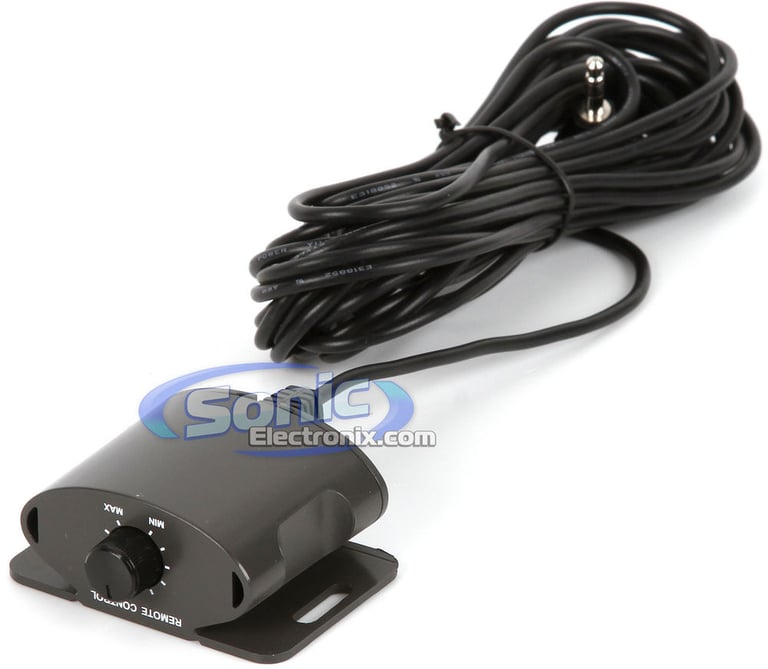

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Bridgeable with multi link technology (MLT)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 2-Way System Protection circuitry (thermal and short circuit)

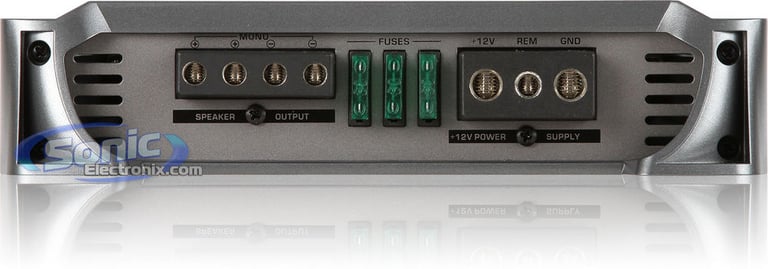

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty brushed aluminum alloy convection fan cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated 12AWG screw terminals
  • Input Impedance: 20 K-Ohm
  • Input sensitivity:
    • Low level: 100mV-6V
  • Variable low-pass filter (40-180 Hz, 24 dB/octave)
  • Subsonic filter (17-50 Hz, 24 dB/octave)
  • Bass frequency (30-80 Hz)
  • Effective damping factor: 150 @ 4 ohm
  • Frequency response: 17-180 Hz
  • Dimensions: 13"L x 8-11/16"W x 2"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
db Link PK4Z Features:

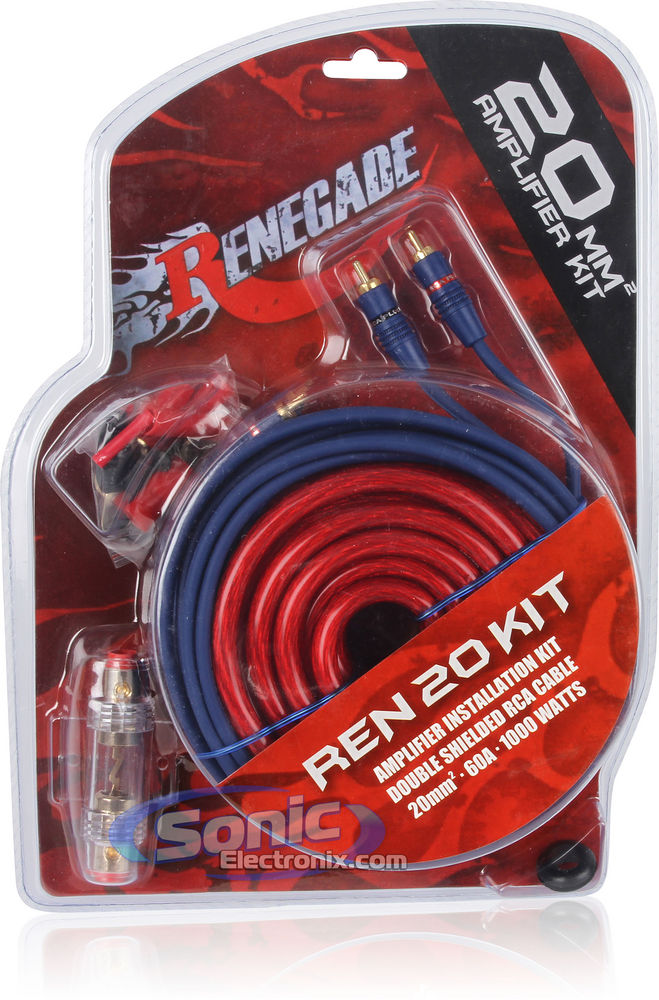

  • 4 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1600 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Terminals and contacts are gold-plated for excellent signal transfer
  • AGU Fuse holder offers ideal protection for Mid-level systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes:

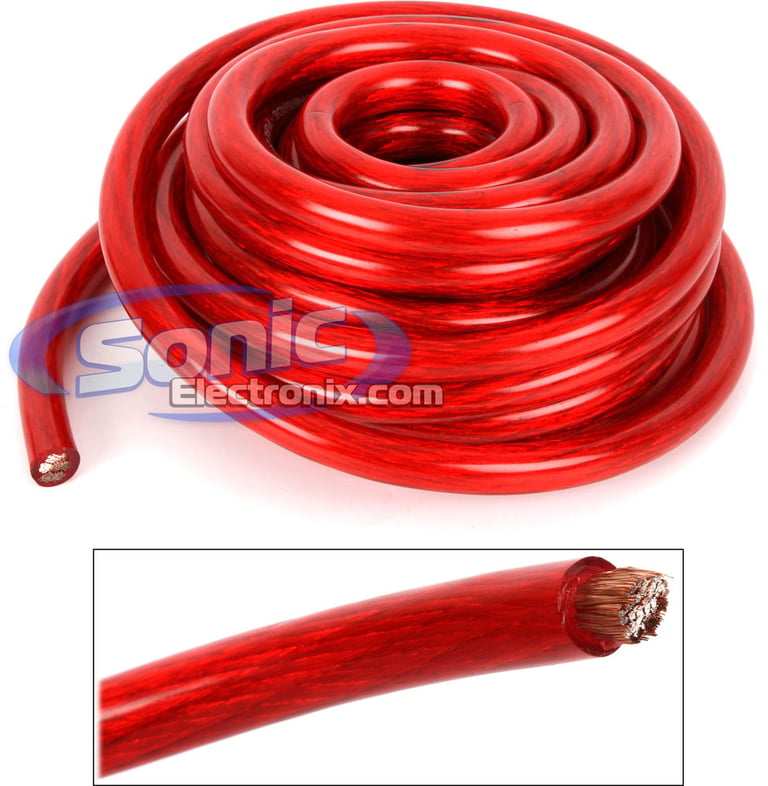

  1. 17 ft. of 4 AWG Red power cable

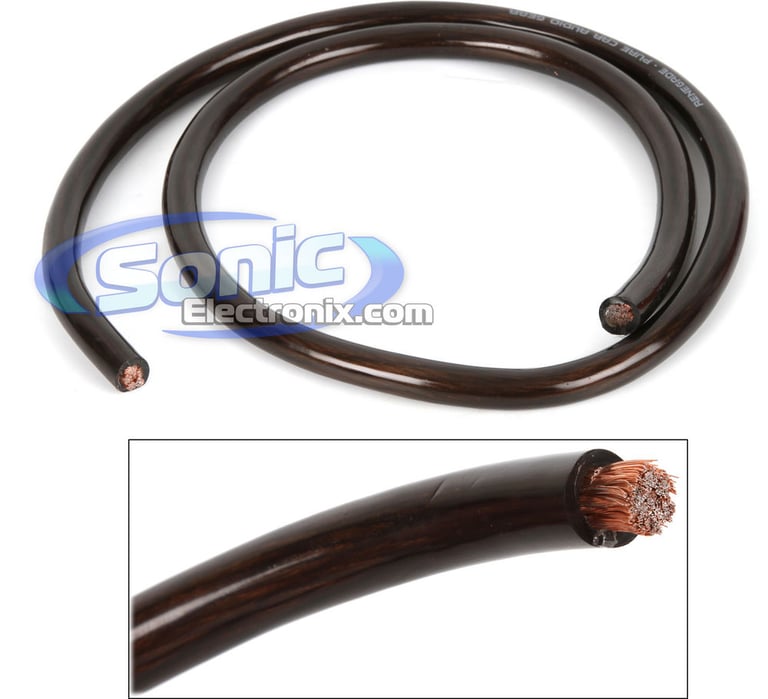

  2. 3 ft. of 4 AWG Black ground cable

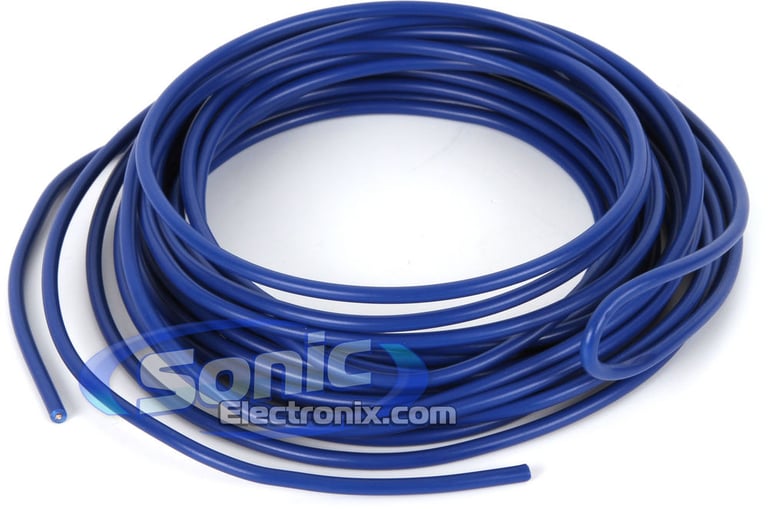

  3. 17 ft. of 18 AWG Blue remote turn-on wire

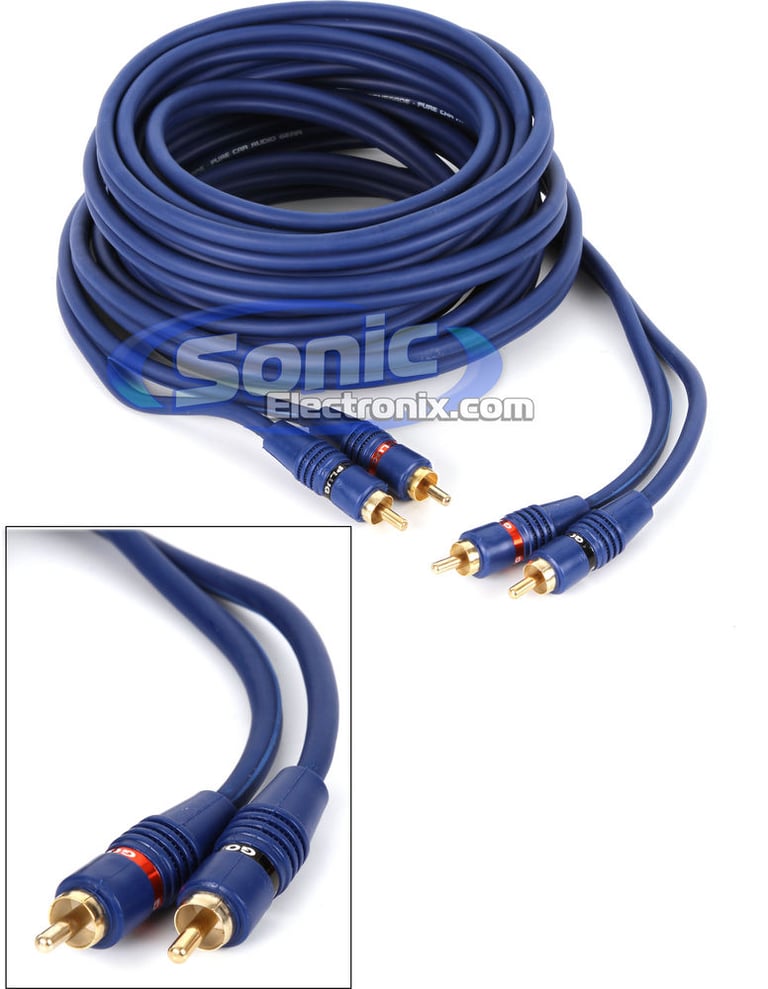

  4. 17 ft. of Blue shielded RCA cable
  5. 25 ft. of 16 AWG speaker wire

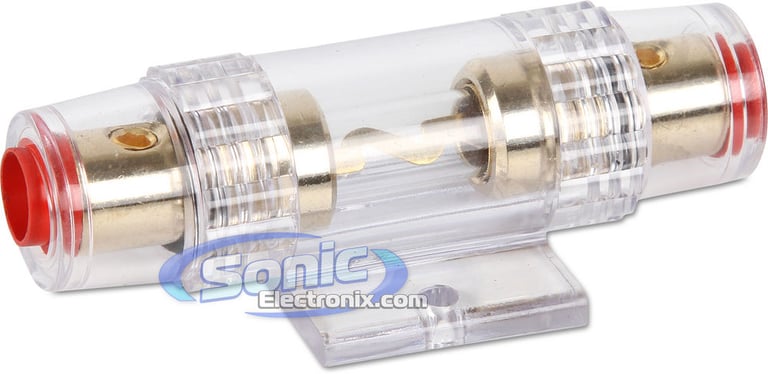

  6. 4 AWG In-line AGU fuseholder
  7. 60 Amp AGU fuse
  8. 5 ft. of Black split loom tubing

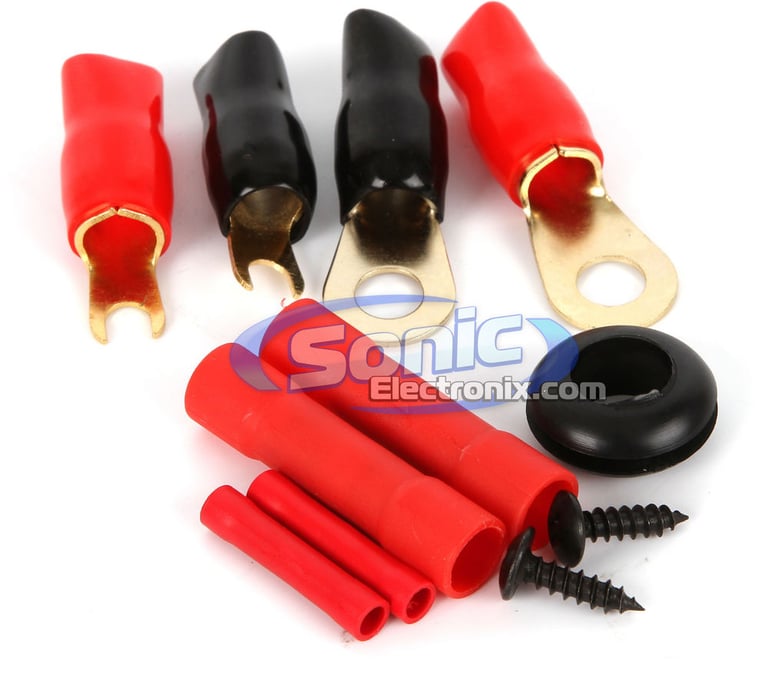

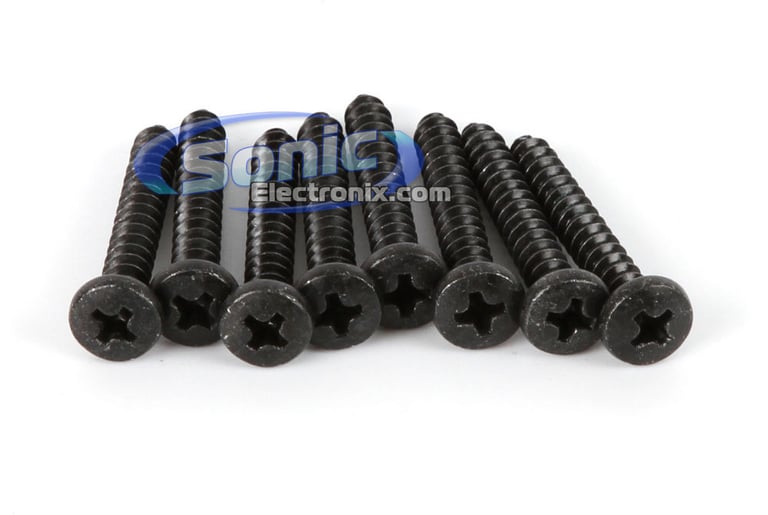

  9. Other installation accessories

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
330 watts x 1 channel
RMS Power @ 2 ohms
560 watts x 1 channel
RMS Power @ 1 ohm
800 watts x 1 channel
Peak Power Output
1600 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
17 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
Yes
Fuse Rating
30A x 3
CEA-2031 Compliant
No
Subwoofer Specifications
Number of Subwoofers
2
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
400 watts
Total RMS Power Handling
800 watts
Peak Power Handling
1400 watts
Total Peak Power Handling
2800 watts
Woofer Composition
Injection Molded Polypropylene
Minimum Sealed Box Volume
.85 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.05 cubic feet
Sensitivity
91 dB
Frequency Response
20 - 180 Hz
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-TS-W309D4_DTS-10001

Weight:

36.50lbs

Internal SKU:

tsw309d4_dts10001

Internal Product ID:

34346
