Description


ART brand icon

Authorized dealer

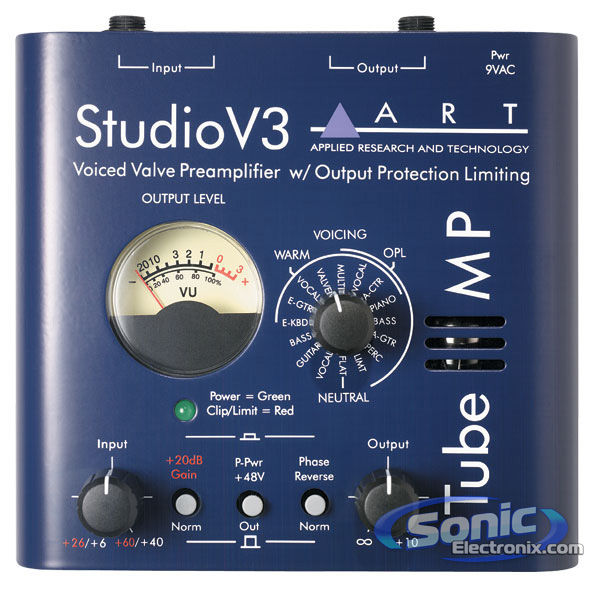

The ART TUBE MP Studio V3
  • Professional Preamplification for Microphones, Instruments and Line Level Sources
  • ATR's V3 Variable Valve Voicing technology
  • Output protection limiting
  • Hand selected 12AX7A vacume tubes provides 70dB of gain smooth, warm and fat Sound Quality
  • Variable input and output gain controls
  • Excellent as a tube direct inject box for high Z line level signals
  • XLR and 1/4" inputs and outputs
  • +48 volts of phantom power
  • Phase reversal switch
  • Portable, all steel construction
Technical specifications
  • Dynamic range: >100dB (20Hz to 20kHz)
  • Equivalent input noise: -129dBu ('A' weighted XLR to XLR)
  • Frequency response: 10Hz to 20kHz (+0,-1dB)
  • Input impedance: 2k ohm (XLR), 840K ohm (1/4 in.)
  • Maximum gain: 70dB (XLR to XLR typical)
  • Maximum input level: +14dBu (XLR), +22dBu (1/4 in.)
  • Maximum output level: +28dBu (XLR), +22dBu (1/4 in.)
  • Output impedance: 600 ohm (XLR), 300 ohm (1/4 in.)
  • Phantom power: +48 Volts
  • Power requirements: 9 VAC @ 700ma (typ)
  • Total harmonic distortion: <0.1% (typical) >CMMR: >75dB (typ @1kHz)
  • Tube type: Hand Selected 12AX7A, provides over 70dB of Gain
  • Also found as: PEX-245-8608, TUBE MP STUDIO V3, TUBE MP V3, TUBE MPSTUDIOV3, TUBEMP STUDIOV3, TUBEMPSTUDIOV3, TUBEMPSTV3, TUBEPRE, Tube MP Studio V3, Tube mpstudiov3, V3
  • Dimensions: 5"L x 5 1/2"W x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
