Orion XTR52

5-1/4" XTR Series 2-Way Component Car Speaker System

Orion
Shop all Orion
highlight-star-icon

5.25" 2-Way XTR Series Component Car Speakers • UV Coated Fiber Blended Cones • Butyl Rubber Surrounds • Silk Soft Dome Tweeters • Single Interlaced Conex Spiders • Stamped Steel Baskets • Tweeter Protection

Learn more about the xtr52

We apologize

This item has been discontinued


Loading...
MVH-S522BS main

Pioneer MVH-S522BS

Single DIN Digital Media Bluetooth Receiver with Bluetooth and SiriusXM Ready

4
-10.53%

$169.99

List price $190.00

Limited time!
Kappa 693M main

Infinity Kappa 693M (INFSPKKA693MAM)

720W Peak (240W RMS) 6x9” Kappa Series 3 Way Coaxial 3-ohm Speakers

6
-31.43%

$239.95

List price $349.95

REF-5032CFXAM main

Infinity Reference 5032cfx (REF-5032CFXAM)

270W Peak (90W RMS) 5.25" Reference Series 2 Way Coaxial 3-ohm Speakers

-42.32%

$74.99

List price $130.00

Description


Orion brand icon

Authorized dealer

Own the Competition

The Orion XTR52 speakers are proud to be loud! These mean speakers can handle just about anything you throw at them and they show no mercy. Rated at 50 watts RMS and 100 watts peak, these speakers can be properly powered from a aftermarket receiver or an amplifier. Advanced speaker engineering keep the speaker’s cool and performing properly, even when they have been playing for a long time. The UV Coated fiber blended cones have the Orion logo on the dust cap, making it easy for you to show the world what speakers you have.

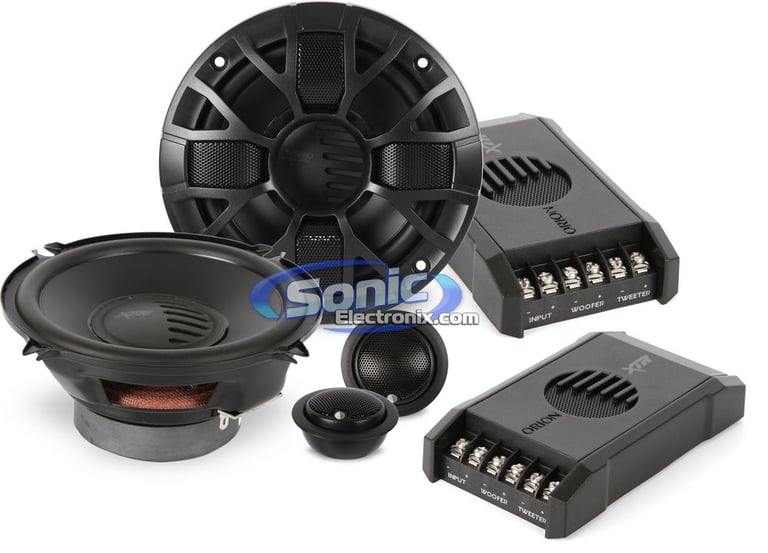

  • 5-1/4" 2-Way XTR Series Component Car Speakers
  • Power Handling:
    • Peak: 200 watts per pair / 100 watts each
    • RMS: 100 watts per pair / 50 watts each

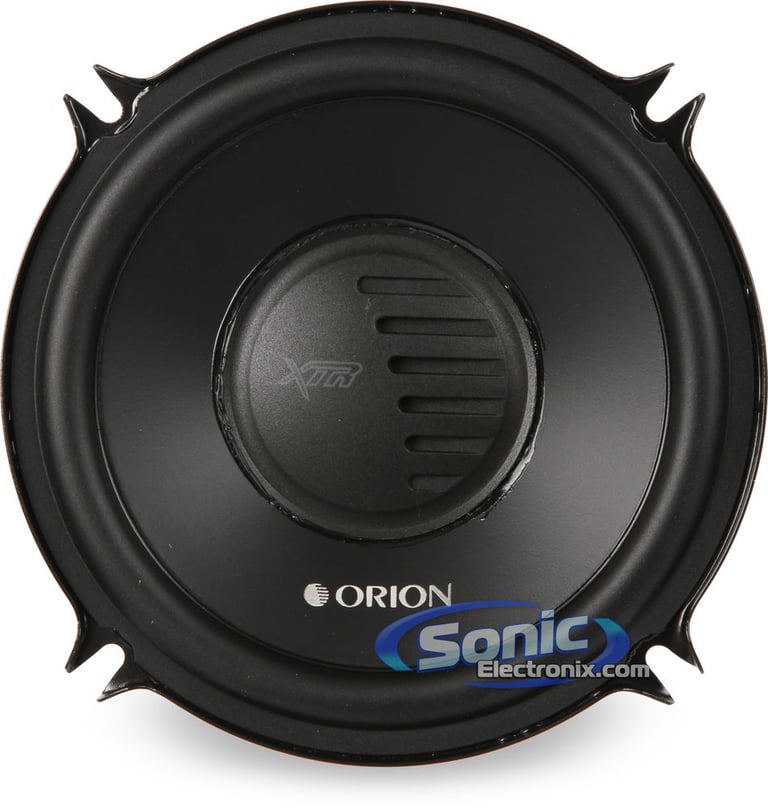

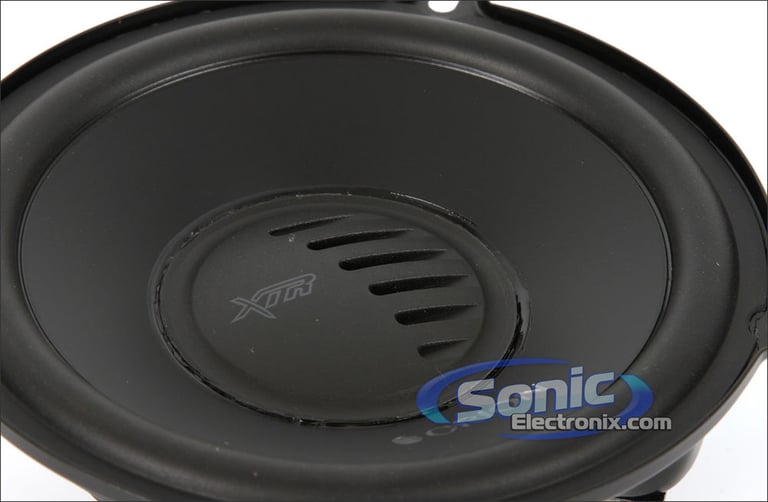

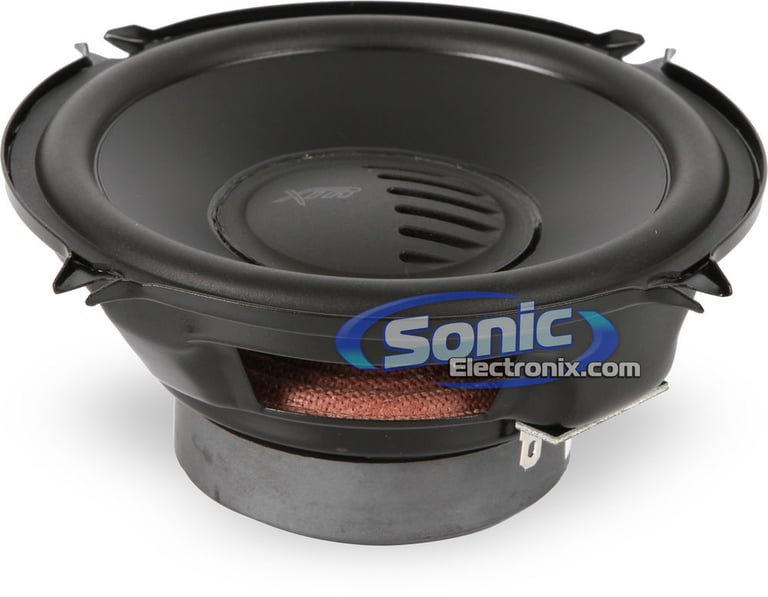

  • UV Coated fiber blended cones for excellent durability
  • Butyl rubber surrounds provide enhanced excursion

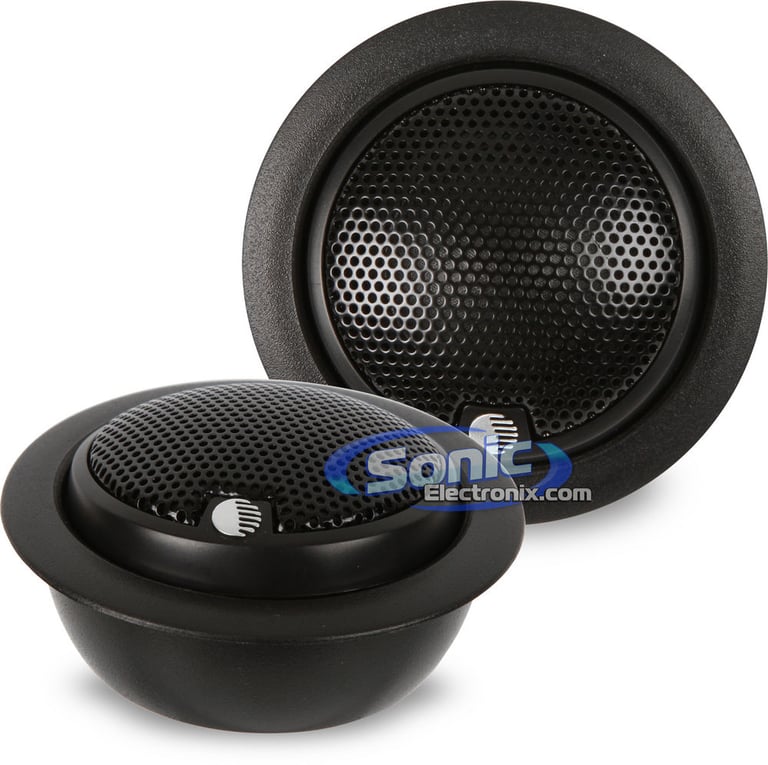

  • Separate ferrofluid silk soft dome tweeters
  • Single interlaced conex spiders

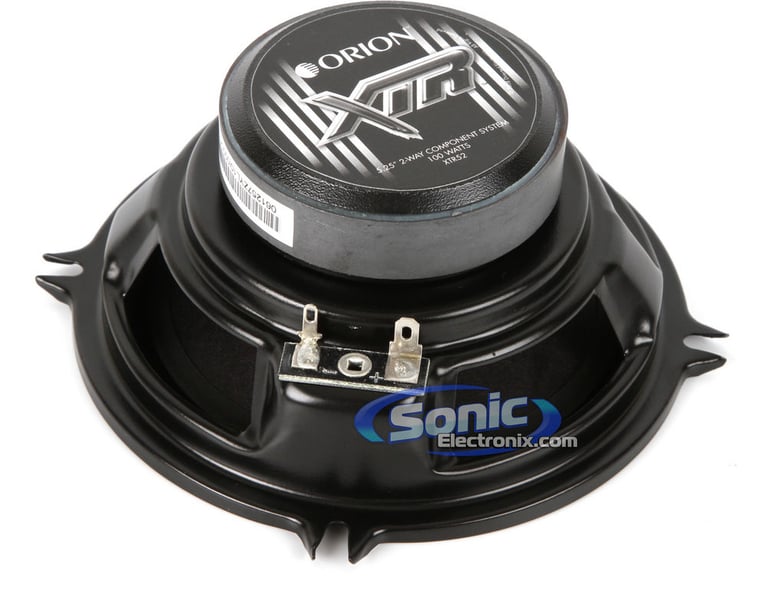

  • Stamped steel baskets with Euro mounting configurations

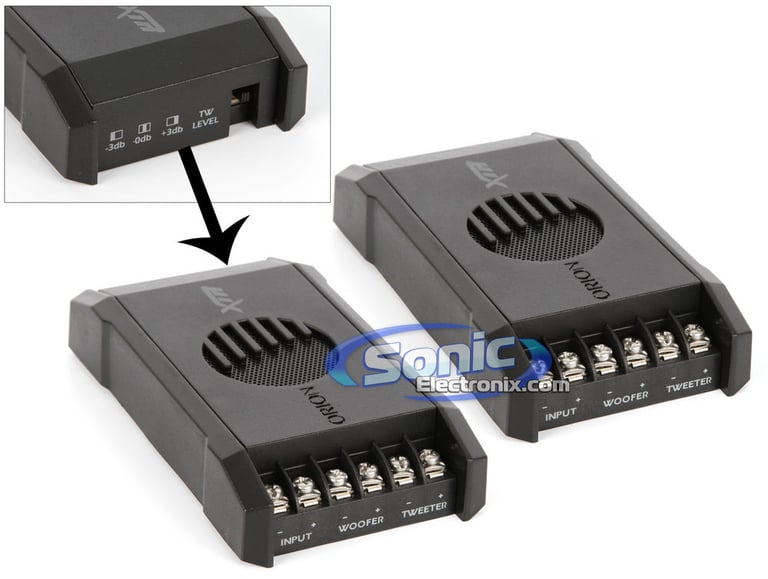

  • Separate custom crossover with 12 dB high pass, 6 dB low pass & tweeter protection
  • 3 Position tweeter level adjustment switch (-3dB, 0dB & +3dB)

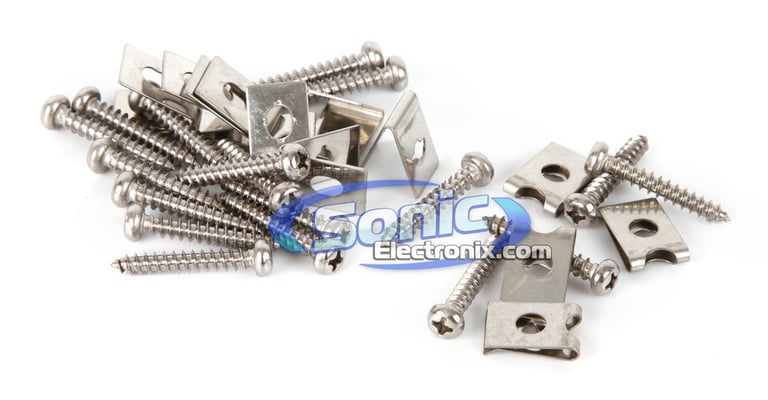

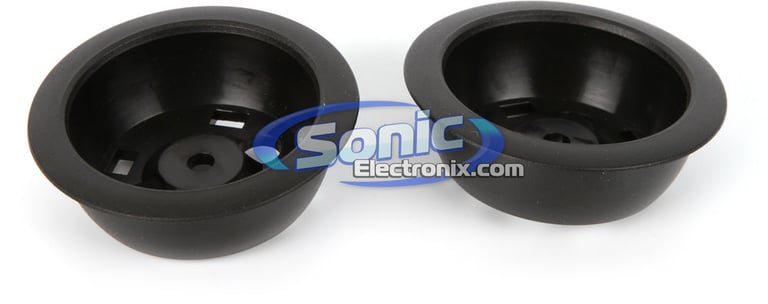

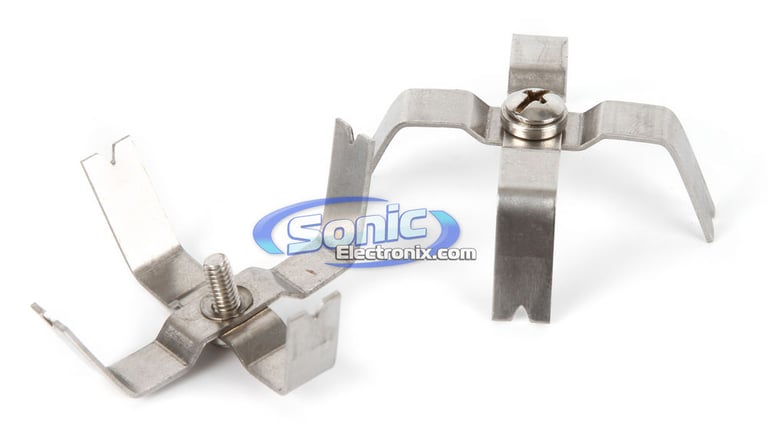

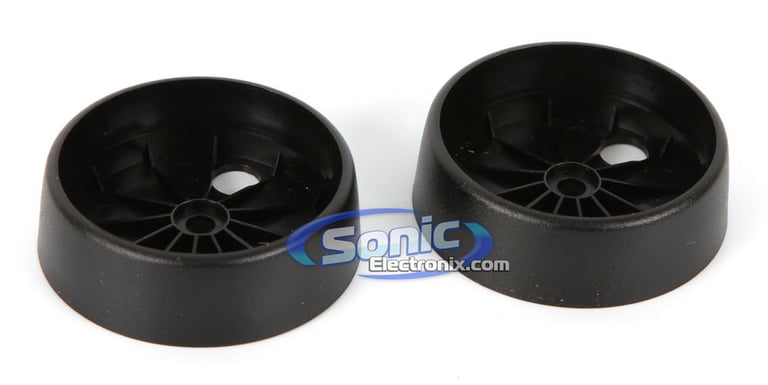

  • Swivel, surface, and flush mounting hardware included
  • Universal fit baskets
  • 4 ohm impedance
  • 2 Layer copper wire voice coil on a Kapton former
  • Top-Mount Depth: 2-1/4"
  • Mounting Diameter: 4-3/4"
  • Frequency Response: 80-22,000 Hz
  • Sensitivity: 88 dB
  • 1-year Manufacturer's warranty

Priced Per Complete Component System


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
UV Coated Fiber Blended
Woofer Surround
Butyl Rubber
Peak Power Handling
100 watts
RMS Power Handling
50 watts
Sensitivity
88 dB
Frequency Response
80 - 22,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/4"
Cutout Dimensions
4-3/4"
General specifications

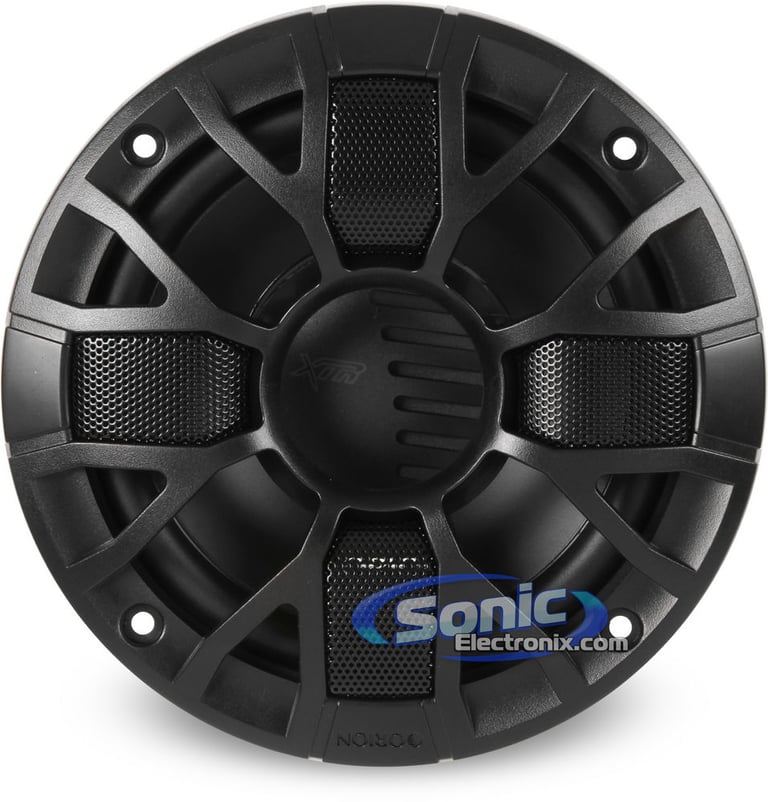

Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XTR52

Weight:

5.00lbs

Internal SKU:

xtr52

Internal Product ID:

38057
