Earthquake Sound DB15

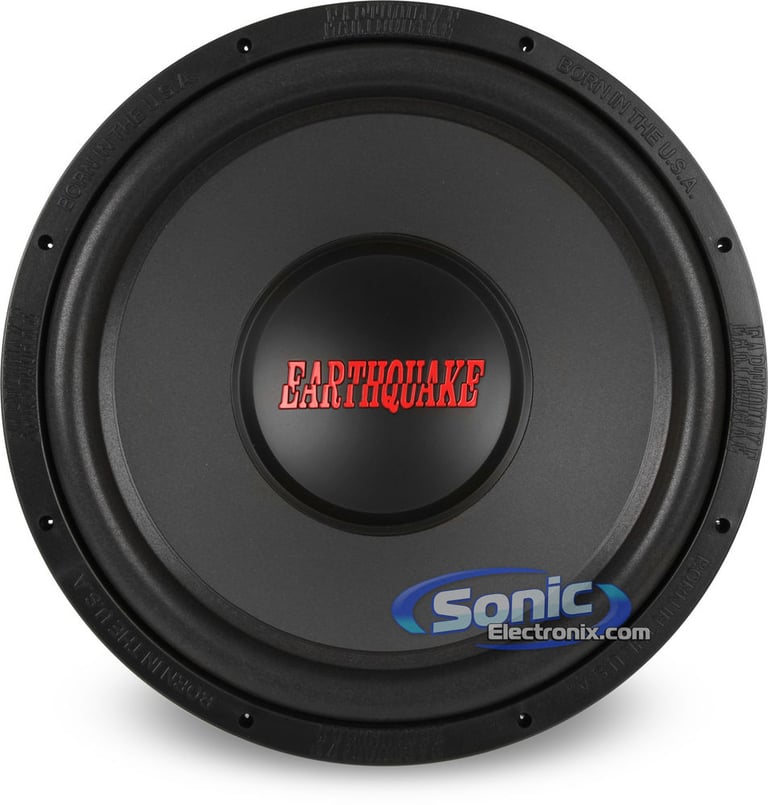

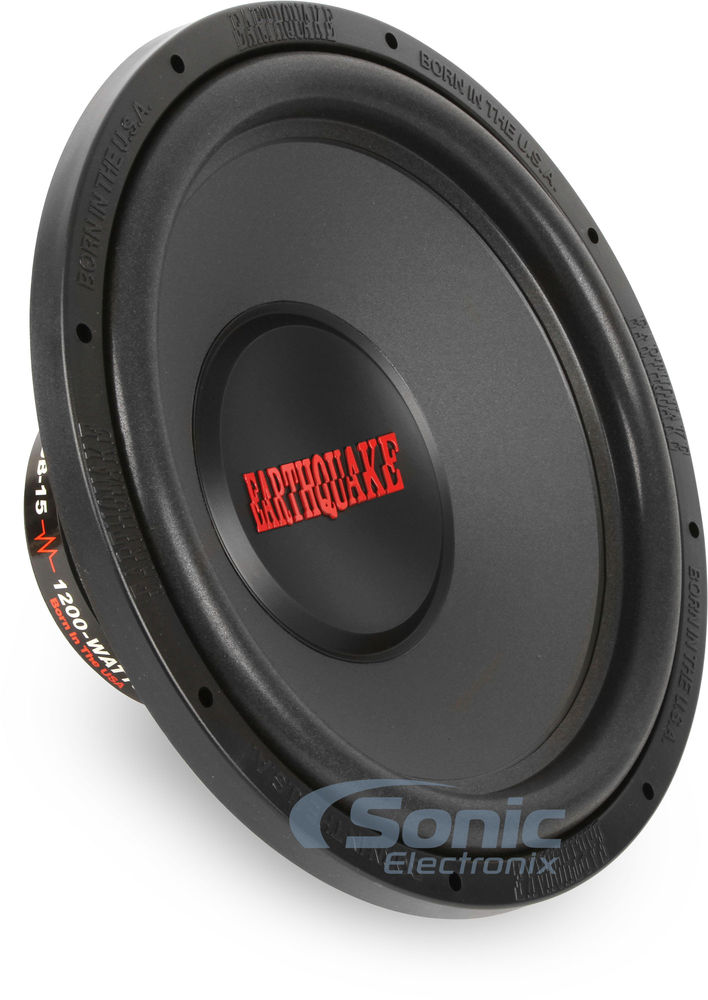

450W 15" DB Series Single 4 ohm Subwoofer

Product videos
highlight-star-icon

• 1200W Peak
• 450W RMS

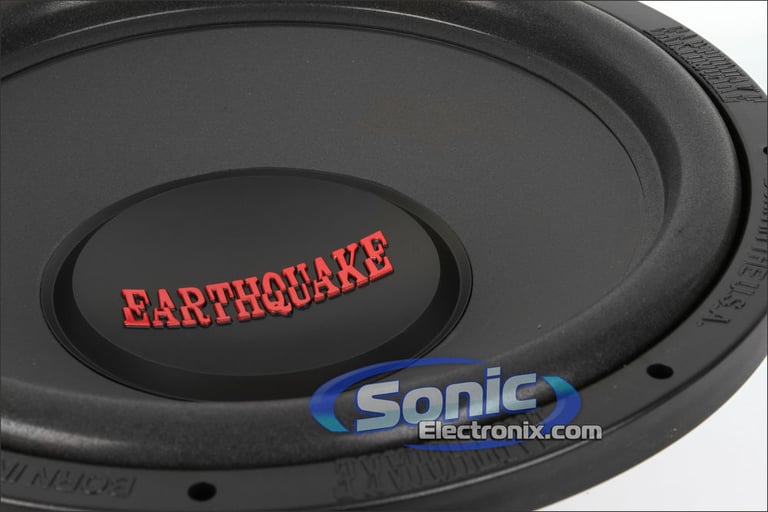

• Pressed Pulp Fiber Sandblasted Woofer Cone
• Santroprene

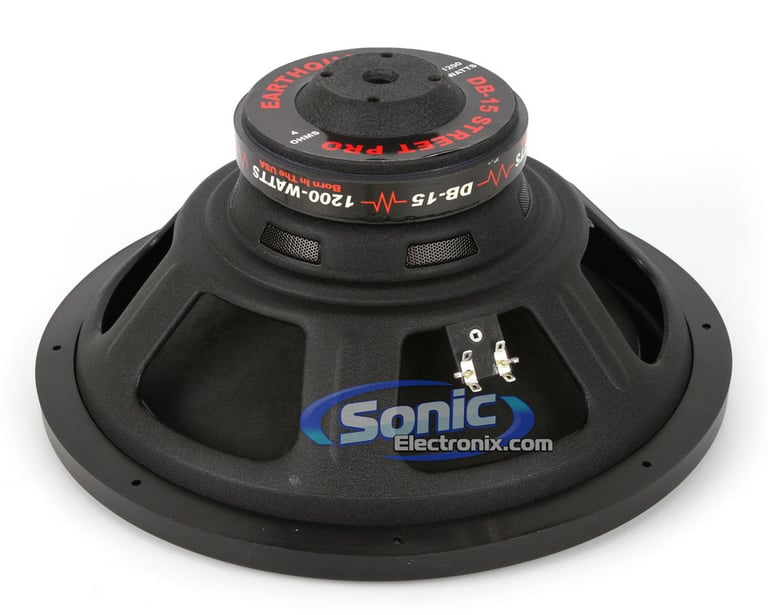

• Turbo Prop Cooling System
• High Current Stitched Tinsel Leads
• Jet-Black Textured Basket
• 70 oz. Magnet
• 91dB

Learn more about the db15

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5818 main

Metra 95-5818 Dash Kit

Install a new Double-DIN car stereo in select 1997-2004 vehicles from Ford, Lincoln

48
-11.54%

$22.99

List price $25.99

C1-570x main

JL Audio C1-570x

100W RMS 5x7" / 6x8" C1 Series 2 Way Coaxial 4-ohm Car Speakers

4
Limited time!
KW-M180BT main

JVC KW-M180BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

2
-24.40%

$189.00

List price $250.00

TERMINATOR68 main

MTX TERMINATOR68

220W Peak (110W RMS) 5x7” / 6x8” Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

Cerwin-Vega CV7BM

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

12

$109.00

List price $109.99

Hifonics ZS5768CX

500W Peak (180W RMS) 5x7" / 6x8” Zeus Series 4-ohm Coaxial Speakers

4
-18.92%

$29.99

List price $36.99

Product Highlights


• 1200W Peak
• 450W RMS
• Pressed Pulp Fiber Sandblasted Woofer Cone
• Santroprene
• Turbo Prop Cooling System
• High Current Stitched Tinsel Leads
• Jet-Black Textured Basket
• 70 oz. Magnet
• 91dB

Description


Earthquake Sound brand icon

Authorized dealer

High Performing and Affordable DB Series Subwoofers

Everyone in the car audio world wants a good amount of power without have to break the bank. With the Earthquake Sound DB15 450W RMS subwoofer you can get just that. This woofer is all about business and on delivering the best performance possible at a fraction of the cost. The woofer features a high strength sand-blasted woofer cone and santroprene high-roll surround for enhanced strength, longevity and performance. High current stitched tinsel leads and a Turbo Prop cooling system allow the woofer to play louder and longer by effectively keeping the voice coil at a cooler level. The textured jet-black basket makes this the perfect woofer for any vehicle. It's not easy trying to find a high quality woofer with a decent amount of bass output without having to cough-up at least 100 dollars, but with the DB15 you can achieve great bass reproduction without having to break the bank.

  • 15" Single 4 ohm DB Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 450 watts
  • Impedance: Single 4 ohm
  • Pressed pulp fiber sandblasted woofer cone
  • Santroprene high roll surround
  • High current stitched tinsel leads
  • Textured jet-black basket
  • Turbo Prop cooling system
  • 2" Single 4 ohm voice coil
  • 70oz. Magnet structure
  • Frequency response: 25-1,100 Hz
  • Sensitivity: 91 dB
  • Xmax: 25.4 mm
  • Mounting depth: 6-9/16"
  • Cutout dimensions: 13-13/16"
  • Authorized Internet Dealer
  • 5-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Earthquake Sound DB15 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Earthquake Sound DB15 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Earthquake Sound DB15 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Earthquake Sound DB15 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
Earthquake DB Series
Subwoofer Size
15"
Peak Power Handling
1200 watts
RMS Power Handling
450 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
25 - 1,100 Hz
Sensitivity
91 dB
Xmax (millimeters)
25.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Sandblasted Pressed Pulp Fiber Cone
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.8 cubic feet
Maximum Sealed Box Volume
2.5 cubic feet
Minimum Ported Box Volume
2.3 cubic feet
Maximum Ported Box Volume
4.2 cubic feet
Top-Mount Depth (Mounting Depth)
6-9/16"
Cutout Diameter
13-13/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Equivalent Compliance (Vas)
95.4 liters
Total Speaker Q Value (Qts)
0.96
Electrical Q Value (Qes)
1.08
Mechanical Q Value (Qms)
9.33
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DB15

Weight:

17.00lbs

Internal SKU:

db15

Internal Product ID:

38134
