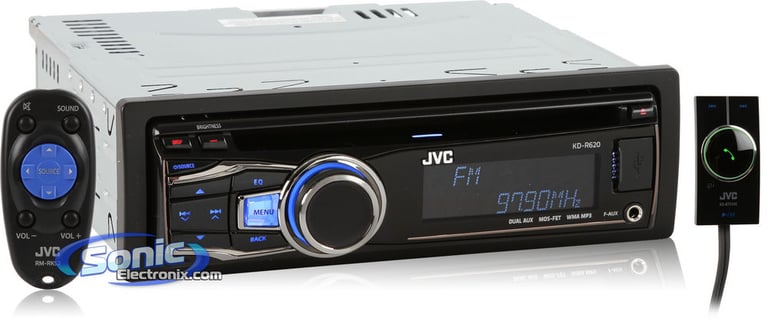

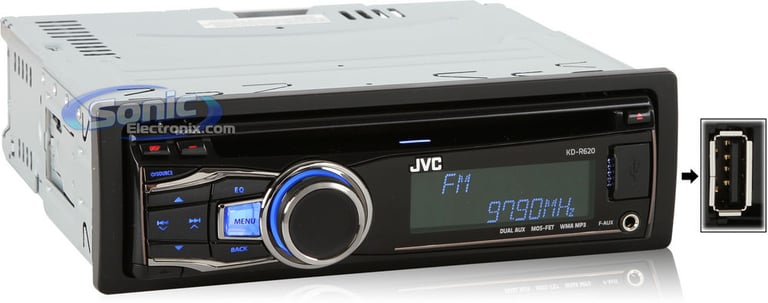

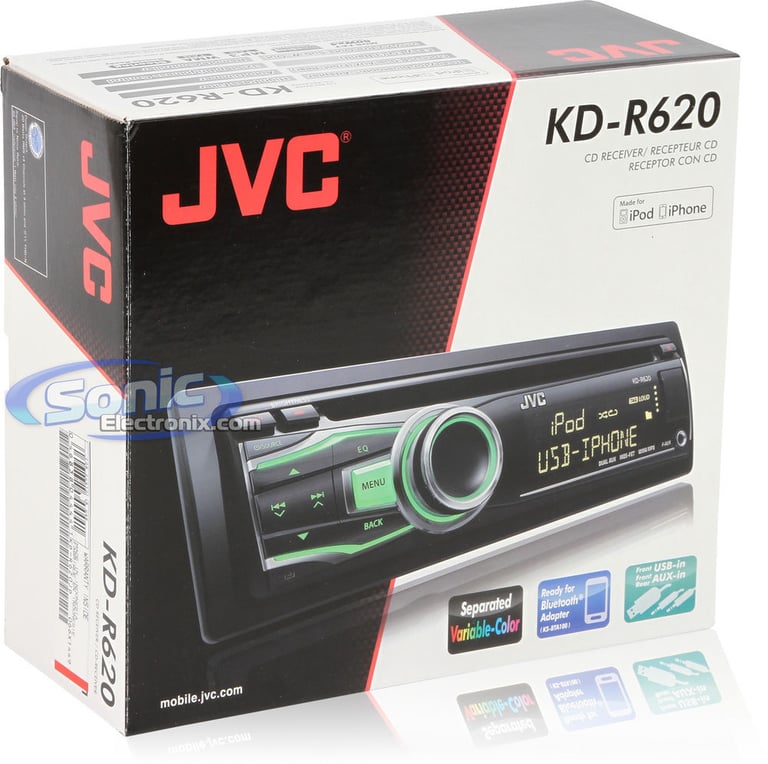

JVC KD-R620 + KS-BTA100 Bluetooth Adapter

General Features:

• In-dash AM/FM, CD, MP3, WMA player with Remote
• Includes Bluetooth Adapter for hands free talking and Bluetooth audio streaming

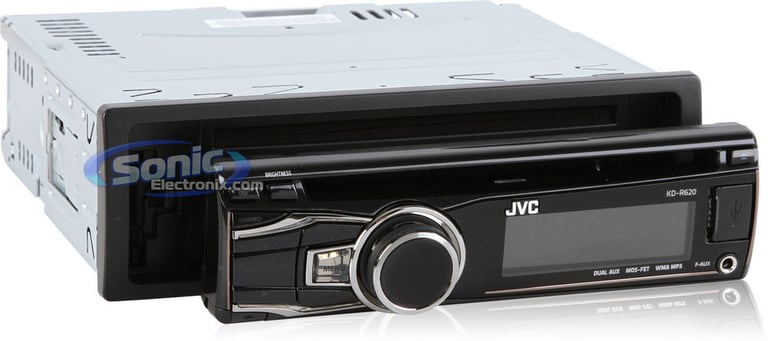

• Flip-down, detachable face
• Bright LCD Text display with source icons
• Dual zone color selection allows different colors to be selected for the buttons and the screen

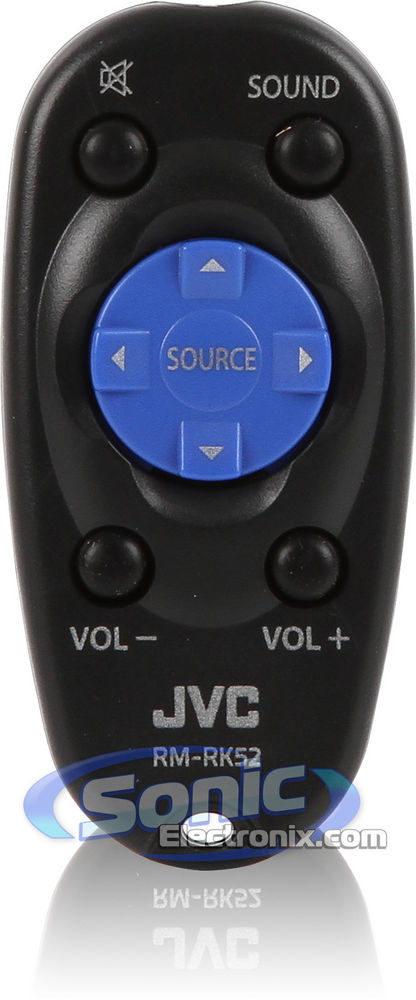

• Wireless remote control included
• 30,000 Variable color illumination
• Dual zone color displays allow the buttons and the display to have different colors
• CEA-2006 compliant amplifier
• Power Output:
  • Peak: 50 watts x 4 channels
  • RMS: 20 watts x 4 channels
• Auto Dimmer
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Playback and Audio Features:

• Playback of CD, CD-R, CD-RW, MP3, and WMA
• AM/FM tuner with 18FM/6AM presets
• High Pass Filter
• Easy EQ 3-band parametric equalizer with 6 selectable tone curves (5 Preset, 1 User)
• Two-way iPod control allows the user to control the iPod from the stereo or from the iPod

Expandability Options:

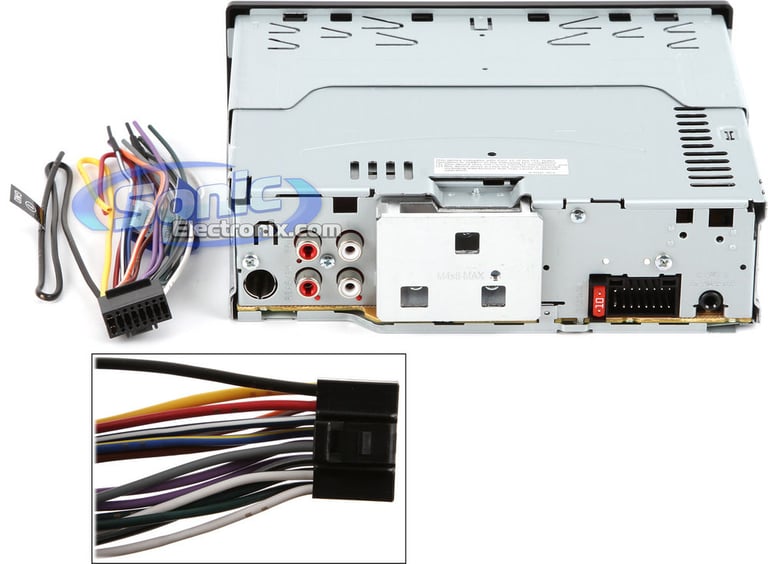

• 2 Sets of 2.5V preamp outputs (front, switchable rear and subwoofer)
• Bluetooth Ready: JVC KS-BTA100 required and included
• iPod and iPhone Ready: Standard USB-to-iPod cable compatible or the IPUSB2 is recommended
• Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
• Rear panel 3.5mm auxiliary input
• Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately

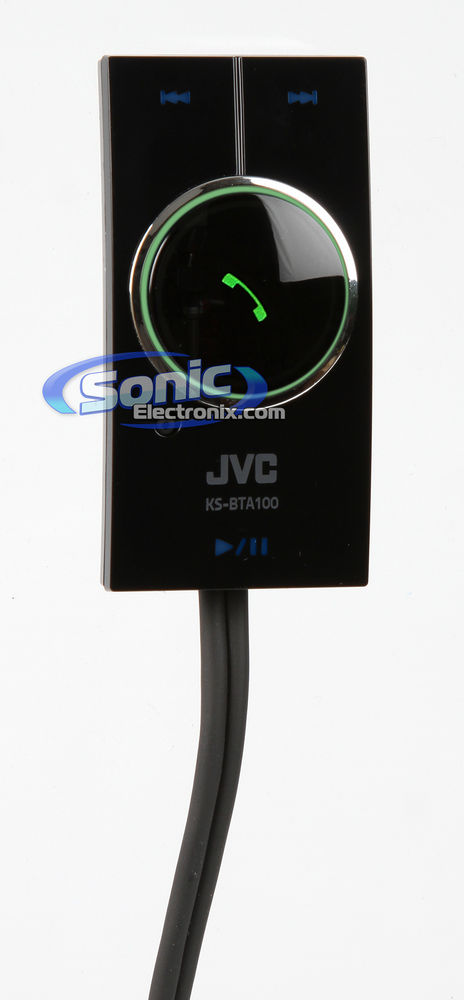

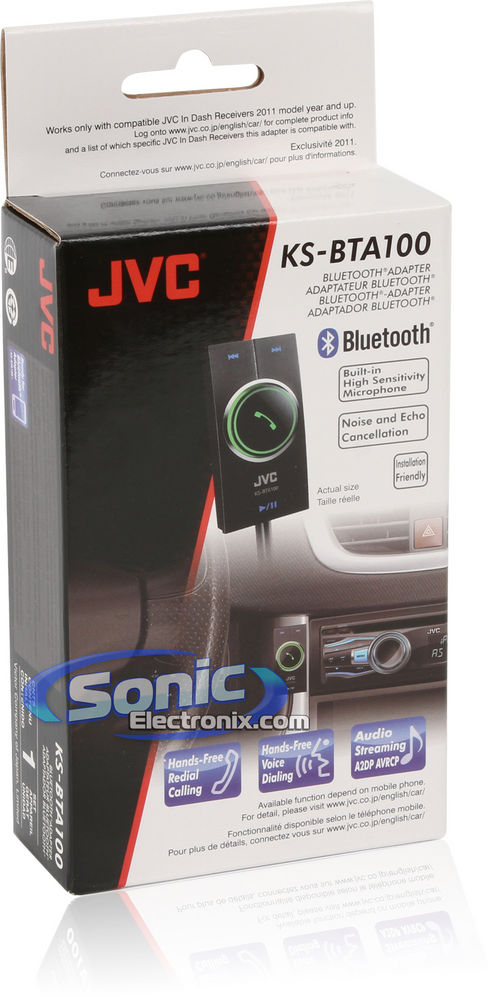

JVC KS-BTA100 Bluetooth Adapter:

• Compatible with 2011-up Bluetooth-ready JVC in-dash headunits
• Allows you to place and accept calls hands-free
• Built-in high sensitivity microphone
• Noise and echo cancellation
• Supports audio streaming from Bluetooth devices
• Built-In microphone, play/pause, forward, reverse keys
• Stream music from a compatible phone
• Use the dedicated keys to play your tunes
• Integrated microphone lets you carry on your side of the conversation as well as voice dial your Bluetooth enabled mobile phone's contacts
• Integrated Answer/End button
• Redial the last number called or dialed
• Switch from hands-free mode to private mode

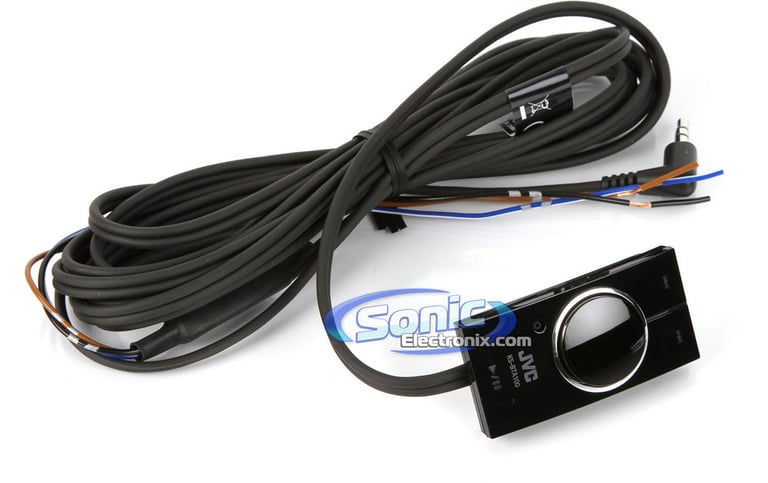

• Features an attached 9-1/2' cable
• Includes two-sided tape to mount the device

Key Features And Comparison Chart

	KD-R820BT	KD-R720	KD-R620	KD-R520	KD-R320	KD-HDR70	KD-HDR44	KW-HDR720	KW-XR810
Display	3-Line Full Dot LCD	2-Line LCD	2-Line LCD	2-Line LCD	1-Line LCD	2-Line LCD	1-Line LCD	2-Line LCD	3-Line Full Dot LCD
Variable Color Illumination
Pre-amp Outputs	3 Sets (2.5 Volts)	2 Sets (2.5 Volts)	2 Sets (2.5 Volts)	2 Sets (2.5 Volts)	1 Set (2.5 Volts)	3 Sets (2.5 Volts)	2 Sets (2.5 Volts)	3 Sets (2.5 Volts)	3 Sets (2.5 Volts)
Media Playback	MP3 WMA WAV	MP3 WMA WAV	MP3 WMA	MP3 WMA	MP3 WMA	MP3 WMA	MP3 WMA	MP3 WMA	MP3 WMA WAV
Digital-to-Analog Converter	24-Bit TI/Burr-Brown	24-Bit TI/Burr-Brown	24-Bit	24-Bit	24-Bit	24-Bit	24-Bit	24-Bit	24-Bit TI/Burr-Brown
Equalizer	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric
AUX Input (Mini-Jack)	FRONT	FRONT	FRONT REAR	FRONT REAR	FRONT REAR	FRONT REAR	FRONT REAR	FRONT REAR	FRONT
USB Interface	FRONT REAR	FRONT REAR	FRONT	FRONT		FRONT		FRONT	FRONT REAR
USB Control for iPod/iPhone
2-Way iPod Control
iPhone Pandora App Control
External Mode for iPod/iPhone
iTunes Tagging
AM/FM Tuner	HS-IVI	HS-IVI	HS-IVI	HS-IVI	HS-IVI	DIAS II	DIAS II	DIAS II	HS-IVI
Bluetooth Built-In		Requires KS-BTA50	Requires KS-BTA100	Requires KS-BTA100	Requires KS-BTA100	Requires KS-BTA100	Requires KS-BTA100	Requires KS-BTA50
Satellite Radio Ready
HD Radio	Requires KT-HD300	Requires KT-HD300							Requires KT-HD300
