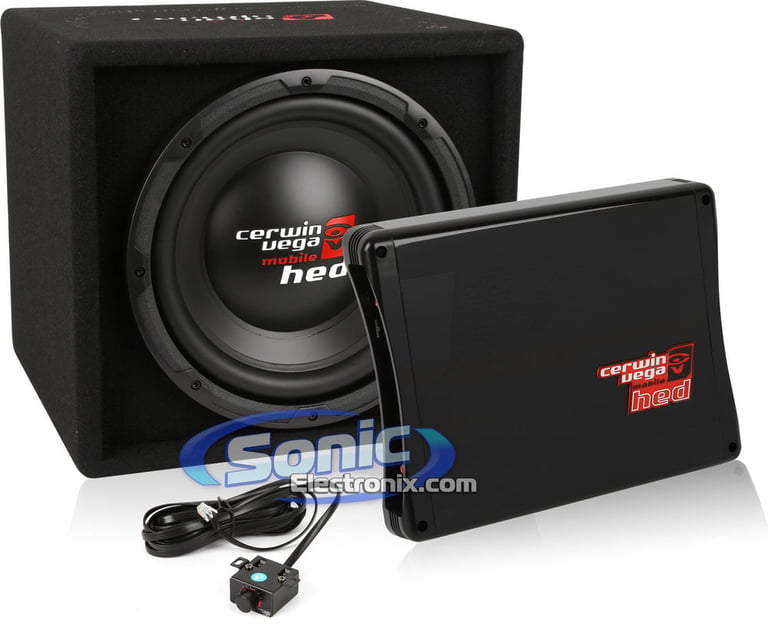

Cerwin-Vega HEDBK112

Single 12" HED Series Bass Kit Amplified Sealed Enclosure

highlight-star-icon

Single 12" Sealed Amplified Loaded Enclosure • 300W MAX Subwoofer • 600W MAX 2-Channel Amplifier • Sealed Carpeted Enclosure • 3/4" MDF Construction • Custom Embroidery for Enhanced Cosmetics • Factory Tune for Optimum Performance

Learn more about the hedbk112

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Description


Cerwin-Vega brand icon

Authorized dealer

Ready To Go with Cerwin-Vega's HED Amplified Loaded Enclosures

Why spend countless hours looking to match the sub with an amplifier and perfect enclosure, when the HED Series Bass Kit amplified loaded enclosures by Cerwin-Vega offer an all-in-one package deal. The HEDBK112 features a single 12" HED series subwoofer that has been pre-loaded into a specifically tuned sealed enclosure. The sealed design and custom tuning will bring out the best possible sound reproduction from the loaded subwoofer. Included in this bass kit will be a 2-channel HED series amplifier that will provide more than enough power to run the subwoofer efficiently and safely. The enclosure is made from quality 3/4" MDF wood and features single push pin terminals for easy installation and set-up. The sleek black look will accommodate any vehicle while the added remote bass know will allow for gain control from the drivers seat. If you are looking to get your feet wet in this crazy world we call car audio but don't want to spend a bundle then look no further than the Cerwin-Vega amplified sealed enclosure.

Subwoofer Features
  • 12" HED Series Single 8 Ohm Car Subwoofer
  • Impedance: Single 8 ohm
  • Composite polypropylene cone design provides the perfect weight to strength ratio & excellent durability
  • Rubber surround allows high amounts of excursion
  • Radial contact convex domes geometrical design minimizes cone flex to reduce distortion
  • Rolled aluminum former for superior thermal capabilities and increased power handling
  • Linear rolled spider provides control and dynamic sound at all volume levels
  • Nickel-Plated pushpin terminals provide low-resistance connection & corrosion resistance
  • Woven tinsel leads sewn directly into spider for greater reliability
  • Single 8 ohm high temperature aluminum voice coil
  • Cross-flow window venting reduces VC temperatures
  • Forged alloy yoke for superior magnetic field retention
  • Deep drawn heavy gauge stamped steel basket
  • 1-year Manufacturer's warranty

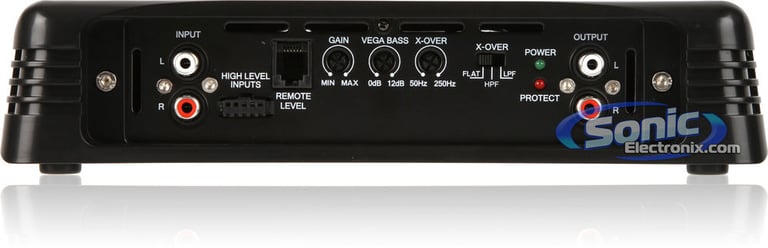

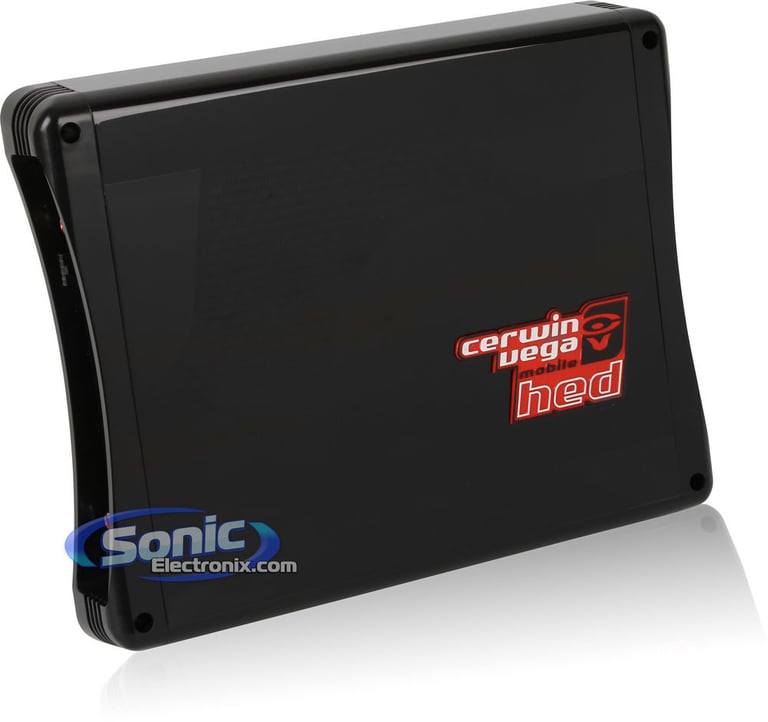

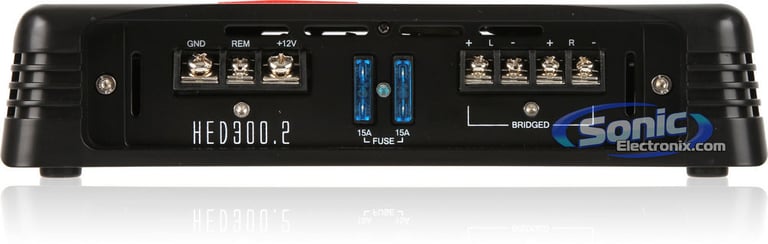

Amplifier Features:
  • HED Series 2-Channel Class AB Car Amplifier
  • PWM MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on

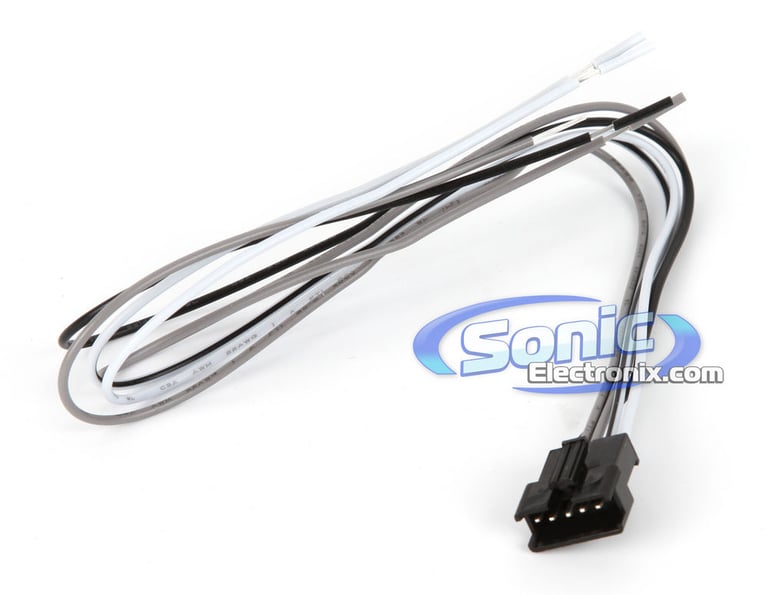

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry
  • High-density aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 122mV-5V
    • High level: 3.8V-20V
  • Crossover selection switch
  • Variable high-pass filter (50-250 Hz, 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Damping factor: >363 at 50 Hz
  • Frequency response: 20-49,000 Hz
  • Dimensions: 11-5/8"L x 9-7/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

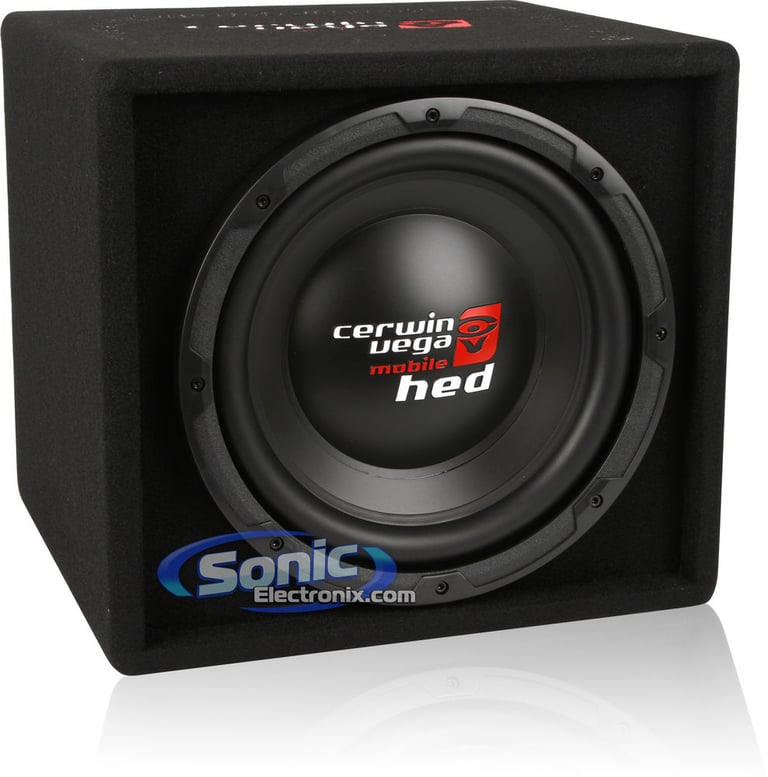

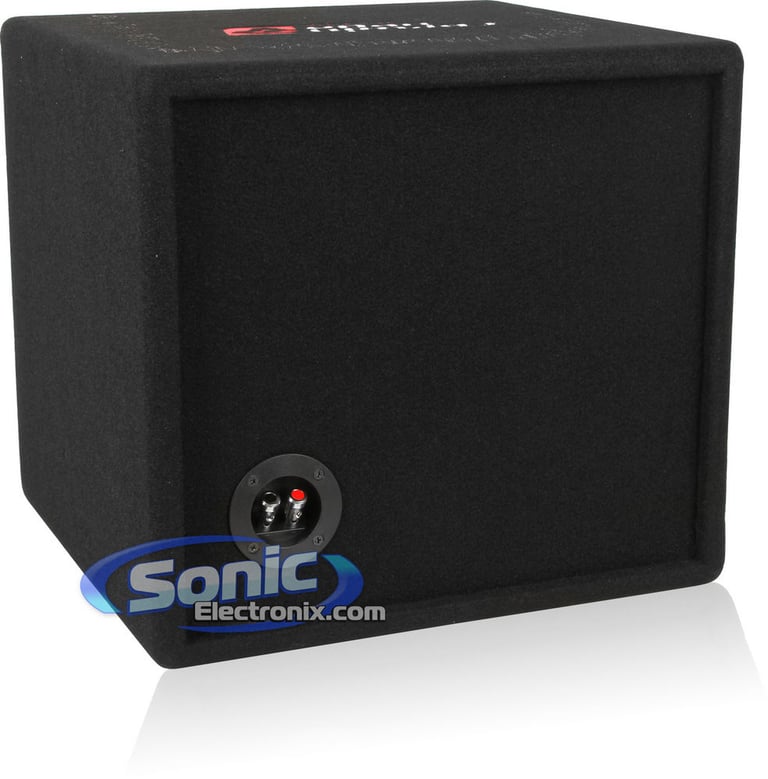

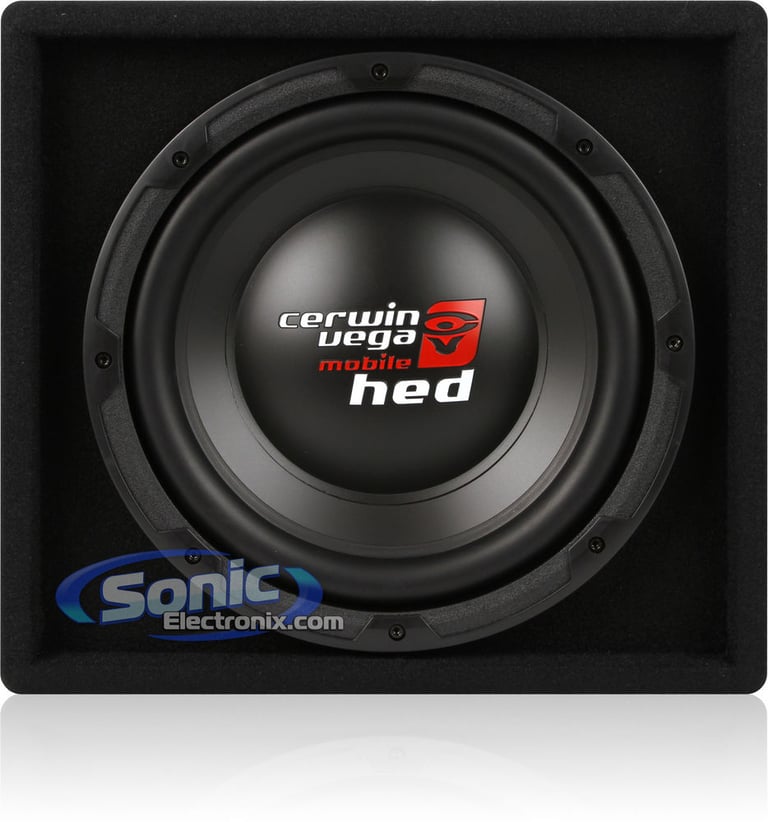

Enclosure Features
  • Single 12" sealed loaded enclosure
  • High-quality 3/4" MDF wood construction
  • Factory tuned for optimum performance
  • Custom embroidery for enhanced cosmetics
  • Single terminal push pin cup for quick and easy installation and set-up
  • Durable black carpet
  • Dimensions: 14-9/16"L x 15-9/16"W x 14-3/8"H

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
40 watts x 2 channel
RMS Power @ 2 ohms
75 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
150 watts x 1 channel
Peak Power Output
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.08%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
108 dB
Bass Boost
0 - 12 dB

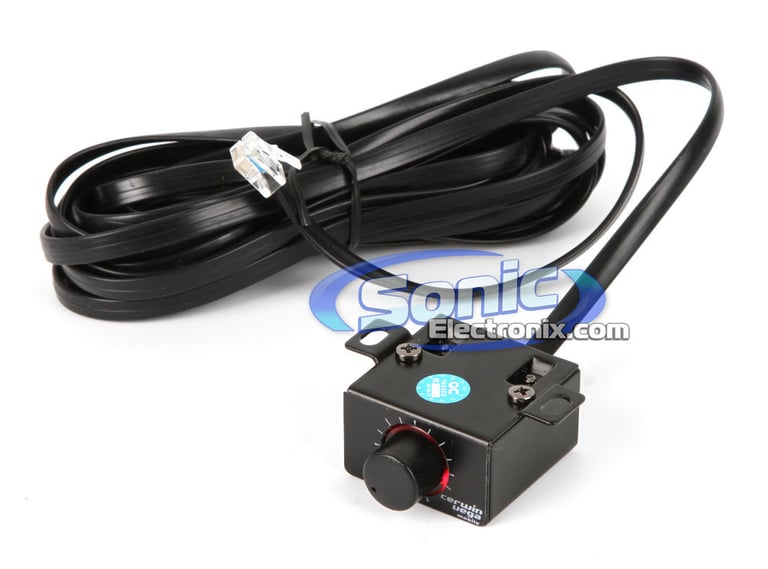

Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
15A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
150 watts
Total RMS Power Handling
150 watts
Peak Power Handling
300 watts
Total Peak Power Handling
300 watts
Woofer Surround
Rubber
Woofer Composition
Composite Polypropylene Cone - CPPC
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohm
Sensitivity
86.00 dB
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14-3/8"
Width
15-9/16"
Depth
14-9/16"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HEDBK112

Weight:

38.55lbs

Internal SKU:

hedbk112

Internal Product ID:

39704
