1800W Alpine Subwoofer and Amplifier Marine Bass Bundle

Pair of Alpine SWR-M100 10" Type-R Series Marine Subs + Alpine PDX-1.600M Monoblock Marine Amplifier

Alpine
Shop all Alpine
EXCLUSIVE
highlight-star-icon

Pair of 10" Single 4 ohm Marine Subwoofers • 1800W Max • 600W RMS • Marine Series Monoblock Class D Car Amplifier • UV Weathering Protection • Signal Transit Accurate Response Topology • CEA-2006 Compliant

Learn more about the 2-swrm100_pdx1600m

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

82
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

Description


Alpine brand icon

Authorized dealer

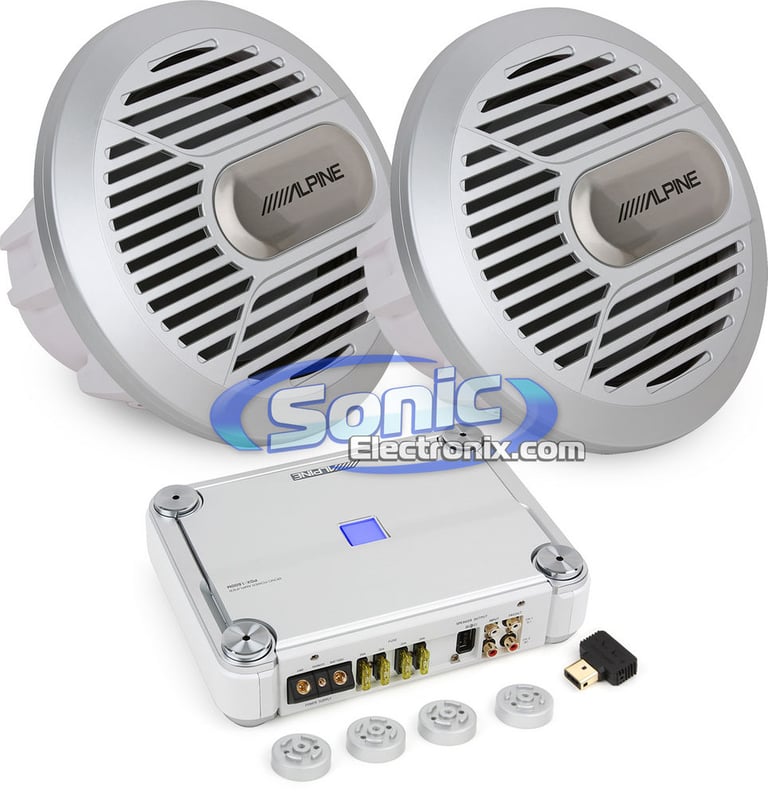

Alpine Subwoofer and Amplifier Marine Bass Bundle

This Sonic Electronix Exclusive Bass package showcases an Alpine Marine PDX-1.600M Amplifier along with a pair of 10" Type-R series Alpine subwoofers. This excellent bass package pushes 600 watts of clean, continuous RMS power. The Alpine subwoofers each have a Single 4 ohm voice coil; meant to be wired in parallel, to a final impedance of 2 Ohms. For more information about subwoofer wiring, please check out our Subwoofer Wiring Diagram.

These Alpine Marine SWR-M100 Type-R series subwoofers require 600 watts of RMS power. The included Alpine Marine PDX-1.600M amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. With the Alpine subwoofers, and Alpine amplifier, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

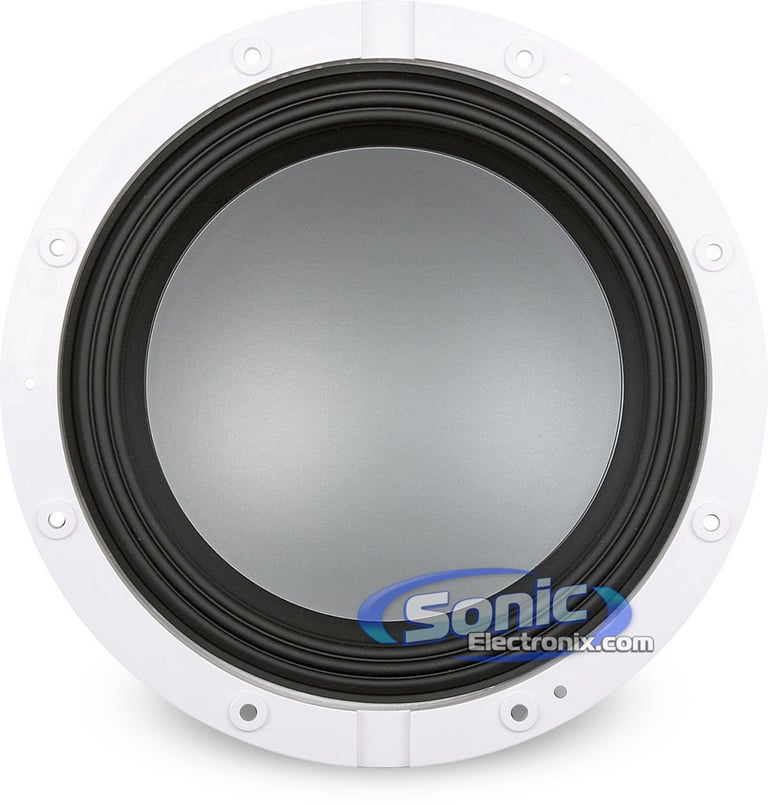

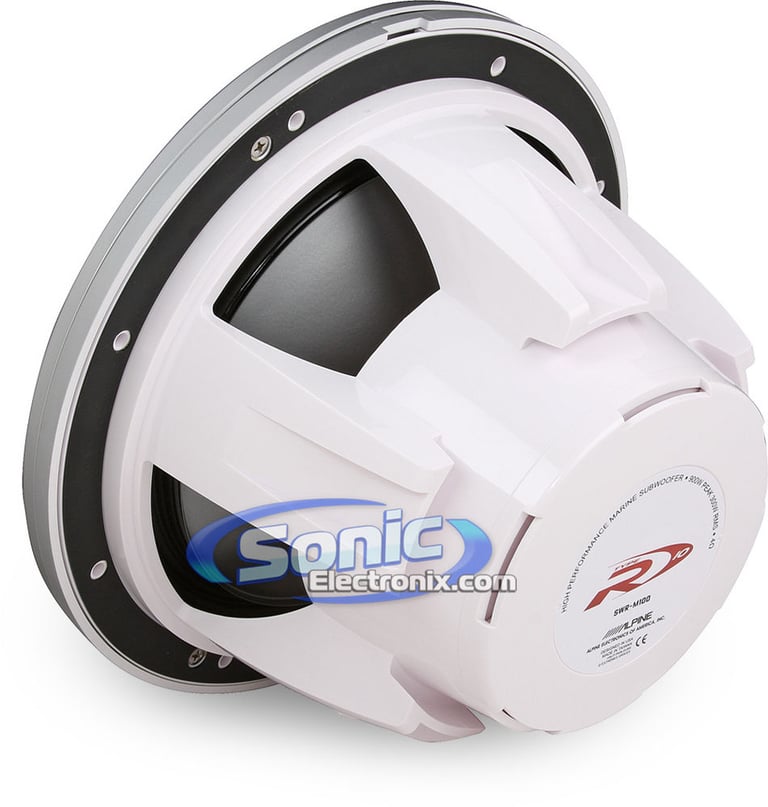

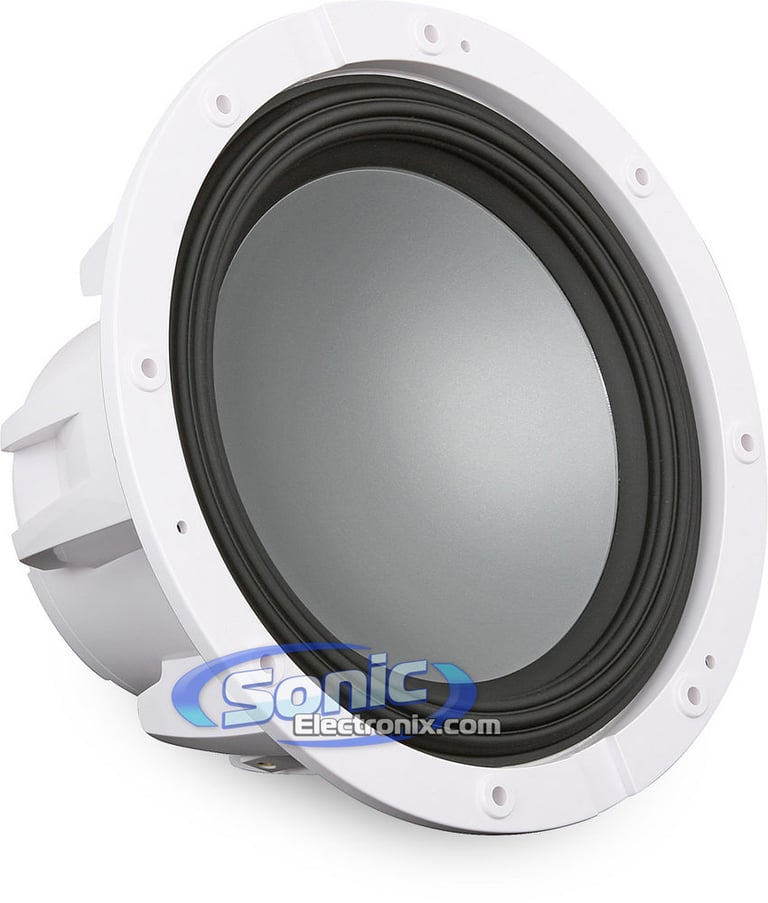

Alpine Marine SWR-M100 Features:
  • Pair of 10" Single 4 ohm Marine Subwoofers
  • Power Handling:
    • Peak: 1800 watts total / 900 watts each
    • RMS: 600 watts total / 300 watts each
    • Power Range (RMS): 100-300 watts
  • Impedance: Single 4 ohm
  • Injection molded polypropylene cone woofer
  • Santoprene rubber surround
  • High excursion for deep high output bass
  • Infinite baffle design for widest application
  • High AMplitude Multi-Roll (HAMR) surround
  • Compund Radis Curve (CRC) motor structure
  • Thermal management system
  • Integrated insert and spade terminals

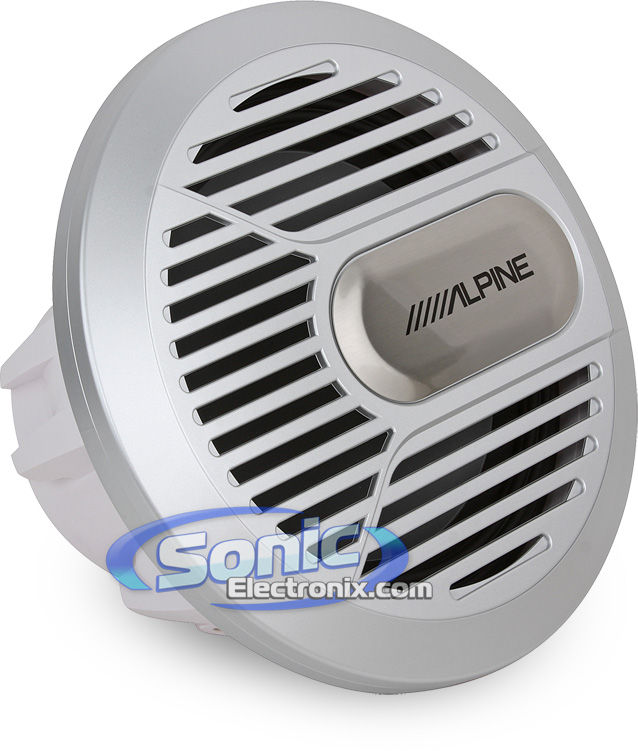

  • Hidden screw mounting and grille design
  • Waterproof rubber mounting gasket included
  • Progressive NOMEX spider
  • 4-Layer single 4 ohm copper wire on TIL former voice coil
  • Magnet Size: 52.9 oz
  • Sensitivity: 86 dB
  • Xmax: 12.54 mm
  • Frequency response: 35-1000 Hz
  • Cutout dimensions: 9-1/16"
  • Mounting Depth: 5-1/16"
  • 1-year SonicElectronix.com warranty

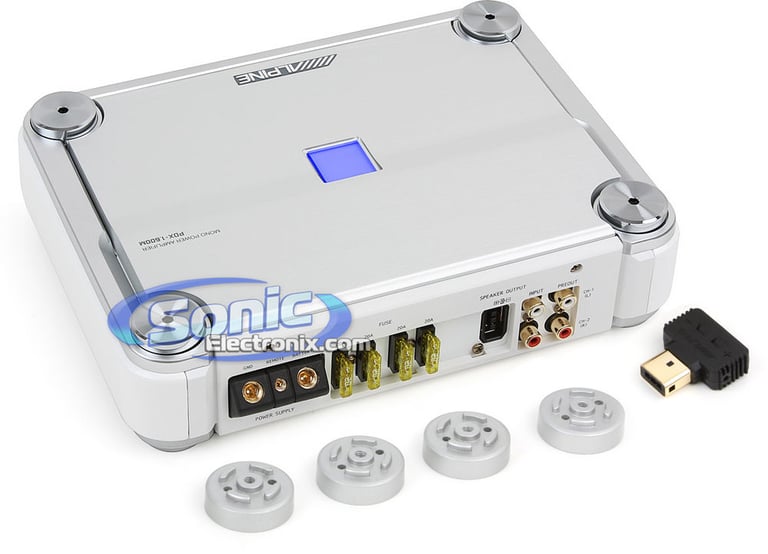

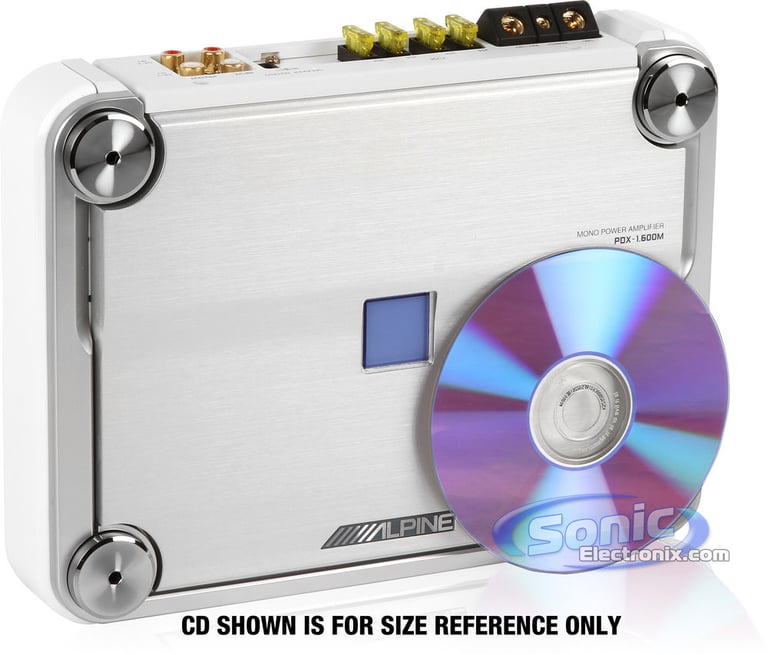

Alpine Marine PDX-1.600M Features:
  • Marine Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply
  • Salt/fog resistant (ASTM B117)
  • UV weathering protection (ASTM G154/D4329)
  • LED power and protection indicators
  • STAR (Signal Transit for Accurate Response) Topology (minimizes internal noise and prevents ground interference)
  • Stackable operation: Alpine PDX amplifiers are all one size, allowing for space-saving stacked configuration

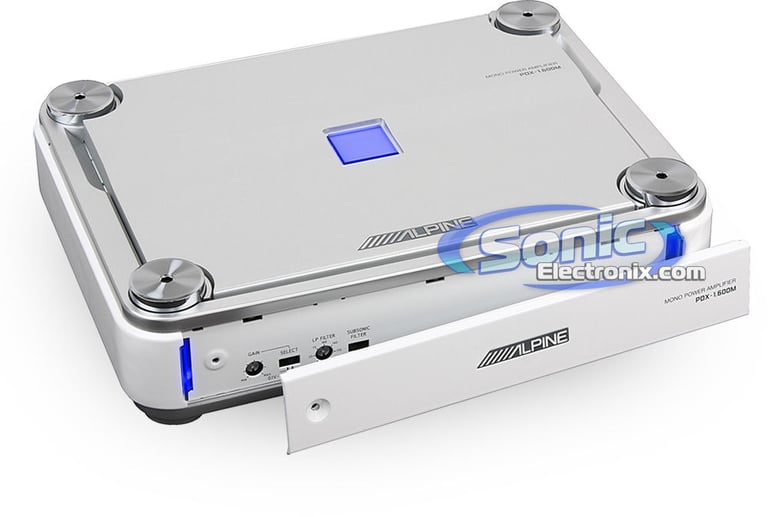

  • Hidden control panels behind removable metal plating

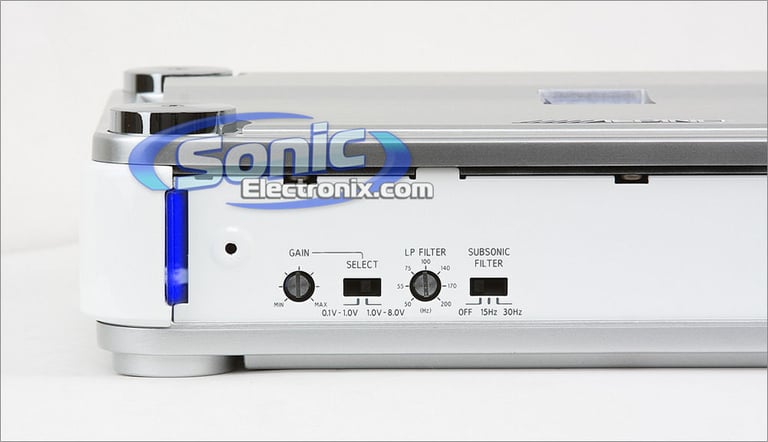

  • Adjustable gain control and gain range
  • Preamp RCA outputs (non-fading)
  • Constructed from UV resistant materials and finish, and corrosion resistant hardware
  • 4-Layer glass epoxy PC board

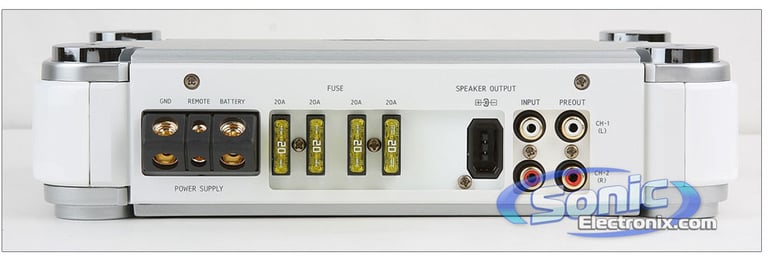

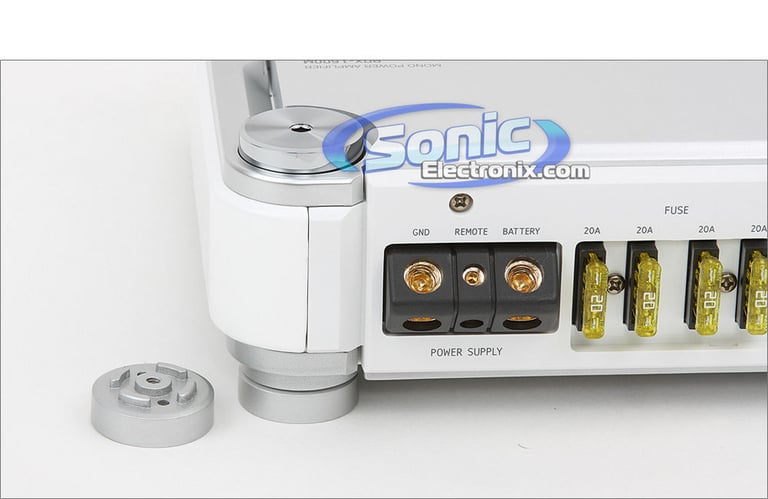

  • Low resistance, high current speaker terminals
  • Over-current, thermal, and DC protection circuitry
  • Compact heavy-duty aluminum alloy heatsink
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • Subsonic Filter (15 or 30 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-200 Hz
  • Dimensions: 10-1/8"L x 7-9/16"W x 2-7/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information about a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

M6-10IB-S-GwGw-4 small

JL Audio M6-10IB-S-GwGw-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5.9"
• Sensitivity: 86.1 dB

(3)

$479.99

List price $479.99

JBLMARSUBSD102GAM small

JBL Stadium Marine 102 (JBLSUBMASD10AM)

• Peak Power: 900 watts
• RMS Power: 300 watts
• Impedance: 2 or 4 ohm
• Multi-color RGB LED lights
• Plus One Polypropylene Cone
• Rubber Surround
• Mount depth: 4-7/8"
• Sensitivity: 89 dB

$149.95

List price $449.95

M6-8IB-S-GwGw-4 small

JL Audio M6-8IB-S-GwGw-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5.07"
• Sensitivity: 86.8 dB

$349.99

List price $349.99

STADIUMMW1000AM small

JBL Stadium Marine MW1000 (MW1000AM)

• RMS: 300 Watts / Peak: 900 Watts
• Plus One cones provide more overall speaker-cone area than other cones in its class
• Unique and eye-catching RGB illumination
• Features SSI (Switch-Selectable Impedance), which allows you to choose either 2 or 4 ohm load impedance
• Durable One-piece Polymer basket

$149.95

List price $449.95

XM1041WL small

Kenwood eXcelon XM1041WL

• Peak Power: 1300 watts
• RMS Power: 300 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 5-1/2"
• Sensitivity: 84 dB

$199.00

List price $580.00

PSW10.4D small

DS18 PSW10.4D

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Water Resistance Paper Cone
• Rubber Surround
• Mount depth: 3"
• Sensitivity: 84 dB

(1)

$179.95

List price $179.95

DB 1242 DVC small

Polk Audio DB 1242 DVC (DB1242DVC)

• Peak Power: 1110 watts
• RMS Power: 375 watts
• Impedance: Dual 4 ohm
• Polypropylene cone
• Santoprene Rubber surround
• Mount depth: 4.34"
• Sensitivity: 86 dB

(4)

$130.00

List price $149.99

M6-8IB-S-GmTi-i-4 small

JL Audio M6-8IB-S-GmTi-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.7 dB

$429.99

List price $429.99

M6-8IB-S-GwGw-i-4 small

JL Audio M6-8IB-S-GwGw-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.8 dB

(1)

$399.99

List price $399.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
20A x 4
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
Type-R Series
Number of Subwoofers
1
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
300 watts
Total RMS Power Handling
600 watts
Peak Power Handling
900 watts
Total Peak Power Handling
1800 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Injection Molded Polypropylene
Minimum Sealed Box Volume
4.85 cubic feet
Maximum Sealed Box Volume
4.85 cubic feet
Sensitivity
86 dB
Frequency Response
35 - 1000 Hz
Xmax (millimeters)
12.54 mm
Top-Mount Depth (Mounting Depth)
5-11/16"
Cutout Diameter
9-1/16"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

2-SWR-M100_PDX1.600M

Weight:

35.00lbs

Internal SKU:

2-swrm100_pdx1600m

Internal Product ID:

40081

Customer Ratings & Reviews


1800W Alpine Subwoofer and Amplifier Marine Bass Bundle thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

great thunder.

The following review is for SWR-M100, which is a part of the bundle you are viewing.

product looks and sounds great, my neighbor said it shook his house,and he lives five houses away. great price and service.

By phucknphast on May 16, 2009

35 found this helpful


Hits Hard

The following review is for SWR-M100, which is a part of the bundle you are viewing.

I installed 2 of these along with an Alpine PDX 1.600M amp in my boat. I can't believe how hard these subs hit. My system sounds amazing. Much thanks to Sonic Electronix for a great product, quick delivery, and a wonderful value. If you want to install a system on your boat, go with these subs.

By Jamm23 on March 22, 2011

34 found this helpful


Awesome Amp!

The following review is for PDX-1.600M, which is a part of the bundle you are viewing.

I have this amp pushing my JL 12W6v2 and it is the perfect match. It's designed to breathe so don't sit it flat on its belly, use the feet it gives you. Once I connected everything right and got a solid ground this pushed my speaker to the point where my trunks bending.. Awesome amp and I'm completely satisfied. Also it's very good looking. Especially at night when the blue lights up your whole trunk.

By Steven on August 23, 2012

7 found this helpful


Sounds great!

The following review is for SWR-M100, which is a part of the bundle you are viewing.

This subwoofer was a great price, looks good and sounds great!

By Kathy on September 11, 2016

2 found this helpful




RS-7004-2 small

Race Sport Accessories RS-7004

H4666 4" x 6" Rectangle OEM Style (Sold Individually)

$19.99

List price $49.99

7443 small

Race Sport Accessories 7443 (White)

5050 LED Super Bright Auto Replacement Bulbs (Pair)

$19.99

List price $29.99

9006-6K-VE small

Vision Extreme 9006-6K-VE HID Xenon Headlights

6000K 9006/HB4/9012 Xenon Headlamp Bulbs HID Headlight Conversion Kit w/ DC Ballasts

(3)

$49.99

List price $89.42

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 MINI Cooper

2011 MINI Cooper

1982 BMW 733i

1988 Chevrolet Nova

2023 Audi A4

2002 Dodge Durango

1979 Dodge D50

2011 Dodge Durango

2016 Kia Optima

2002 Isuzu Trooper

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
