Memphis Belle 16-MCH1300

1560W RMS, The Memphis Belle 5-Channel MClass Amplifier

Memphis
Shop all Memphis
Product videos
highlight-star-icon

5-Channel Memphis Belle Hybrid Amplifier • 75W RMS x 4 + 300W x 1 @ 4 • 115W RMS x 4 + 400W x 1 @ 2 • 1 Ohm Stable Subwoofer Channel: 1100W RMS x 1 • Adjustable Input Sensitivity • Compact Aluminum Chassis with Black Pearl Finish • Built-in Crossover • Full MOSFET Design

Learn more about the 16mch1300

We apologize

This item has been discontinued


Loading...
70-8112 main

Metra 70-8112 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1991-2001 vehicles from Toyota, Lexus

14
-23.09%

$9.99

List price $12.99

95-8157B main

Metra 95-8157B Dash Kit

Install a new Double-DIN car stereo in select 1992-2000 SC400 and SC300 (Matte Black)

5
-45.73%

$18.99

List price $34.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Product Highlights


5-Channel Memphis Belle Hybrid Amplifier • 75W RMS x 4 + 300W x 1 @ 4 • 115W RMS x 4 + 400W x 1 @ 2 • 1 Ohm Stable Subwoofer Channel: 1100W RMS x 1 • Adjustable Input Sensitivity • Compact Aluminum Chassis with Black Pearl Finish • Built-in Crossover • Full MOSFET Design

Description


Memphis brand icon

Authorized dealer

  • 5-Channel MClass Series Amplifier
  • Class-AB / Class-D Hybrid Amplifier

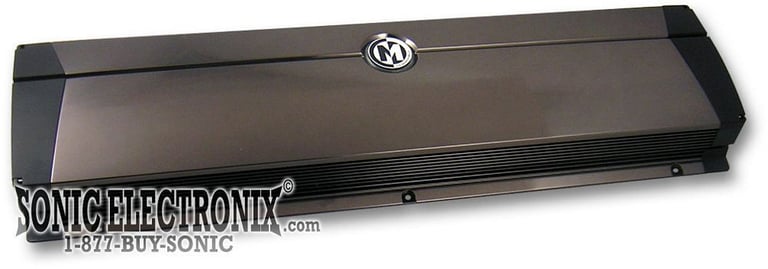

  • Compact Aluminum Chassis with Custon Black Pearl Finish
  • Gold Plated RCA Connectors
  • Full MOSFET Design

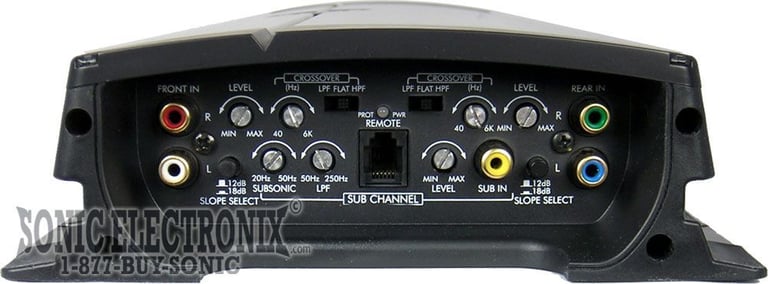

  • Fully Variable Crossover: HP/LP (40 Hz - 6 kHz) (Channels 1-4)
  • Fully Variable Crossover: LP (50 Hz - 250 Hz), Subsonic (20 - 50 Hz) (Channel 5)
  • 4-Way Protection Circuitry

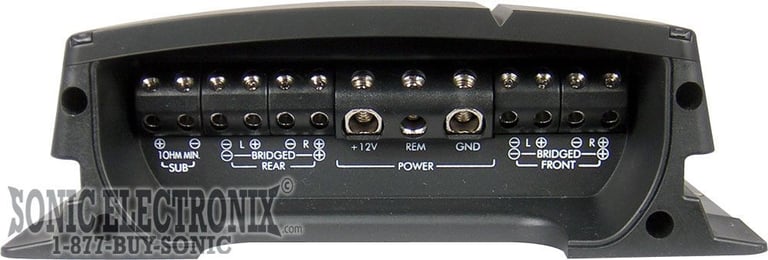

  • Platinum Finish Wire Connections
  • Accepts 4 Gauge Power and Ground Wire
  • Optional Wired Remote Gain Control
  • RMS Power Ratings:
    • 75 watts x 4 chan. / 300 watts x 1 chan. @ 4 ohm
    • 115 watts x 4 chan. / 600 watts x 1 chan. @ 2 ohm
    • 1100 watts x 1 chan. @ 1 Ohm (ONLY CHANNEL 5 IS 1 OHM STABLE!)
  • Adjustable Input Sensitivity: 200mV - 4V
  • Dimensions: 25.81" L x 7.6" W x 2.4" H
  • 1-year SonicElectronix.com warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

46CXA6605t small

Kicker CXA660.5T (46CXA6605T)

• 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
• 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 660 watts
• Class A/B 2 ohm Stable 5-Channel Amplifier

$449.99

List price $479.99

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

RD900/5 small

JL Audio RD900/5

• 70 watts x 4 channel + 225 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(4)

$679.99

List price $679.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 chan. + 300 watts x 1 chan.
RMS Power @ 2 ohms
115 watts x 4 chan. + 600 watts x 1 chan.
RMS Power @ 1 ohm
1100 watts x 1 channel for the 5th channel (Channels 1-4 Not Stable)
Bridged RMS Power
230 watts x 2 channel
Amplifier Specifications
Amplifier Class
Channels 1-4: A/B, Channel 5: D
Number of Channels
5-Channel
Total RMS Power Output
460 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms (Channels 1-4), 1 ohm (Channel 5)
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 6000 Hz
Low-Pass Crossover Frequency
Channels 1-4: 40-6000Hz and Channel 5: 50-250Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

16-MCH1300

Weight:

17.00lbs

Internal SKU:

16mch1300

Internal Product ID:

4033
