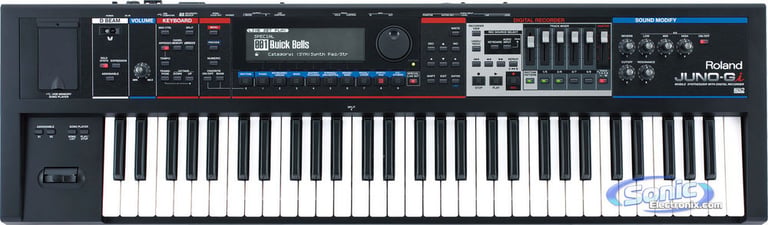

Roland JUNO-Gi

Product Features:

• 61-Key Mobile Synthesizer
• Over 1,300 high-quality sounds optimized for live performance
• Intuitive user interface

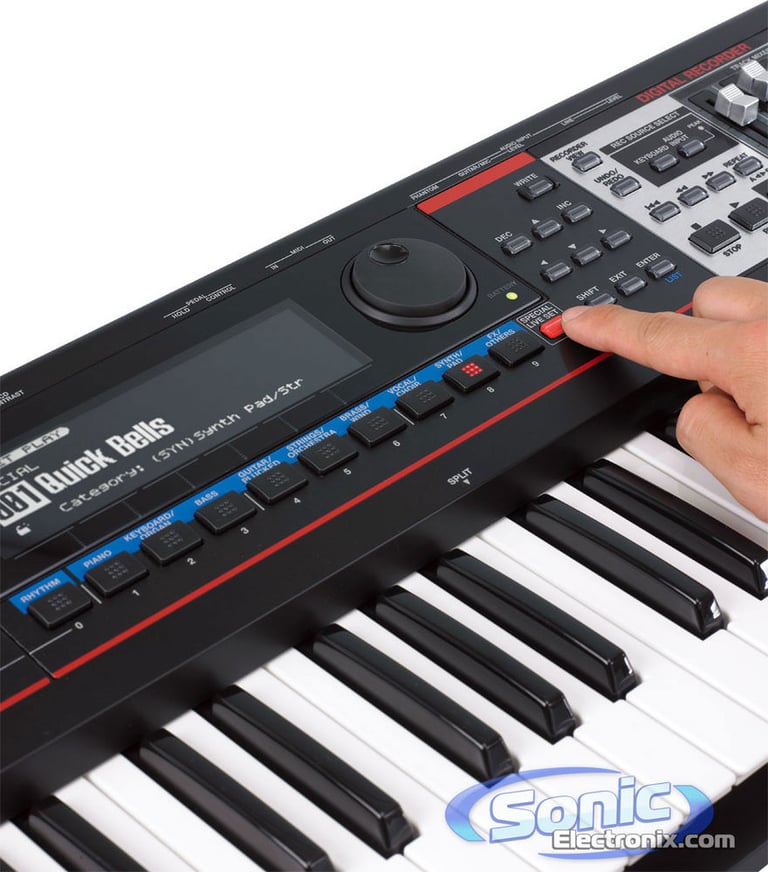

• Dedicated Tone Category buttons and large display
• 128-voice polyphony
• Full-featured eight-track digital recorder onboard
• Built-in pro guitar effects derived from BOSS’ GT series

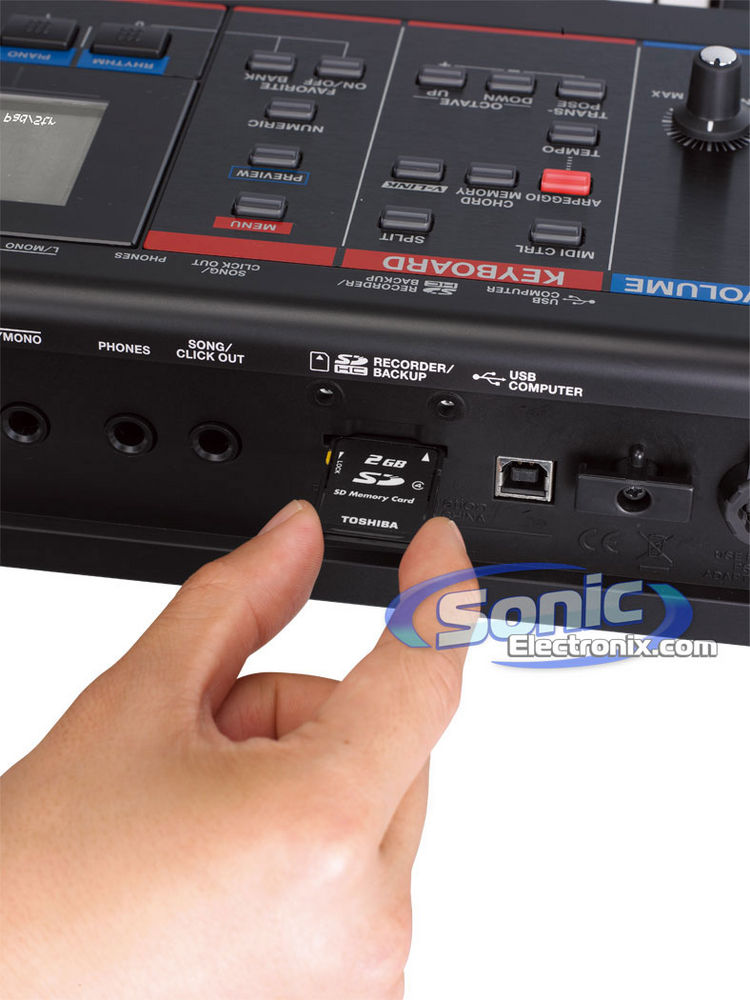

• High-capacity SDHC card slot for data storage and direct play
• Full computer integration via MIDI Controller mode
• Lightweight, compact body with battery-power compatibility
• Use w/ a battery-powered PA or amp such as Roland’s BA-330 or KC-110
• Cakewalk SONAR 8.5 LE DAW & Production Plus Pack included
• Also found as: JUNO-GI, JUNOGI, JUN-OGI, JUNOG-I
• Authorized Internet Dealer
• 1-year Parts/90-days Labor Manufacturer's Warranty

Specifications:

• Keyboard: 61 velocity-sensitive keys
• Maximum Polyphony: 128 Voices
• Parts: Live Set (4 layers) + 16 Parts
• Wave Memory: 128 MB (16-bit linear equivalent)
• Preset Memory:
• Live Set: 1,379
• Tone: 788 + 256 (GM2)
• Rhythm Set: 14 + 9(GM2)
• User Memory:
• Live Set: 256
• Favorites: 100
• Effects:
• Multi-Effects: 2 systems, 79 types
• Chorus: 3 types
• Reverb: 5 types

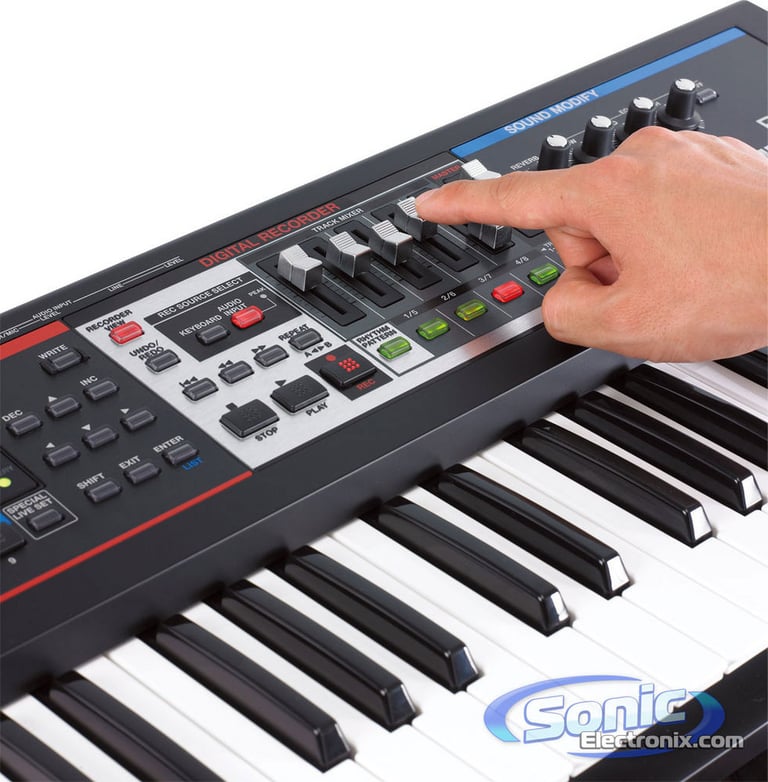

• Digital Recorder Section:
• Tracks:
• Track: 8
• V-Track: 64 (8 V-Tracks per Track)
* Up to 2 tracks can be recorded simultaneously,
up to 8 tracks can be played back simultaneously.

Support Documentation:

• JUNO-Gi Owner's Manual
• JUNO-Gi MIDI Implementation
• JUNO-Gi Quickstart Guide
• JUNO-Gi Sound List
• JUNO-Gi Workshop 01:
• Meet the JUNO-Gi
• JUNO-Gi Workshop 02:
• Splits, Layers, Favorites and More
• JUNO-Gi Workshop 03:
• Using the JUNO-Gi's Live Audio
  Inputs & BOSS Effects
• JUNO-Gi Workshop 04:
• Realtime Control in the JUNO-Gi
• JUNO-Gi Workshop 05:
• The Digital Recorder - Getting Serious
• JUNO-Gi Workshop 06:
• Using the JUNO-Gi with a Computer
• JUNO-Gi Workshop 07:
• Working with the JUNO-Gi's BOSS
  Insert Effects
• Maximum Number of Songs: 99
• Memory Capacity: SD Memory Card (supports SDHC up to 32 GB)
• Sample Rate: 44.1 kHz
• Recording Time (conversion in one track):
• 1 GB: Approx. 6 hrs
• 2 GB: Approx. 12 hrs
• 4 GB: Approx. 24 hrs
• 8 GB: Approx. 48 hrs
• 16 GB: Approx. 96 hrs
• 32 GB: Approx. 192 hrs
- The maximum recording time for one song is approximately 12 hrs.
- The above recording times are for only one track (Divide approximate time by number of tracks used (up to 8))
* With Track Export, a maximum of approximately 6 hrs. 40 min. of mono (3 hrs. 20 min. of stereo) data can be output.
• Nominal Input Level:
• LINE INPUT jacks: -10dBu
• GUITAR INPUT jack: -20dBu
• MIC INPUT jack: -40dBu
• Effects:
• Insert Effects: 3 banks (Guitar, Mic, Line)
• Mastering Tool Kit
• Reverb
• USB Memory Song Player Section:
• File Format:
• Standard MIDI File: format-0/1
• Audio File: WAV, AIFF, MP3
• Number of Songs: 99 Songs

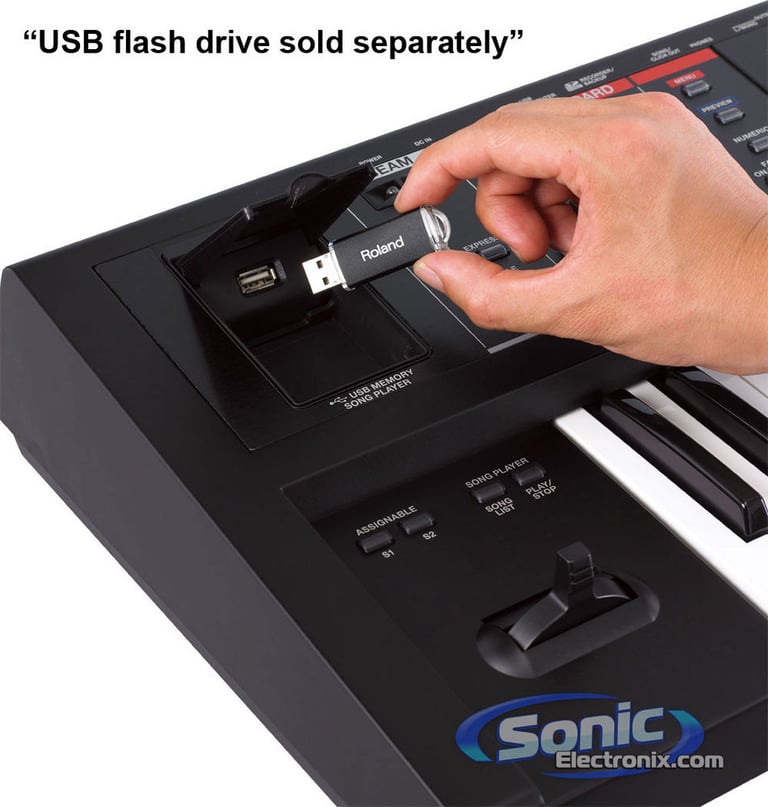

• External Memory: USB MEMORY (supports USB 2.0 Hi-Speed Flash Memory (sold separately))
• Rhythm Pattern:
• Preset: 371
• User: 99
• Song (Digital Recorder): 99
• Arpeggiator:
• Preset: 128
• User: 64
• Chord Memory: Preset: 17
• Controllers:

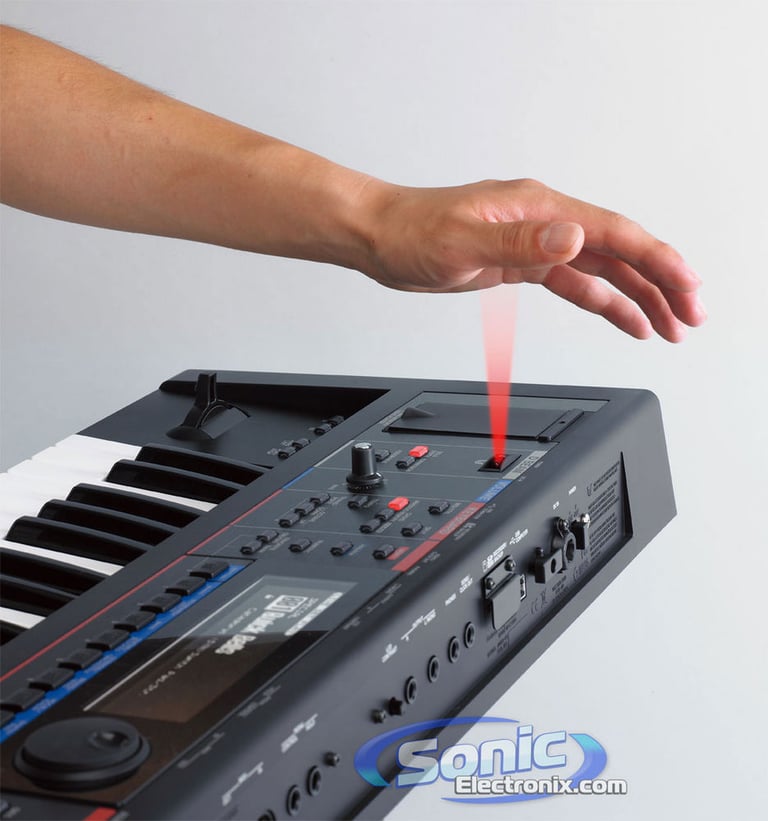

• D Beam Controller
• Pitch Bend/Modulation Lever
• S1/S2 Buttons

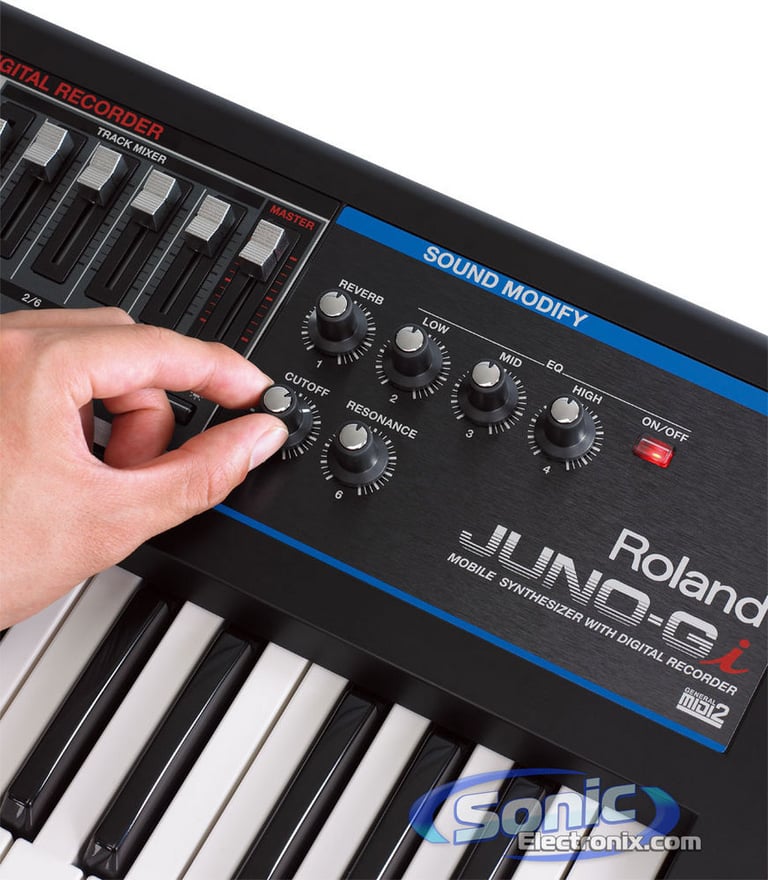

• Sound Modify Knob x 6
• Display: 240 x 64 dots graphic backlit LCD
• External Storage Device: SD/SDHC Card
• Connectors:
• OUTPUT Jacks (L (MONO), R): 1/4" Phone Type
• PHONES Jack: Stereo 1/4" Phone Type
• SONG/CLICK OUT Jack: Stereo 1/4" Phone Type
• LINE INPUT Jacks (L, R): 1/4" Phone Type
• MIC IN Jack: 1/4" Phone Type or XLR type (w/ phantom power)
• GUITAR IN Jack: 1/4" Phone Type (w/ Hi-Z)
• CONTROL PEDAL Jack
• HOLD PEDAL Jack
• MIDI IN/OUT Connectors
• USB COMPUTER Connector (for USB Hi-Speed Audio/MIDI)
• DC IN Jack
• Power Supply:
• DC 9V: AC Adapter
• 8 x Ni-MH AA (HR6) Size Rechargeable Batteries (sold separately)
• Current Draw: 750mA
• Battery Life (Continuous Use): Approx. 3 hrs
  (this figure will vary depending on conditions of use)
  (Approx. 2 hrs if USB memory is connected)
  (Carbon-zinc or alkaline batteries cannot be used)
• Size & Weight:
• Weight: 12 lbs. 10 oz. (5.7 kg)
• Width: 39-11/16" (1,008 mm)
• Depth: 11-13/16" (300 mm)
• Height: 4-3/16" (105 mm)

SONAR 8.5 LE + Production Plus Pack Features & Specifications:

• 32 audio tracks
• 64 MIDI tracks
• 8 simultaneous inputs and outputs
• 24-bit/96 kHz audio quality
• 24 simultaneous effects
• 8 simultaneous virtual instruments
• Includes over ten audio effects
• Includes two virtual instruments
• Integrated VST/VSTi support
• Support for ACID™ format loops
• Support for ReWire clients such as Live or Reason
• Active Controller Technology™
• Edit MIDI with the Inline Piano Roll View
• Supports 32-bit & 64-bit versions of Windows 7, Vista & 32-bit XP OS
• Production Plus Pack Includes:
• Rapture LE:
• Searing synthesized leads, pads & more
• Nearly 200 patch presets
• Cakewalk Sound Center:
• Based on the Dimension Pro sound engine
• Over 125 professional sounds from Dimension
• Expandable with Expansion Packs
• Categorized patches keep things well-organized
• Rate your favorite patches
• Studio Instruments Drums:
• Load multiple Drum sound programs
• Play a wide variety of pre-recorded drum grooves
• Patterns include: Rock, Pop, Hip Hop, Jazz, Funk & more
• Drag patterns into your recording software to make variations
• Use your MIDI controller, computer keyboard, or mouse
• Drums pulse and cymbals crash in time with the music
• Use built-in compression and reverb to get edgy and realistic sounds
• Control tuning, panning, and volume for tons of variety
• Load and trigger multiple grooves for different sections of your song

Minimum System Requirements for SONAR 8.5 LE:

• Operating System: * Windows XP (32-bit)
• Processor Speed: Intel Pentium 4 1.3 GHz or AMD Athlon XP 1500+
• Memory: 512 MB
• Screen Resolution: 1024 x 768, 16-bit color
• Hard Disk Space: 500 MB
• Hard Disk Type: Any
• MIDI Interface: ** Windows-compatible
• Audio Interface: *** Windows-compatible
• Media Drive: **** DVD-ROM drive
• Webserver Access: ***** None

Recommended System Requirements for SONAR 8.5 LE:

• Operating System: * Windows 7/Vista/XP (32 and 64-bit)
• Processor Speed: Intel Pentium 4 2.8 GHz [EM64T] or AMD Athlon XP 2800+ or better
• Memory: 1 GB or more
• Screen Resolution: 1280 x 960, 24-bit color or higher
• Hard Disk Space: 1 GB
• Hard Disk Type: EIDE/Ultra DMA (7200 RPM) or SATA
• MIDI Interface: ** Windows-compatible
• Audio Interface: *** Windows-compatible
• Media Drive: **** DVD-ROM drive
• Webserver Access: ***** Available web server space with FTP access privileges

System Requirements for Production Plus Pack 3:

• Windows:
• OS: Microsoft® Windows® 7 / Windows Vista® / Windows XP SP2** or later
• CPU: Intel-compatible Processor 2GHz (3GHz or higher recommended)
• Memory: 1GB (2GB or higher recommended)
• Hard Disk: 8GB or more free space (EIDE /Ultra DMA 7200 RPM or SATA recommended)
• Hardware: WDM or ASIO compatible audio interface, DVD-ROM drive for installation
• Macintosh: ***
• CPU(Clock): Intel® Core™ Duo processor
• RAM: 1GB or higher (2GB or higher recommended)
• Hard Disk Drive: 6GB or more of free space, EIDE / Ultra DMA (7200 RPM or SATA recommended)
• Hardware: Core Audio compatible Audio Interface, DVD-ROM Drive for installation
** This product does not support Windows XP Media Center Edition or XP Professional x64.
*** This product does not support Macintosh computers running Microsoft Windows.
