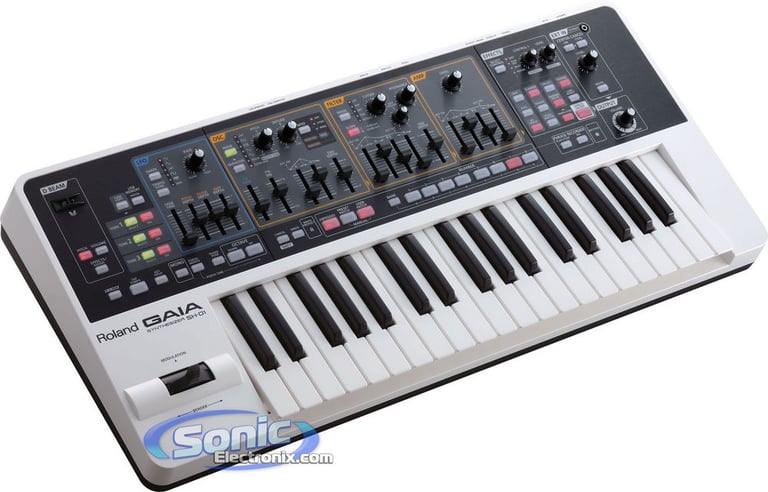

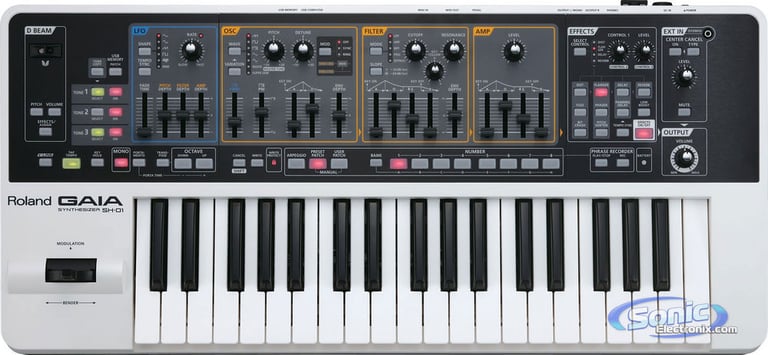

Roland SH-01

Product Features:

• GAIA 37-Key 3-OSC Virtual Analog Synthesizer
• Huge sound with three virtual analog engines onboard
• Dedicated oscillator, filter, amplifier, envelope, and LFO for each engine
• Layer up to five simultaneous effects, including distortion, flanger, delay and more
• 64-voice polyphony for massive sounds without note drop-out
• Fun, hands-on control panel that’s great for learning synthesis
• Lightweight, compact body with 37 full-size keys
• Runs on AC or battery power for portable convenience
• D Beam, arpeggiator, and Phrase Recorder onboard
• USB ports for saving user patches to USB flash drives, and for audio/MIDI connection to computers
• Also found as: SH01, SH0-1, S-H01, GAIASH01, GAIASH-01
• Authorized Internet Dealer
• 1-year Parts/90-days Labor Manufacturer's warranty

Specifications:

• Keyboard: 37 keys (velocity-sensitive)
• Maximum Polyphony: 64 voices
• Sound Generator Section:
• Virtual analog synthesizer sound generator (Number of parts: 1)
• (Oscillator + Filter + Amp + Envelopes + LFO) x 3
• PCM sound generator (Number of parts: 15)
• Patch Memory:
• Preset: 64
• User: 64

OSC Section:

• Oscillator Waveform:
• SAW
• SQUARE
• PULSE/PWM
• TRIANGLE
• SINE
• NOISE
• SUPER SAW
• Knobs/Sliders:
• PITCH
• DETUNE

Support Documentation:

• GAIA SH-01 Owner's Manual
• GAIA SH-01 MIDI Implementation
• GAIA SH-01 Quickstart Guide
• GAIA SH-01 Guide Book
• Pulse Width
• Pulse Width Modulation
• Envelope:
• Attack
• Decay
• Envelope Depth
• Modulation:
• Oscillator Sync
• Ring Modulation
(Tone 2's OSC 2 is applied as modulation to Tone 1's OSC 1.)

FILTER Section:

• Filter type:
• LPF
• HPF
• BPF
• PKG (-12dB/-24dB)
• Knobs:
• CUTOFF
• RESONANCE
• KEY FOLLOW
• Envelope:
• Attack
• Decay
• Sustain
• Release
• Envelope Depth

AMP Section:

• Knobs: LEVEL
• Envelope:
• Attack
• Decay
• Sustain
• Release

LFO Section:

• LFO Shape:
• TRIANGLE
• SINE
• SAW
• SQUARE
• Sample
• Knobs/Sliders:
• RATE
• FADE TIME
• PITCH DEPTH
• FILTER DEPTH
• AMP DEPTH
• Tempo Sync: ON/OFF

Effects:

• DIST:
• Distortion
• Fuzz
• Bit Crash
• FLANGER:
• Flanger
• Phaser
• Pitch Shifter
• DELAY:
• Delay
• Panning Delay (with tempo sync function)
• REVERB: Reverb
• LOW BOOST: Low Boost
• Knobs:
• Control 1
• Level
• Controllers:
• Pitch Bend/Modulation lever
• D BEAM Controller
• Arpeggiator: Preset pattern: 64
• Phrase Recorder:
• User: 8
• Number of Tracks: 1

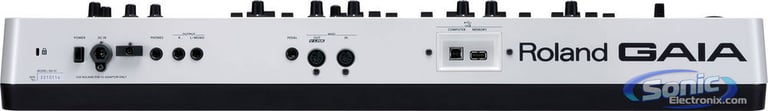

• Jacks/Connectors:
• OUTPUT jacks (L/MONO, R): ¼" phone type
• Headphone jack: Stereo ¼" phone type
• PEDAL jack: TRS phone type
• MIDI Connectors: IN/OUT
• USB COMPUTER: Supports USB Hi-Speed Audio/MIDI
• USB MEMORY: Supports USB 2.0 Hi-Speed flash memory
• EXT IN jack: Stereo miniature phone type
• DC IN jack
• Power Supply:
• DC 9 V (AC Adapter or rechargeable nickel-metal hydride AA batteries x 8)
(Batteries sold separately.)
(Zinc-carbon batteries or alkaline batteries cannot be used.)
• Current Draw: 600mA
• Battery Life for Continuous Use:
• Approx. 5 hours
(Using rechargeable nickel-metal hydride batteries)
(Approx. 4 hours if USB memory is connected)
(Differs depending on the conditions of use)
• Size & Weight:
• Weight: 9 lbs. 5 oz. (4.2 kg)
• Width: 27-3/16" (689 mm)
• Depth: 12-1/2" (317 mm)
• Height: 3-15/16" (100 mm)
