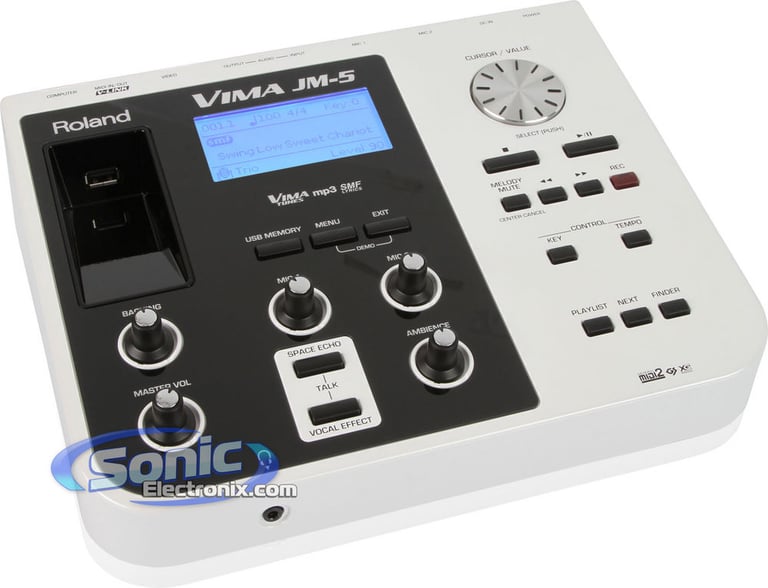

Roland JM-5

Product Features:

• All-in-one playback and performance module
• Over 1,000 tones, 57 drum kits, and 128-voice polyphony
• Plays back SMF, MP3, WAV, MP3+CDG, and VIMA Tunes files from external USB storage devices
• Tempo Control, Key Change, and Melody Mute/Center Cancel functions
• Supports slide shows and lyrics display
• Two vocal mic inputs with onboard Vocal Effects
• Audio WAV recording to external USB storage device
• Composite Video Out to display lyrics and/or chords of the selected songs as well as digital photo slide shows
• Also found as: JM5, VIMAJM5, VIMA, VIMA-JM5
• Authorized Internet Dealer
• 1-year Parts, 90-days Labor Manufacturer's Warranty

What's In The Box?

1. (1) Owner's Manual (see Product Summary below for PDF)

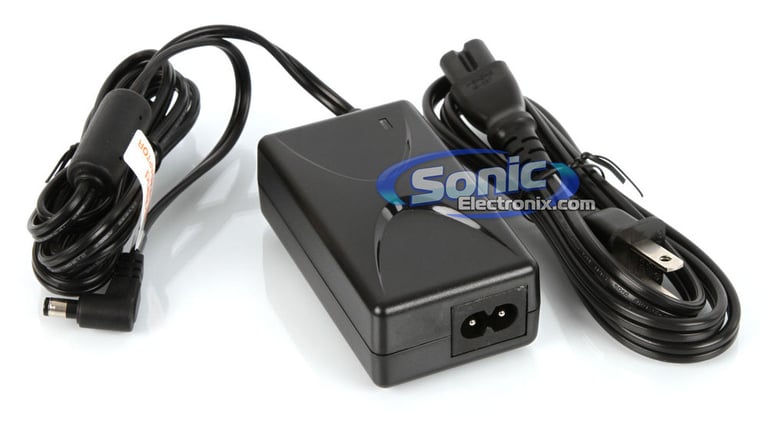

2. (1) AC Adapter

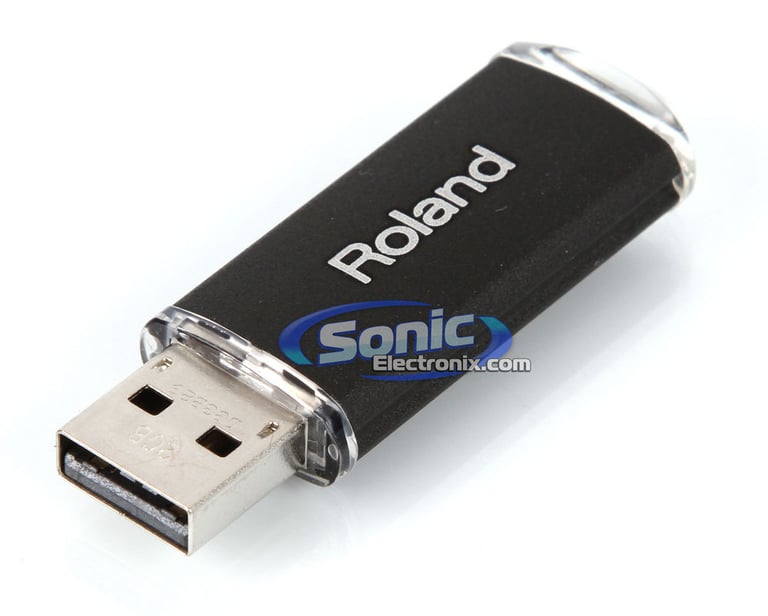

3. (1) Roland USB Memory M-UF2G
4. (4) Screws (M5 x 8)

Optional Accessories:

• Amplifier:
• Roland KC-60
• Roland KC-110
• Roland KC-150
• Roland KC-350
• Roland KC-550
• Pad Stand: Roland PDS-10
• Headphones:
• Monitoring Headphones:
• Roland RH-D20
• Roland RH-D30
• Roland RH-200
• Roland RH-5
• Open Air Headphones: Roland RH-A30
• In-Ear Headphones: Roland RH-IE3
• Stereo Headphones:
• Roland RH-200S
• Roland RH-300

Specifications:

• Display Type: 132 x 64 dots, graphic monochrome LCD (backlit)
• Sound Generator:
• Maximum Polyphony: 128 voices (GM2/GS/XG Lite compatible)
• Sounds: 1,092 tones, 57 drum sets
• Multitimbral Parts: 19 (16 Song Parts + 3 External Parts through MIDI IN)
• Master Tuning: 415.3 Hz to 466.2 Hz
• Key Control (Transposition): -6 to +5 semitones (for audio/MIDI data & AUDIO INPUT Signals)
• Tempo Change: Quarter Note = 20 to 250 for SMF, 75 to 125% for MP3 & WAV files
• Part Mute Functions:
• MELODY MUTE: SMF
• CENTER CANCEL: MP3, WAV, AUDIO INPUT Signals
• Effects:
• SMF Song Section:
• Reverb: 8 types
• Chorus: 8 types
• MFX A, B, C: 84 types
• Parametric EQ
• Multi-Band Compressor
• MIC1 & MIC2:
• Reverb: 3 types
• Space Echo
• Vocal Effects (MIC1):
• Auto Harmony: 4 types
• Vocal Transformer: 9 types
• Music Files, Keyboard
• Songs:
• Real-Time Player: SMF (Format 0/1), KAR, MP3, WAV, MP3+CDG
• Song Chord Extractor: Automatic Chord Detection for SMF files
• SMF Makeup Tools: Instrument-oriented editing
• Playlist: Lists of favorite songs for automatic playback
• Finder: Audio files, SMF, picture
• Next: Audio files, SMF
• SMF Cover: 30 types
• Demo Songs: Yes
• Recording: USB Recorder: Records audio files (WAV, 44.1 kHz/16-bit linear format)
• Video:
• Slide Shows: Picture folder linked to songs
(recommended resolution: 1024 x 768 or 512 x 384 pixels)
• VIMA TUNES: Yes
• Lyrics: SMF, MP3 & WAV
• Data Storage:
• USB: Host connection for storage devices (frontal)

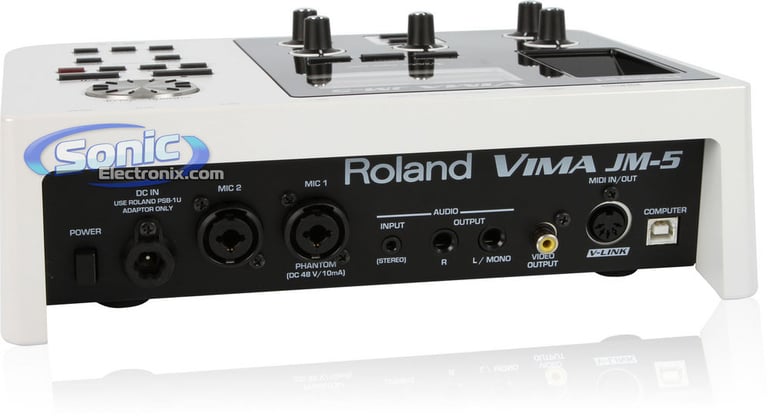

• Connectors:
• Headphone Jack: Stereo miniature phone type
• Audio Inputs:
• INPUT (STEREO) Jack: Stereo miniature phone type
• MIC1 Jack: XLR Type / 1/4" TRS phone type
(XLR type: Balanced / Phantom Power (DC 48 V, 10 mA Max))
(1/4" TRS phone type: balanced)
• MIC2 Jack: XLR Type or 1/4" phone type
• USB Connectors:
• USB Host (data storage)
• COMPUTER (reception and transmission of MIDI data)
• MIDI IN/OUT Connector: MIDI IN/OUT (V-LINK Function)
• Video Output: Composite (PAL or NTSC, selectable)
• Audio Outputs: (L/MONO, R) (1/4" phone type)
• Other:
• Power Supply: 9V DC, supplied AC adapter
• Current Draw: 700 mA
• Size & Weight:
• Weight: 3 lbs. 9 oz. (1.6 kg)
• Width: 10-3/4" (273 mm)
• Depth: 9-1/16" (230 mm)
• Height: 3-9/16" (90 mm)
