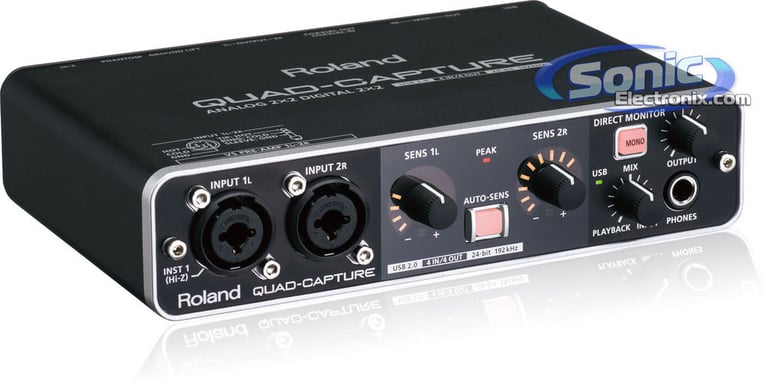

Roland UA-55

Product Features:

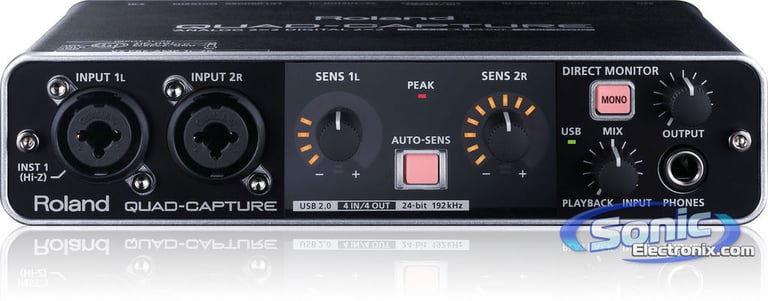

• Two combo XLR/TRS inputs with premium mic preamps (VS Preamps), two TRS outputs, coaxial I/O, headphone out, and MIDI I/O
• Graphical Control Panel software provides fast, intuitive control of the VS Preamps
• Phantom power, ground lift, and Hi-Z switches
• One-click AUTO-SENS function intelligently sets optimal input levels for the preamps
• Extreme low-latency VS Streaming driver
• Low-noise, wide-range power supply
• Compact with durable aluminum body and Direct Box functionality
• Bundled with Cakewalk SONAR X1 LE (Windows Only)
• Also found as: UA55, UA5-5, U-A55, QUADCAPTURE
• Authorized Internet Dealer
• 1-year Parts/90-days Labor Manufacturer's warranty

Cakewalk SONAR X1 LE Features:

• Skylight Interface – the stunning new face of SONAR X1 includes redesigned Browser, Inspector, Screensets and MultiDock
• New Smart Tools intelligently edits audio and MIDI with no interruption to your creative flow
• Simpler, better installer and product activation process
• New template choices for popular project types like “Record Voice” and genres like “Rock”
• Hardware auto-detecting simplifies USB audio devices like USB Microphones setup
• Consolidated preferences puts everything together in one centralized place making it easier to find and change options
• Drag and Drop everything – audio files, MIDI files and video content, project and track templates and track effects
• Simplified track controls and a fully customizable Control Bar
• Matrix View - experience a whole new approach to creating music by loading audio or MIDI tracks, loops, and one-shots to improvise compositions on the fly
• Intuitive Shortcuts - designed to help new and power users to get around the new interface quickly
• All New Content: Over 1 GB in total, including 350+ WAV/REX audio files, 1000+ MIDI groove clips, tutorial projects, track templates and project templates
• Premium Cakewalk instruments including Studio Instruments Drums and Cakewalk Sound Center

---

QUAD-CAPTURE Specifications:

• Number of Audio Record/Playback Channels:
• [@ 96/48/44.1 kHz]: 4 channels
• [@ 192 kHz]: 2 channels
• Signal Processing:
• PC interface: 24 bits
• AD/DA Conversion: 24 bits
• Internal: 40 bits
• Sampling Frequency:
• AD/DA Conversion: 192/96/48/44.1 kHz
• DIGITAL IN/OUT: 96/48/44.1 kHz
• Nominal Input Level:
• Input jacks 1, 2 (XLR type): -60 to -6 dBu
• Input jacks 1, 2 (1/4" TRS phone type): -50 to +4 dBu
• Nominal Output Level: +0 dBu (balanced)
• Headroom: 14 dB
• Input Impedance:
• Input jacks 1, 2 (XLR type): 4.8 k ohm (balanced)
• Input jacks 1, 2 (1/4-inch TRS phone type): 15 k ohm (balanced)
• Output Impedance:
• OUTPUT 1, 2: 2 k ohm (balanced)
• PHONES: 47 ohm
• Frequency Response:
• 192.0 kHz: 20 Hz to 90 kHz (+0/-8 dB), 20 Hz to 60 kHz (+0/-2 dB)
• 96.0 kHz: 20 Hz to 40 kHz (+0/-2 dB)
• 48.0 kHz: 20 Hz to 22 kHz (+0/-2 dB)
• 44.1 kHz: 20 Hz to 20 kHz (+0/-2 dB)
• Residual Noise Level:
• INPUT 1, 2 to OUTPUT 1, 2:
• -95 dBu typ. (GAIN: min., 600 ohm terminated, IHF-A)
* Internal Direct Monitor Mixer setting
* Input channel fader: Unity
• Dynamic Range:
• AD block: INPUT 1, 2: 104 dB typ. (GAIN: min.)
• DA block: OUTPUT 1, 2: 109 dB typ.
• Other:

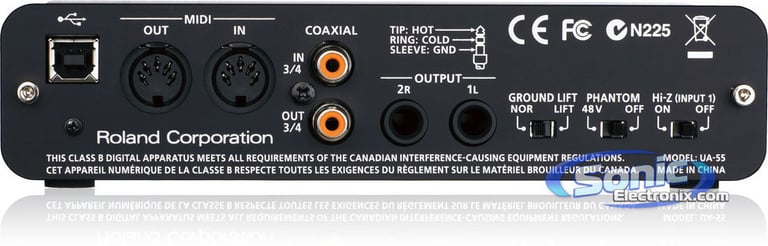

• Connectors:
• Input jacks 1, 2 (XLR type / 1/4-inch TRS phone type)
• XLR type, balanced (phantom power: DC 48V, 6mA Max per channel)
• 1/4-inch TRS phone type, balanced (INPUT 1 supports high impedance)
• COAXIAL IN connector
• COAXIAL OUT connector
• Headphone jack (Stereo 1/4-inch phone type)
• OUTPUT jacks 1, 2 (1/4-inch TRS phone type (balanced))
• MIDI connectors (In, Out)
• USB connector
• Interface:
• Hi-Speed USB
• Digital input/output: Coaxial type (Conforms to IEC60958 (S/PDIF) consumer format)
• MIDI input/output
• Power Supply: USB Bus Power
• Current Draw: 480 mA
• Size & Weight:
• Weight: 1 lbs. 5 oz. (0.57 kg)
• Width: 7-5/16" (185 mm)
• Depth: 5-5/16" (134 mm)
• Height: 1-3/4" (44 mm)

---

System Requirements for QUAD-CAPTURE*:

• Windows:
• OS: Microsoft® Windows® 7 / Windows Vista® SP1 or later / Windows® XP Home / Windows® XP Professional SP2 or later**
• Computer: Windows-compatible PC with USB 2.0 port
• CPU/Clock: Intel® Core™ 2 Processor 1.6 GHz or higher
• Memory (RAM): 1 GB or more (2 GB or more is recommended)


• Mac:
• OS: Mac OS X 10.4.11 or later***
• Computer: Apple Mac series with on-board USB 2.0 port
• CPU/Clock: Intel® Core™ Processor
• Memory (RAM): 1 GB or more (2 GB or more is recommended)


• To use at 192 kHz, Intel® Core™ 2 Processor/2 GHz or higher and built-in 7200 rpm or faster hard drive are required

* This product has been tested on representative computers that meet the system requirements, but we cannot guarantee that it will operate on any computer that meets these requirements. Please be aware that even under the same conditions, differences in the operating environment may produce differences in performance.

** This product does not support Windows XP Media Center Edition or XP Professional x64

*** Mac computers running Microsoft Windows are not supported

---

System Requirements for Cakewalk SONAR X1 LE:

• Operating System: Microsoft Windows XP SP3, Windows Vista SP2, or Windows 7
• Processor: Intel P4 1.3 GHz or Core Solo 1.5 GHz
• RAM: 1 GB
• HDD Space: 3 GB
• Video Resolution: 1024 x 768, 16-bit
• Audio Hardware: Audio interface (WDM, ASIO)
If you're using Windows Vista, we recommend you use an external audio interface.
* Does not support Windows 95, 98, NT, ME, 2000, or XP Media Center Edition
* Internet connection is required for registration

* If this product does not work correctly when connected to a USB 3.0 port, you will need to connect it to a USB 2.0 port

* This product cannot be used with a USB 3.0 controller that does not support USB 2.0 devices

* Even if connected to a USB 3.0 port, this product will operate as a USB 2.0 device; the performance of the product will not change.
