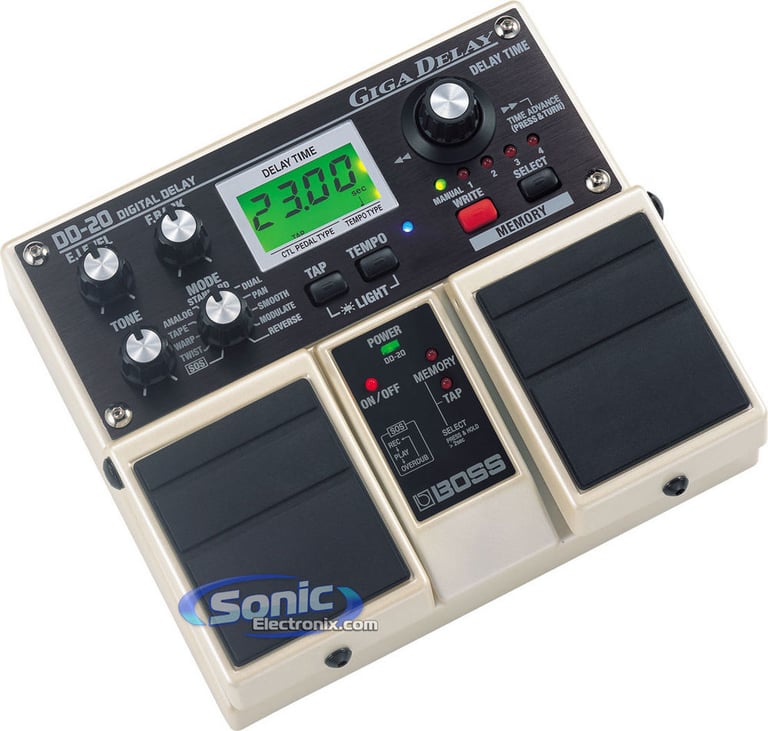

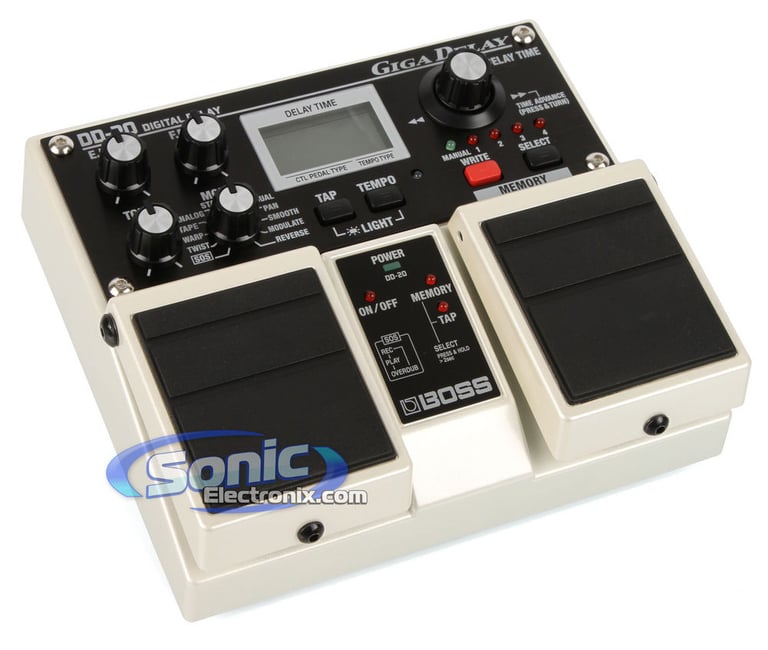

Boss DD-20

General Features:

• BOSS' most powerful delay pedal with up to 23 seconds of delay
• 11 delay modes including classic tape delay and sound-on-sound recording
• New “Smooth” and “Twist” modes for subtle or radical delay effects
• Memory function for changing delay modes seamlessly
• New push-button knob for setting delay time in fine or coarse adjustments
• Authorized Internet Dealer
• 5-year Manufacturer's warranty

Specifications:

• Nominal Input Level: -20 dBu (GUITAR/BASS), +4 dBu (AMPLIFIER SEND/RETURN)
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu (GUITAR/BASS), +4 dBu (AMPLIFIER SEND/RETURN
• Output Impedance: 1 k ohm (OUTPUT A (MONO), B), 33 ohm (PHONES)
• Recommended Load Impedance: 10 k ohm
• Residual Noise Level: -93 dBu or less (IHF-A typ.)
• Display: Custom LCD (with backlit)

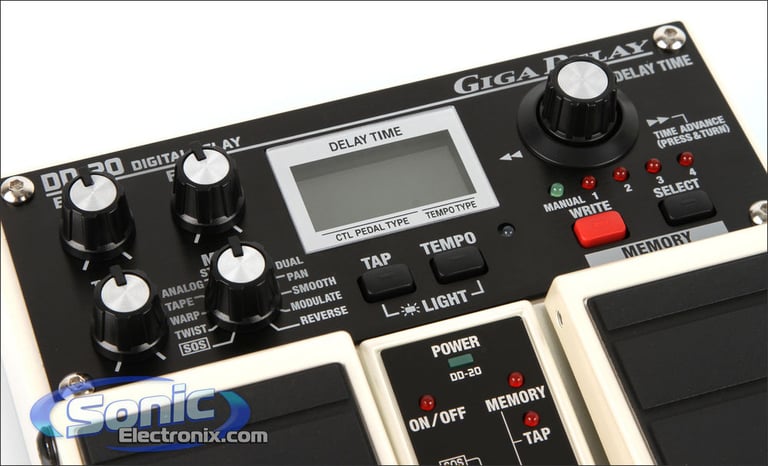

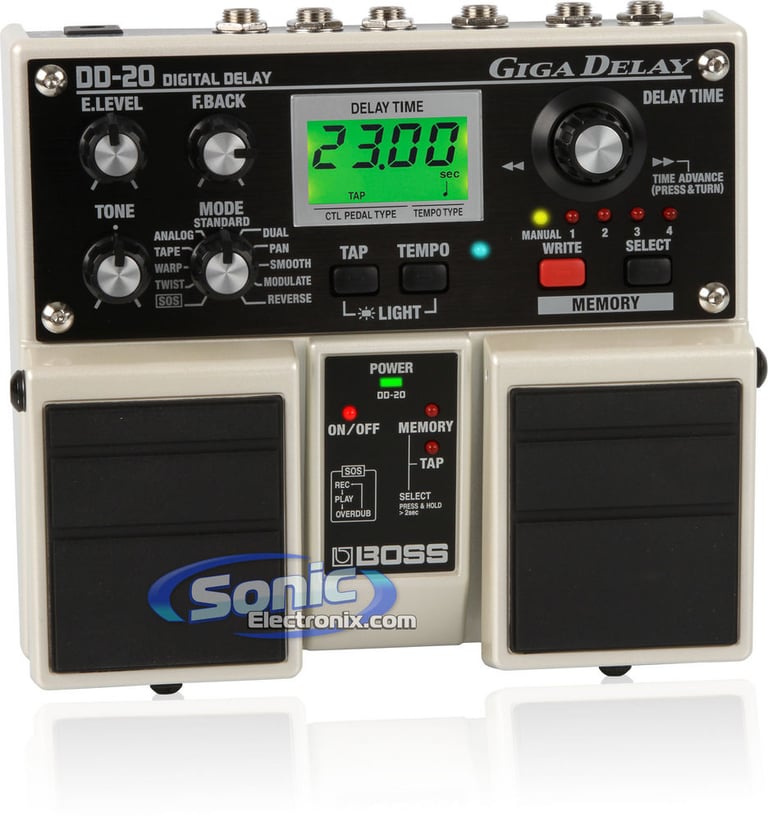

• Controls: ON/OFF Pedal, MEMORY/TAP Pedal, DELAY TIME Knob, E.LEVEL Knob, F. BACK Knob, TONE Knob, MODE Knob, TAP Button, TEMPO Button, MEMORY WRITE Button, MEMORY SELECT Button

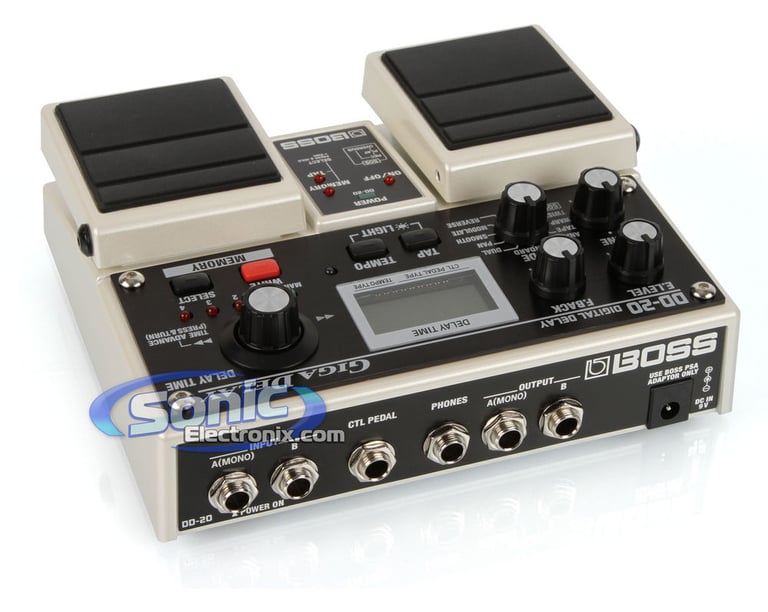

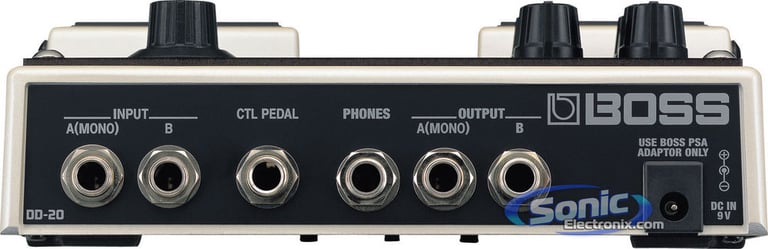

• Connectors:
• INPUT A (MONO) Jack (1/4 inch phone type)
• INPUT B Jack (1/4 inch phone type)
• PHONES Jack (stereo 1/4 inch phone type)
• CTL PEDAL Jack (1/4 inch phone type)
• OUTPUT A (MONO) Jack (1/4 inch phone type)
• OUTPUT B Jack (1/4 inch phone type)
• AC Adaptor Jack

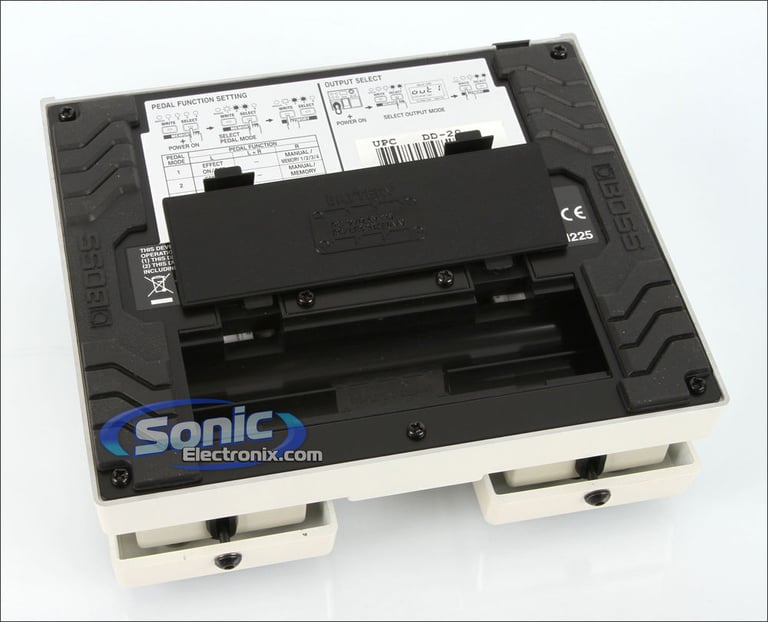

• Power Supply: Dry battery (R6/LR6 (AA) type) x 6: DC 9V, AC Adaptor (DC 9V)
• Current Draw: 200 mA (9V max)

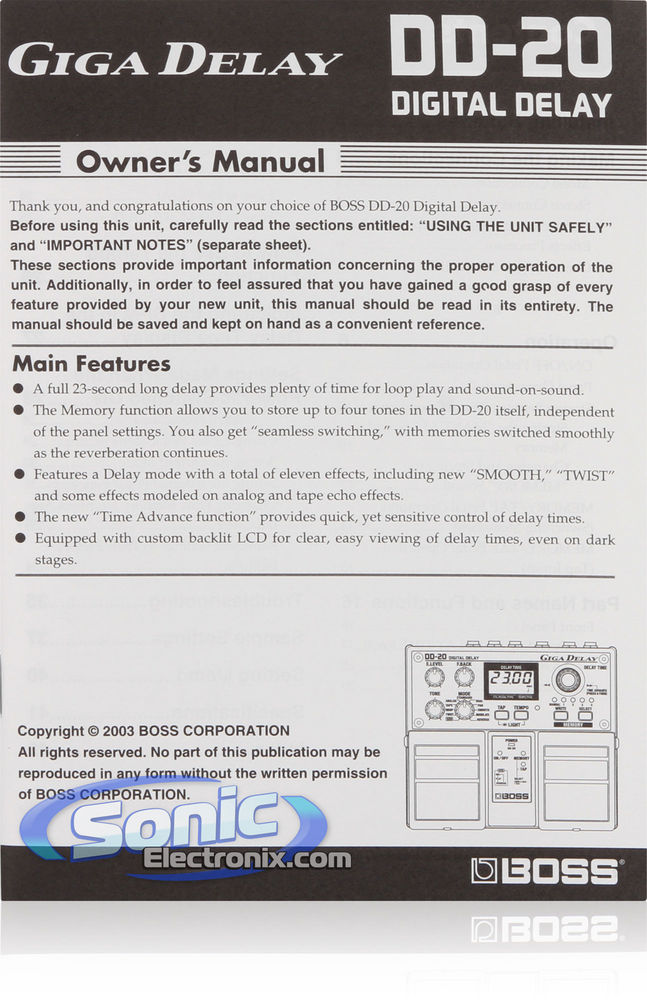

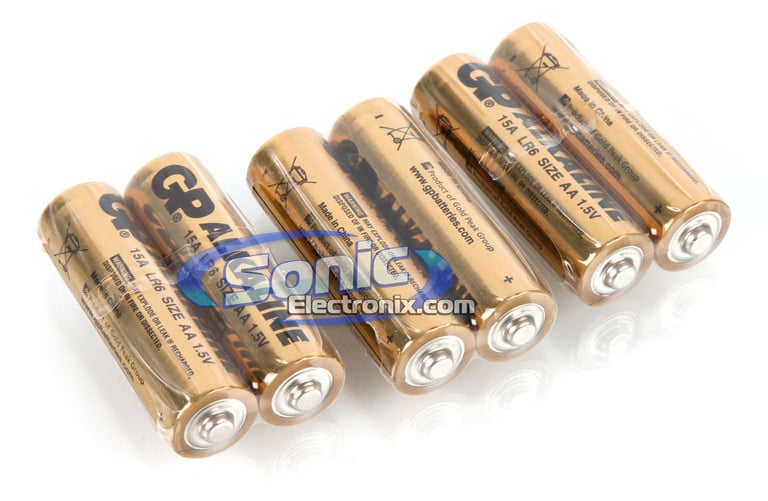

• Accessories: Owner's Manual, Dry battery (LR6 (AA) type) x 6
• Options: AC Adaptor (PSA-series)
• Dimensions: 6-13/16"W x 6-1/4"D x 2-1/4"H
