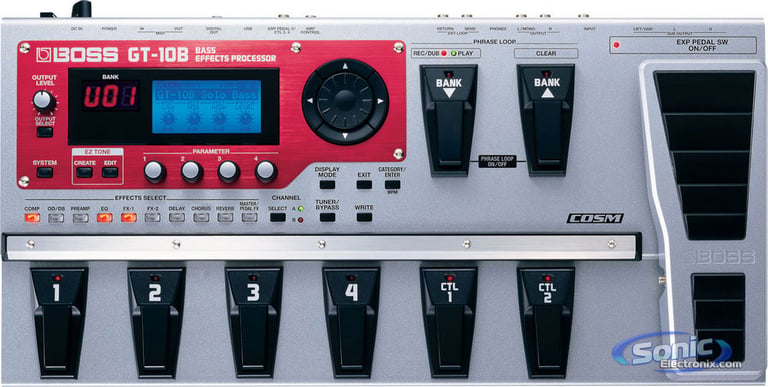

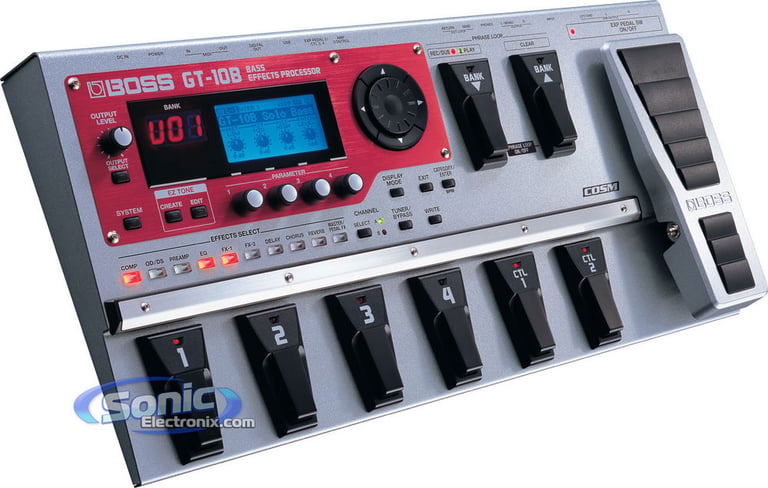

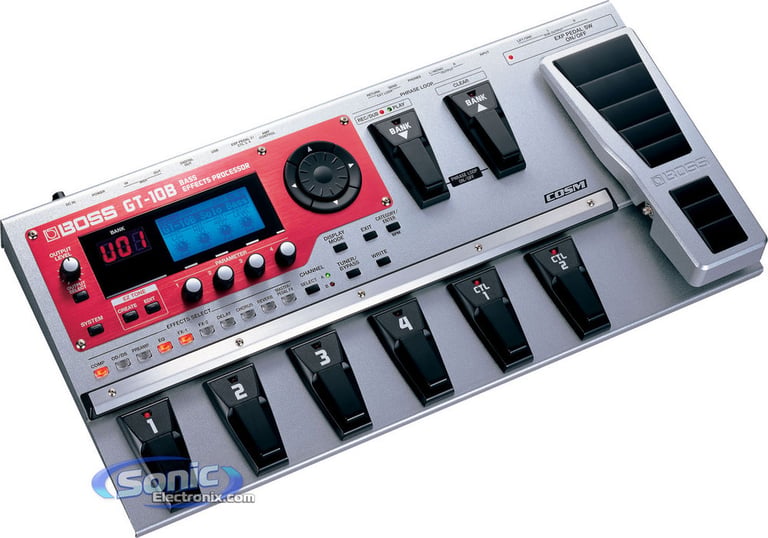

Boss GT-10B

General Features:

• Optimized for bass, with essential effects such as OD/DS, Comp/Limiter, the GT-10B provides top-quality sounds without sacrificing richness and bottom of the bass tone
• EZ Tone enables intuitive tone creation by using an interactive user interface based on graphic icons
• Parallel Chain offers two separate effects paths that can be blended, switched by playing dynamics, or with the onboard pedals
• Phrase Loop allows instant sound-on-sound loop creation
• USB capability offers audio- and MIDI-streaming in real time
• GT-10B comes equipped with XLR outputs as well as 1/4-inch jacks
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Specifications:

• AD Conversion: 24-bit + AF method
• DA Conversion: 24-bit
• Sampling Frequency: 44.1 kHz
• Program Memories: 400: 200 (user) + 200 (preset)
• Nominal Input Level: INPUT: -10 dBu, RETURN: -10 dBu
• Input Impedance: INPUT: 1 M ohm, RETURN: 220 k ohm
• Nominal Output Level: OUTPUT: -10 dBu / +4 dBu, SEND: -10 dBu
• Output Impedance: OUTPUT: 2 k ohm, SEND: 3 k ohm, SUB OUTPUT: 600 ohm
• Dynamic Range: 100 dB or greater (IHF-A)
• Digital Output: Coaxial type
• Display: 132 x 64 dots graphic LCD with back lite, 7 segments, 3 characters LED

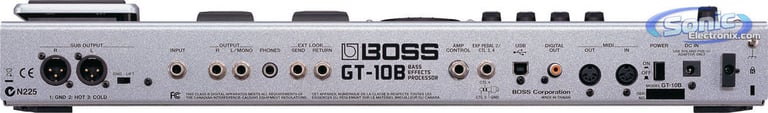

• Connectors:
• SUB OUTPUT jacks L, R (XLR type)
• INPUT jack (1/4 inch phone type)
• OUTPUT L/MONO, R jacks (1/4 inch phone type)
• PHONES jack (Stereo 1/4 inch phone type)
• EXT LOOP jacks SEND, RETURN (1/4 inch phone type)
• AMP CONTROL jack (1/4 inch phone type)
• EXP PEDAL 2/CTL3
• 4 jack (1/4 inch TRS phone type)
• USB connector
• DIGITAL OUT jack
• MIDI connectors IN, OUT
• DC IN jack
• Power Supply: DC 9V (AC Adaptor: Roland PSB-1U)
• Current Draw: 800 mA
• Accessories: AC Adaptor (Roland PSB-1U), Owner's Manual, Roland Service Information Sheet
• Options: Footswitch: BOSS FS-5U, Dual Footswitch: BOSS FS-6, Expression Pedal: BOSS FV-500L/500H, Roland EV-5, Footswitch Cable: Roland PCS-31L (1/4 inch phone plug (stereo) - 1/4 inch phone plug (mono) x2)
• System Requirements:
• OS: Microsoft® Windows® XP, Microsoft® Windows Vista™, Microsoft® Windows® 7, CPU/Clock: Pentium®/Celeron® or Pentium compatible processor 1 GHz or higher, RAM: 512 MB or more, Hard Disk: 190 MB or more, Display/Colors: 1024 x 768/65,536 colors (16 bit High Color) or more
• OS: Mac OS X 10.4.3 or later, CPU/Clock: PowerPC G4, G5 1 GHz or higher / Intel processor RAM: 512 MB or more, Hard Disk: 190 MB or more, Display/Colors: 1024 x 768or higher/32,000 colors or higher
• Dimensions: 21-3/8"W x 10-3/4"D x 3-1/16"H
