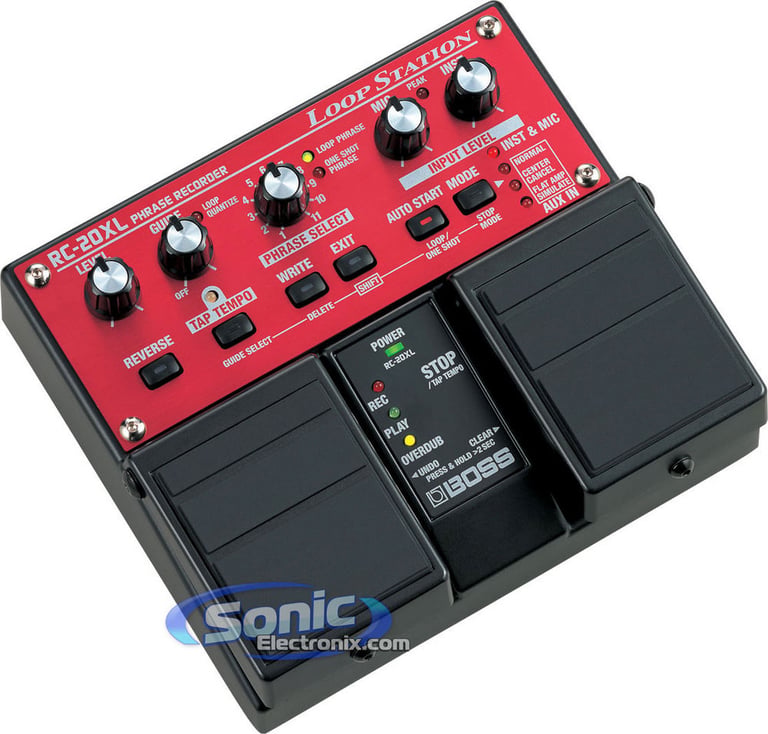

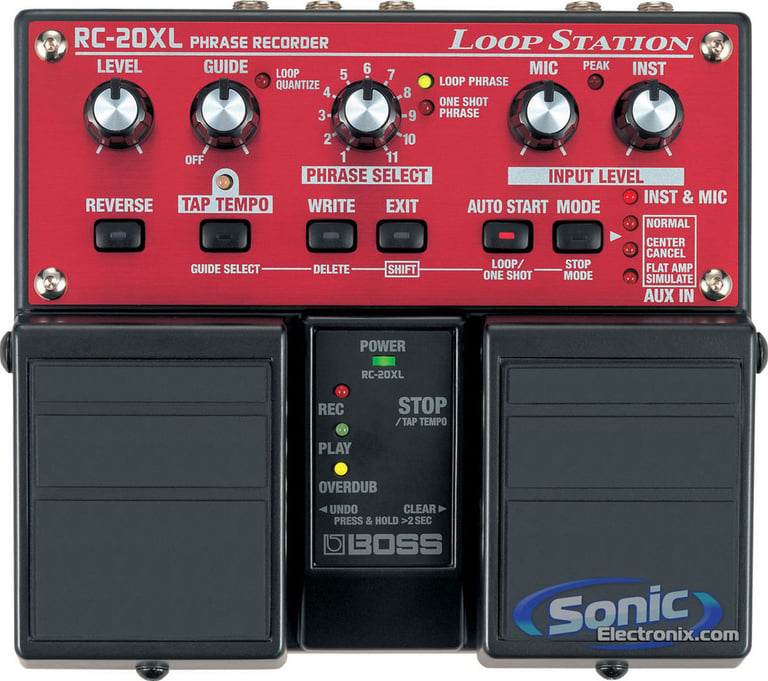

Boss RC-20XL

Loop Station Guitar Stomp Box Pedal

Boss By Roland
Shop all Boss By Roland
highlight-star-icon

Phrase Recording and Sampling Pedal • 16 Minutes Of Recording Time • Save Up To 11 Loops At A Time • Undo Function • Footswitchable Loop Select • Built-In Auto Quantize

Learn more about the rc20xl

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

rc30 thumbnail

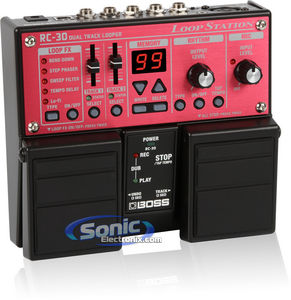

Boss RC-30

OUR PRICE: $209.00

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Description


Boss By Roland brand icon

Authorized dealer

Realtime Phrase Recording and Sampling

Whether for use onstage or at home, the new RC-20XL will add depth and excitement to your performances by allowing you to layer phrases in real time — as many stacks as you like until you fill up the 16 minutes of ample recording space on the RC-20XL. Explore the expressive options of sound-on-sound performance by layering your own phrases to create a massive “one-person band” experience. Build the ultimate solo, and do it all live in real time.

Boss By Roland Authorized Reseller

General Features:

  • Super long recording time: up to 16 minutes!
  • Save up to 11 loops at a time
  • Undo function makes it easy to create perfect loops
  • Built-in auto quantize for simple and accurate loop timing
  • Change loop tempo without changing pitch
  • Footswitchable loop select (with optional FS-5U/FS-6)
  • Authorized Internet Dealer
  • 5-year Manufacturer's warranty

Specifications:

  • Nominal Input Level: Inst: -20 dBu (variable), Mic: -40 dBu (variable), Aux In:-10 dBu
  • Input Impedance: Inst: 1 M ohm, Mic: 1 k ohm, Aux In: 47 k ohm
  • Nominal Output Level: Output: -20 dBu
  • Output Impedance: 1 k ohm
  • Recommended Load Impedance: 10 k ohm or greater
  • Internal Memory: Recording time: 16 min
  • Maximum number of saved phrases: 11 phrases

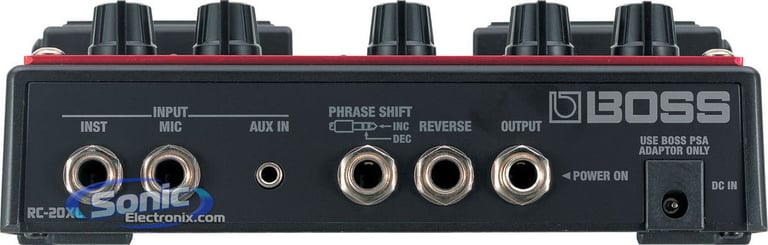

  • Connectors: Inst jack (1/4 inch phone type), Mic jack (1/4 inch phone type), Aux In jack (Stereo miniature phone type), Phrase Shift jack (1/4 inch TRS phone type), Reverse jack (1/4 inch phone type), Output jack (1/4 inch phone type), AC Adaptor jack
  • Power Supply: C 9V: Dry battery (R6/LR6 (AA) type) x 6, AC Adaptor (PSA-series)
  • Current Draw: 120 mA (9V max)
  • Accessories: Owner’s Manual, Dry battery (AA type) x 6, Sound Library for RC-20XL (Sample Phrase CD)
  • Options: AC Adaptor (PSA-series), Foot Switch (FS-5U)
  • Dimensions: 6-13/16"W x 6-1/4"D x 2-1/4"H

Product history:

Boss By Roland RC-30 thumbnail
(newest, current model)
Boss By Roland RC-20XL thumbnail
(previous model, replaced by Boss RC-30)

Specifications & Details


Pedal Specifications
Pedal Design
Stomp Box
Effects
Loop
Controls
Level
Inputs
1/4" TRS
Outputs
1/4" TRS
Specifications
Power Source
AA
AC Adapter (Sold Separately)
Channels
1 Channel
Computer Connectivity
No
Primary Color
Red
Secondary Color
Black
Width
6-13/16"
Height
2-1/4"
Depth
6-1/4"
Weight (oz.)
43 oz.
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RC-20XL

Weight:

3.50lbs

Internal SKU:

rc20xl

Internal Product ID:

40829
