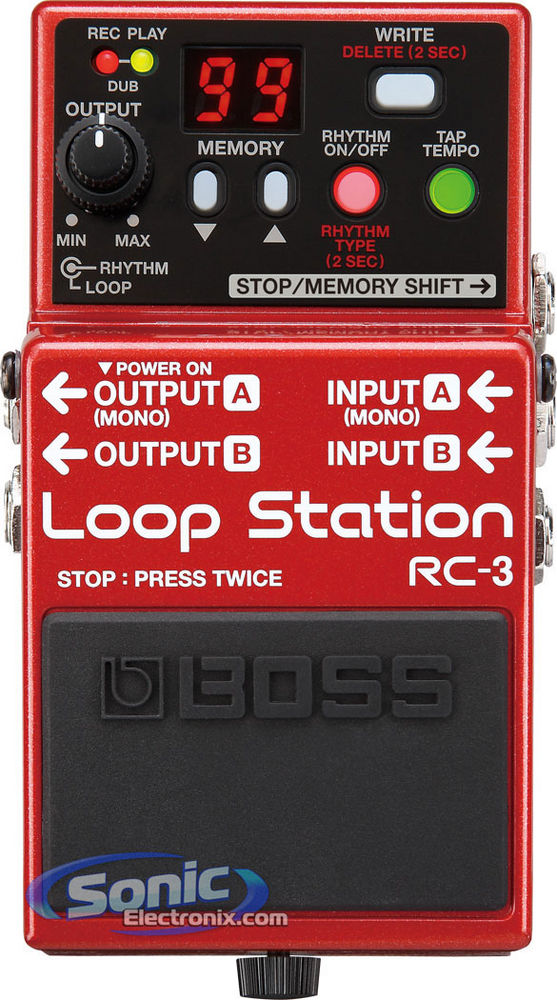

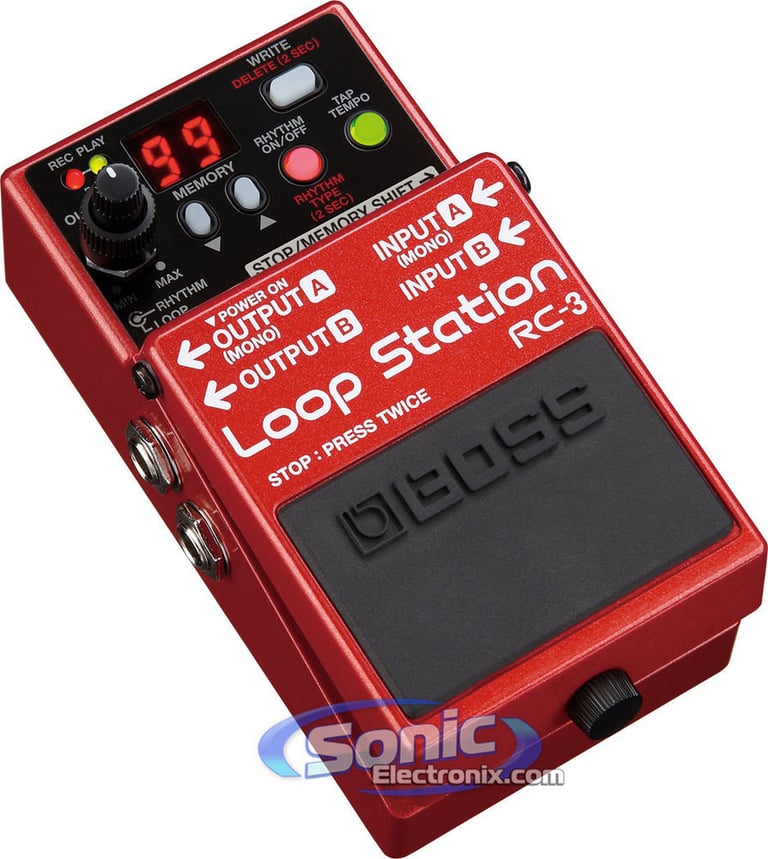

Boss RC-3

General Features:

• Compact and powerful stereo stompbox looper
• Massive internal memory with up to three hours of stereo recording time
• 99 onboard memories for storing loops
• USB 2.0 port allows you to connect to a PC and import/export WAV audio
• Rhythm guide with real drums
• Runs on a single 9-volt battery or optional AC power supply
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Specifications:

• Nominal Input Level: INPUT: -20 dBu, AUX IN: -10 dBu
• Input Impedance: INPUT: 1 M ohm, AUX IN: 22 k ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohm or greater
• Recording/Playback
• Maximum Recording Time: Approximately 3 hours
• Maximum Phrase Memory: 99 phrases
• Number of tracks: 1
• Data Format: WAV (44.1 kHz, 16-bit linear, stereo)
• Rhythm Type: Hi-Hat, Kick
• USB Interface: Hi-Speed USB mass storage device class
• Controls: Pedal switch, LOOP OUTPUT knob, RHYTHM OUTPUT knob, DOWN button, UP button, WRITE button, RHYTHM ON/OFF button, TAP TEMPO button
• Indicators: REC, PLAY (DUB) indicator
• Display: 7 segments, 2 characters (LED)

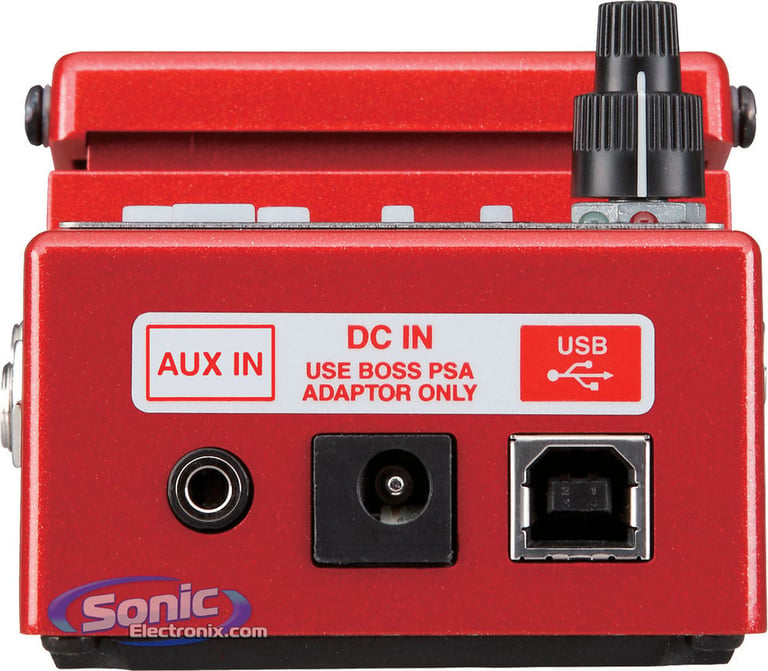

• Connectors: INPUT A Jack: 1/4", INPUT B Jack: 1/4", AUX IN Jack: Stereo miniature OUTPUT A Jack: 1/4", OUTPUT B Jack: 1/4", STOP/MEMORY SHIFT Jack: 1/4" TRS, USB Connector, DC IN Jack (DC 9V)
• Power Supply: DC 9V: Alkaline battery (9V, 6LR61)
• Current Draw: 70 mA (DC 9V)
• Expected battery life under continuous use: 9V Battery: Approx. 3 hours
• Included Accessories: Owner's Manual, Leaflets, Alkaline battery 9V already installed
• Options (sold separately): AC Adaptor (PSA series), Footswitch (FS-5U, FS-6)
• Dimensions: 2-7/8"W x 5-1/8"D x 2-3/8"H
