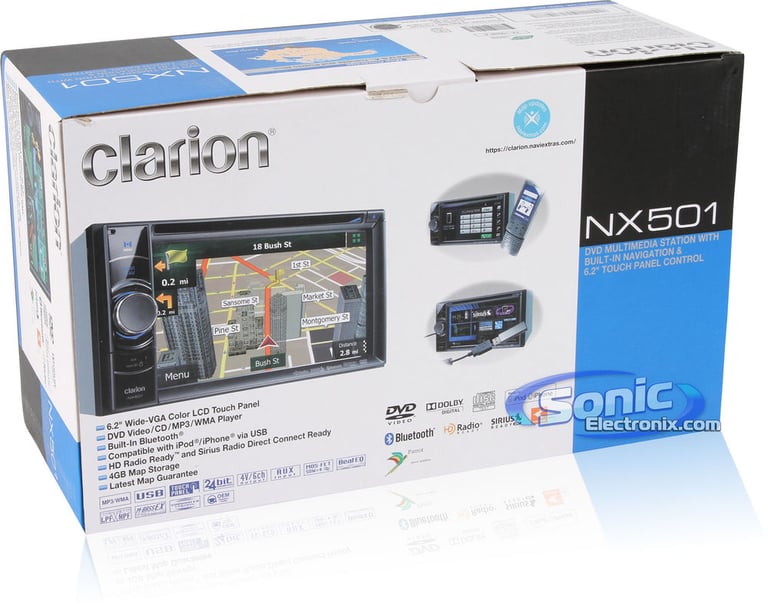

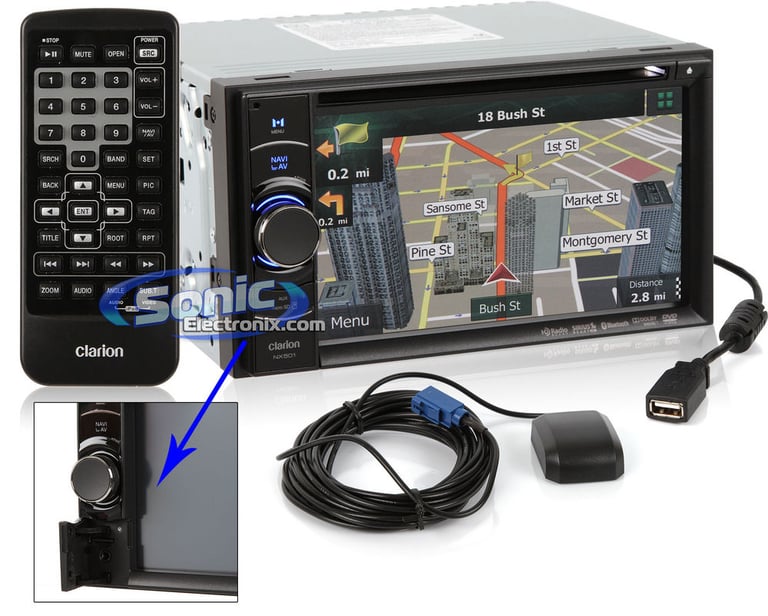

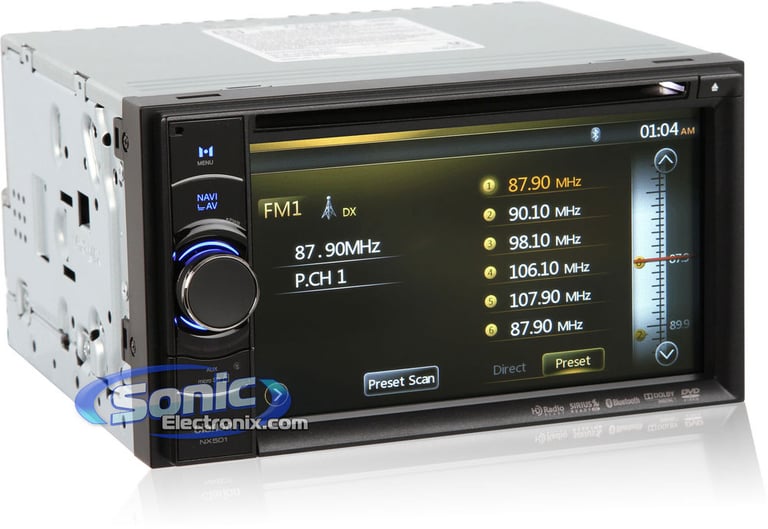

Clarion NX501 R/B

In-Dash Double DIN 6.2" LCD Touchscreen DVD Receiver w/ Built-in Navigation and Bluetooth

Clarion
Shop all Clarion
Product videos
highlight-star-icon

In-dash Multimedia Receiver • 6.2" Full-Color LCD Touchscreen display • Built-in Navigation • Built-in Bluetooth • iPod Ready • 3 Sets of 2V Preamp Outputs • 5.1 Dolby Digital Surround • 12 Million POI

Learn more about the LS-nx501-RB

We apologize

This item has been discontinued

Product Highlights


In-dash Multimedia Receiver • 6.2" Full-Color LCD Touchscreen display • Built-in Navigation • Built-in Bluetooth • iPod Ready • 3 Sets of 2V Preamp Outputs • 5.1 Dolby Digital Surround • 12 Million POI

Description


Clarion brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.










General Features:

  • In-dash AM/FM, DVD, CD, MP3, WMA player with Built-in Navigation
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • Large fixed face with rotary knob and buttons on the left
  • 6.2" Full-Color LCD Touchscreen display

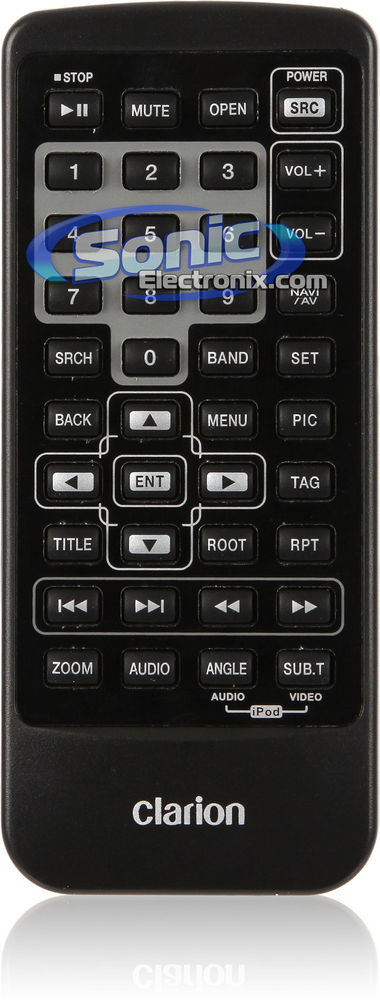

  • Wireless remote control included
  • Blue button lighting
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 19 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 90-day SonicElectronix.com warranty

Playback and Audio Features:

  • Playback of DVD, DVD-R, DVD-RW, DVD+R, DVD+RW, CD, CD-R, CD-RW, CD-DA, MP3, and WMA
  • Tuner with 18FM/6AM presets
  • 5.1 Channel Dolby Digital surround
  • BeatEQ 3-band parametric equalizer with 5 selectable tone curves (4 Preset, 1 User)
  • 24-bit digital-to-analog converter
  • Balance and Fader control
  • Subwoofer phase control
  • Subwoofer volume control
  • High pass/Low Pass filters
  • Amp cancel feature
  • Magna Bass EX Dynamic Bass Enhancement

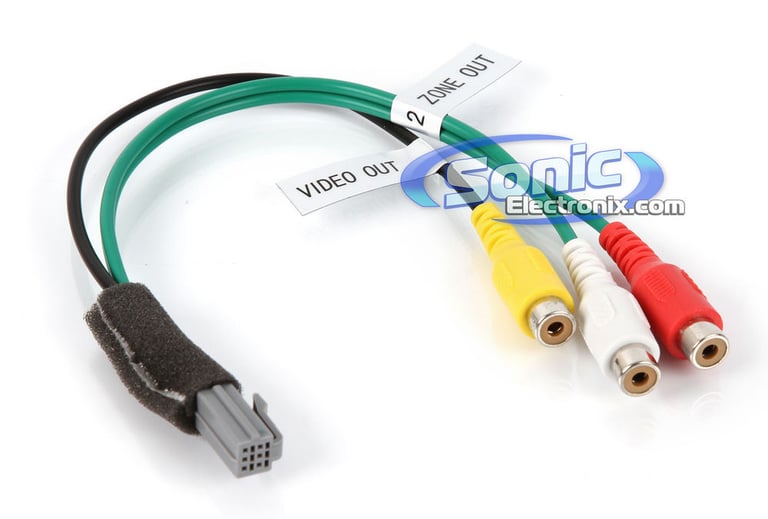

  • 2-Zone Entertainment

Expandability Options:

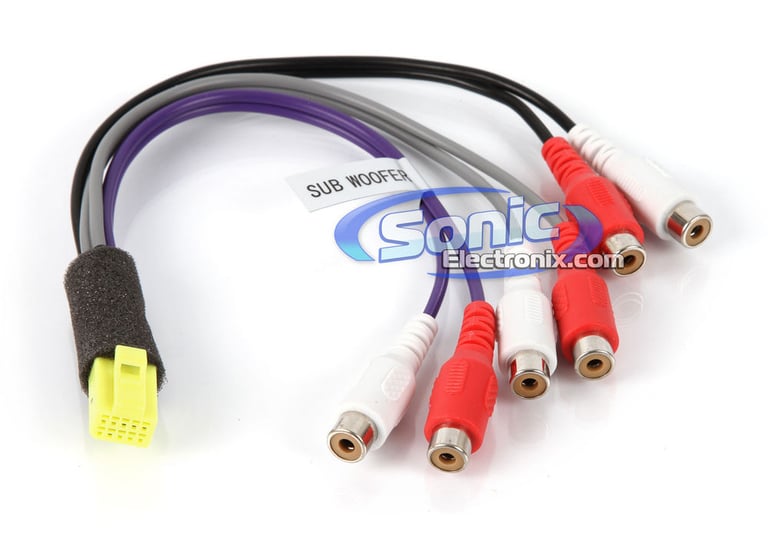

  • 3 Sets of 4V preamp outputs (front, rear, and subwoofer)

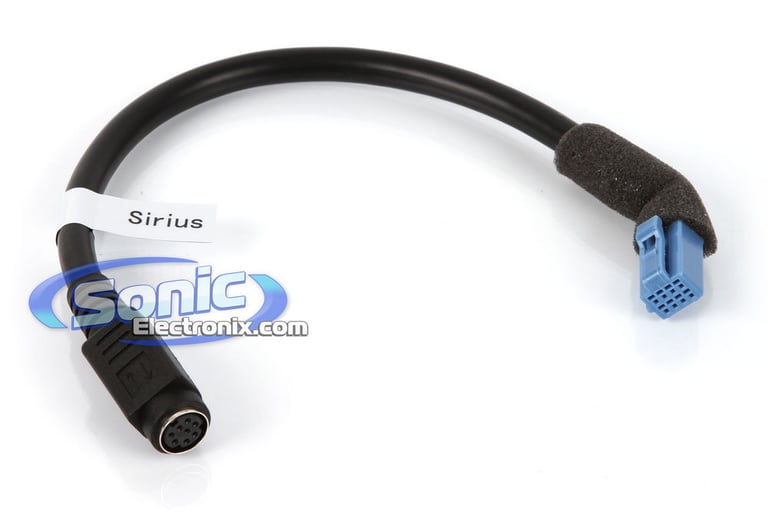

  • SIRIUS Direct Connect Satellite Radio Ready: SIRIUS SCC1 required and sold separately
  • iPod Ready:
  • Built-in Bluetooth Technology for handsfree conversation

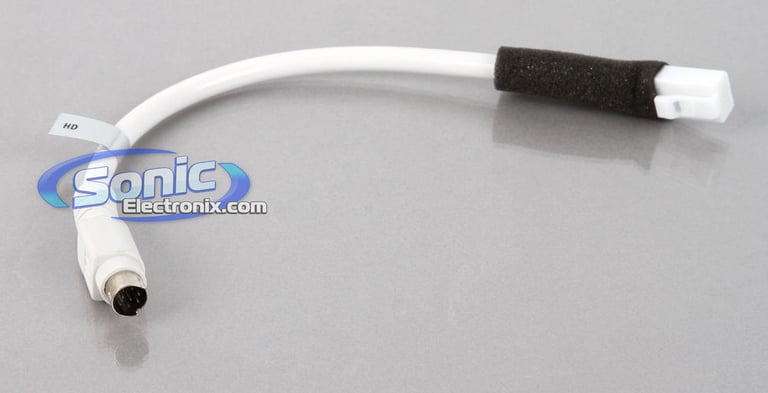

  • HD Radio Ready: Clarion THD400 required and sold separately

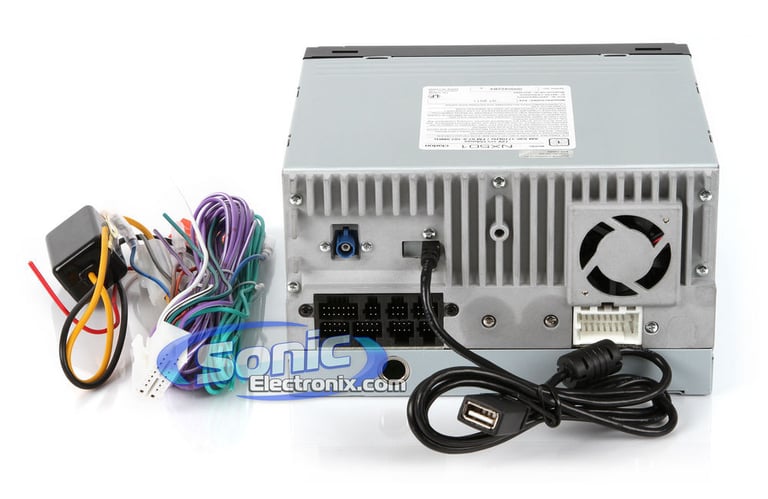

  • Rear USB Input
  • Rearview camera RCA Input

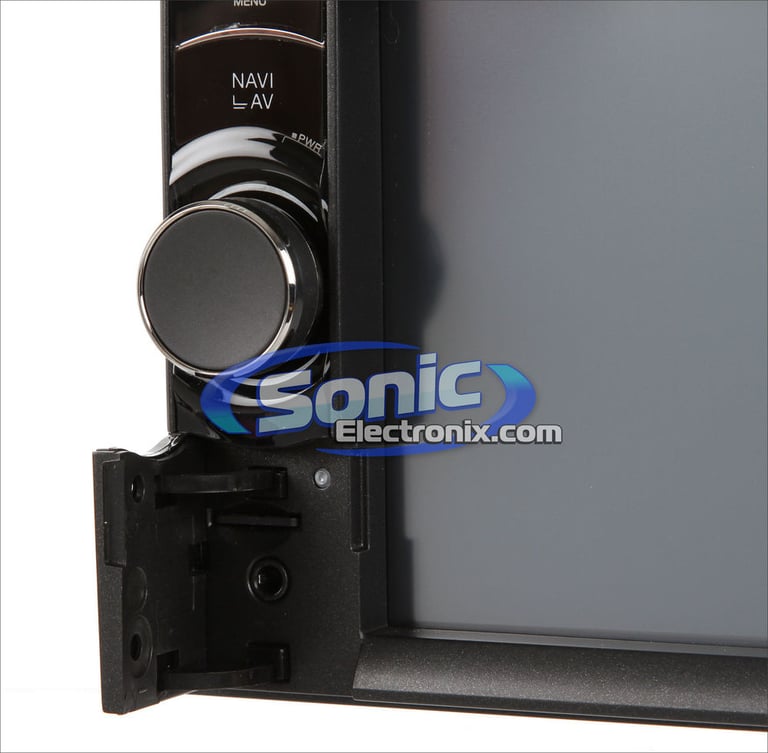

  • Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.

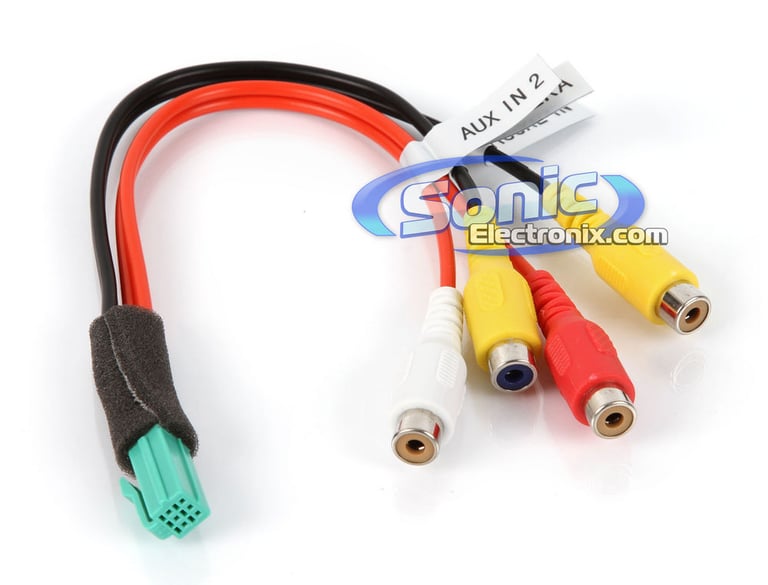

  • 1 Rear Auxiliary A/V Input

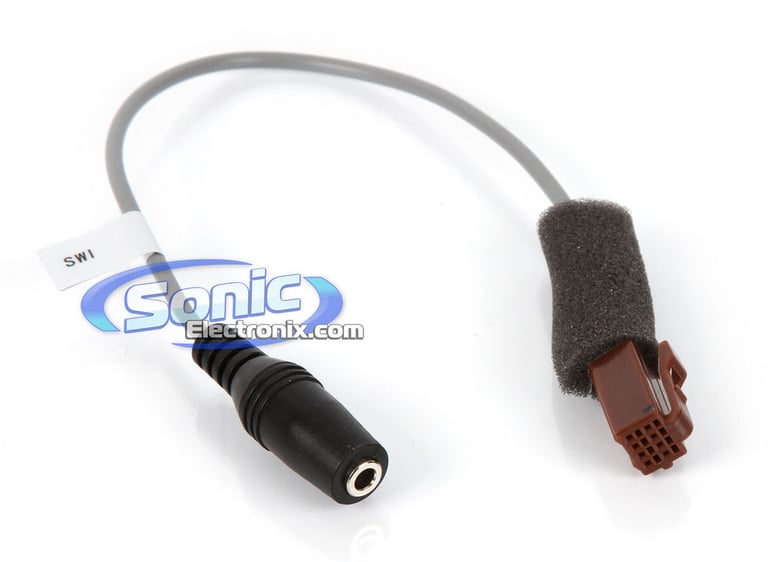

  • Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately

Navigation Features:

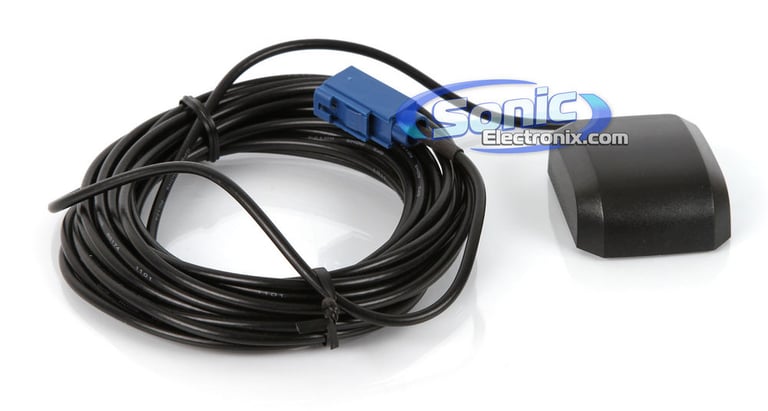

  • Built-in SiRFprima GPS Receiver
  • TeleAtlas Mapping Coverage of US 50 States, Canada, and Puerto Rico on Preloaded Micro SD Card
  • Simple Destination Input
  • Turn-by-turn voice prompts
  • Selectable route guidance
  • 15 Million points-of-interest including national parks and gas stations
  • 4GB Map Storage
  • Text to speech for street announcements

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.1+EDR certified
  • Supports A2DP audio streaming
  • Bluetooth profiles supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • HSP: Headset Profile enables the a Bluetooth headset to connect to a compatible mobile phone
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Works with most Bluetooth enabled cell phones
  • Includes a built-in microphone for convenient talking

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Security Code
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
19 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
BeatEQ 3-band parametric equalizer with 5 selectable tone curves (4 Preset, 1 User)
Display Type
TFT-LCD Display
Touchscreen
Yes
Display Adjustment
Brightness
Expandability Features
Inputs
Audio/Video (Rear)
Auxiliary (Front)
Auxiliary (Rear)
Backup Camera
Outputs
Audio/Video (RCA)
Memory Card Slot
microSD
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Navigation Features
Map Database
Tele Atlas
Maps
Complete 50 USA
Canada
Puerto Rico
Map Dimensional Display
2D
3D
Points of Interest
15 Million
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

NX501-RB

Weight:

9.25lbs

Internal SKU:

LS-nx501-RB

Internal Product ID:

42647

Product and How-to Videos


Customer Ratings & Reviews


Clarion NX501 R/B thumbnail image

5 star
33%
4 star
67%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.4
Features
4.7
Design
4.7
Usability
4.4

Customer Reviews

Sort by:

Loading...

Excellent Buy, Looks and works like its brand new! Very happy!

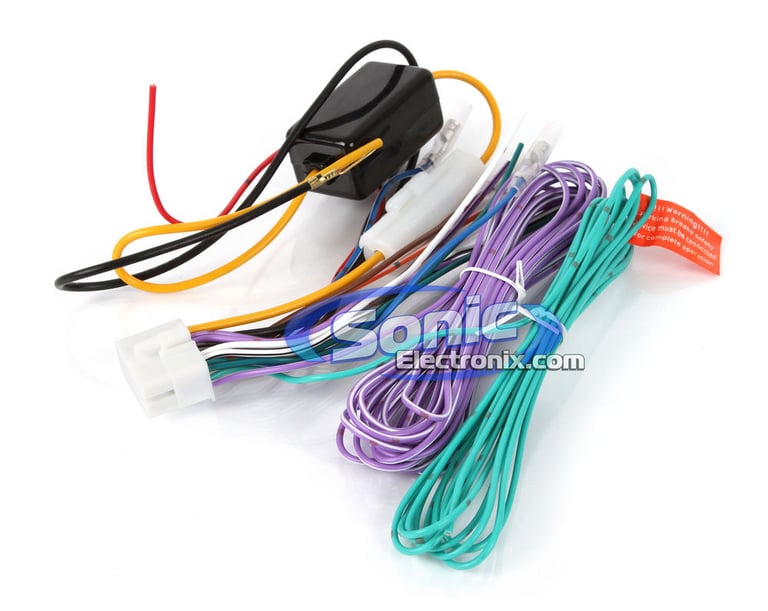

I was a little affraid to buy a refurbished model but went ahead anyway because of the warranty it had and figured if it wasn't what I hoped then I can just return it. Well I got the package and everything is packaged very well and most parts you get like wires and everything are new! The unit itself is flawless! You can't tell it was ever even touched. So right off I was very pleased.

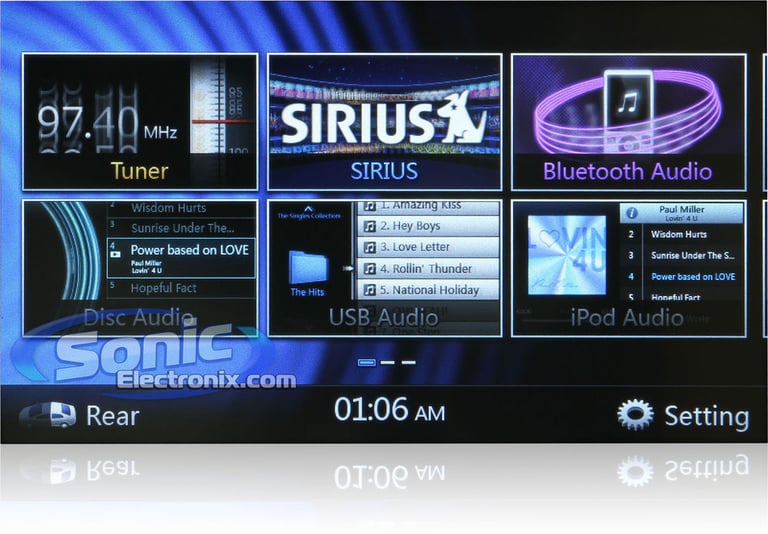

Install was pretty simple and fit well. The unit works like a dream. I love the interface and home screens. Love how you can swipe it like my cell phone screen. Plus you can move the icons where you want them if you hold them down. Also you can change the background from 10 different ones or one of your own. It's nice to have a unit that has everything in one. Navigation works well and directs me and locates me everytime.

Bluetooth is great, not only can you get your calls plus see all your contacts and missed calls etc. on the screen but you can also steam your music from your phone, even Pandora or other services you have! That was great!

I don't have a backup camera yet but it's on its way. I did however run the camera reverse wire to the reverse bulb in my car and it does switch to the camera when I put it in reverse, so it would work when I put the camera in so thats good. :)

Picture quality is great. Looks fantastic with DVDs or with a USB drive connected. I did install a switch to get past the saftey brake wire. It's pretty easy. The brake wire just needs to be grounded but since the unit has to see the actual change in ground (can't be constantly grounded) you have to put a switch in. Just connect the green wire to the positive end of the switch and just branch off the ground for the unit to the switch to ground it. Tada! Now when it comes up that the picture is disabled just flip the switch and the picture comes on. Again, if you turn the unit or car off you'll have to just flip the switch to off and then on again cause it requires to see the change in ground but not too hard to do!

Again, this unit is great. Don't be affraid of buying a refurbished item. I would buy another! One thing great is that you know that it's been tested to make sure everything works! Can't say that about all new items, plus any software would have been updated as well! So its a win win. Very Very pleased with the product!

By Richard on January 29, 2012

6 found this helpful


All in one Radio,NAV, DVD radio

I bought this radio refurbished. Has been a good radio so far.

One thing I find odd is, as soon as you start your car and try to go to navigation, it will take a while before the map shows. Have not used all the features yet. Would recommend it.

By Alf on September 18, 2013

3 found this helpful


I'm glad I bought it.

Installed this in my '03 Miata. No problems. Everything works well. GPS is nicer that my Garmin or TomTom and is full of features. Sound quality is very good. It won't blow the windows out but does not distort at full volume. I bought a refurbished one but you would not know it from the packaging or condition. It would be nice if the USB was in the front face instead of wired to the back. There was enough wire to run it to my console. Love the back-up camera (paid >$20 for one). This unit is very cool. I will never be able to go back to a standard unit.

By Ray on March 13, 2012

3 found this helpful
