Refurbished - Refurbished Alpine PDX-M12 Class D Monoblock Car Power Amplifier

Shop all Alpine

by Alpine

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

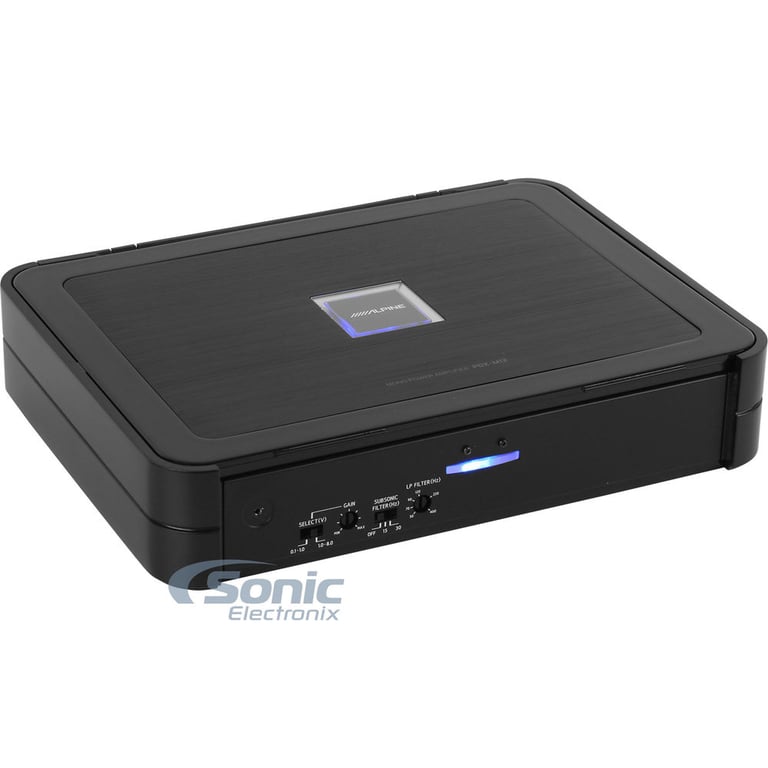

Alpine PDX-M12 R/B Image 1 — Alpine PDX-M12 R/B

Alpine PDX-M12 R/B Image 2 — Alpine PDX-M12 R/B

Alpine PDX-M12 R/B Image 3 — Alpine PDX-M12 R/B

Alpine PDX-M12 R/B Image 4 — Alpine PDX-M12 R/B

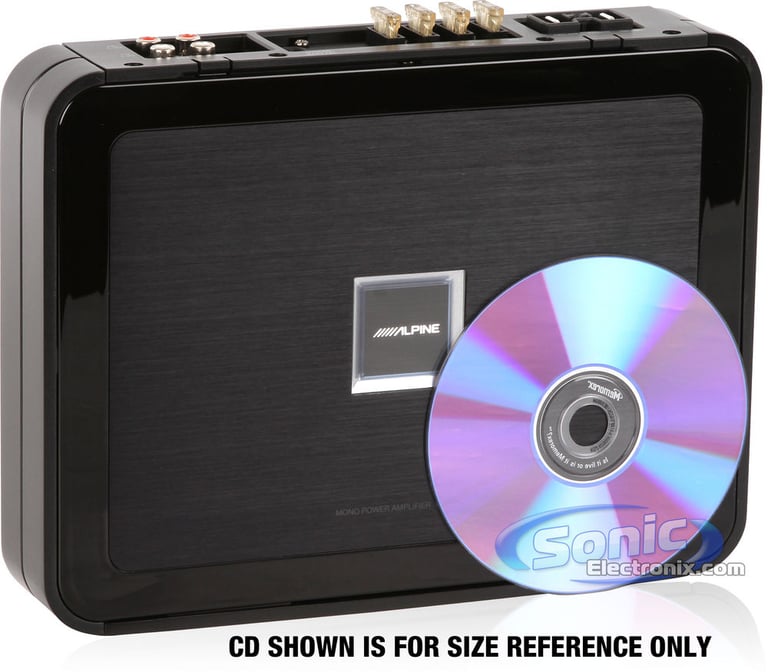

Alpine PDX-M12 R/B Image 5 — Alpine PDX-M12 R/B

Alpine PDX-M12 R/B Image 6 — Alpine PDX-M12 R/B

Alpine PDX-M12 R/B Image 7 — Alpine PDX-M12 R/B

Alpine PDX-M12 R/B Image 8 — Alpine PDX-M12 R/B

Alpine PDX-M12 R/B Image 9 — Alpine PDX-M12 R/B

Alpine PDX-M12 R/B Image 10 — Alpine PDX-M12 R/B

Product videos

Product highlights

PDX Series 1-Channel Car Amplifier • Class D • 1200 Watts RMS • 1200 Watts x 1 Chan. RMS • Variable Low-Pass Filter • Blue LED Power/Status Indicator • RCA Pre-out Jacks • Compact Size

Learn more about the LS-pdxm12-RB

Product Highlights

PDX Series 1-Channel Car Amplifier • Class D • 1200 Watts RMS • 1200 Watts x 1 Chan. RMS • Variable Low-Pass Filter • Blue LED Power/Status Indicator • RCA Pre-out Jacks • Compact Size

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

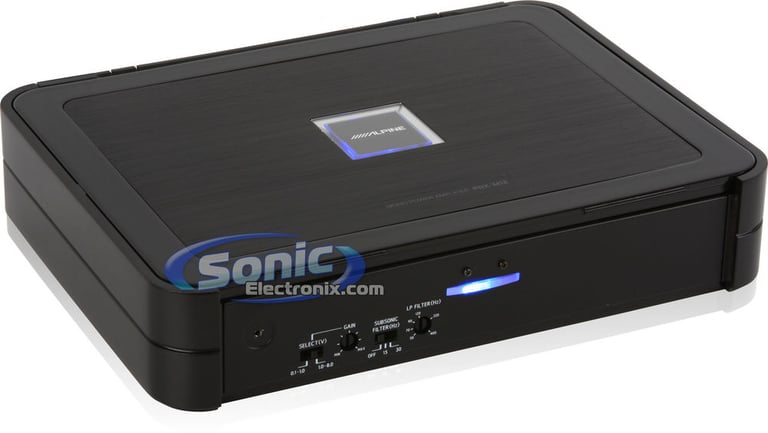

PDX Series 1-Channel Class D Car Amplifier
Item Condition: Refurbished
RMS Power Rating (@ 14.4V):
- 4 ohm: 1200 watts x 1 chan.
- 2 ohm: 1200 watts x 1 chan.
Total RMS output: 1200 watts
DC-DC PWM Power supply with STAR circuitry
Blue LED power/status indicator conveniently located on the top
Discrete pre-amp stage
6-Layer glass epoxy PC board
Automatic over-current protection system
Soft start turn-on prevent initial system popping
1-Channel monoblock operation
1 Set of pre-amp outputs
System Protection circuitry keeps the amp running properly
Large aluminum alloy heatsink for extreme heat dissipation

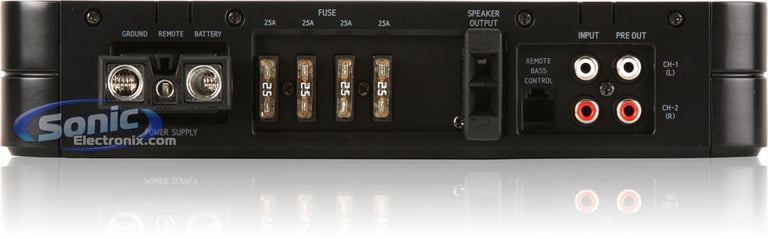

Gold-plated RCA level inputs

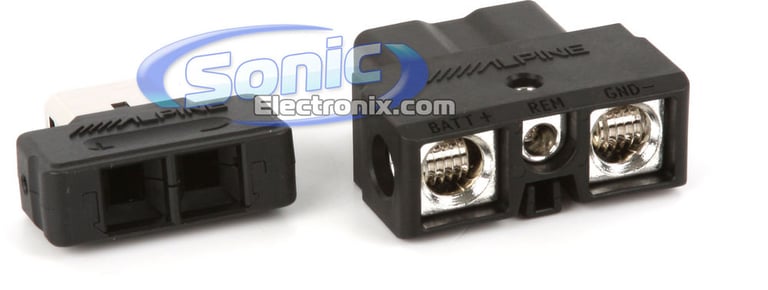

Proprietary screw terminals ensure a solid and secure connection
Input sensitivity: 0.1-8 V with input level

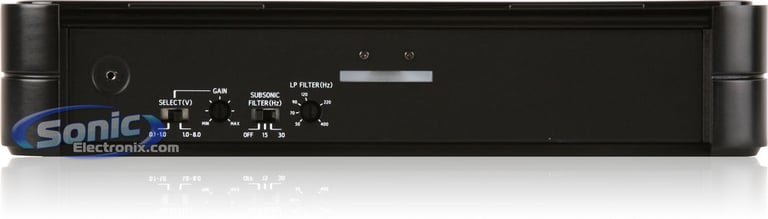

Variable low-pass filter (50-400 Hz, 24 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 5-100,000 Hz
Dimensions: 7-9/16"D x 10-1/8"W x 2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.

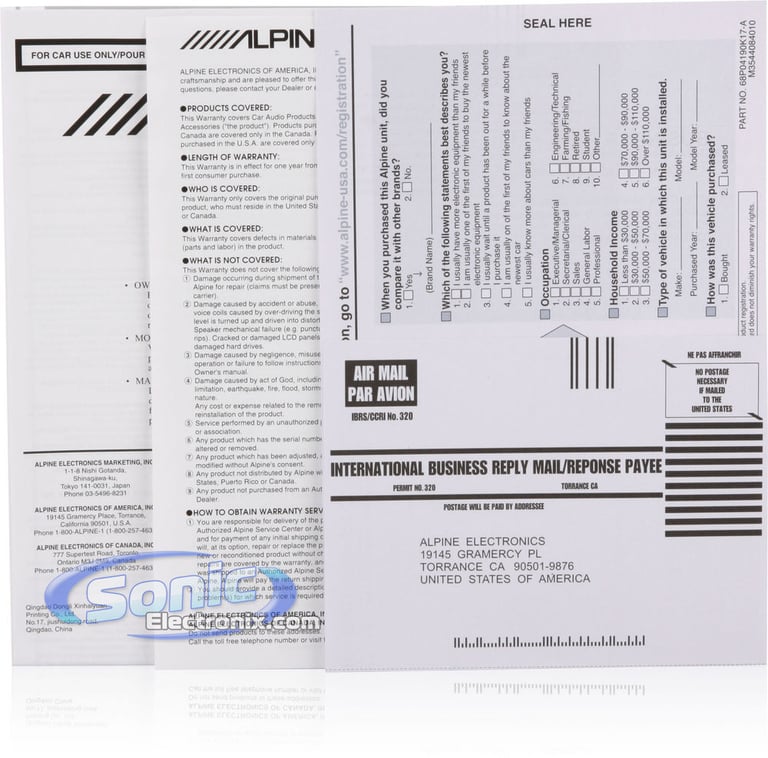

90 Day Sonic Electronix warranty

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

1200 watts x 1 channel

RMS Power @ 2 ohms

1200 watts x 1 channel

RMS Power @ 1 ohm

Not Stable

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.004%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 400 Hz

Signal-to-Noise Ratio

92 dB

Remote bass/level controller

Fuse Rating

25A x 4

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		5
Design		5
Usability		5

Customer Reviews

Sort by:

amazing

This is an amazing amp! I currently own one of these. It has a lot of power but barely makes my volts drop in my blazer on bass drops. I would recommend this amp to anyone. Yeah its a little expensive but worth every penny!!! Was running 2 jl13w3v3's which thumped nice am now running 2 jl13w6v2's which it has plenty of power for. I am thinking bout getting a second one and they stack with no problem which is another plus.

By erik on February 28, 2012
