Akai Pro EIE Pro

Electromusic Interface Expander - Audio/MIDI Interface w/ USB Hub, Analog-style VU meters, & Ableton Live Lite

Akai Pro
Shop all Akai Pro
highlight-star-icon

Electromusic Interface Expander • 24-Bit Recording Resolution • Four XLR-1/4" Combo Jacks • Two Classic High-Quality VU Level Meters • Three Additional USB Ports • Table-Top Solid Construction

Learn more about the eiepro

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Description


Akai Pro brand icon

Authorized dealer

Akai Pro EIE Electromusic Interface Expander

All your music gear in perfect harmony. The EIE I/O is a tabletop USB audio interface perfectly tailored for your project and portable studio setups. This four-in, four-out (4x4) device enables you on Mac and PC-based systems to record up to 24-bit resolution into virtually any DAW, recording or performance software. The EIE I/O also houses three convenient USB inputs, in addition to its main USB port, enabling you to connect controllers, hard drives or any other peripheral when native ports on a computer may be limited. The compact recording interface contains high-quality components including nickel-plated input jacks, analog-style VU meters and a rugged aluminum casing for a powerful, professional, portable audio solution.

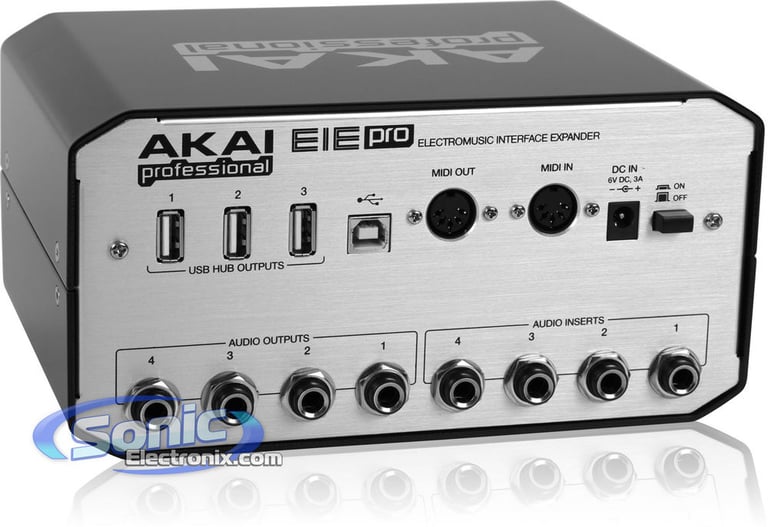

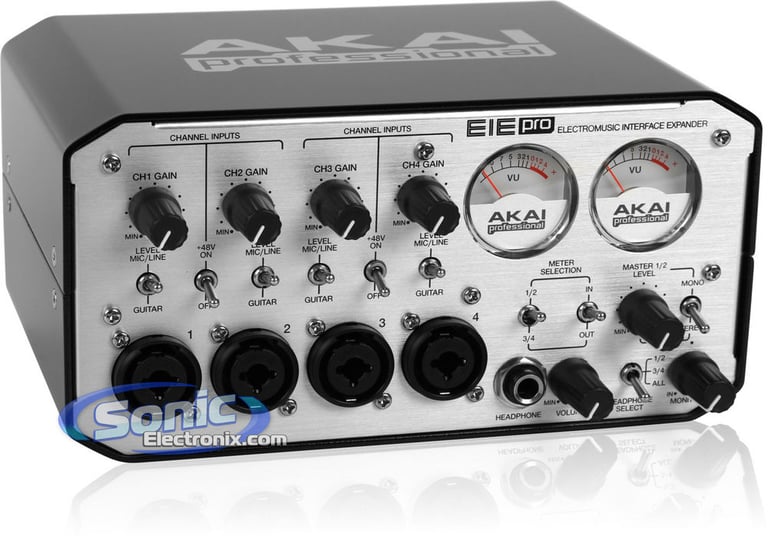

Each channel of the EIE I/O has a XLR-¼” combo jack, dedicated sturdy, gain-pots and Mic/Line/Guitar switches. The EIE I/O features four discrete-design preamplifiers with 48V phantom power for use with virtually any microphone. Individual ¼” Nickel-plated jacks found on the back of EIE I/O provide you with channel inserts for processing audio signals externally. You can monitor sessions on multiple sets of studio monitors using the four ¼” balanced outputs, which are also Nickel-plated. Both pairs of outputs can be monitored visually with the high-quality, analog VU meters providing classic features with modern style. For remote tracking and alternative playback, the EIE I/O has a 1/4” TRS headphone output. High quality analog-to-digital and digital-to-analog converters ensure that every detail of your session or performance gets captured and played back faithfully.

The EIE I/O sends and receives four audio channels on a single USB cable for simple, universal interface to a computer. The three additional USB ports allow EIE I/O to function as a hub as well, bridging other MIDI controllers and hard-drives to the computer. The USB interface is class compliant for plug-and-play operation with Mac OS X and Windows XP, Vista and 7. The EIE I/O features traditional MIDI In and Out jacks for playing and controlling software with keyboard and pad controllers, workstations, and other MIDI-compatible instruments.


What's In The Box?

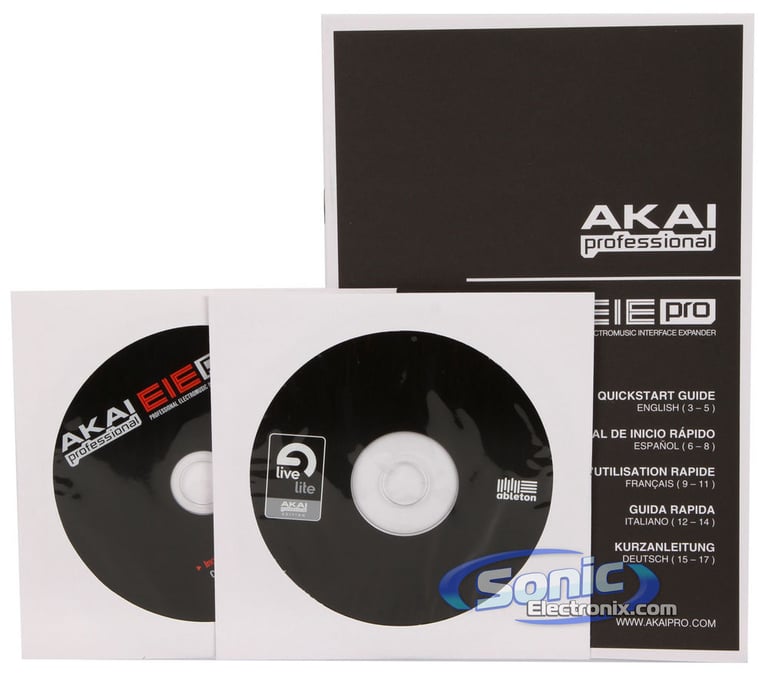

  1. (1) Quickstart Guide
  2. (1) EIE Pro Unit

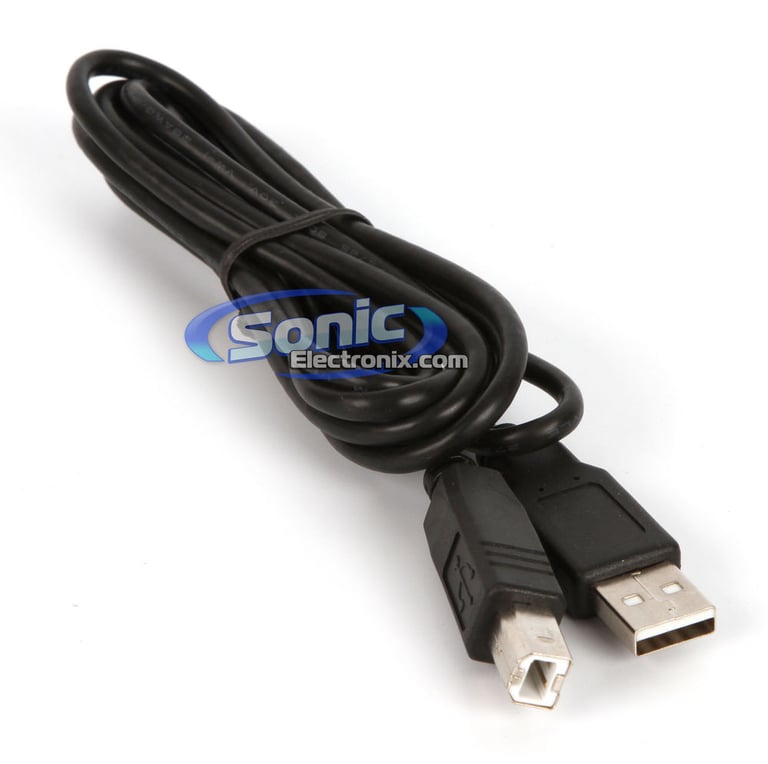

  3. (1) USB Cable

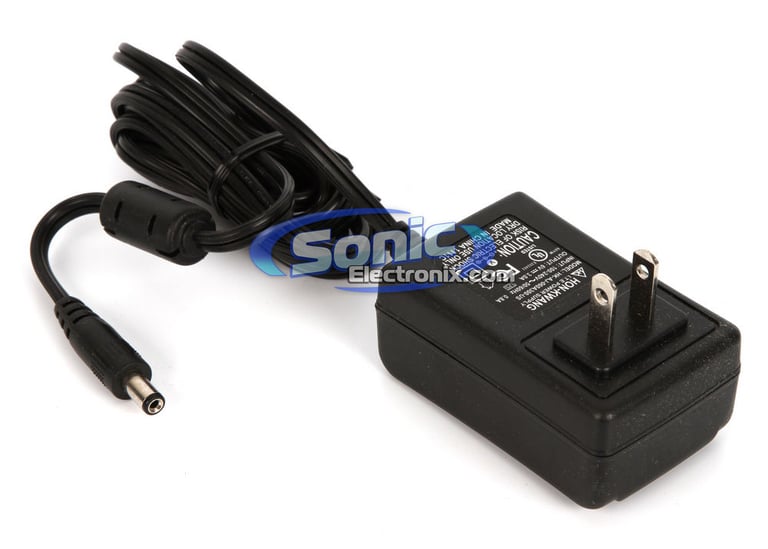

  4. (1) Power Adapter
  5. (1) Software CD

Product Features

  • Electromusic Interface Expander
  • USB audio interface with up to 24-bit recording resolution
  • Four XLR-1/4" combo jacks with phantom power and gain control
  • Four nickle-plated 1/4" outputs for two separate monitoring systems
  • Two classic, high-quality VU level meters with switchable sources
  • Three additional USB ports for connecting other devices through to a computer
  • 5 Pin DIN MIDI Interface
  • Headphone output with switchable source and direct monitoring dial
  • Table-top, solid construction with a great-looking, classic design
  • 1-year Manufacturer's warranty

Minimum System Requirements:

  • Windows:
    • CPU: Pentium III 450 MHz Processor
    • RAM: 128 MB
    • Available USB 2.0 Port
    • Windows XP (SP2 Installed)
  • Mac:
    • Any Apple computer with native USB support
    • RAM: 128 MB
    • Available USB 2.0 Port
    • Mac OS X "Jaguar" version 10.2 or later

Specifications:

  • USB Audio Interface:
    • Sampling Rates: 44.1/48/88.2/96 kHz
    • Resolution: 24-bit
    • Interface: USB 2.0
  • Analog Inputs:
    • Frequency Response: 20 Hz to 21 kHz (± 0.05dB
    • Dynamic Range (@ -60dB input): 96dB, A-weighted
    • S/N: 96dB, A-weighted
    • THD + N: 0.001% @ 1 kHz / -0.1dBFS
    • Crosstalk: 93dB @ 1 kHz / -0.1dBFS
    • Preamp THD + N: 0.018%
    • Mic Gain (MIC): +9dB to +51.5dB
    • Mic Impedance: 6.3 k ohm
    • Line Gain: -10.5dB to +41dB
    • Line Impedance: 55 k ohm
    • Guitar Gain: +1.6dB to 53.1dB
    • Guitar Impedance: 102 k ohm
    • Input Sensitivity: 0dBFS @ +6dBV
    • Input Impedance: 10 k ohm
  • Analog Outputs:
    • Output Level: +6dBV @ 0dBFS
    • Frequency Response: 20 Hz to 20 kHz
    • Dynamic Range (@-60dB input): 98dB, A-weighted
    • S/N: -100dB, A-weighted
    • THD + N: 0.006% @ 1 kHz / 0dBFS
    • Crosstalk: 97dB @ 1 kHz / 0dBFS
  • Headphones:
    • 32 ohm load:
      • Unclipped Output Power: 10mW @ 1 kHz
      • Frequency Response: 20 Hz to 20 kHz (± 0.25dB)
      • S/N: -100dB, A-weighted
      • THD + N: 0.007% @ 1 kHz / 0dBFS
      • Crosstalk: 95dB @ 1 kHz / 0dBFS
    • 600 ohm load:
      • Unclipped Output Power: 3.4mW @ 1 kHz
      • Frequency Response: 20 Hz to 20 kHz (± 0.25dB)
      • S/N: -100dB, A-weighted
      • THD + N: 0.003% @ 1 kHz / 0dBFS
      • Crosstalk: 95dB @ 1 kHz / 0dBFS
