Roland CM-110

Product Features:

• Cube High-Quality 2.1 Monitor System
• High-quality sound w/ full frequency response
• Custom-made speakers with protection circuitry to handle input with wide dynamic range or continuous high levels (synthesizers, V-Drums®, etc.)
• Flexible connectivity to handle electronic musical instruments such as V-Drums, keyboards, and stage pianos, as well as media-production gear, audio players, and home entertainment systems
• 3-channel multimedia inputs, including digital, stereo miniature phone type, and RCA phono type
• External mixer can be connected to the balanced input (XLR) for input expansion

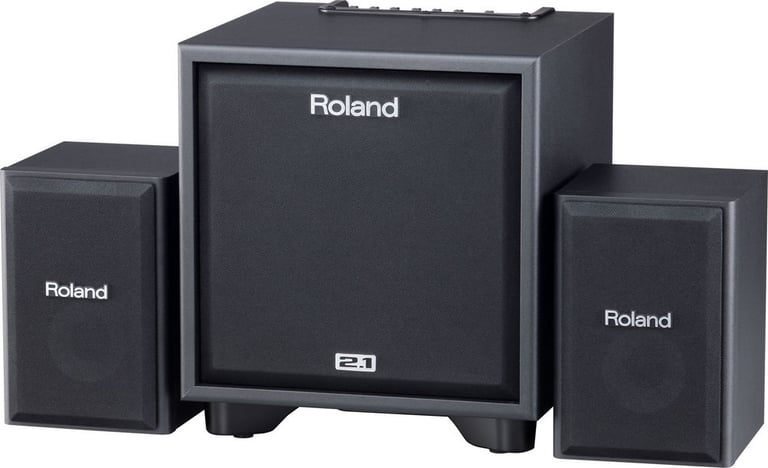

• 100 W package with two 25 W satellites and a companion 50 W sub
• Also found as: CM110, CM/110, CM 110
• Authorized Internet Dealer
• 1 Year Manufacturer's Warranty

Specifications:

• Rated Power Output: 100W (Main Unit 50W + Satellite Speaker 25W x 2)
• Nominal Input Level (1 kHz):
• CH 1 (INSTRUMENT): -20 dBu
• CH 2 (LINE): -10 dBu
• BALANCED INPUT: +4 dBu
• Input Impedance:
• CH1 (INSTRUMENT): 10 k ohm
• CH2 (LINE): 10 k ohm
• BALANCED INPUT: 10 k ohm
• Digital Input (CH 3):
• Format: Conformity with IEC60958
• Sample Rate: 32 kHz to 192 kHz (automatically) (de-emphasis: OFF)
• Word Length: 24-bit
• Speakers:
• Main Unit: 6-1/2" (16 cm)
• Satellite Speaker: 4" (10 cm), 3/4" (2 cm) for each

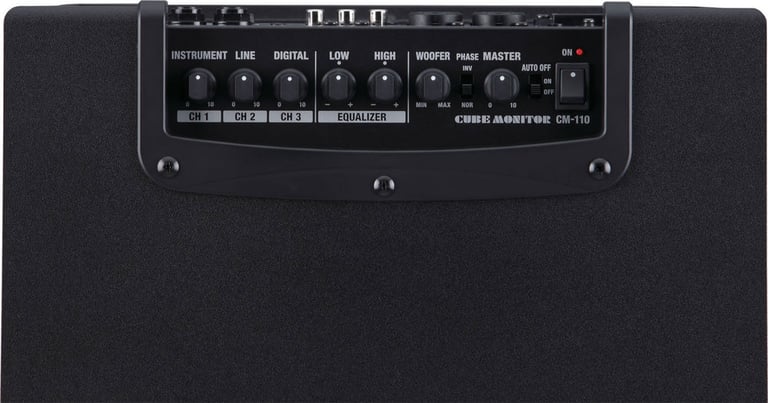

• Controls:
• CH1 [INSTRUMENT] volume knob
• CH2 [LINE] volume knob
• CH3 [DIGITAL] volume knob
• WOOFER volume knob
• PHASE switch
• EQUALIZER [HIGH] knob, [LOW] knob
• MASTER volume knob
• AUTO OFF switch

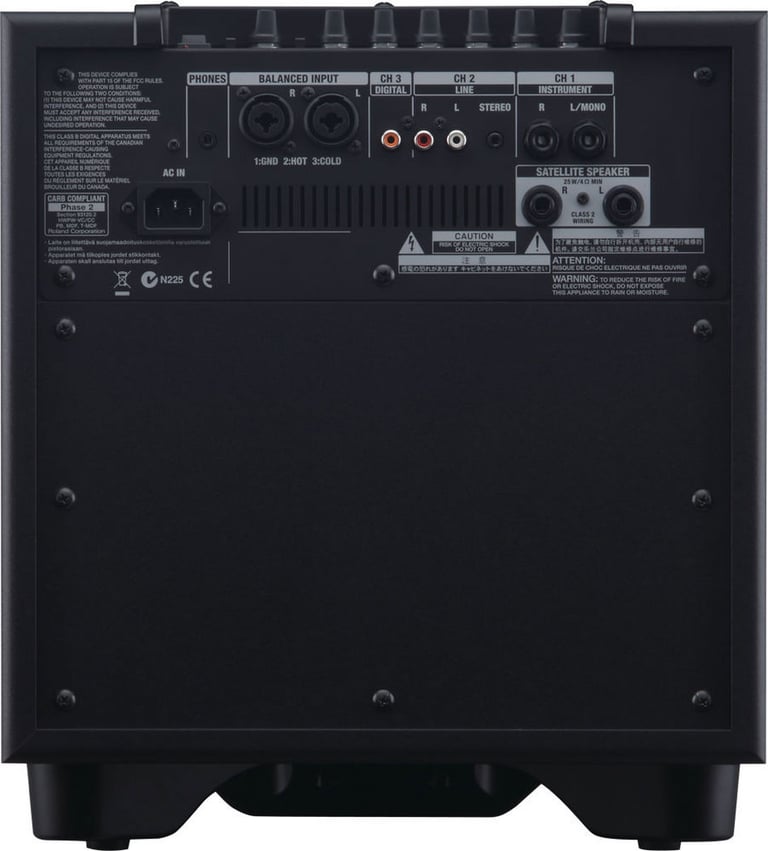

• Connectors:
• CH1 [INSTRUMENT] jacks (L/MONO, R): ¼" phone type
• CH2 [LINE] jacks (L, R, STEREO): RCA phono type, stereo miniature phone type
• CH3 [DIGITAL] jack: S/PDIF coaxial type
• BALANCED INPUT jacks (L, R): (XLR, ¼" TRS phone type)
• PHONES jack: Stereo miniature phone type
• SATELLITE SPEAKER jacks (L, R): (only for dedicated Satellite Speakers)
• AC IN jack
• Power Consumption: 47W

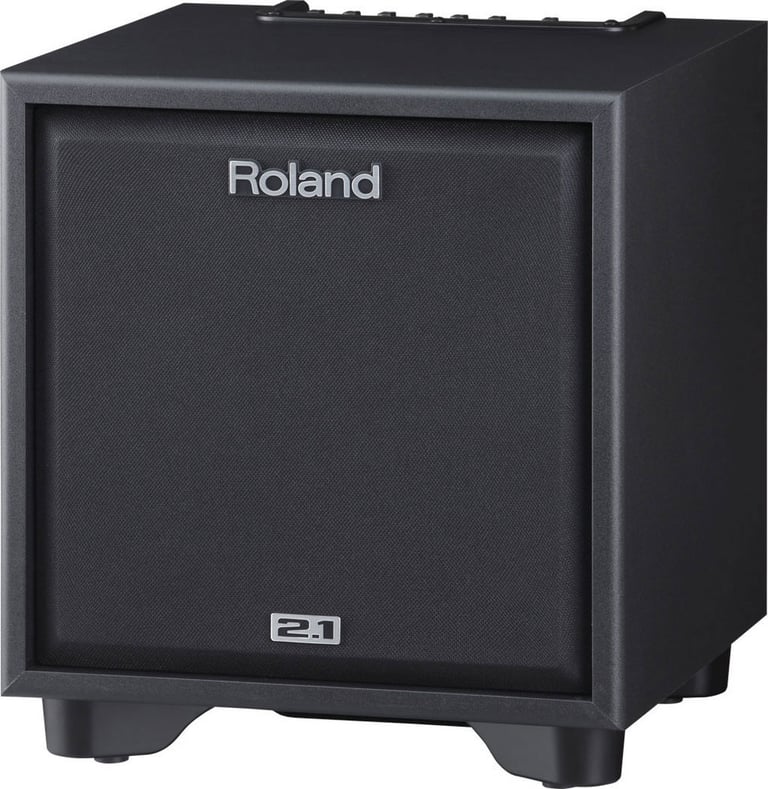

• Size & Weight (Main Unit):
• Width: 13" (330 mm)
• Height: 14-1/2" (368 mm)
• Depth: 12-7/8" (327 mm)
• Weight: 29 lbs. 6 oz. (13.3 kg)

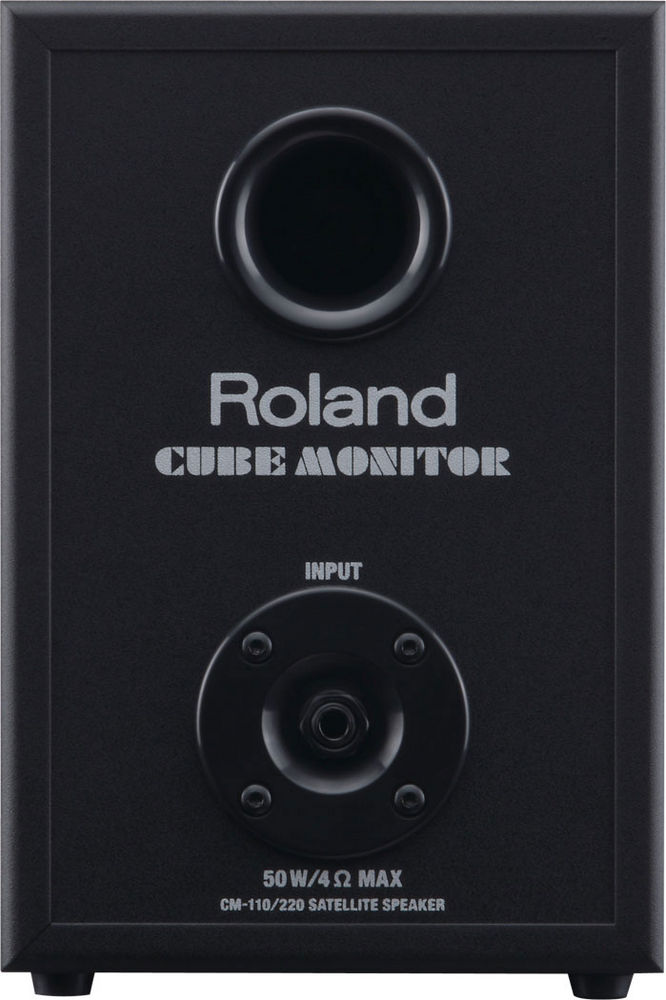

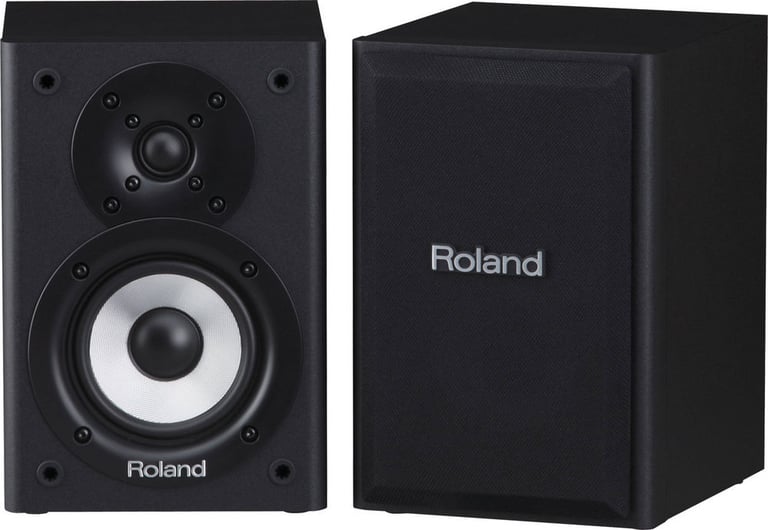

• Size & Weight (Satellite Speaker, for each):
• Width: 6-7/16" (162 mm)
• Height: 9-5/8" (243 mm)
• Depth: 7-13/16" (197 mm)
• Weight: 6 lbs. 14 oz. (3.1 kg)
